Just picked up a sega Naomi universal

[hrvat9]

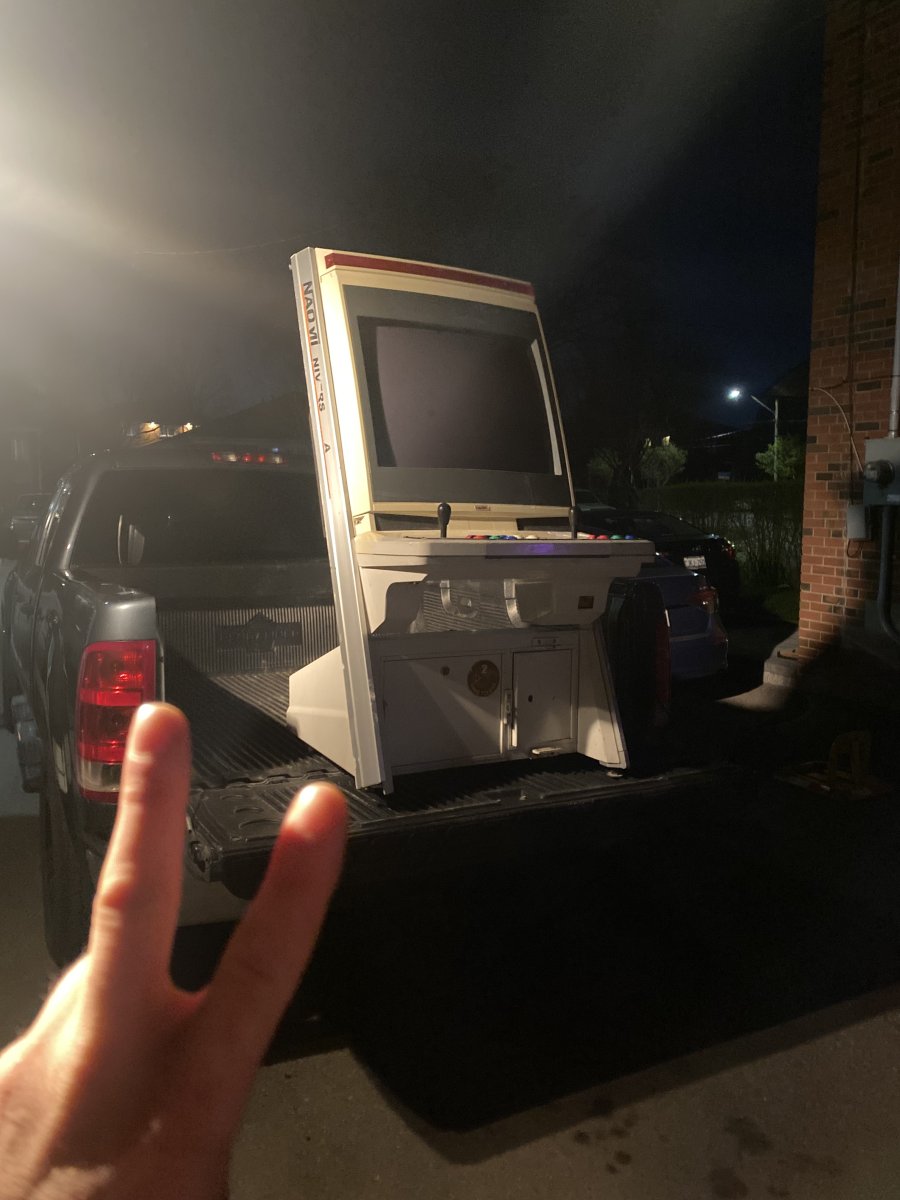

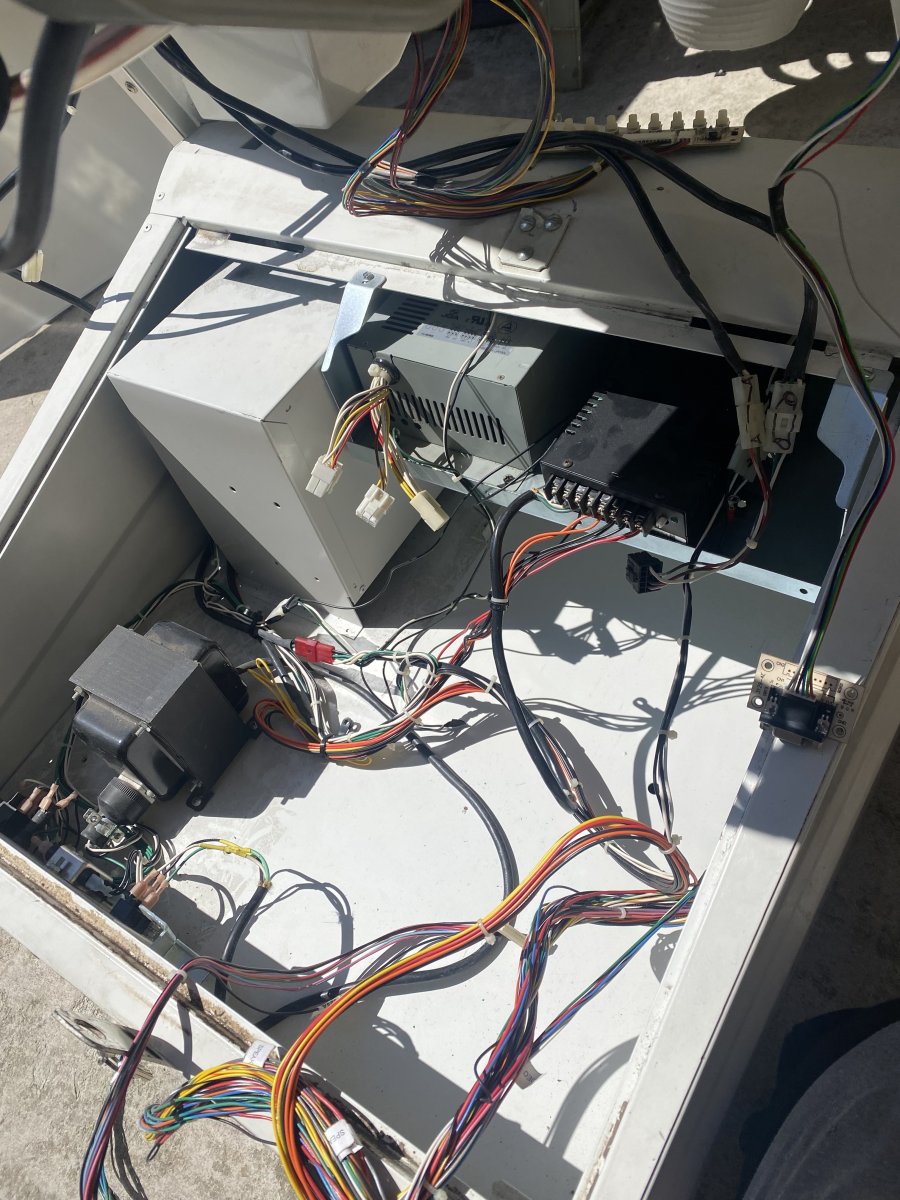

I found this sucker locally and it looks like it was the stand up version that got chopped down ( I see the black marker on the bottom of The legs where it was cut). It has been hacked up with a Jamma harness , some power supply to run the Jamma ( thank god the sun psu is still in there ) and the monitor chassis was swapped with a wei-ya vga chassis at some point. I’m diving in!

So far I need:
-Whole wiring harness
-The sega io board that sits in the control panel
-The board with the red square buttons that also sits where the io board sits
-The whole coin mech
- new Japanese sticks and butttons
- new control panel for these^

Hit me up if you have any of these!



[hrvat9]

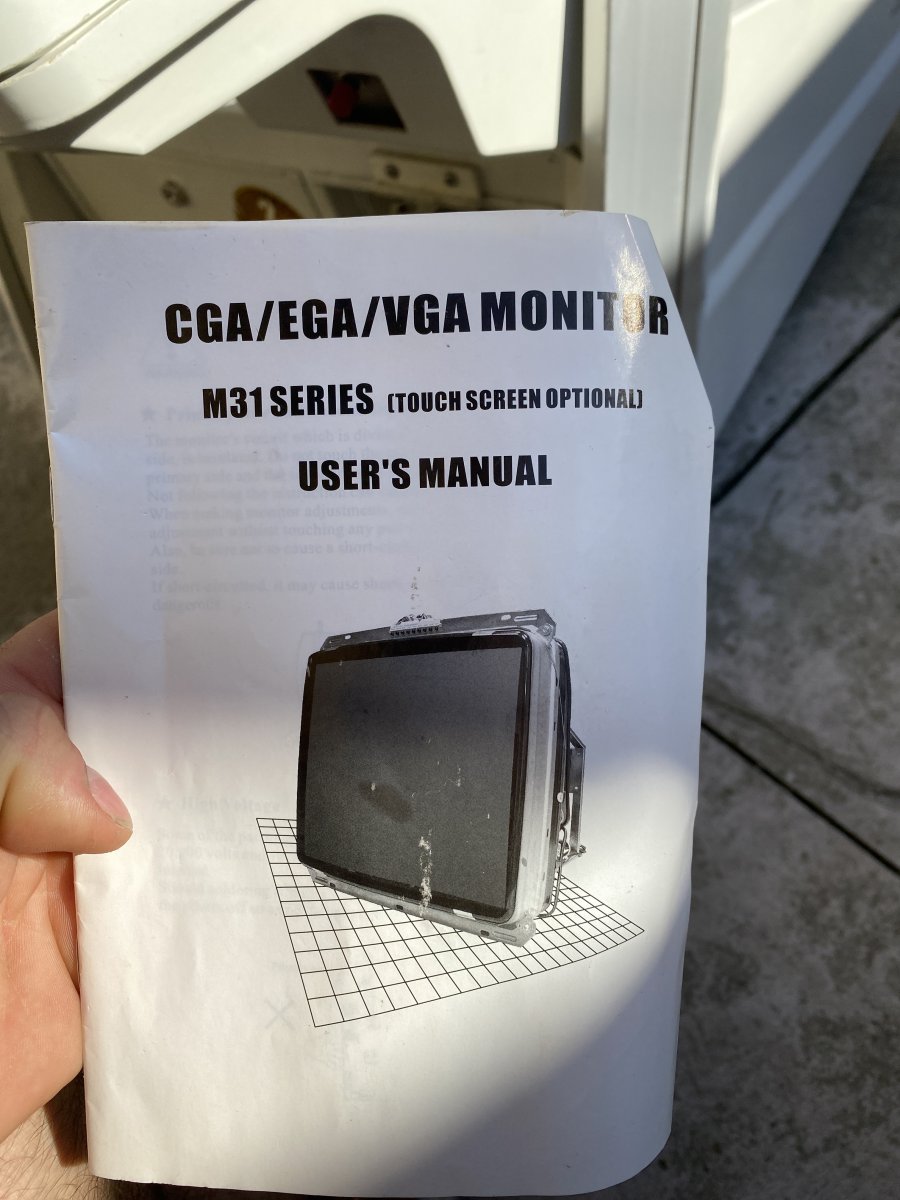

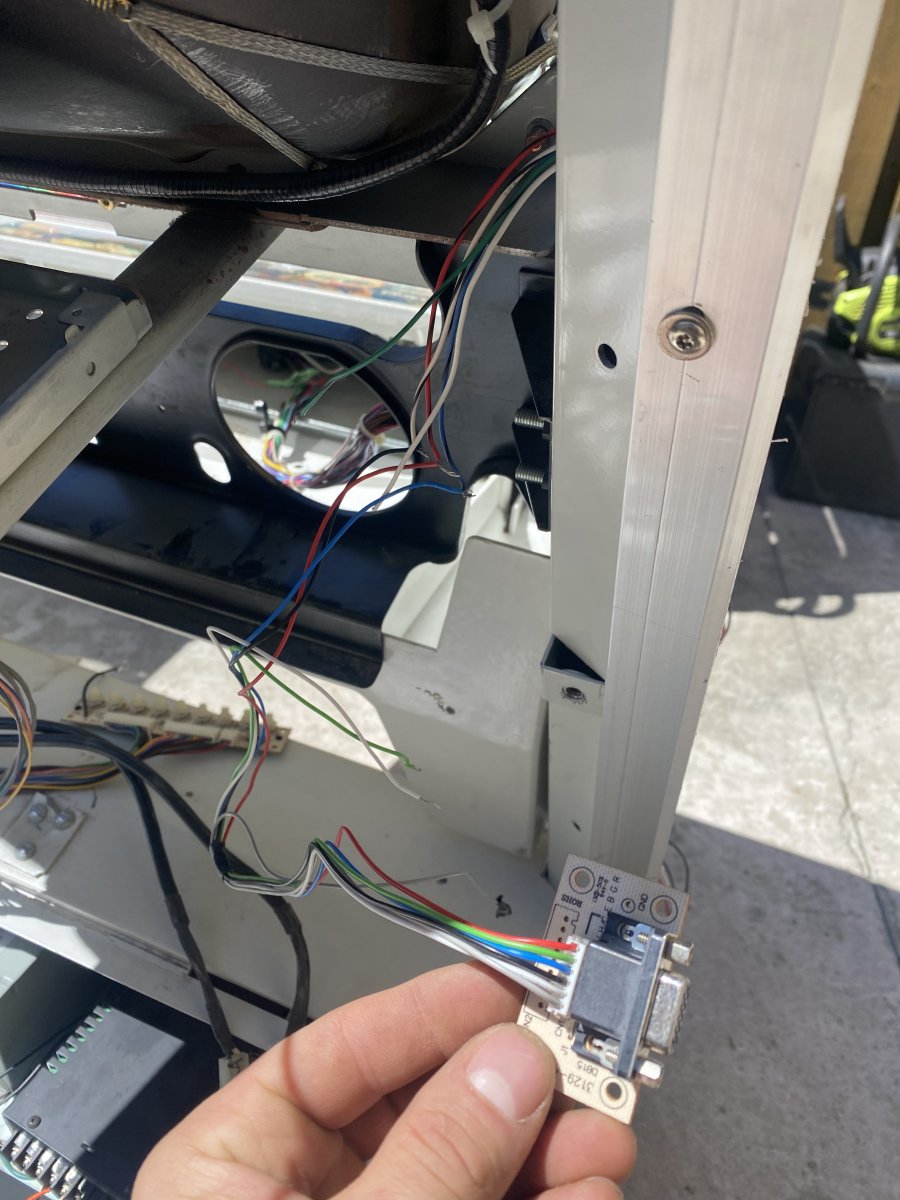

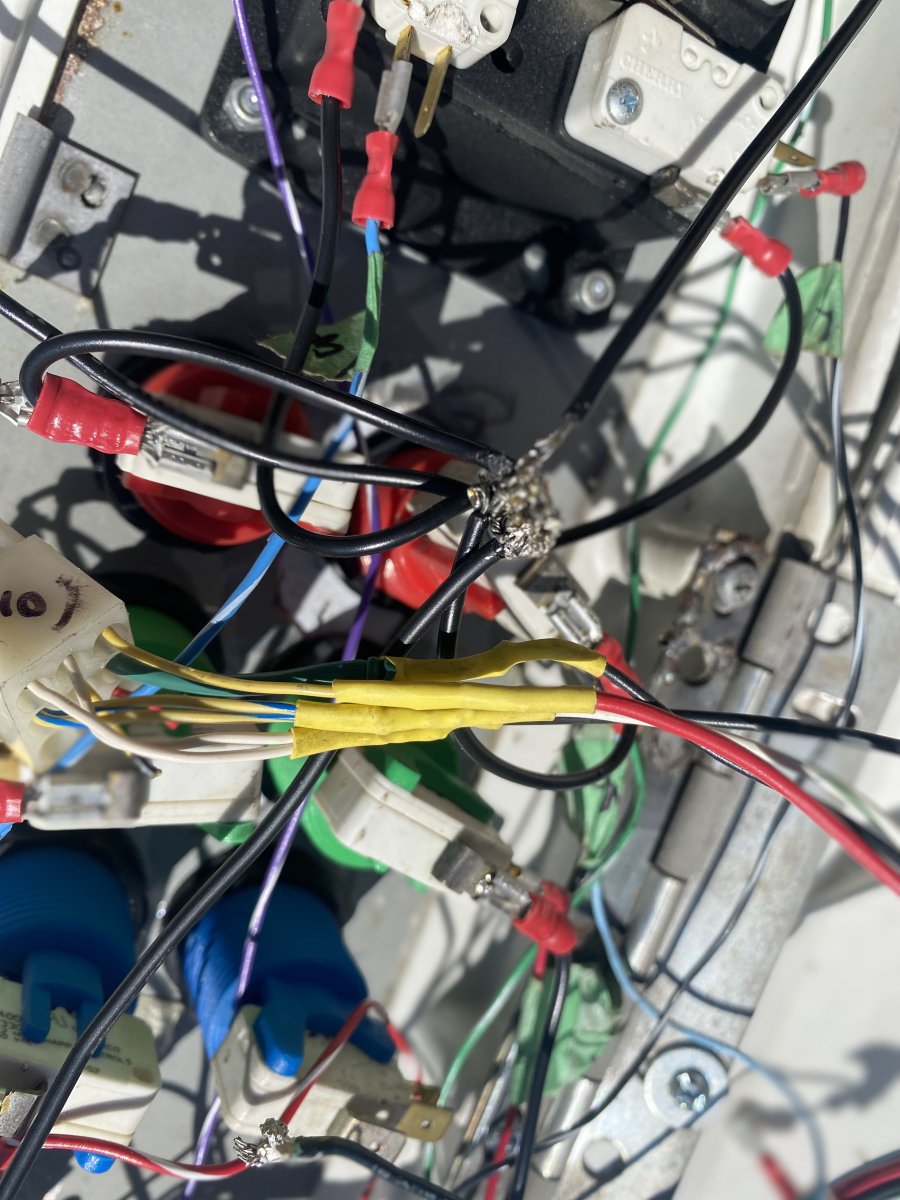

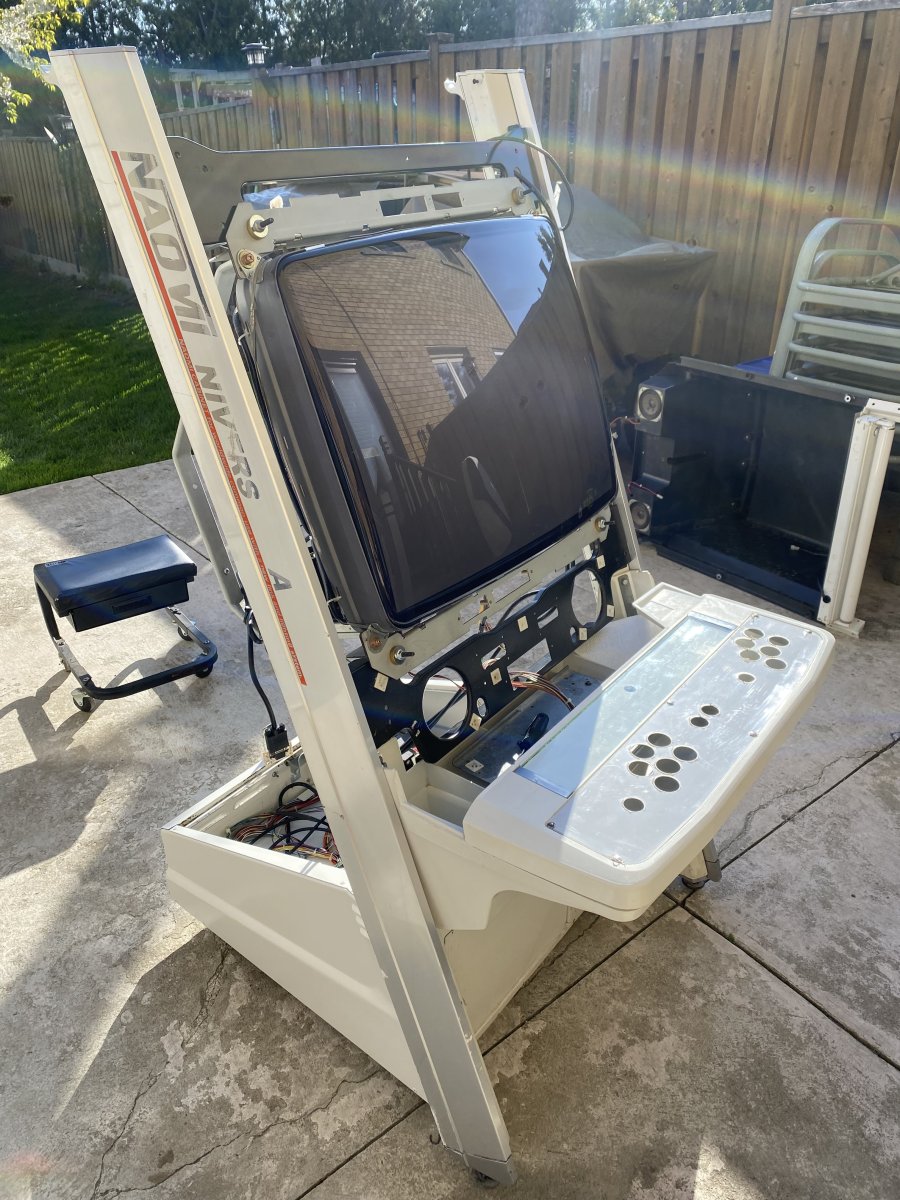

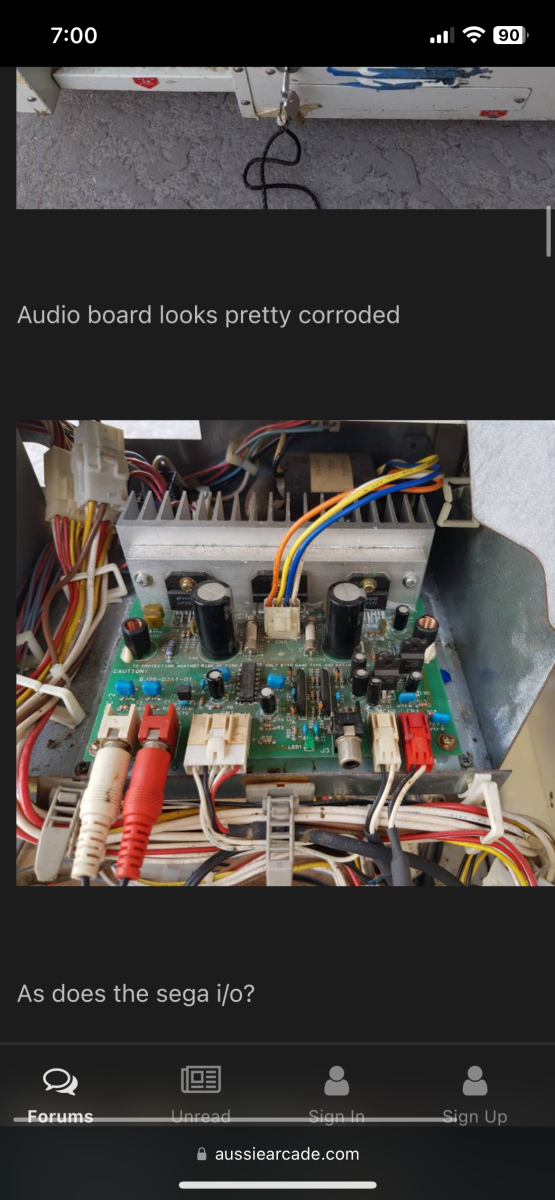

I forgot to take a picture but the monitor was turning on and only had a red line on the right side , no picture. So I took it apart today and started the disassembly and cleaning. Check this soldering :/ a lot of wires were just twisted together , like the vga to Jamma wires

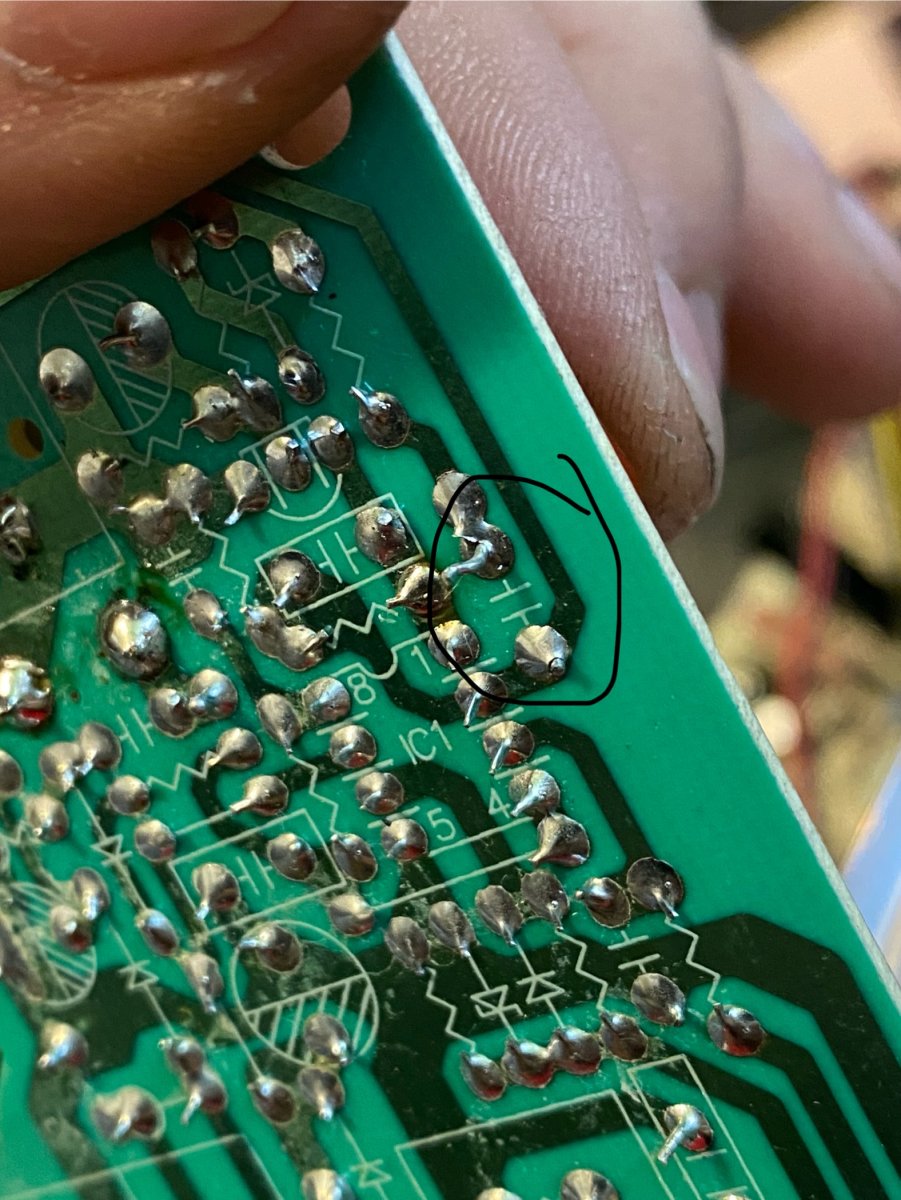

I took the chassis out and found a lot to cold solder joints and just went to town looking it over . I took a picture of the first one that I found.



[hrvat9]

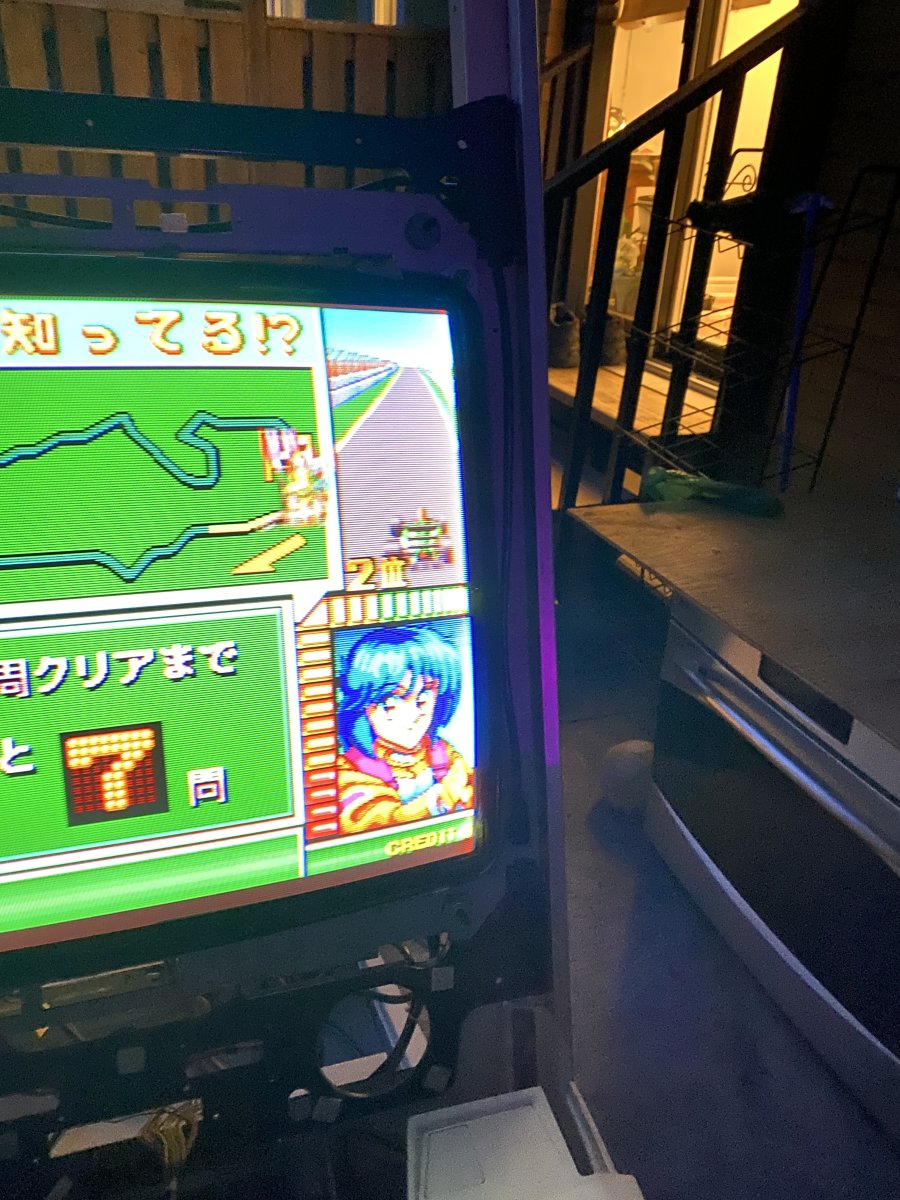

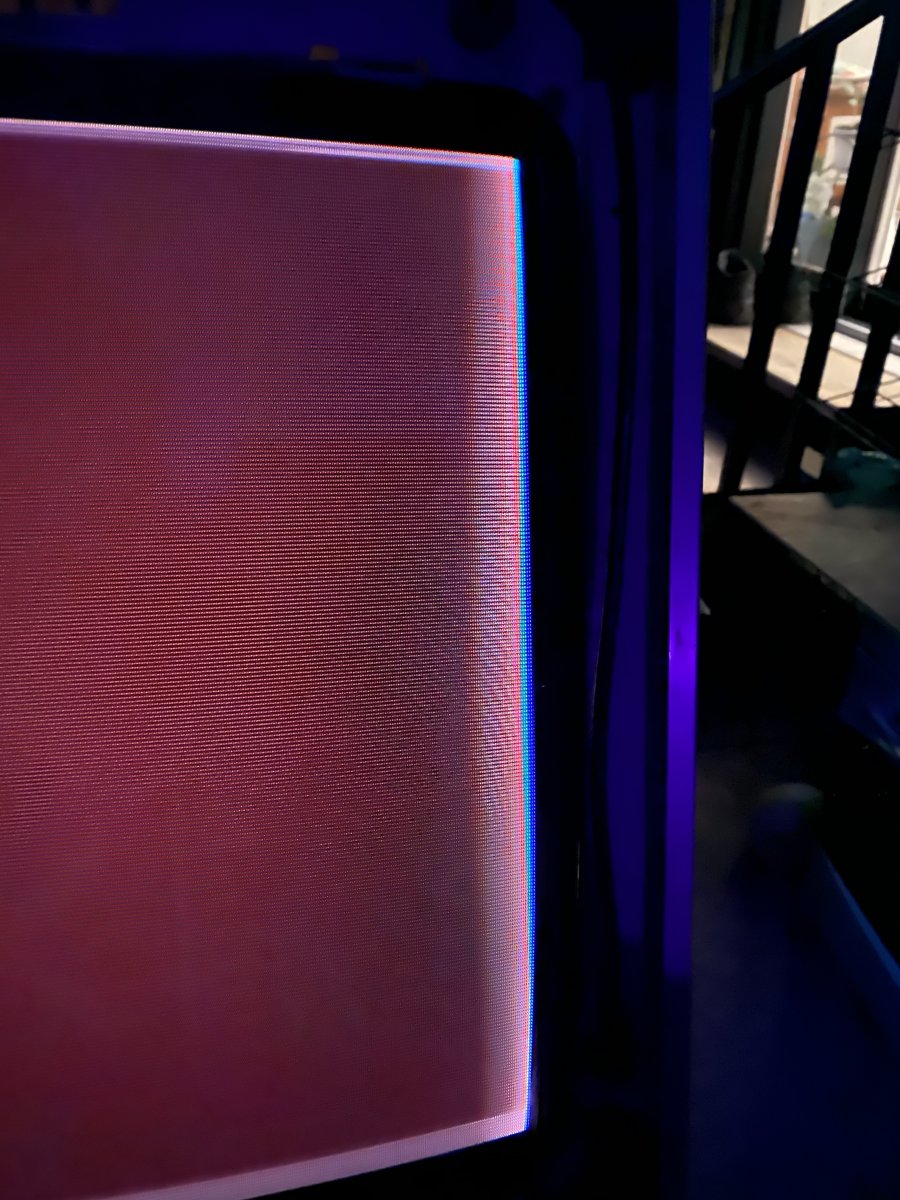

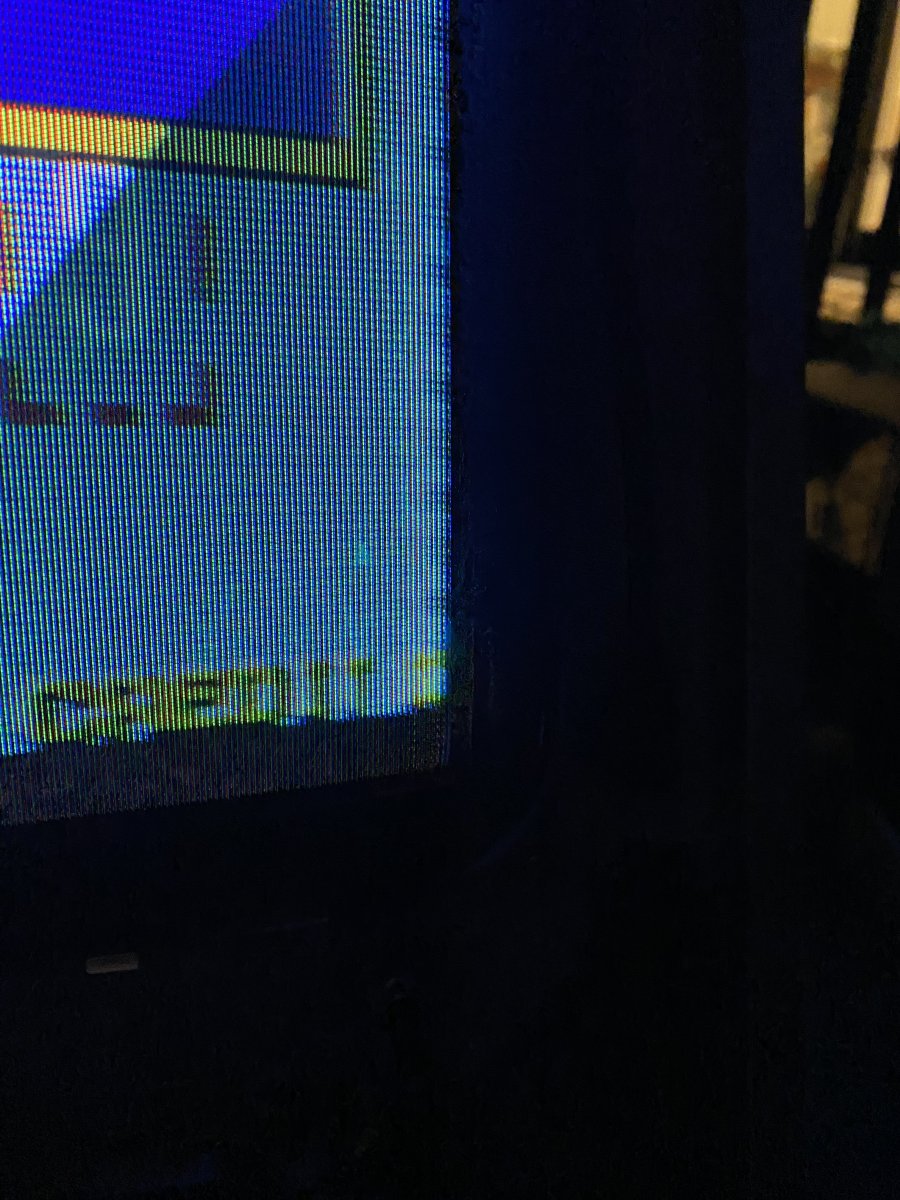

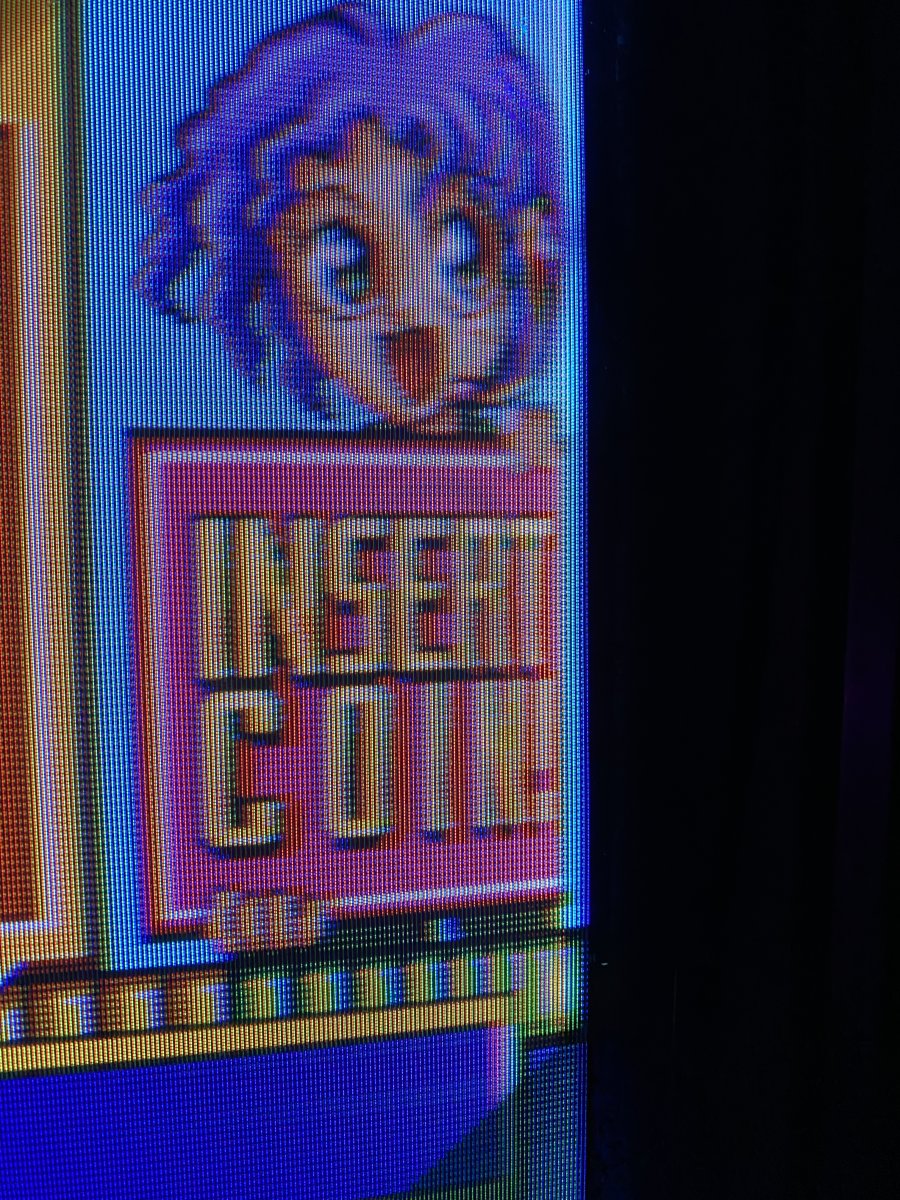

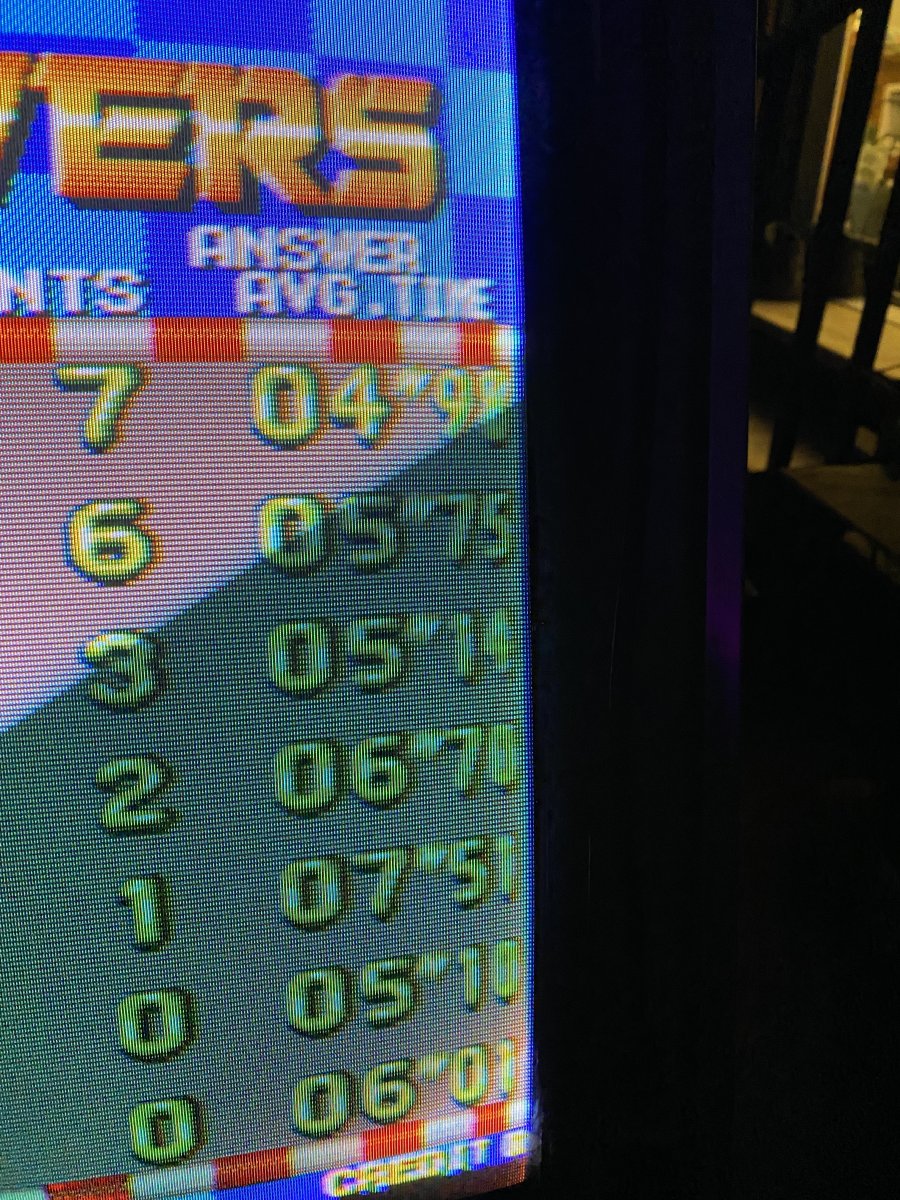

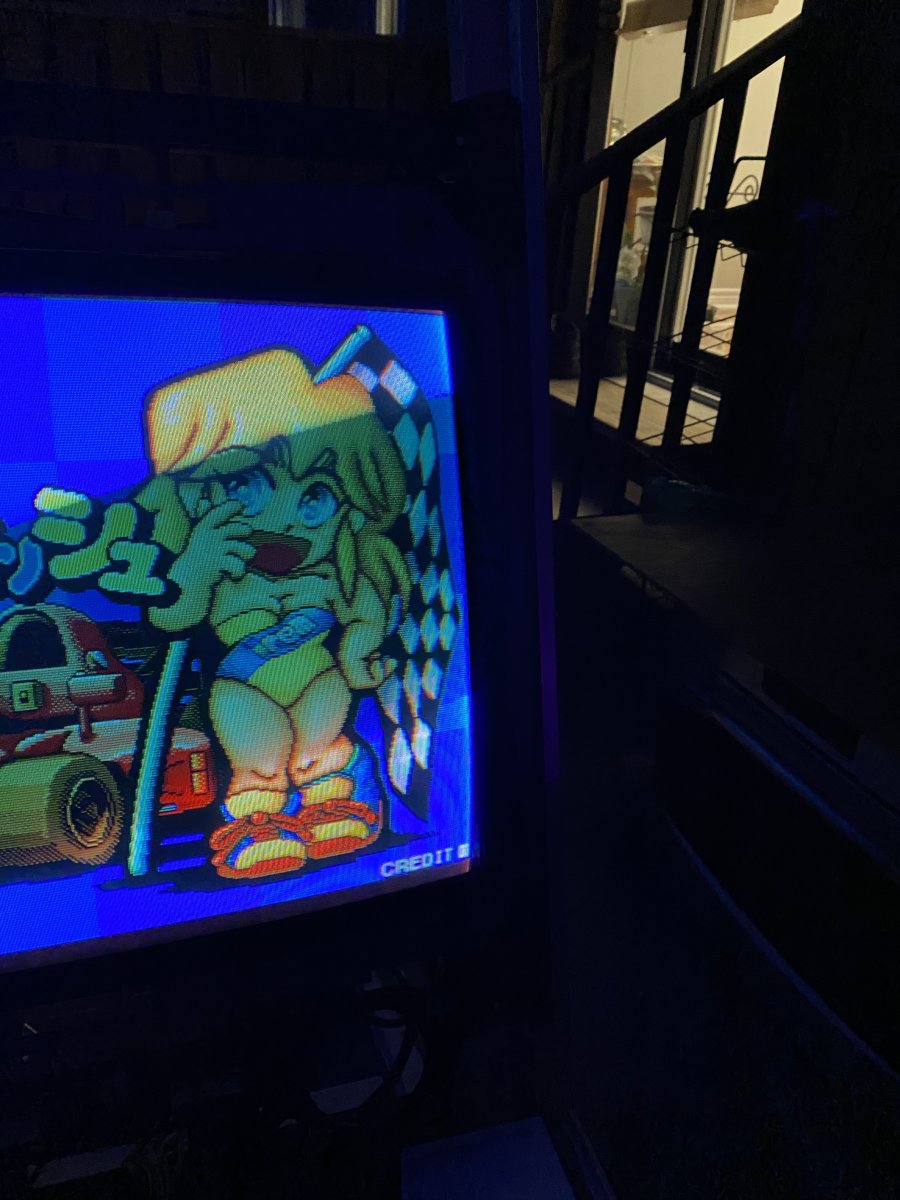

I put the chassis back in and fired it up and got a picture! It was too sunny to see anything so I waited till after my footy match to check and dial in the picture. It has that weird like still on the right side. When I adjust the h size , the picture starts to get squished on that side. Why would that be happening? I took a bunch of pictures of different attract screens so you can see when stuff is squished and the line itself



[Mukuro_W]

It might be a good idea to post a photo of the chassis, maybe so someone here could help you better.



[hrvat9]

It might be a good idea to post a photo of the chassis, maybe so someone here could help you better.

Good idea, but I haven’t taken a single picture of it yet tomorrow morning I will



[Hackcell]

THE ENVY!!!

I've got some a few months ago, but none is "short legged". I'd love to find a pair of short legs and rails.



[ImportantBet]

I saw the cab listing stay up for a few weeks and saw no one bit for it until now. Did you pay for asking price?



[hrvat9]

I saw the cab listing stay up for a few weeks and saw no one bit for it until now. Did you pay for asking price?

Heck noo, the monitor was coming up with nothing but a red line on one side so I got a nice deal.



[hrvat9]

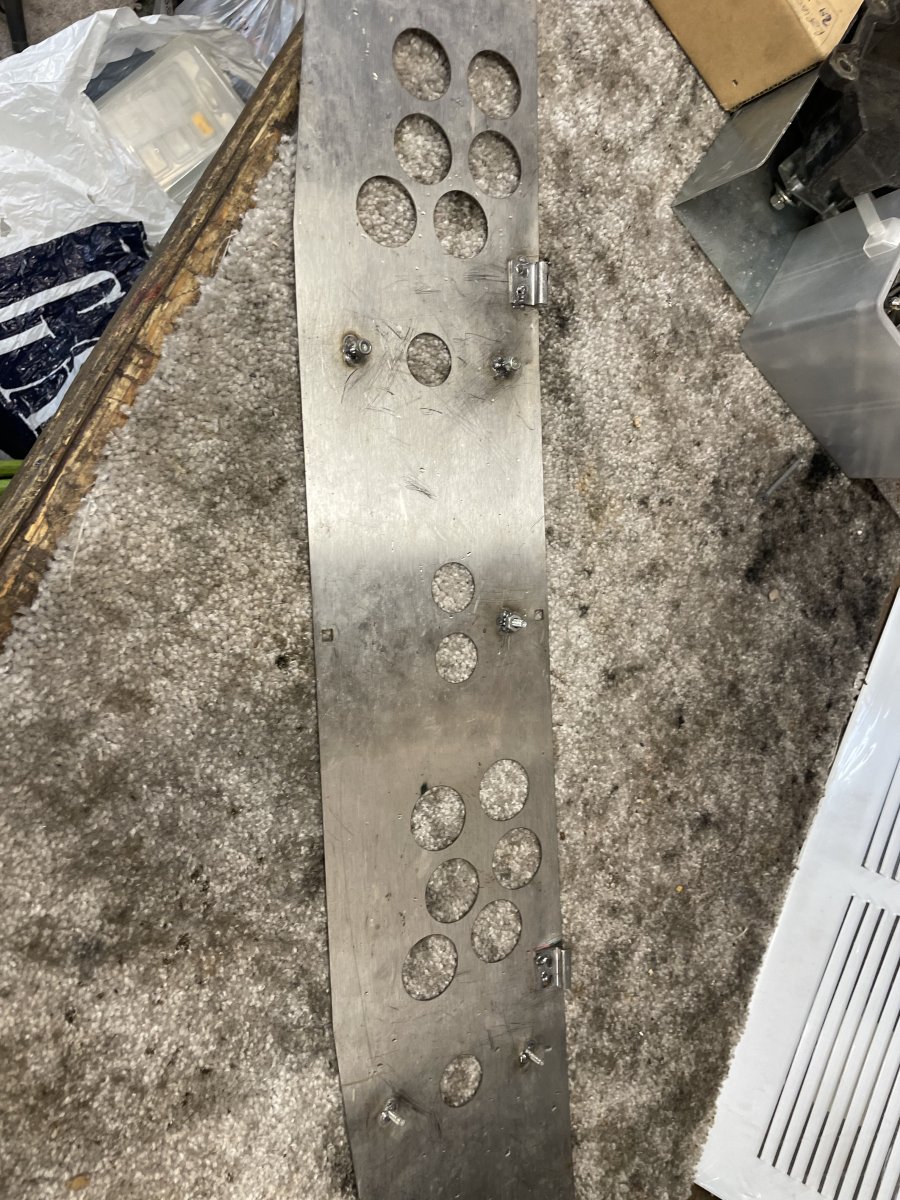

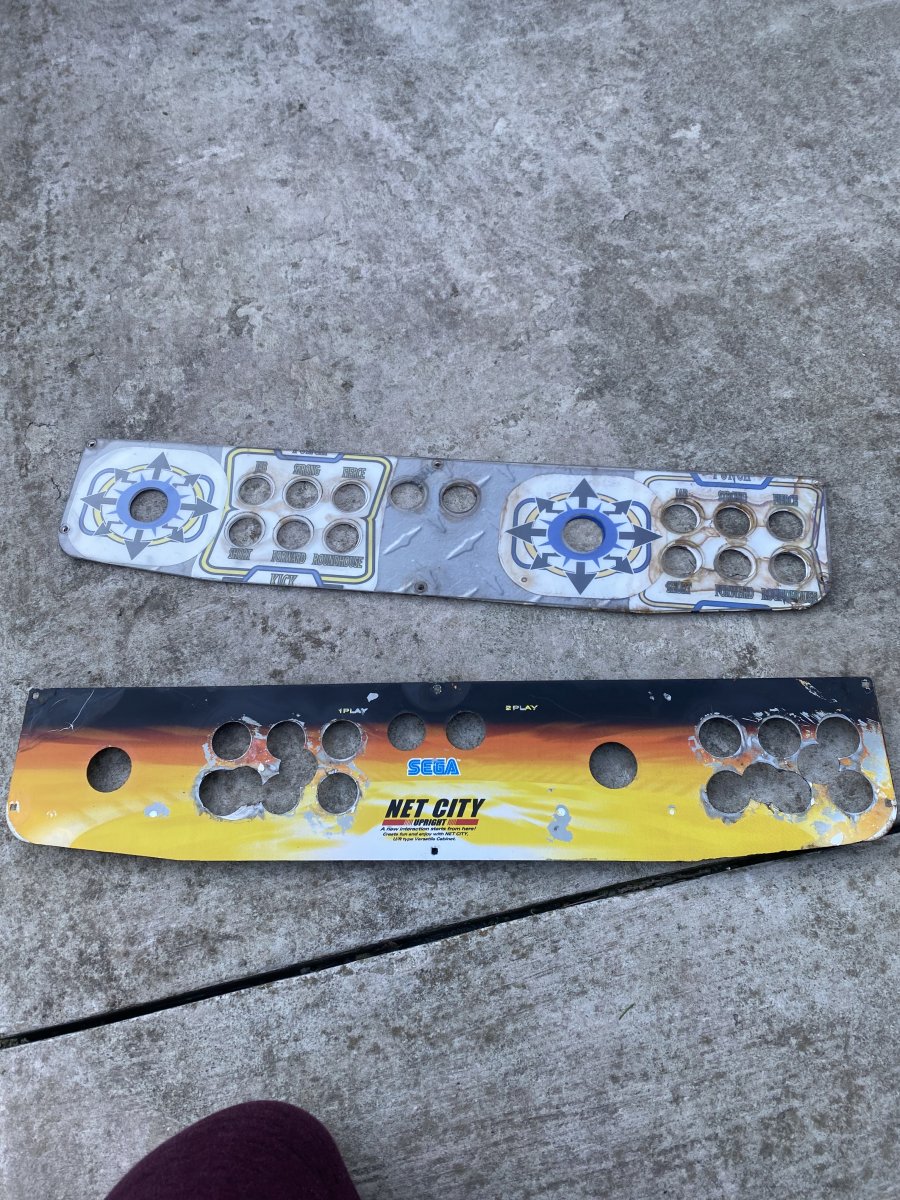

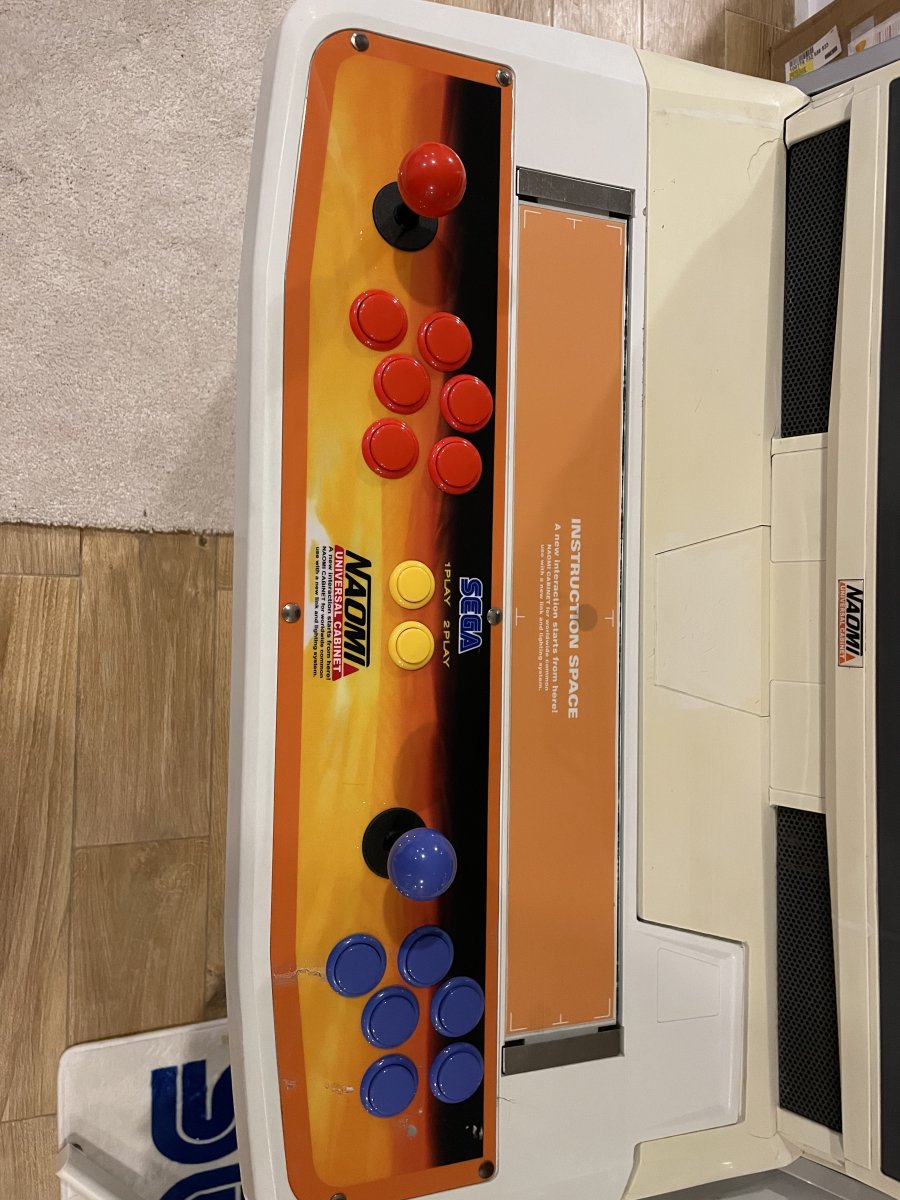

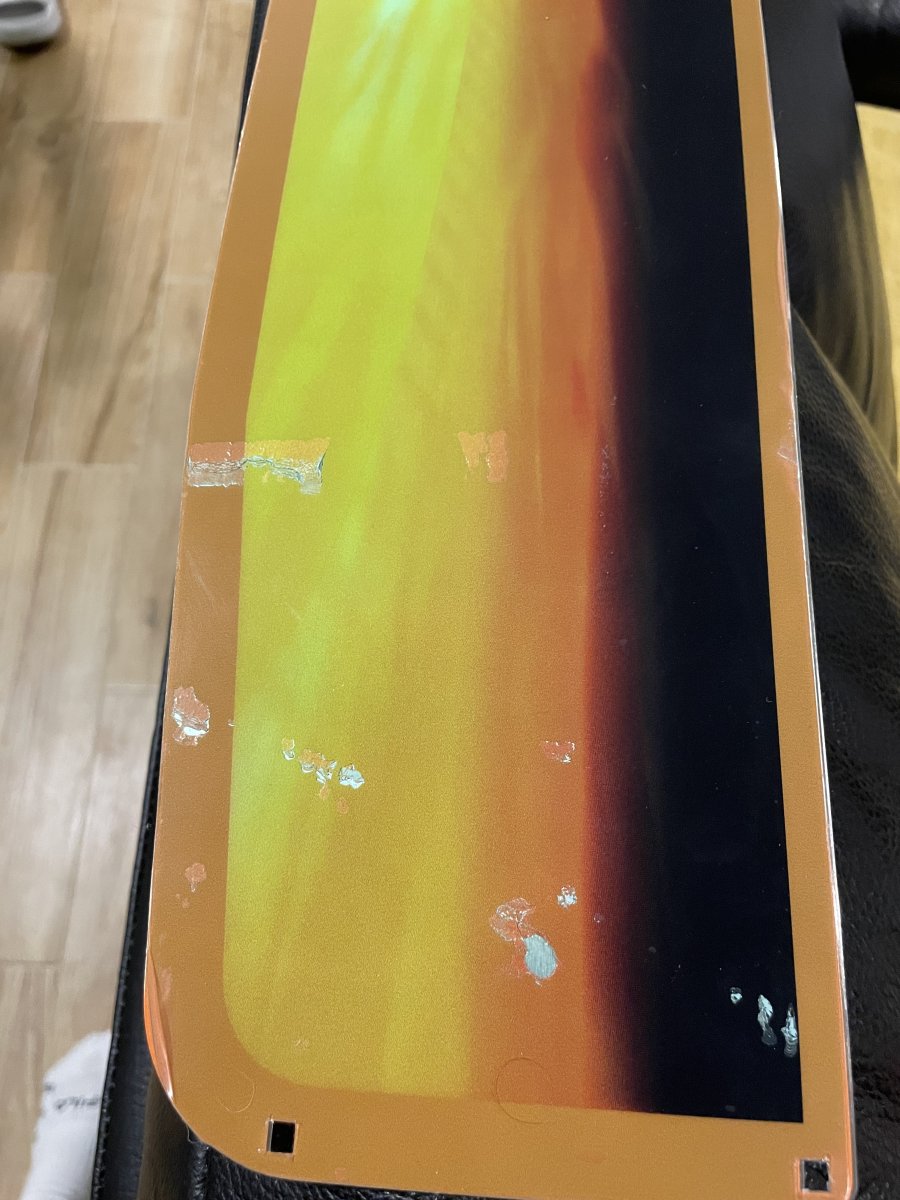

Here’s the hacked up old cp. picking up a 6 button panel locally and I’ll just need an overlay for it. Where could I get one?



[hrvat9]

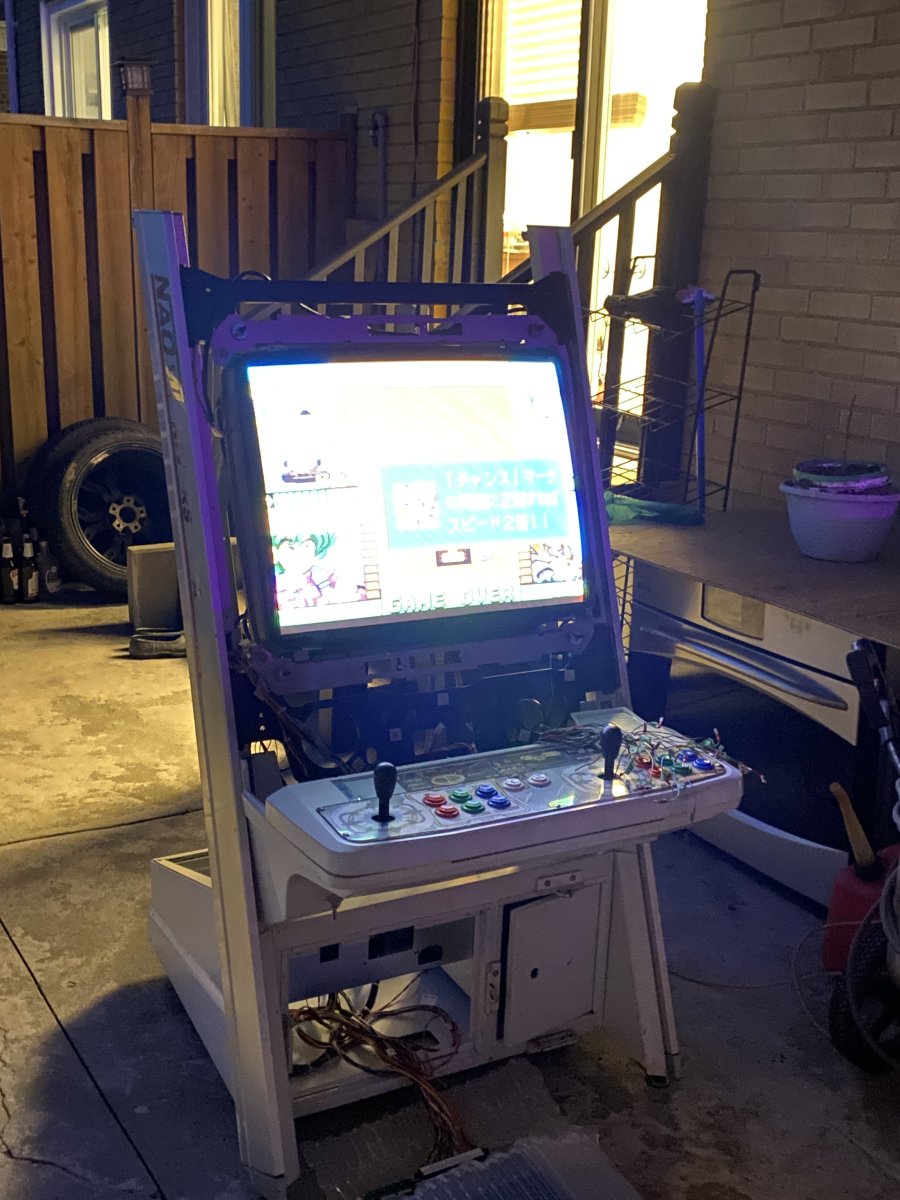

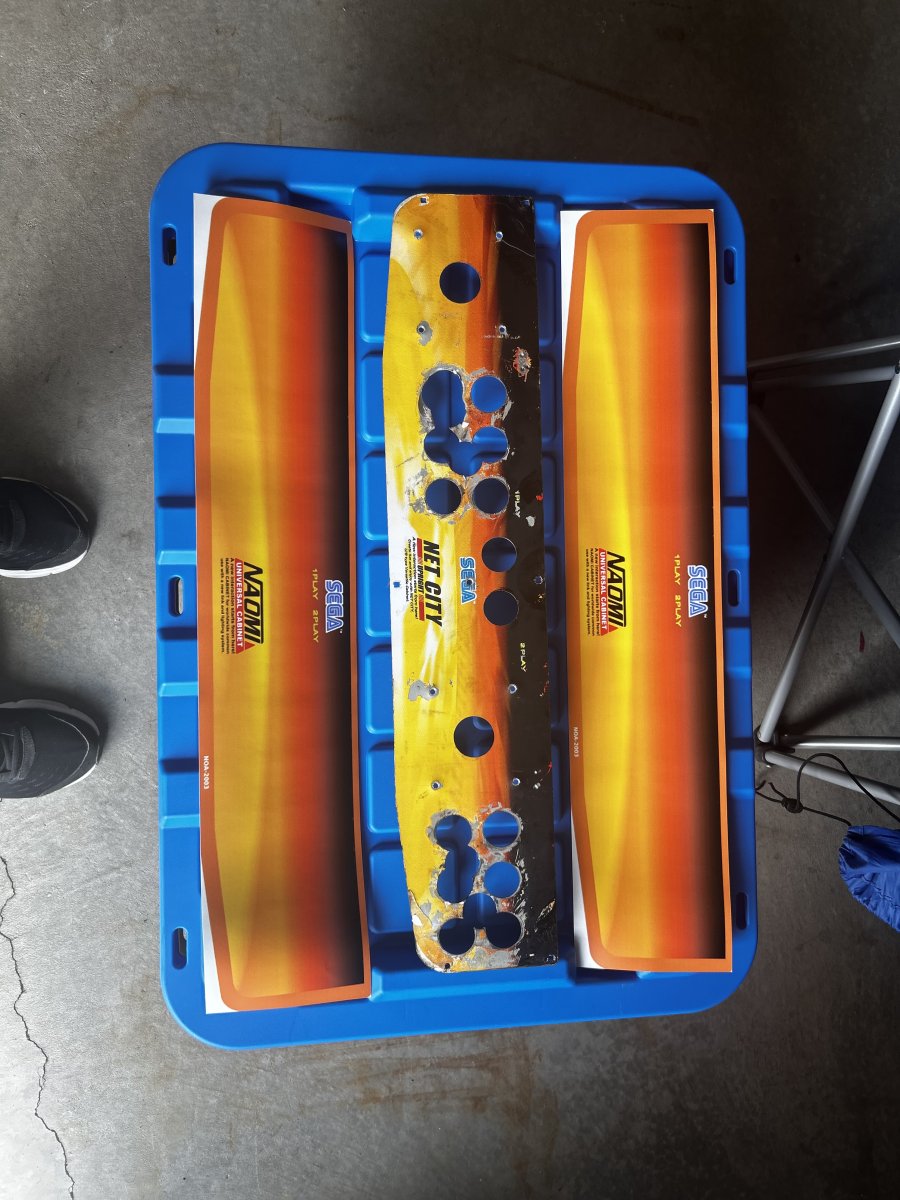

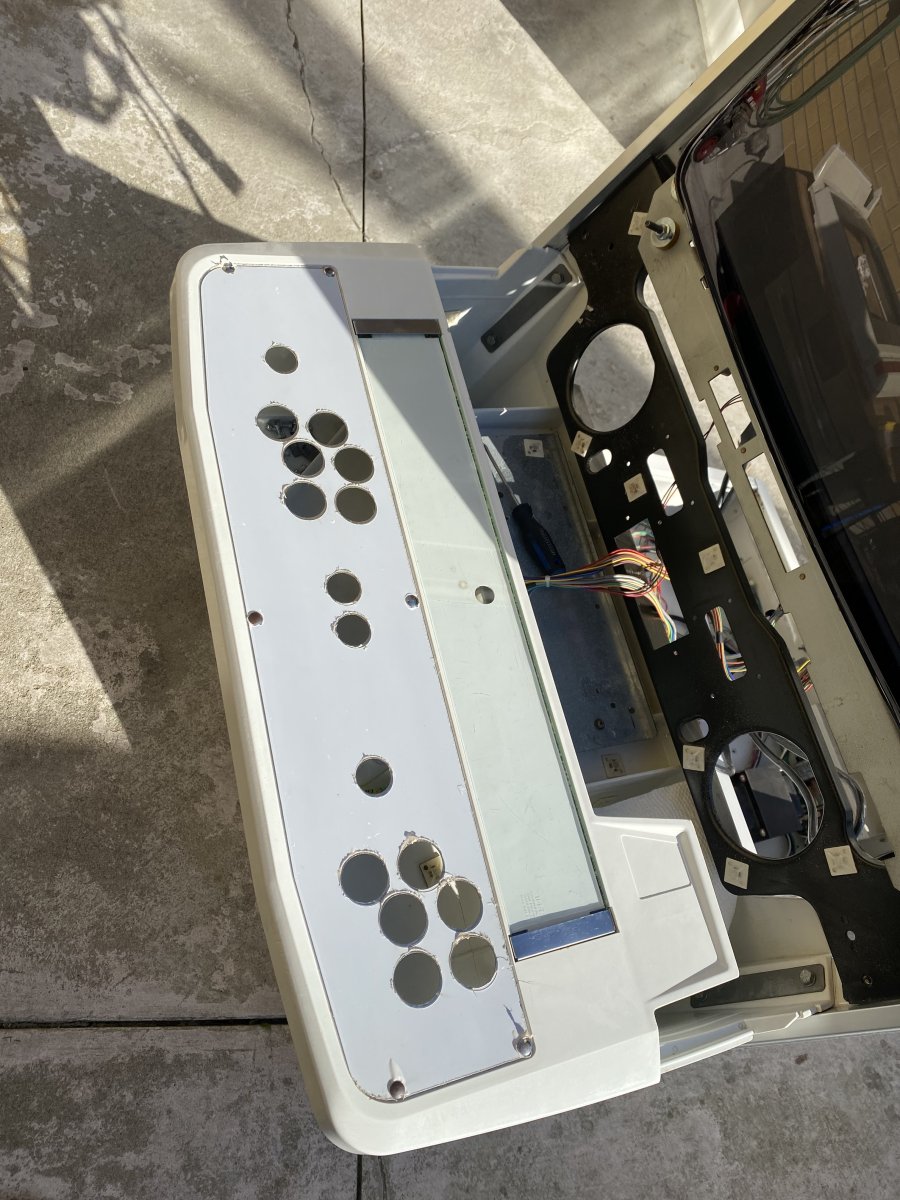

Got a buddy locally to print the overlay for me easy peasy the cab is cleaning up nicely while I wait for parts to come in

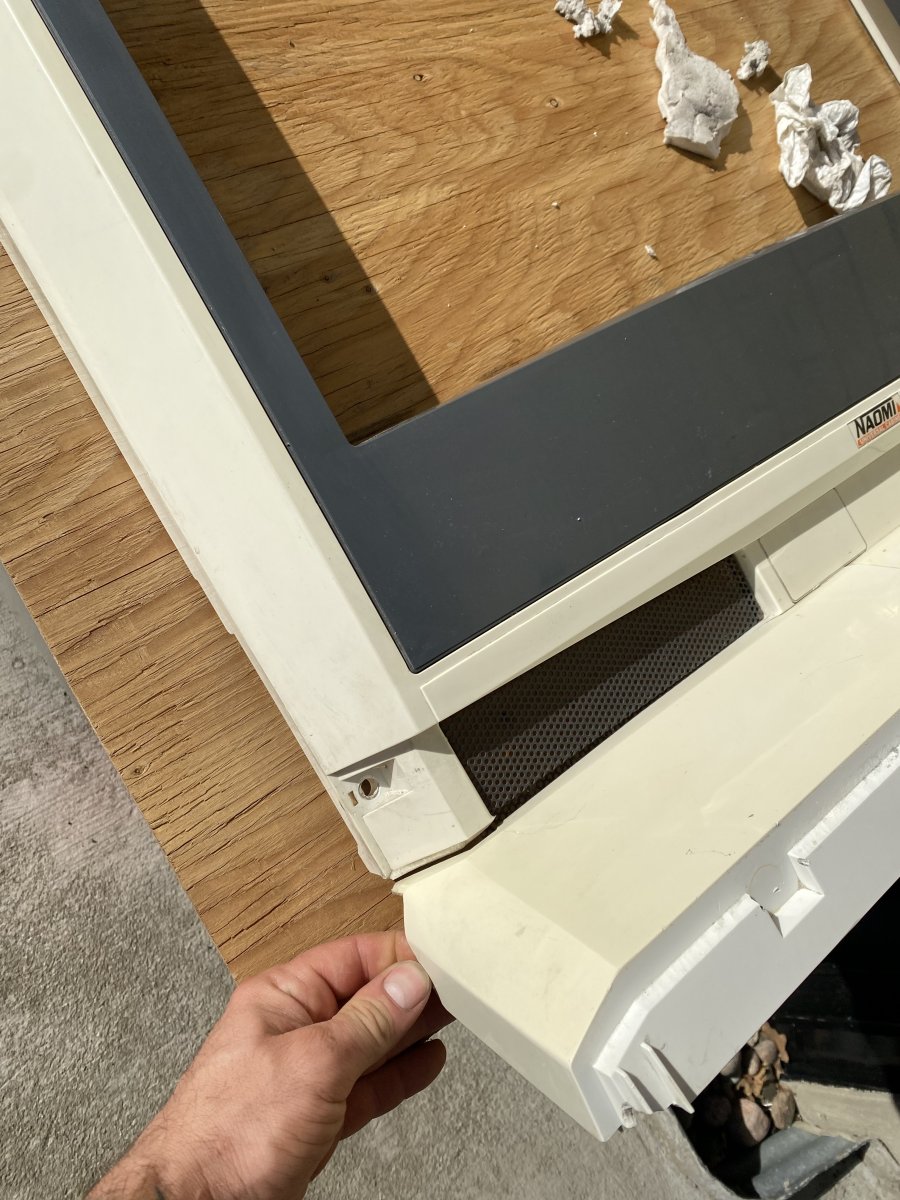

I got some small repairs to do on the front bezel (plus it’s yellowed to shite,that won’t stand)

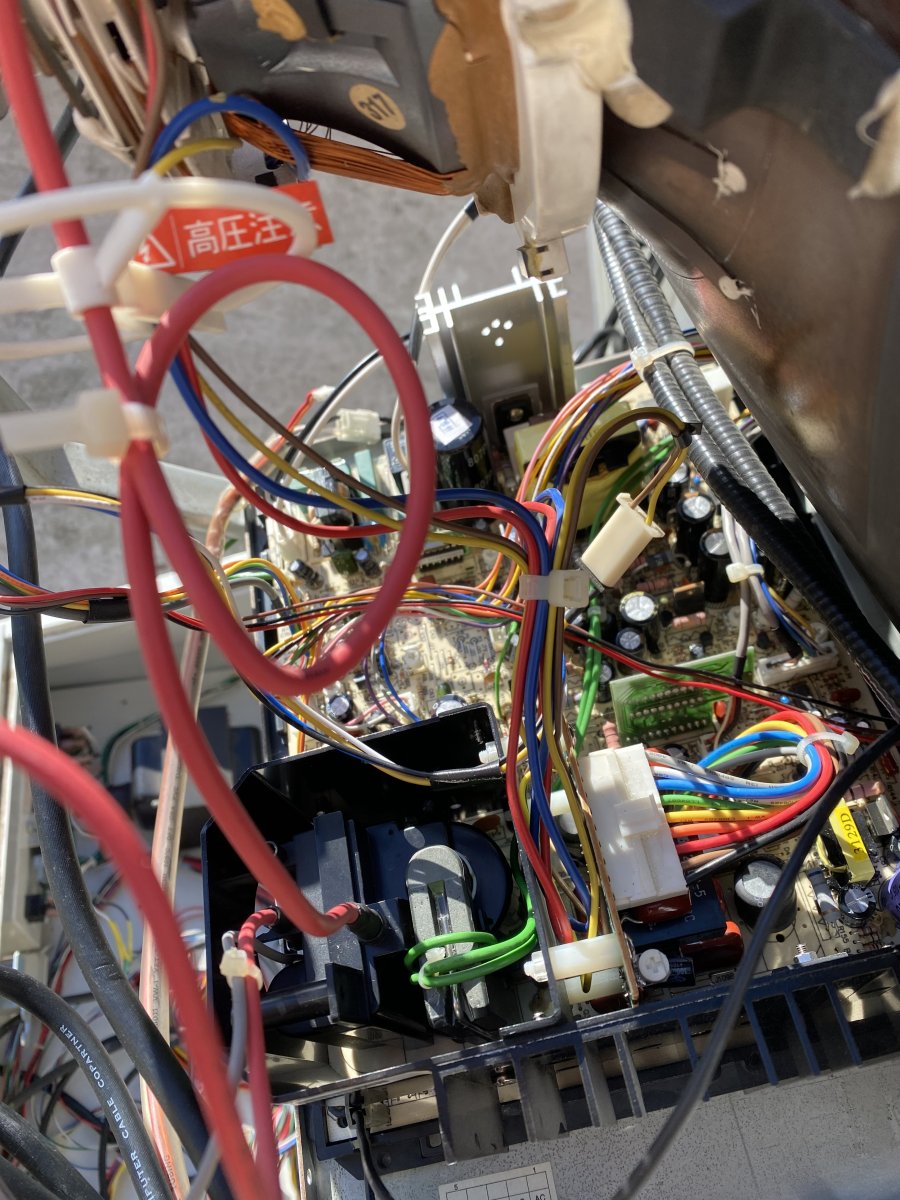

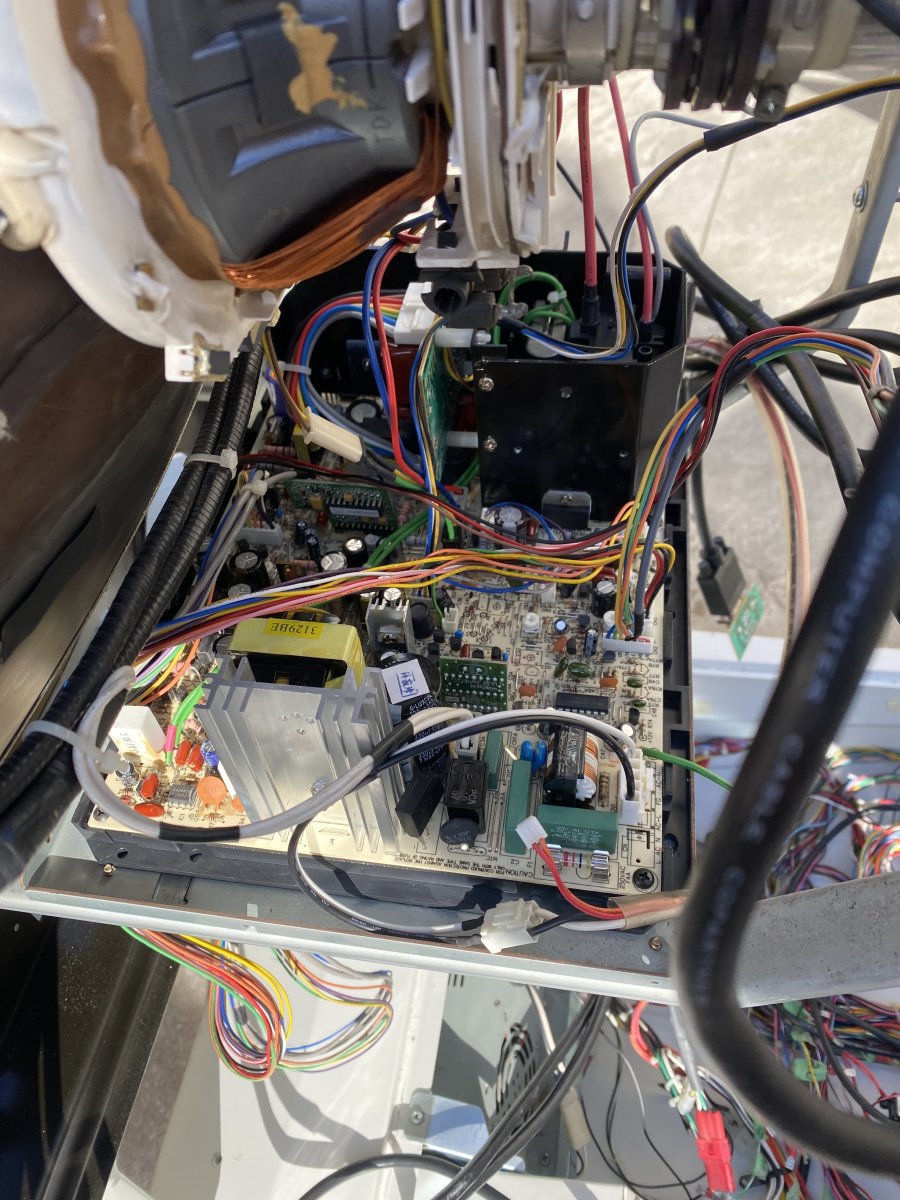

Here are some monitor chassis pics also (forgot to take previously)
Also, does anyone do the side art on these? I’m missing the letters from “Naomi universal cabinet “ on both sides and one side is missing the red stripe altogether



[dexa]

Got a buddy locally to print the overlay for me easy peasy the cab is cleaning up nicely while I wait for parts to come in
I got some small repairs to do on the front bezel (plus it’s yellowed to shite,that won’t stand)
Here are some monitor chassis pics also (forgot to take previously)
Also, does anyone do the side art in these? I’m missing the letters from “Naomi universal cabinet “ on both sides and one side is missing the red stripe altogether

Yes - you can get a repro sideart:
https://www.ebay.com/itm/175287642175
