Makivision M2929D4-TS Question

[Gigazord]

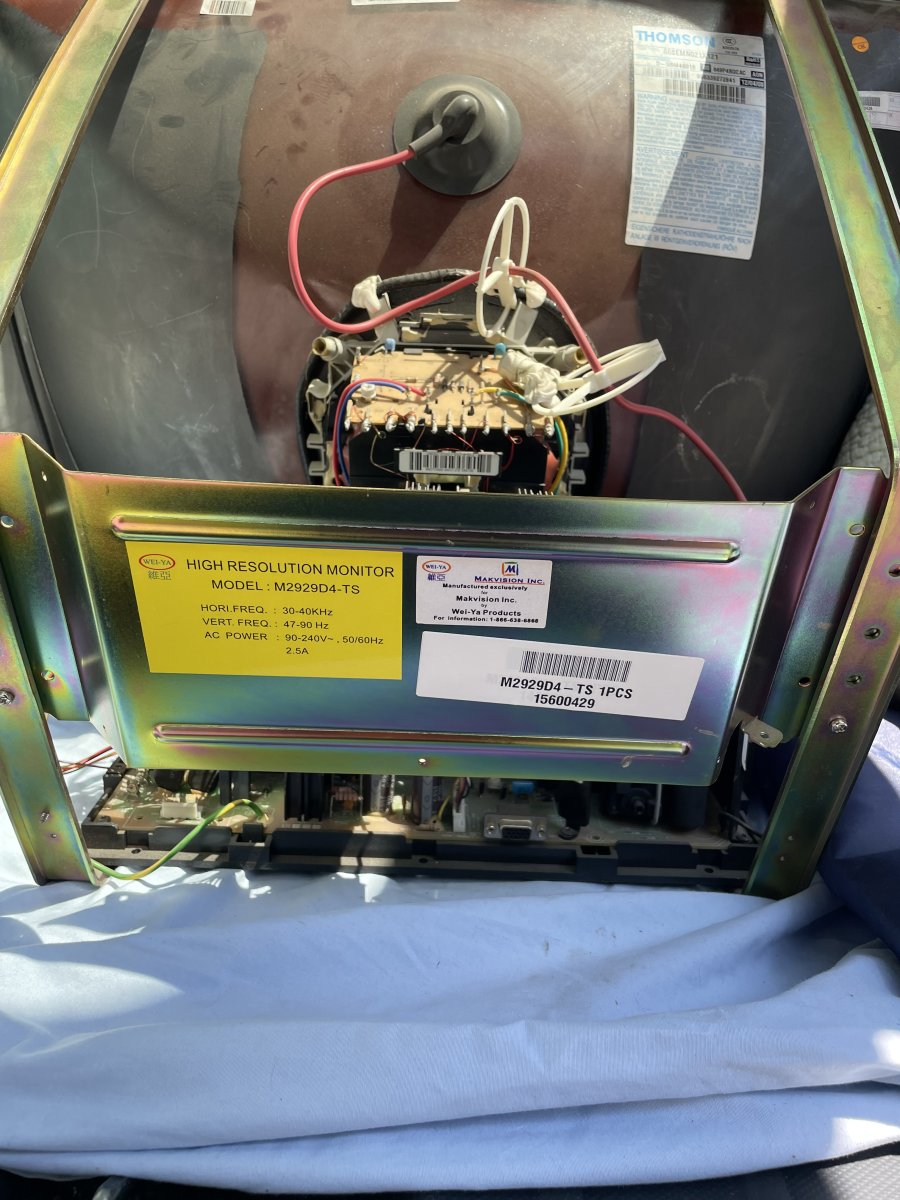

I’m very new to this, but I grabbed this monitor from an older gentleman and he mentioned possibly needing an isolation board. I wanted to plug it into the wall and see if my Dreamcast will run on it. Any info would help!



[BuddyC]

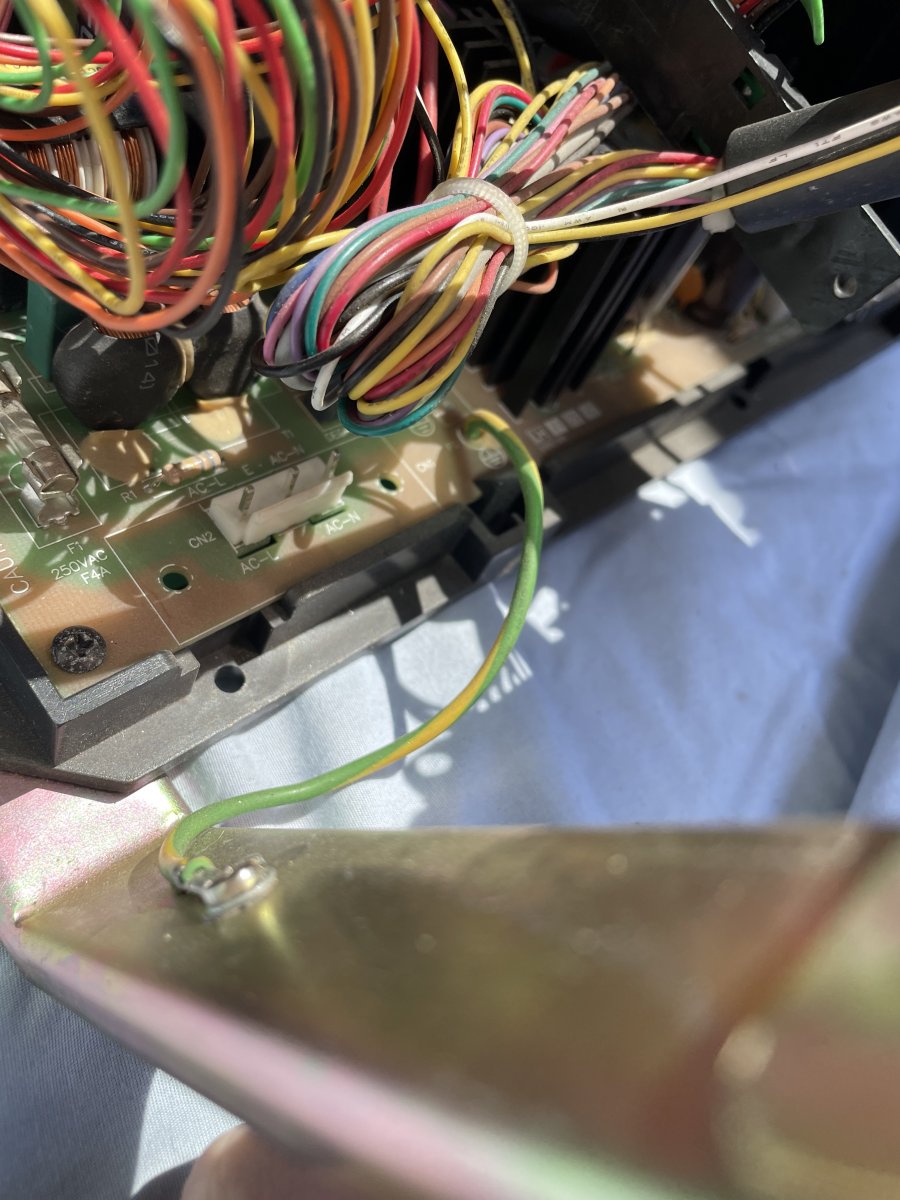

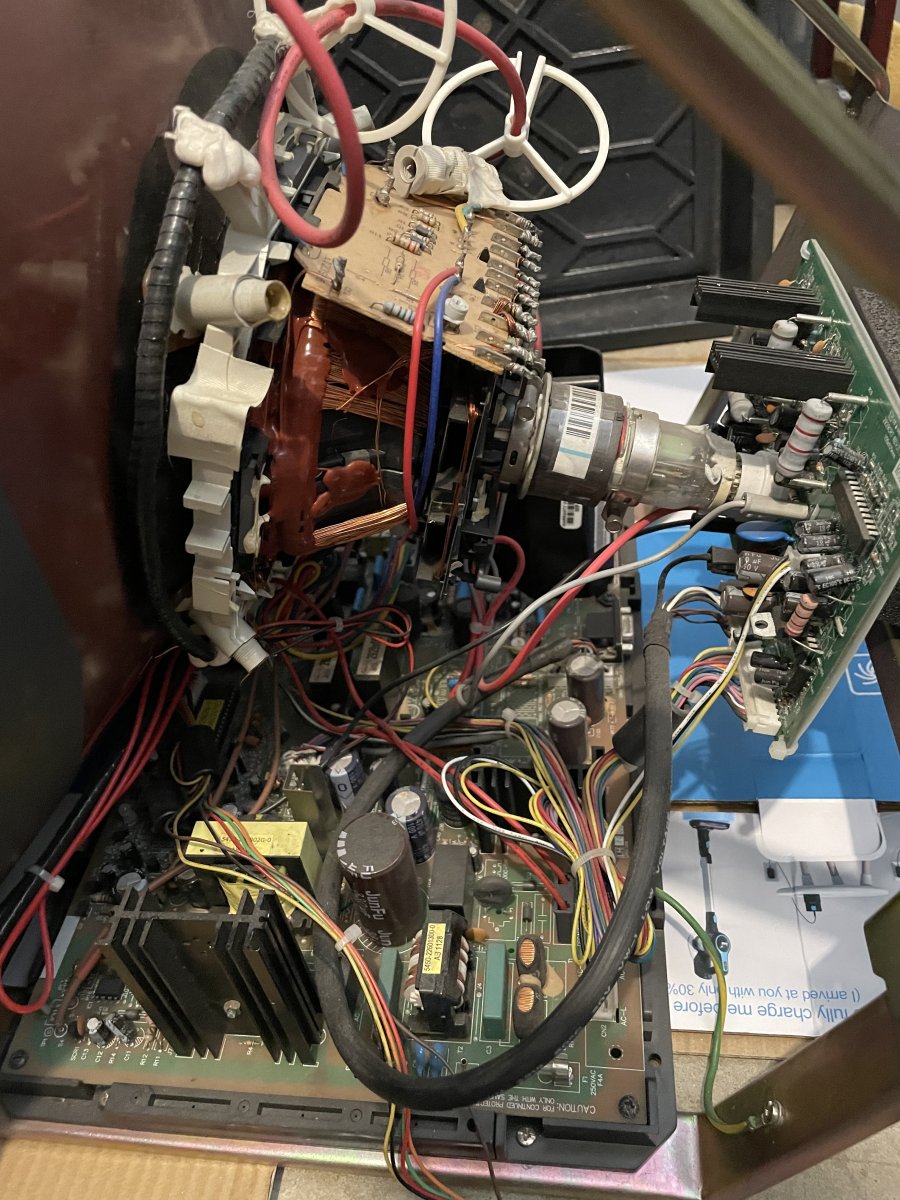

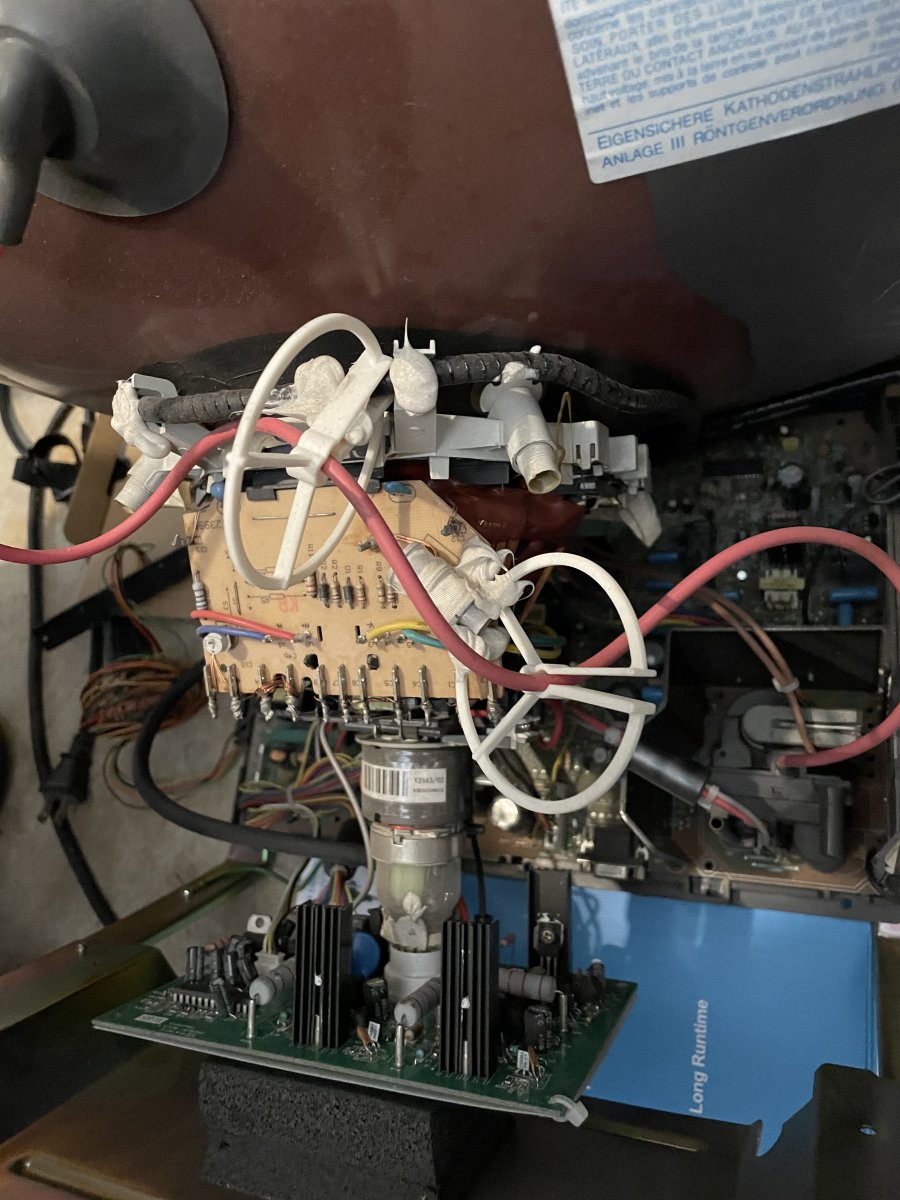

Pretty sure this tube combo does not need a ISO, but take a picture or two of the chassis around the big filter cap. Then I can confirm if you need it or not.



[Gigazord]

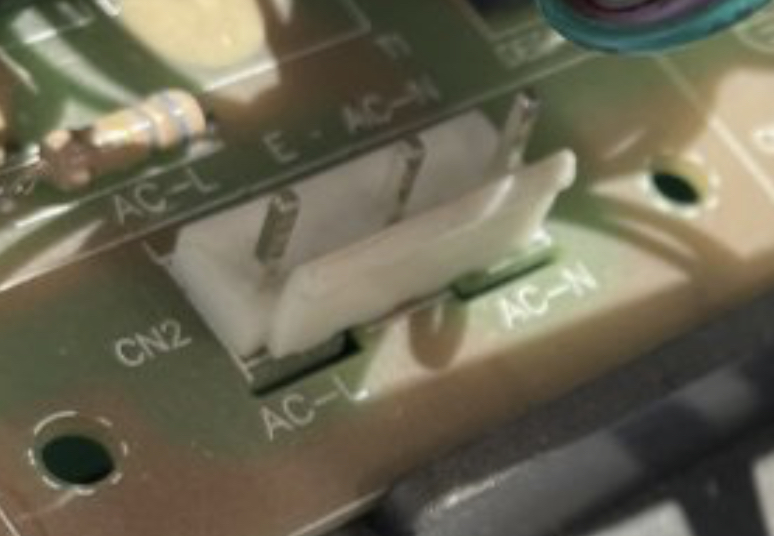

@BuddyC This work?



[Gigazord]

And last question. The guy accidentally forgot to grab the power cable, so he might mail it to me, but in case I just buy it, i would go with this?



[BuddyC]

@BuddyC This work?

You’re good! No need for a ISO on this chassis since it got a SMPS (switching power supply) transformer.



[BuddyC]

And last question. The guy accidentally forgot to grab the power cable, so he might mail it to me, but in case I just buy it, i would go with this?

Sorry. Don’t know the pinout for this chassis, but snap a pic of where you connect the AC cable and we can probably figure it out.



[Gigazord]

Sorry. Don’t know the pinout for this chassis, but snap a pic of where you connect the AC cable and we can probably figure it out.

Thanks for confirming. With regard to the power cord, I was under the impression tgis is where the AC connection goes

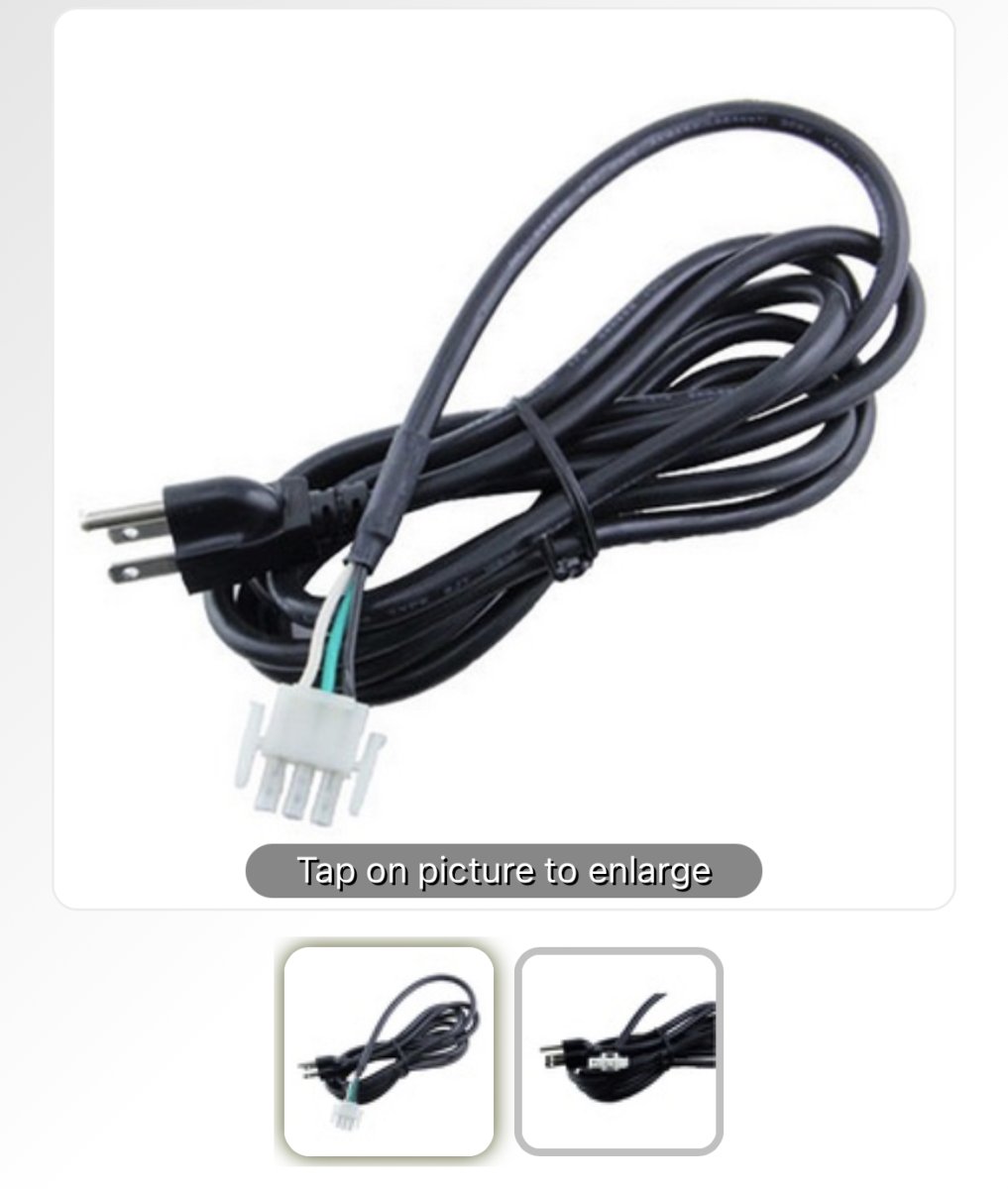

And I think this cord would work? https://www.arcadeshop.com/i/1241/8-wells-gardner-monitor-power-line-cord.htm



[BuddyC]

Thanks for confirming. With regard to the power cord, I was under the impression tgis is where the AC connection goes

And I think this cord would work? https://www.arcadeshop.com/i/1241/8-wells-gardner-monitor-power-line-cord.htm

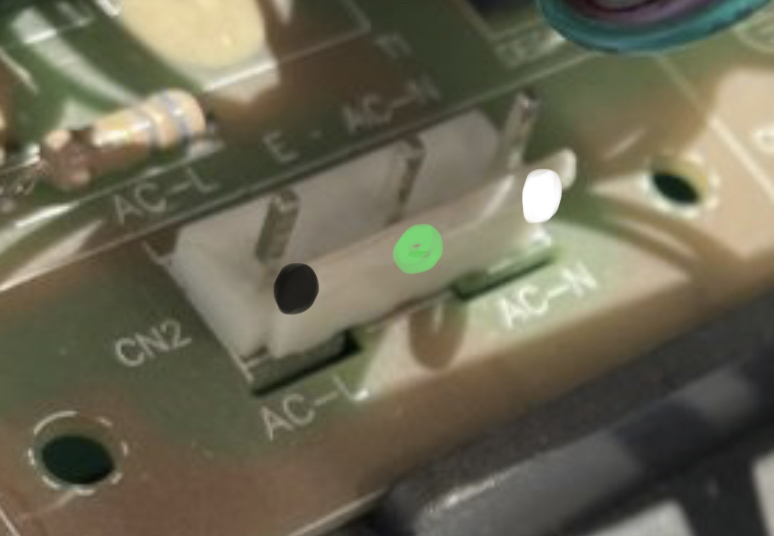

That’s correct. Unsure if that power cable is a 100% fit, but should work with some modifications. I would give it a go. Polarity looks correct based on the PCB silkscreen.



[nem]

You can't fit a Mate-N-Lok connector on a JST VH header.

If you want to do it right, cut the end of a power cord, crimp JST VH pins on the wires and then place the pins inside the correct 5-pin JST VH connector housing.

https://www.digikey.com/en/products/detail/jst-sales-america-inc/VHR-5N/608627
https://www.digikey.com/en/products/detail/jst-sales-america-inc/SVH-41T-P1-1/608760



[Gigazord]

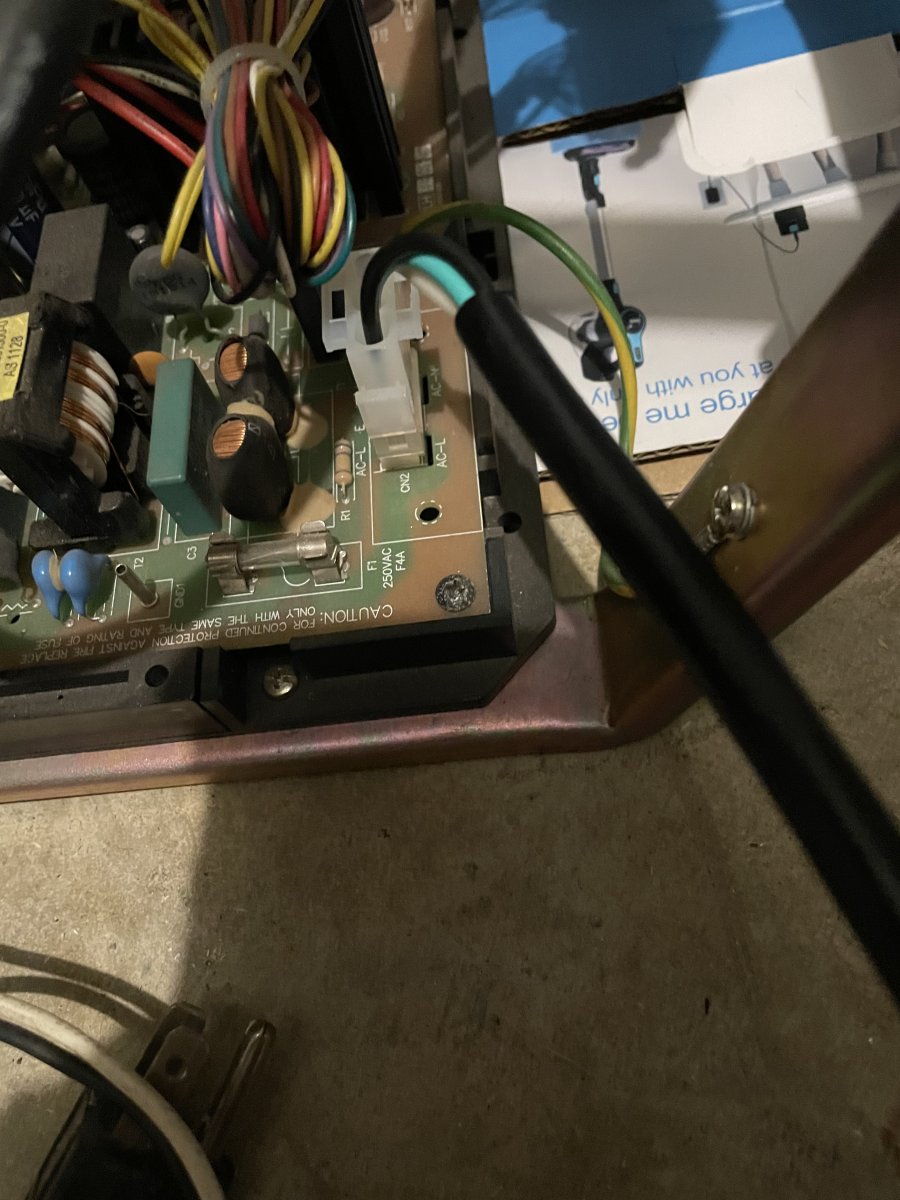

@nem It fits! And it powers on!

You can't fit a Mate-N-Lok connector on a JST VH header.

If you want to do it right, cut the end of a power cord, crimp JST VH pins on the wires and then place the pins inside the correct 5-pin JST VH connector housing.

https://www.digikey.com/en/products/detail/jst-sales-america-inc/VHR-5N/608627
https://www.digikey.com/en/products/detail/jst-sales-america-inc/SVH-41T-P1-1/608760



[thegreathopper]

Wow and what a great picture!



[Gigazord]

Wow and what a great picture!

It looks soooo good in person!



[nem]

@nem It fits!

The pins are way off though.



[Gigazord]

I dunno what to tell you, they lined up and went in.

The pins are way off though.
