based on that it's way too big... I would recommend shrinking the horizontal size as much as possible.
I also like Dreygor's suggestion of including mounting holes in the corners.
- Thread starter BladeZX
- Start date
I also like Dreygor's suggestion of including mounting holes in the corners.
How long do U want it to be

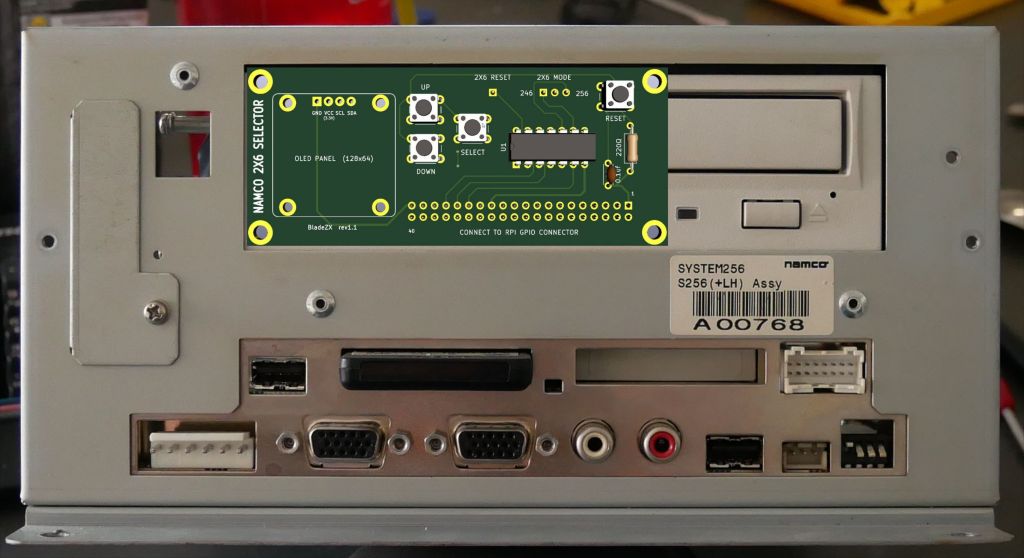

well if it's a 5.25in wide bay and I wanted to mount 2x full-sized SD card slots along side it it would need to be around 3.75in wide or smaller to fit those comfortably.
Last edited:

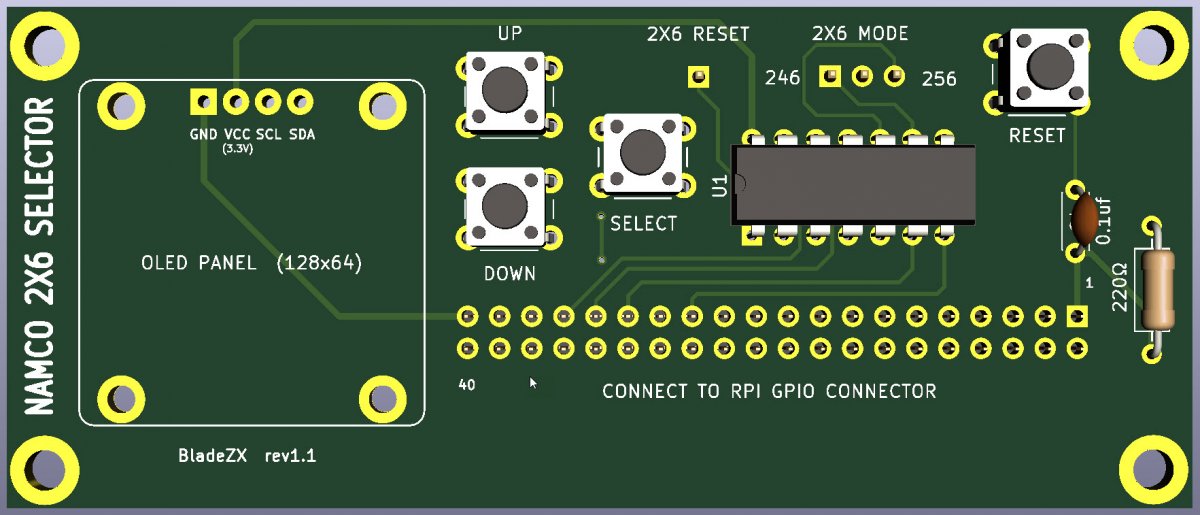

The width looks great, the mounting holes are great.

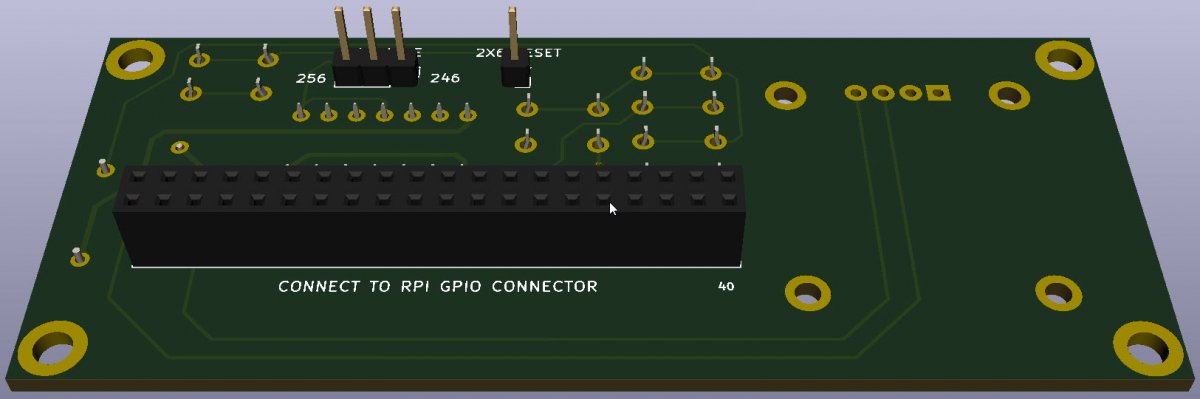

The GPIO connector may need to be raised slightly. since the pi wont fit vertically we'll have to use one of these: https://www.amazon.com/dp/B07P57N3TZ?psc=1&smid=AET9B0FNKDKRC&ref_=chk_typ_imgToDp
the metal plate in the drive area to the bottom of the opening on the 2x6 is 6mm, the opening is 42mm, assuming your board is ~40mm so that gives us 7mm from the bottom of your board to the metal plate.
from the lowest point on the pi to the GPIO mounting surface is 7mm, the female header not including pins is another 8mm figure 2mm of clearance under the Pi and 1mm for the header bend then the bottom of the GPIO pin header on your board would need to be 11mm from the bottom edge of your board to make it work.
The GPIO connector may need to be raised slightly. since the pi wont fit vertically we'll have to use one of these: https://www.amazon.com/dp/B07P57N3TZ?psc=1&smid=AET9B0FNKDKRC&ref_=chk_typ_imgToDp
the metal plate in the drive area to the bottom of the opening on the 2x6 is 6mm, the opening is 42mm, assuming your board is ~40mm so that gives us 7mm from the bottom of your board to the metal plate.
from the lowest point on the pi to the GPIO mounting surface is 7mm, the female header not including pins is another 8mm figure 2mm of clearance under the Pi and 1mm for the header bend then the bottom of the GPIO pin header on your board would need to be 11mm from the bottom edge of your board to make it work.
Last edited:
Excellent!!
I appreciate the work you've put into adjusting it
My hope is that I can design a 3D printed mount for this +the Pi so it looks nice and clean mounted in the drive slot.
I appreciate the work you've put into adjusting it
My hope is that I can design a 3D printed mount for this +the Pi so it looks nice and clean mounted in the drive slot.
@twistedsymphony
Glad to help - feels good to contribute here after all the help I have gotten
Glad to help - feels good to contribute here after all the help I have gotten

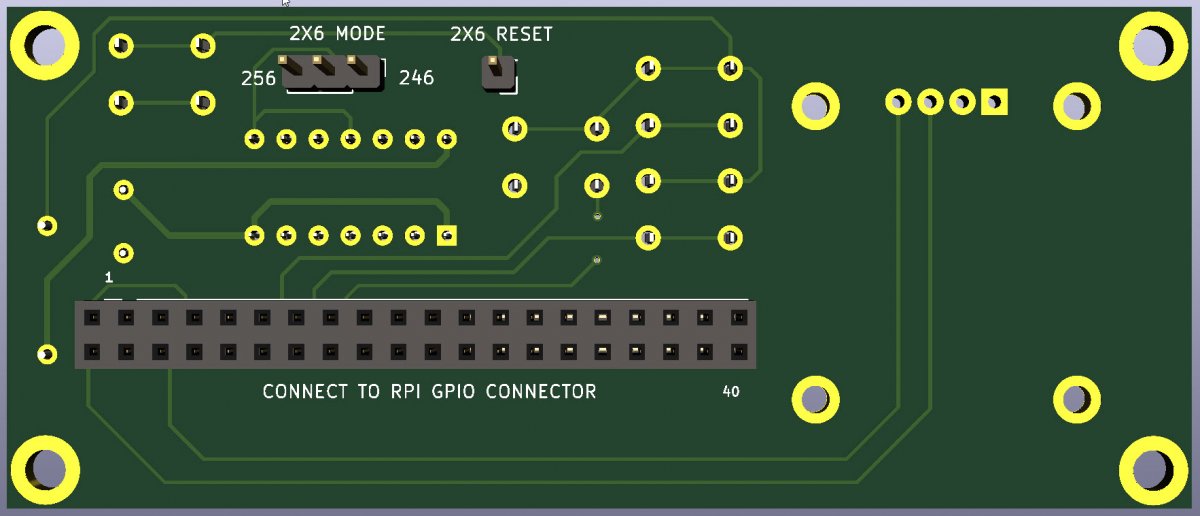

Here are the gerber files for the new DVD slot design
Here is the OshPark link for the project: Namco2X6-Pi Multi Selector PCB (DVD Slot)
Here is the OshPark link for the project: Namco2X6-Pi Multi Selector PCB (DVD Slot)
Last edited:
mathewbeall
Champion
Very excited about this! Just ordered the boards and will pick up the other parts....
I will have (1) extra after I am done building these - if anyone is interested.
I will have (1) extra after I am done building these - if anyone is interested.
Last edited:
mathewbeall
Champion
It looks like the amazon link for the OLED display is out - this one looks like the same specs - it should work?
https://www.amazon.com/Display-Modu...90d54&pd_rd_wg=ePSeJ&pd_rd_i=B07VDXYDVY&psc=1
https://www.amazon.com/Display-Modu...90d54&pd_rd_wg=ePSeJ&pd_rd_i=B07VDXYDVY&psc=1
Will it hold the ODE also ?
mathewbeall
Champion
There is already a 3d printed mount for the ODE that sits it back a bit in the enclosure - I am hoping it all fits together nicely.
Dreamstate
Enthusiast
Definitely hit me up if you do. I will likely want to buy it from you either assembled or just part is fine.Very excited about this! Just ordered the boards and will pick up the other parts....
I will have (1) extra after I am done building these - if anyone is interested.
no, not likely.
