The 'CUS27' (or simply '27' as part marking says) is another custom IC found on Namco arcade PCBs of mid/late '80 like :

  • Pac-land, Dragon Buster, Sky Kid, Metro-Cross and other pre-System 86 hardware
  • System 86 hardware (Rolling Thunder, etc)
  • System1 hardware (Splatterhouse, Galaga88, Pac-Mania, etc)

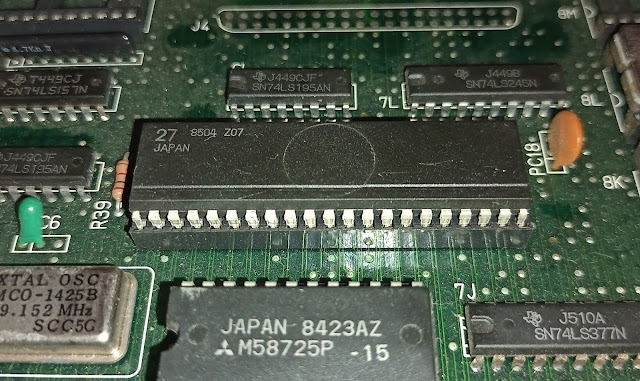

The custom IC comes in a plastic DIP42 package :

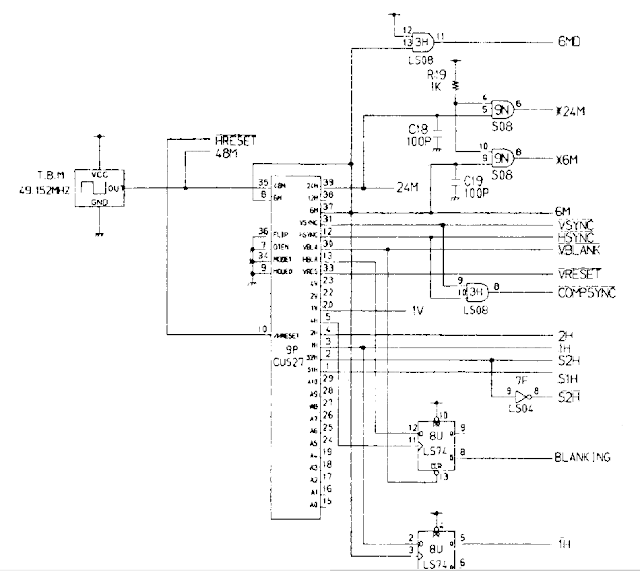

As for its functionality, the chip acts as a clock divider :



The journey towards the reproduction of this custom IC actually started some years ago when John Bennett from UKvAc forums made some preliminary work, you can read more here :

http://www.ukvac.com/forum/namco-cus27-in-fpga-cus130-wip_topic362440.html

Then we had a cooperation together, he made some progress so I designed a proper replacement which worked only on Rolling Thunder PCB :




After that time the project halted due to lack of time and motivation.This state perdured until some months ago when I found that the chip had been decapped so I contacted 'Furrtek' for some help.He traced the silicon die of the chip from picture identifying all the cells and then drawing schematics.In this way he figured out the full functionality of the chip, in particular he found that the chip can have different modes.At this point, after the hardest part was done, I came in and designed another replacement board :

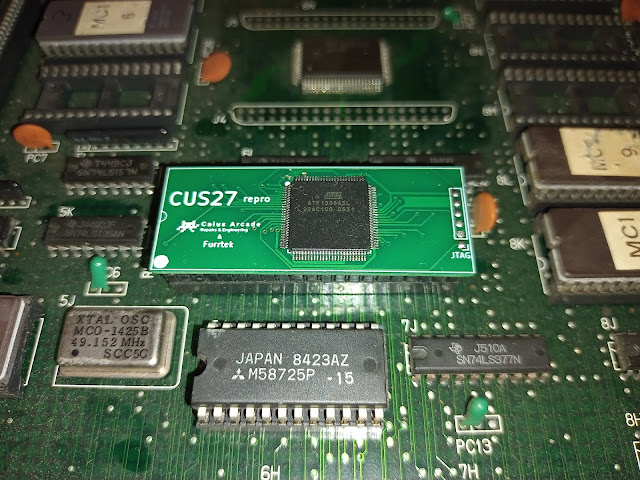

The testing was successful on all PCBs I could try :






Thanks again to John Bennett for the initial work and 'Furrtek' for the completion, without them we would not have now a replacement of the Namco 'CUS27'.

Last edited:

glstar

Grand Master
Joined
Dec 4, 2015
Messages
651
Reaction score
263
Location
Italy
Wonderful work.
Do you also manage to replicate CUS48?


MickyMac

Enthusiast
Joined
Apr 2, 2019
Messages
163
Reaction score
106
Location
Europe
Well done on the new reproduction. Great job.

Does your findings help improve the mame emulation/mister implementation?


Hammy

Enlightened
Joined
Feb 3, 2018
Messages
1,518
Reaction score
3,232
Location
U.K
This one has been a long time in development! Excellent it's finally finished :)
