Name that connector: the thread

No worries bud. If it helps for future searching I did the following:

1 ) First I went to > https://www.jst.co.uk/products.php

2) They're a wire to board type connector so I selected the 'PCB Connectors / Tabs' option:

https://www.jst.co.uk/products.php?cat=1&nm=PCB+Connectors+from+JST

3) I then selected the 'Wire to Board Connectors (Crimp Type)' option:

https://www.jst.co.uk/products.php?cat=30&nm=JST+Wire-to-Board+Connectors+(Crimp+Style)

4) From the 'Advanced Search' option I changed the '03 - Pitch/Style:' filter to 'more' and then '2.50mm'

This then lists all of the 2.5mm pitch connectors. I then just looked for an image which matched yours which was the last result on page 2.


I find searching by pitch the easiest way to narrow down and ID a connector. If you have the connector to hand you can normally pretty easily measure the pitch, espoecially if you measure the width of say 10 pins and then dividing by n-1 (9 in this case). You'll get a more accurate result than trying to measure the pitch between two pins. Especially when trying to ID if something is 2.50mm or 2.54mm for example.

Last edited:

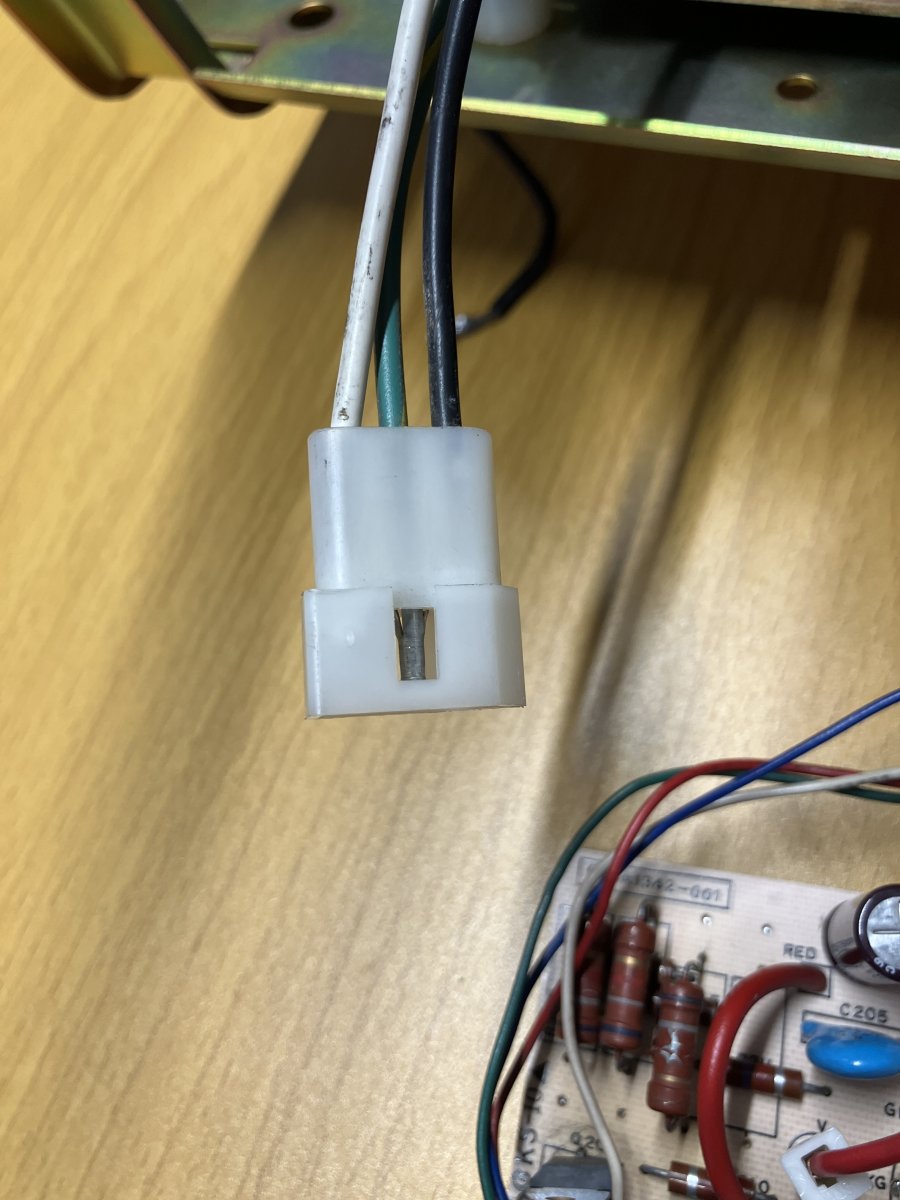

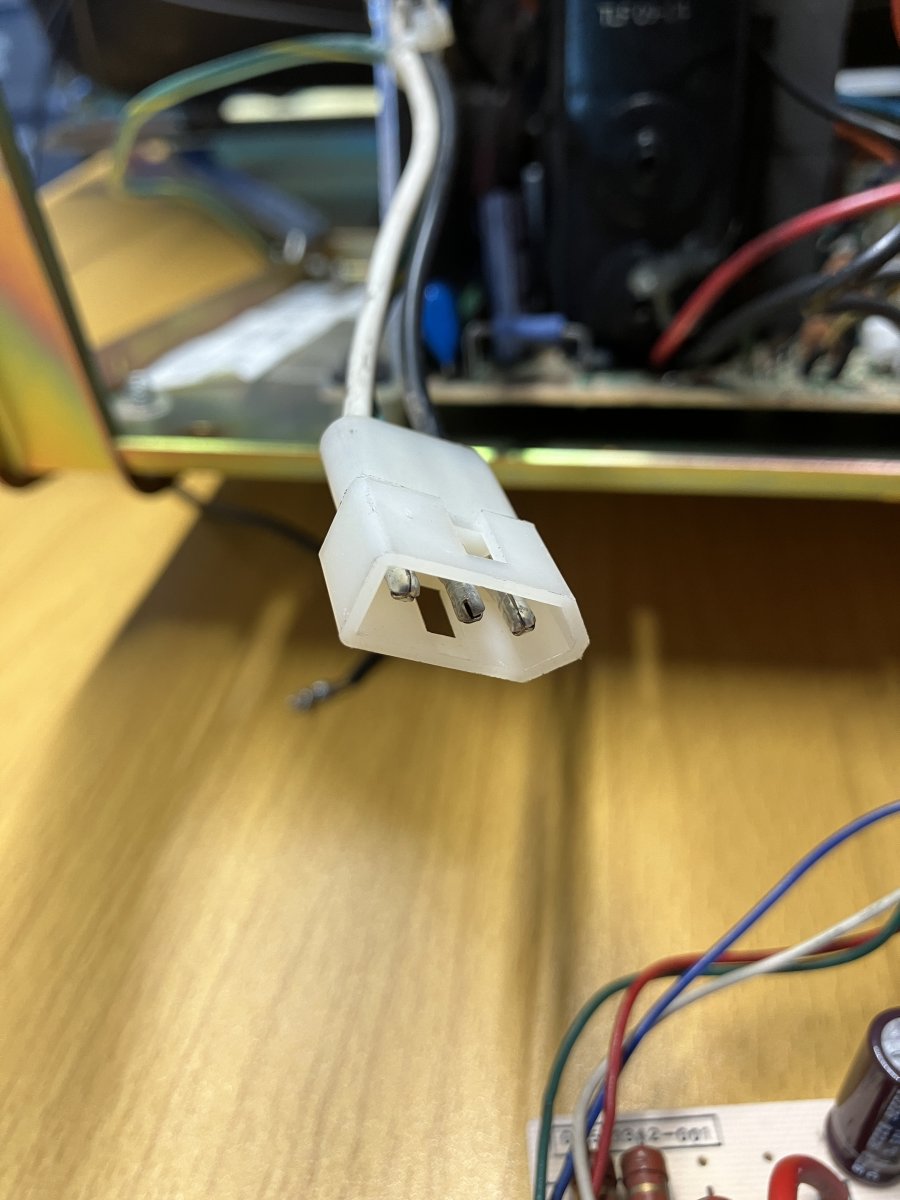

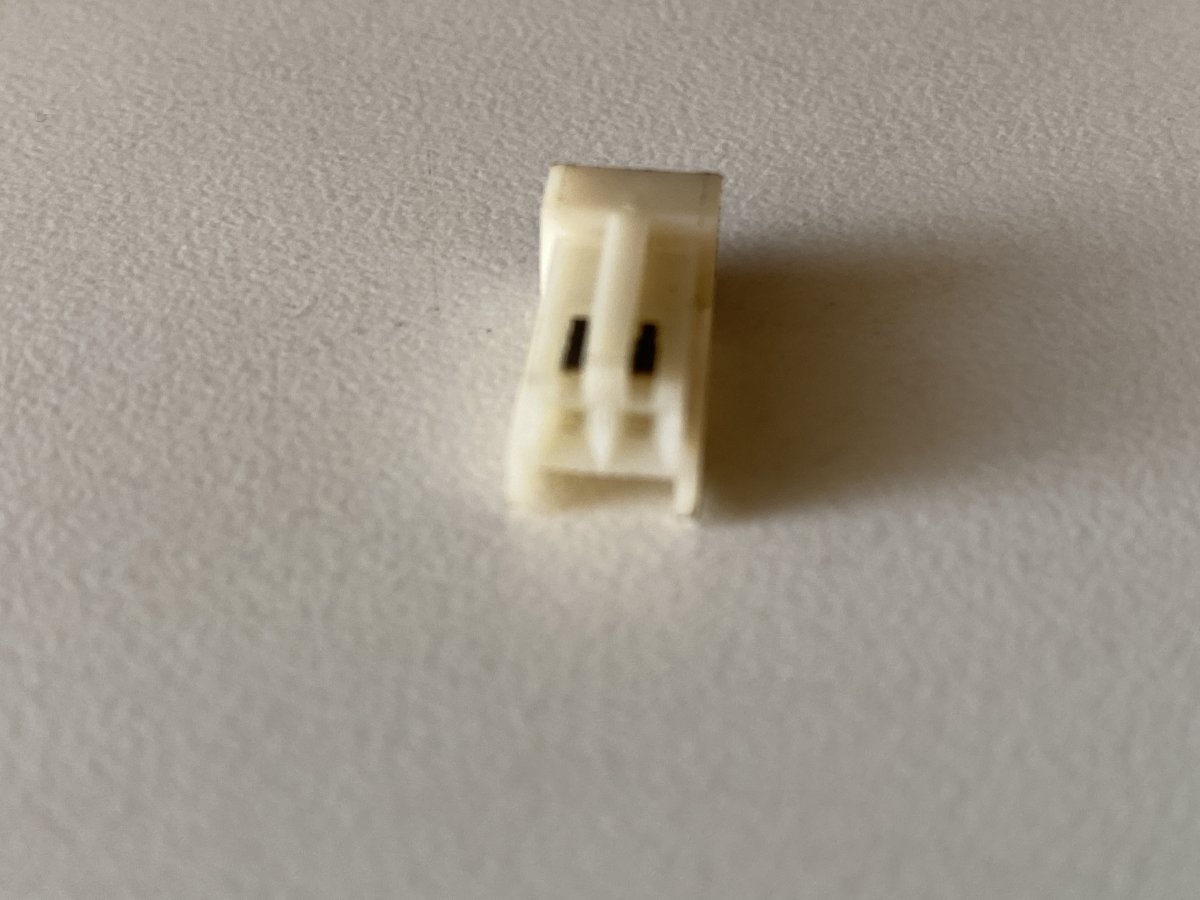

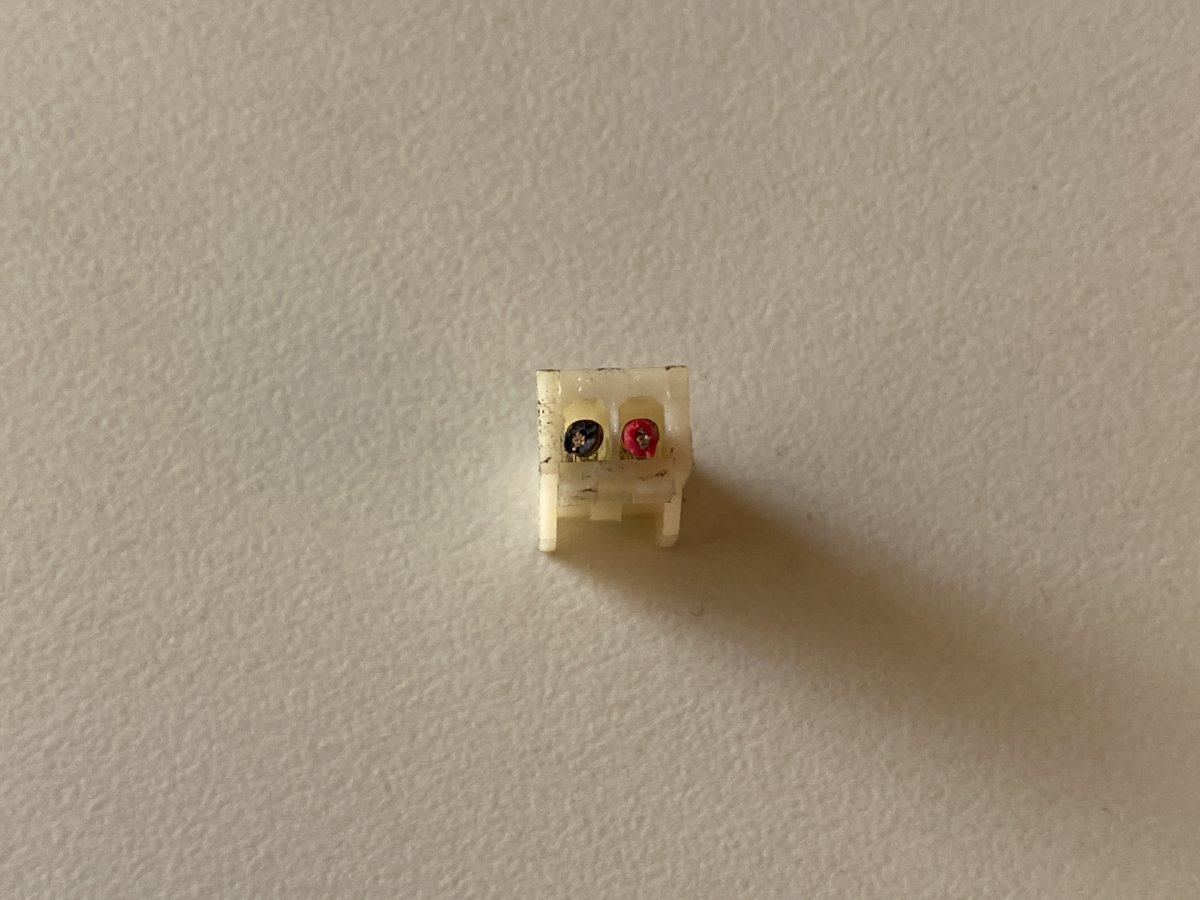

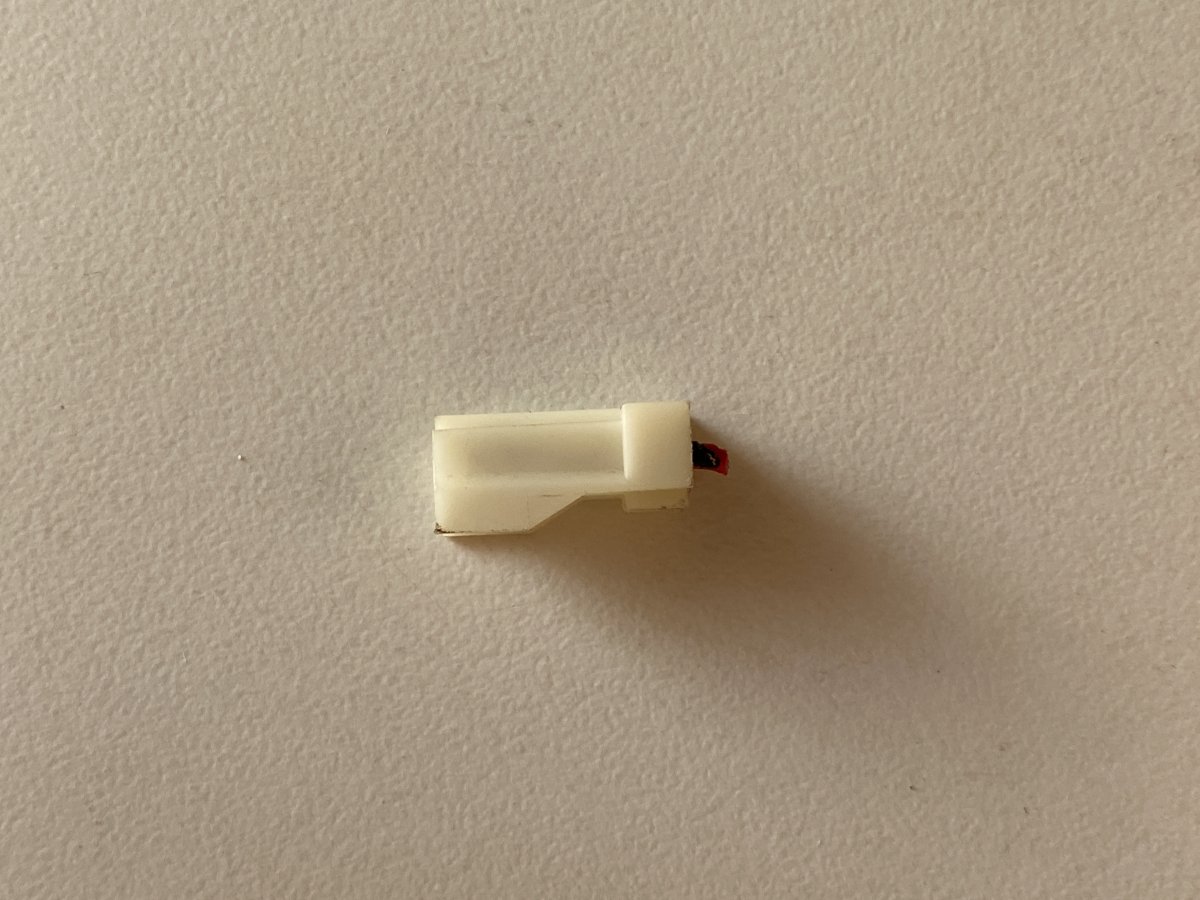

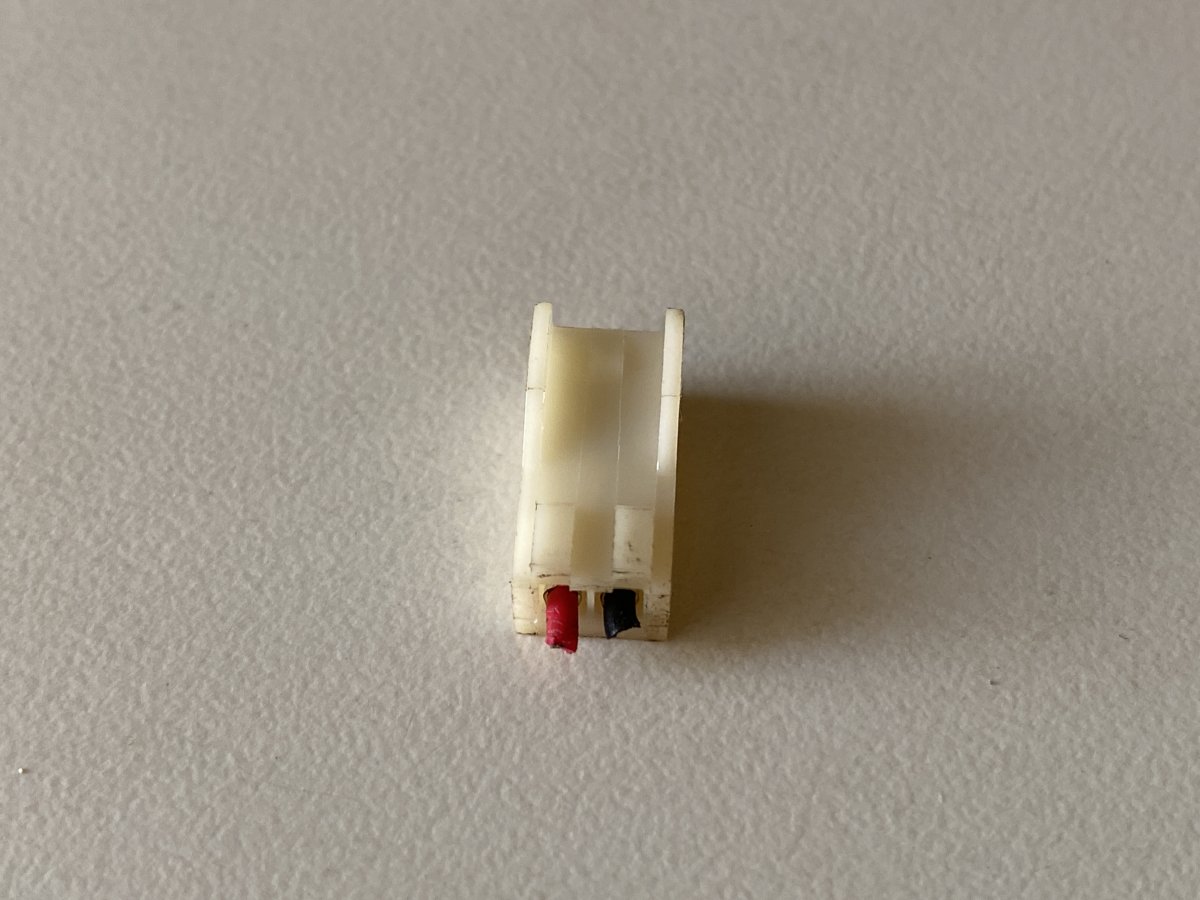

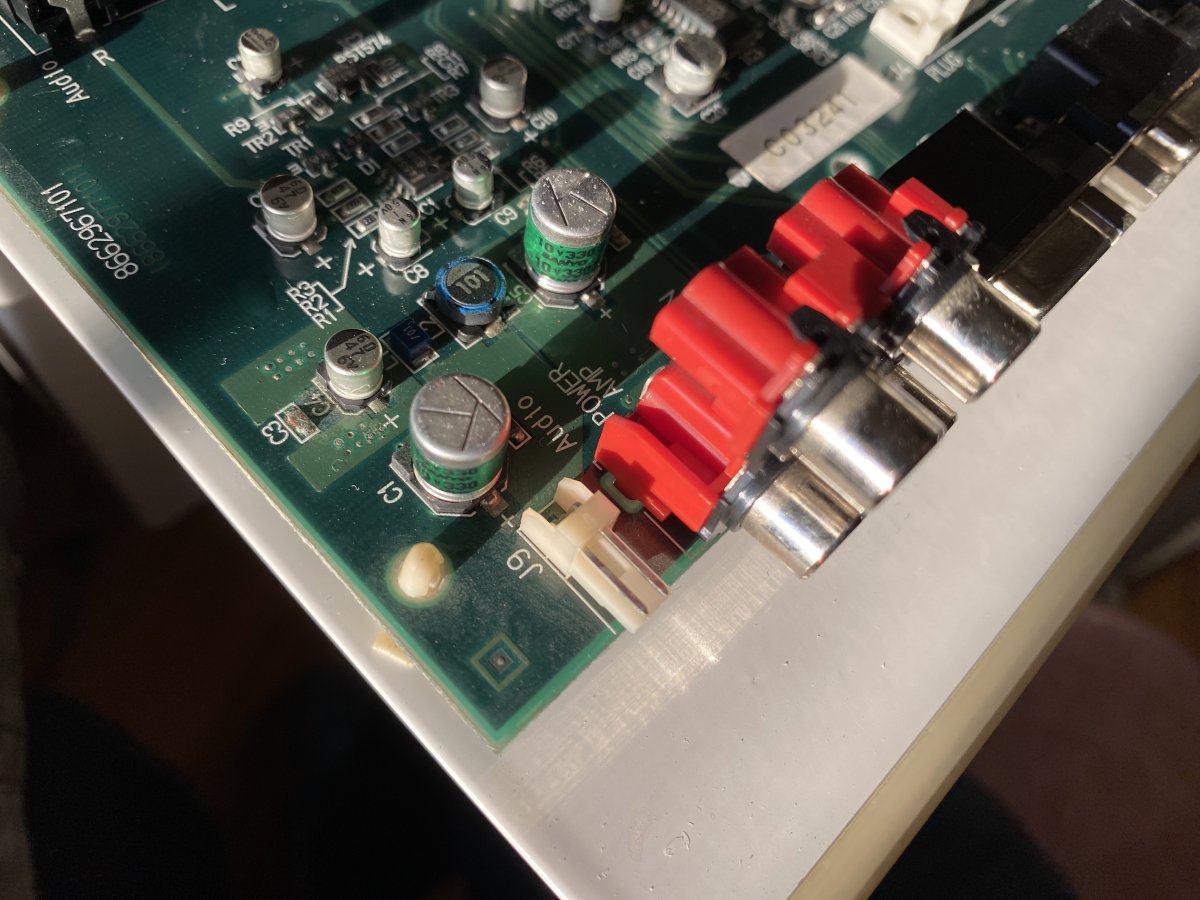

What connector is this? It belongs to a WG K7000 chassis.



Last edited:

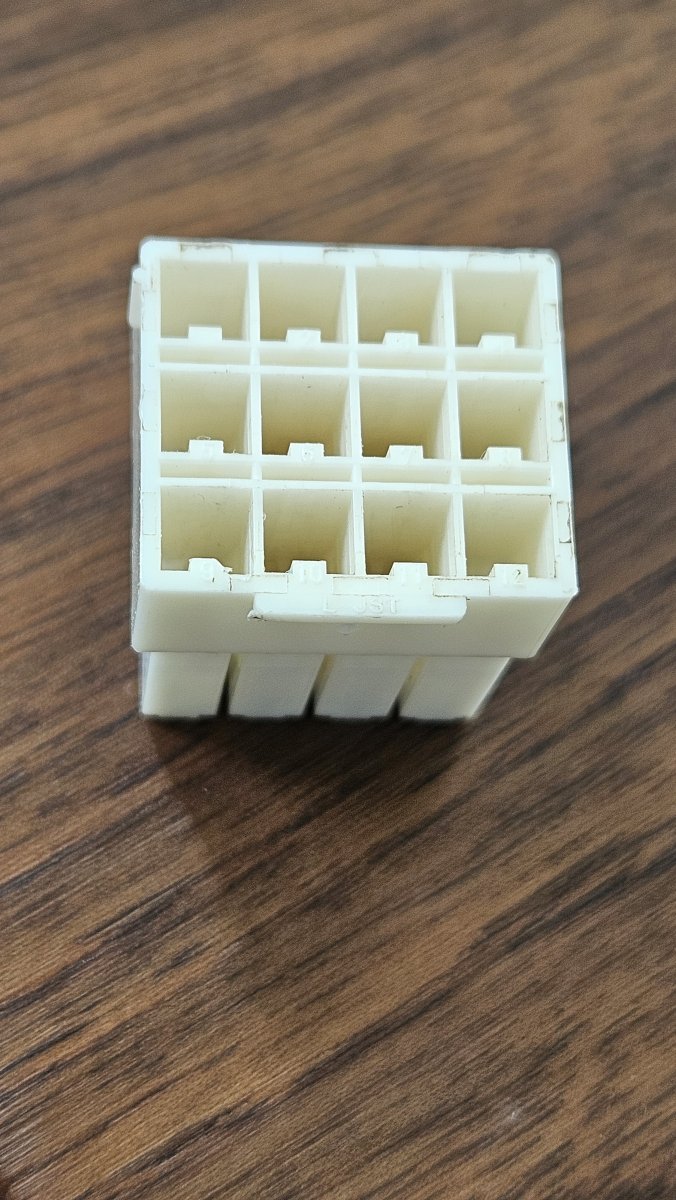

Does anybody know under what name I can buy this JST plug? I need both the female and male parts. And how the metal things called which i need to solder to the wire?
It's from a Namco Noir Arcade. I can see "L JST" on the connector, but I can't find anything under this name in my search.


Attachments

  • 20240526_174630.jpg
    161.1 KB · Views: 63
Looks like I really fudged up then X/

Sorry if I sent you a red herring. I've corrected my posts above in case any one else looks in the future.

FrancoB said:
Looks like I really fudged up then X/

Sorry if I sent you a red herring. I've corrected my posts above in case any one else looks in the future.
Click to expand...
Not at all. I should have checked the pitch. They’re almost identical but the SAN is just a smaller scale.

I'm looking for a bit of help. I've done some digging but need that extra push to get over the hump with this project.

Background: I am "refreshing" a vewlix C cabinet. I'm trying to keep the visual aesthetic as close to original as possible but I'm redoing the innards in a way that works for my setup and the way I think (cash is king). I'm planning to use the original 12 PSU and the Vewlix Console I/O. The crux is that I'm trying to get it setup for multiple control panels I can swap in and out. To do this the way I'd like to I need a set of harness for each player on each panel.

Seeking Help With: I gather that I need the following housings and contacts to to make the proper harnesses

Question 1: For an end user, is there any economical crimpers that I can purchase to do this job? Also, would I be setting myself up for headaches trying to learn how to build these cables? I know a fair amount about crimping but have never worked with this style before. I know there are several options to purchase these (in and outside the forum) but I find them either prohibitively expensive or I haven't received responses to my inquiries.

Question 2: Alternatively, would anyone have a recommendation for a more common/accessible set of connectors I could switch too? Ideally I'd like to fasten the cable connector from the I/O to the CP housing itself in a way that makes swapping fast, secure and effortless.

Last edited:
If you give a mouse a cookie... Any alternative crimpers I can get sooner? Also, do the amp connectors use the same contacts/crimper?

The contacts # numbers are below. make sure you buy them in *bulk* and not Tape & Reel or Cut Tape .... ask me how I know
and yes, the crimper mentionned by @nem will work.
Pins

AWGTypePart number
20-16Female pin for male housing175152
26-22Female pin for male housing175151
20-16Male pin for female housing175150
26-22Male pin for female housing175149
