Hello good people!

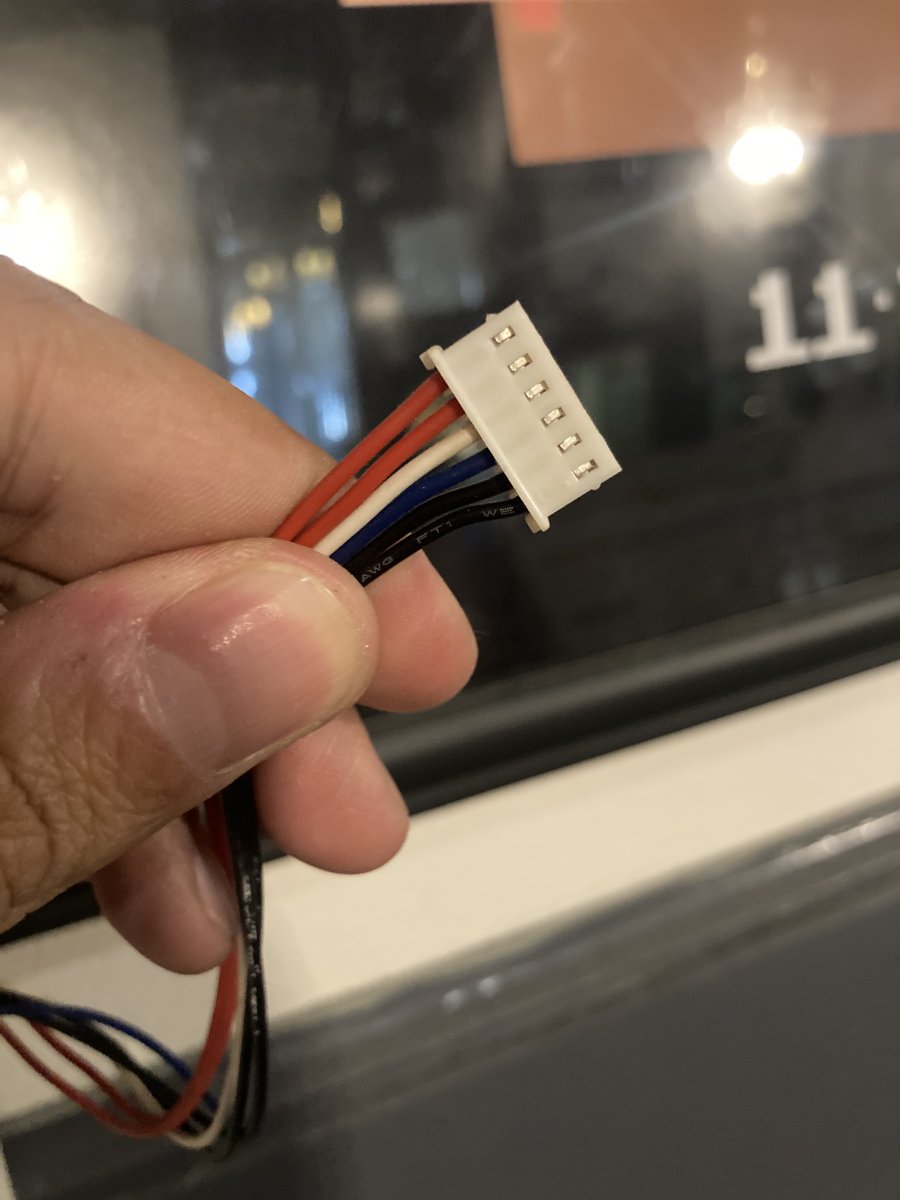

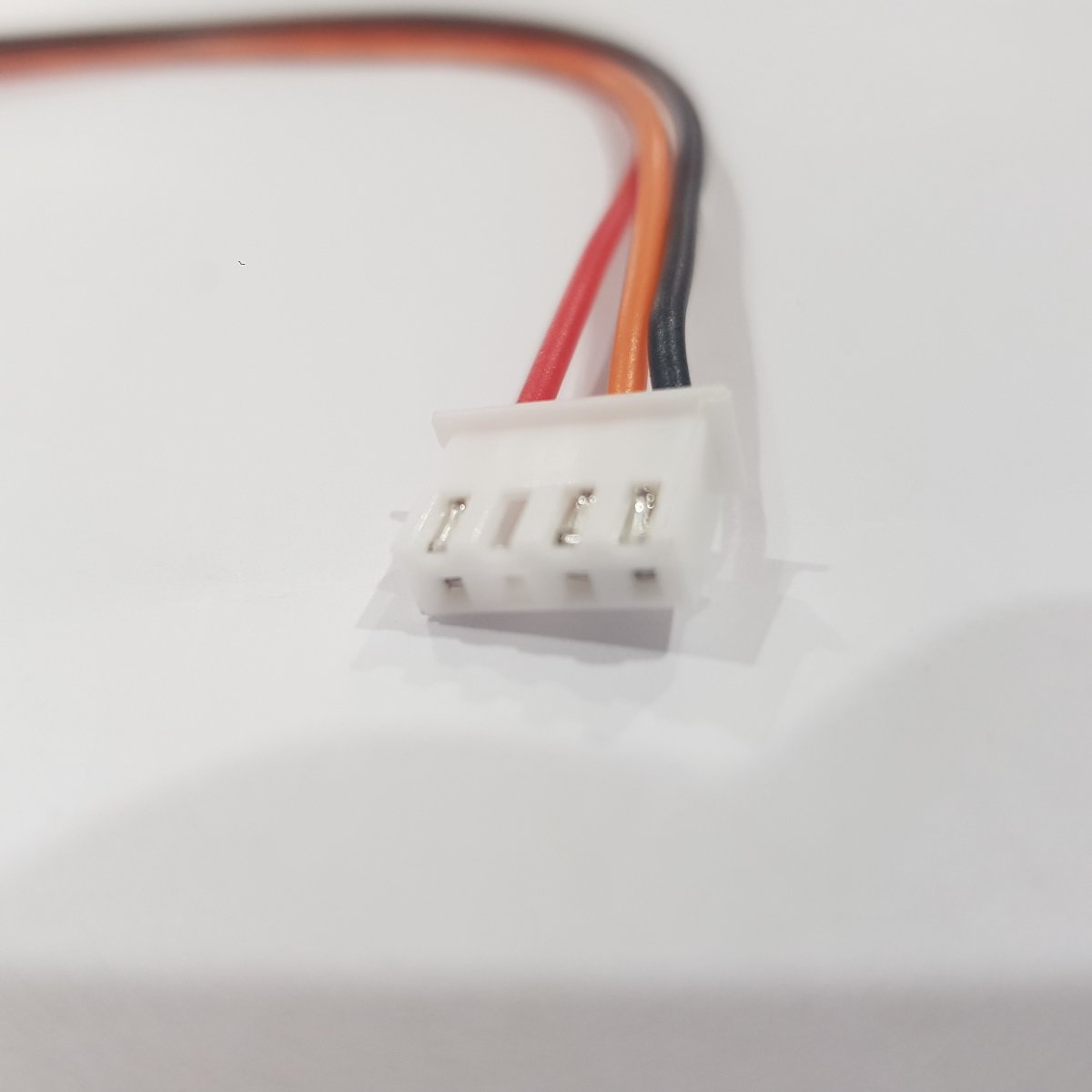

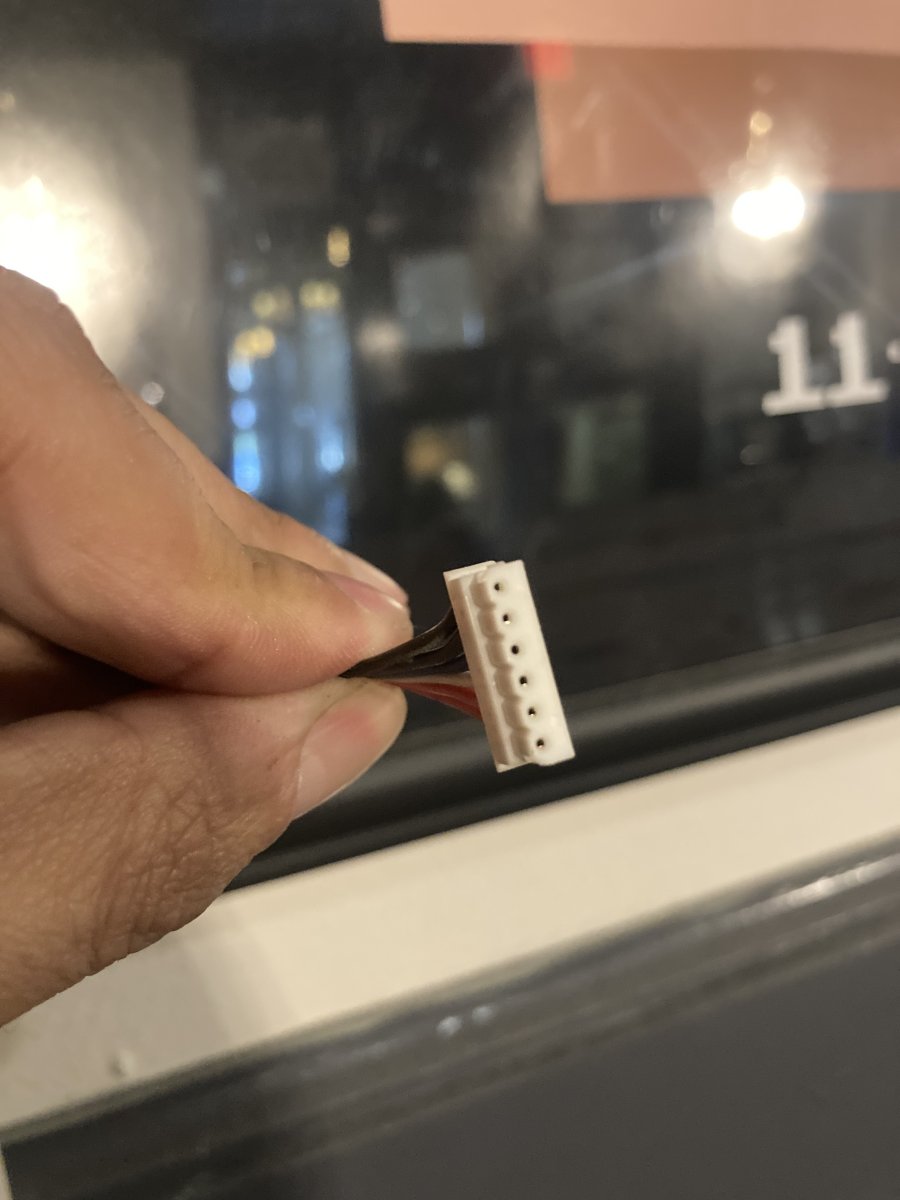

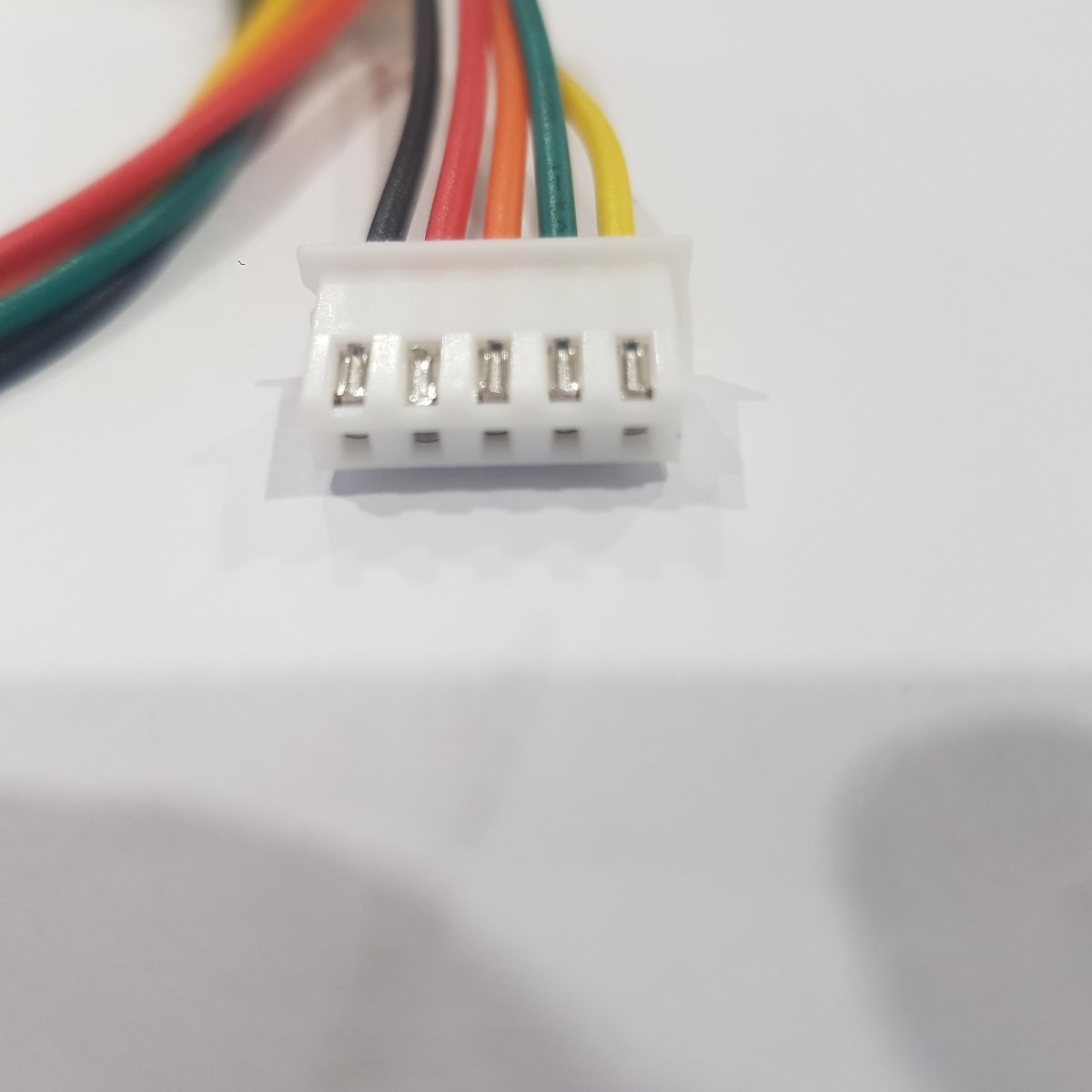

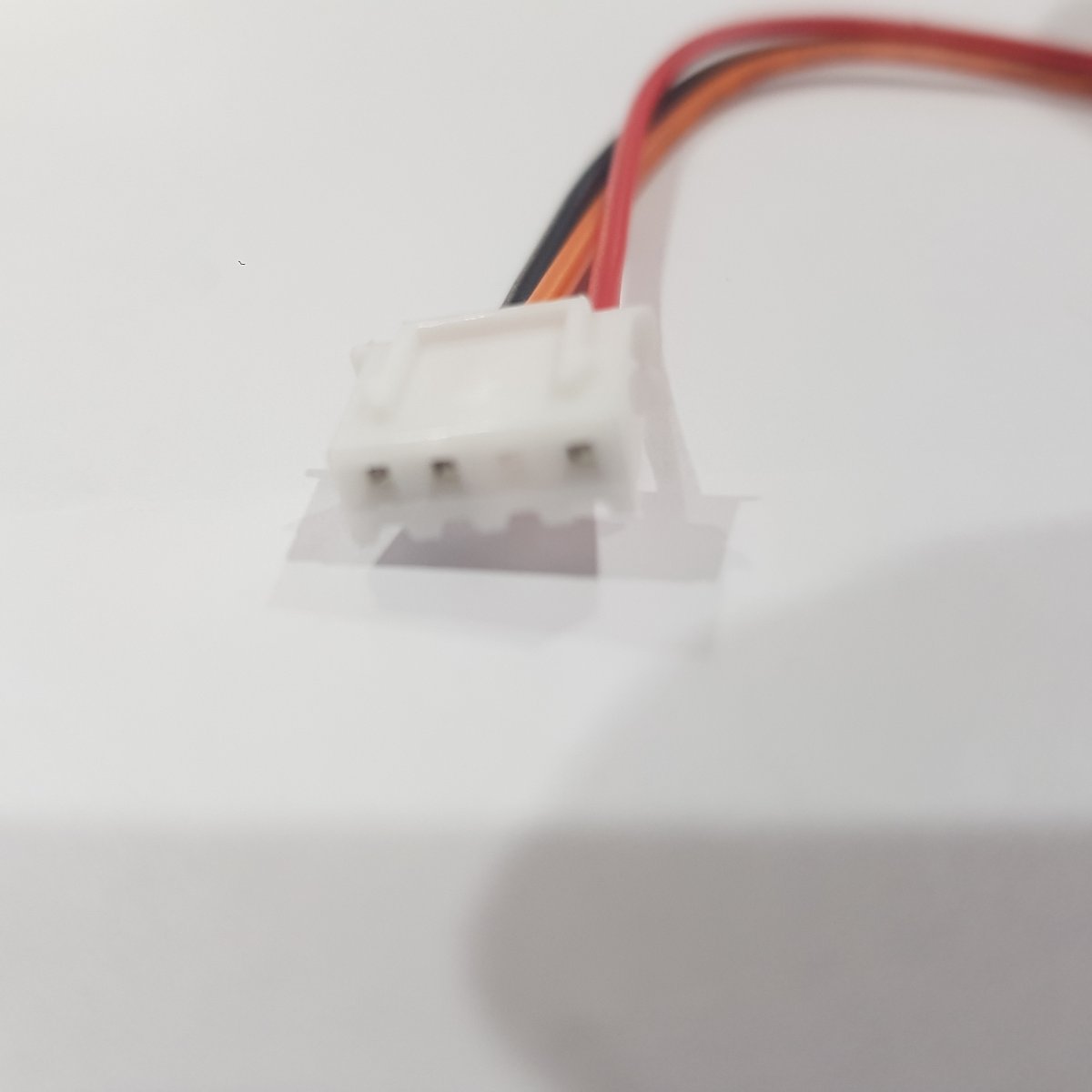

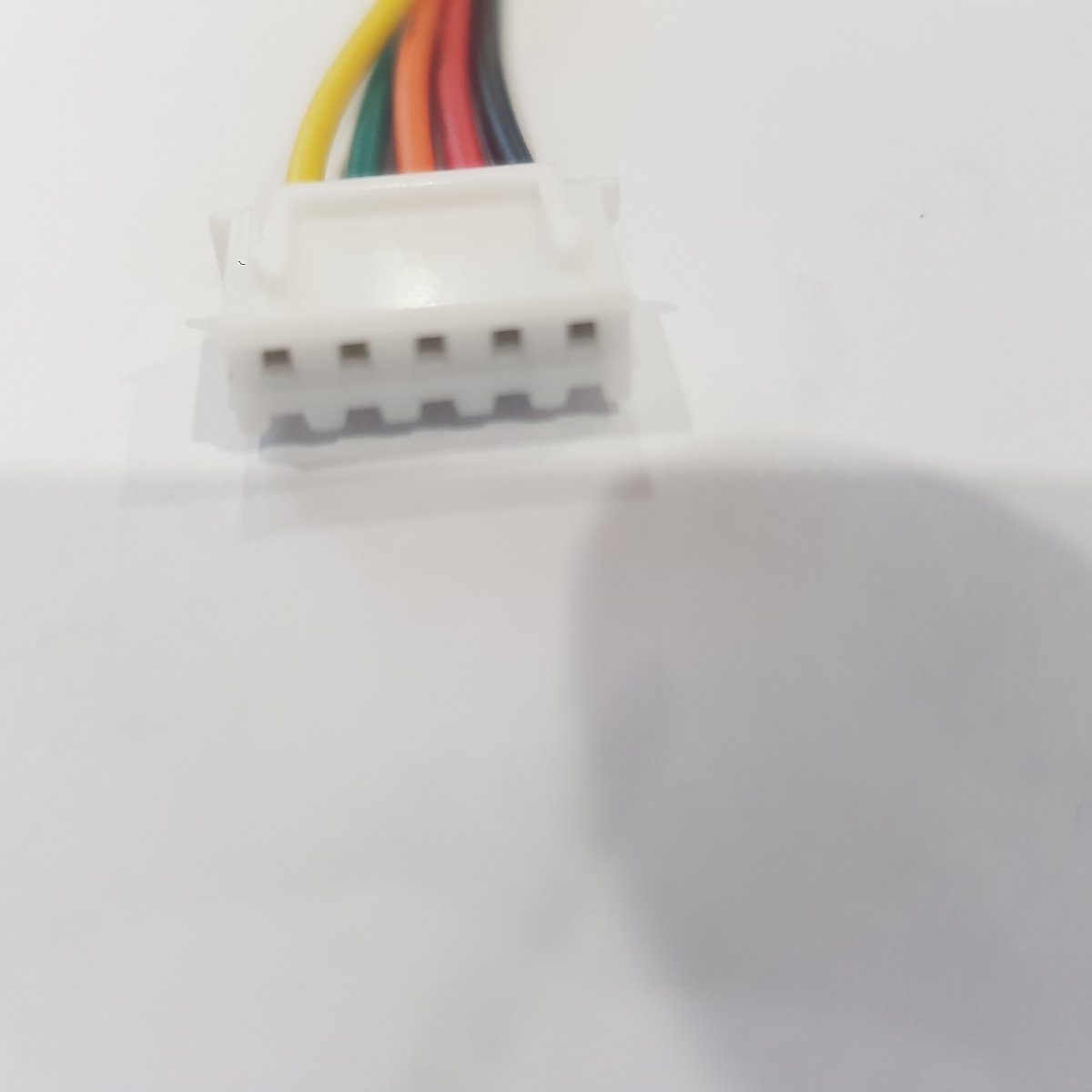

Hoping for some help with these two specific connector models please.
1.
Hoping for some help with these two specific connector models please.
1.
Name that connector: the thread
- Thread starter rewrite
- Start date
xb74
Grand Master
2.
trashedcabs
Grand Master
JST XHP-4 and XHP-5
xb74
Grand Master
Legend, thankyou!!
xb74
Grand Master
I forgot to ask - what is the metal connector to be crimped over the wire and inserted into these JST products?
SXH-001T-P0.6 for # 28 to #22 AWG
SXH-002T-P0.6 for # 30 to #26 AWG
SXH-001T-P0.6N for # 26 to #22 AWG
SXH-001T-P0.6N is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration.
https://www.jst-mfg.com/product/pdf/eng/eXH.pdf
SXH-002T-P0.6 for # 30 to #26 AWG
SXH-001T-P0.6N for # 26 to #22 AWG
SXH-001T-P0.6N is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration.
https://www.jst-mfg.com/product/pdf/eng/eXH.pdf

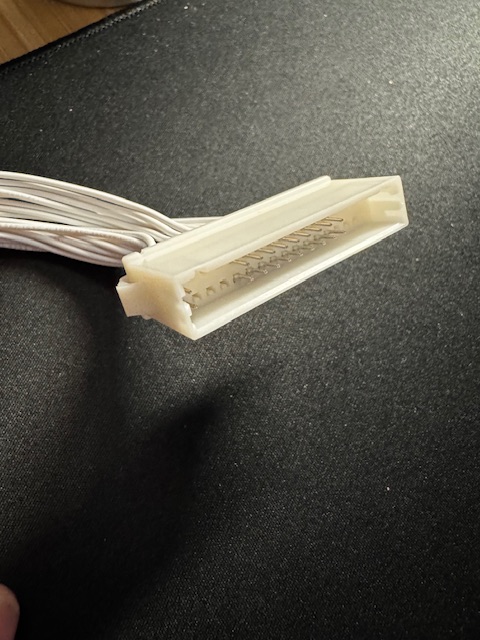

Anyone know the parts number for this type of female CPS2 kick harness connector?
This is not the PCB header, it’s a panel mount one.
This is not the PCB header, it’s a panel mount one.
Last edited:
Pic is hard to make out, but I guess you mean
DF1B-34DEP-2.5RC
Product catalog can be found here:
https://www.hirose.com/en/product/series/DF1B
DF1B-34DEP-2.5RC
Product catalog can be found here:
https://www.hirose.com/en/product/series/DF1B
JohnRambo'sKnife
Champion
streetfighterken
Grand Master
I want to purchase a 4 pin to 2 pin adapter for a noctua fan for my noir. I bought a 4 pin fan to micro 2 pin but that wasn’t what I needed.

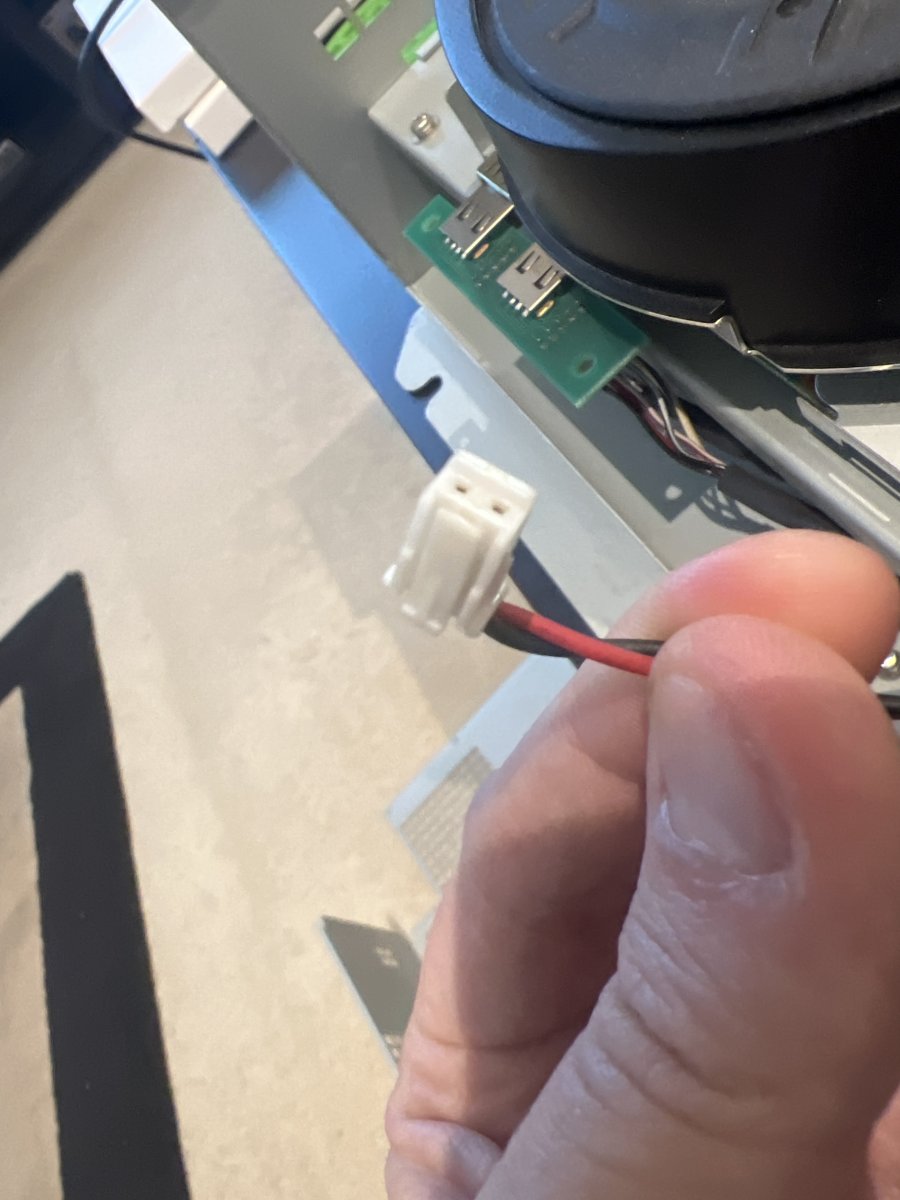

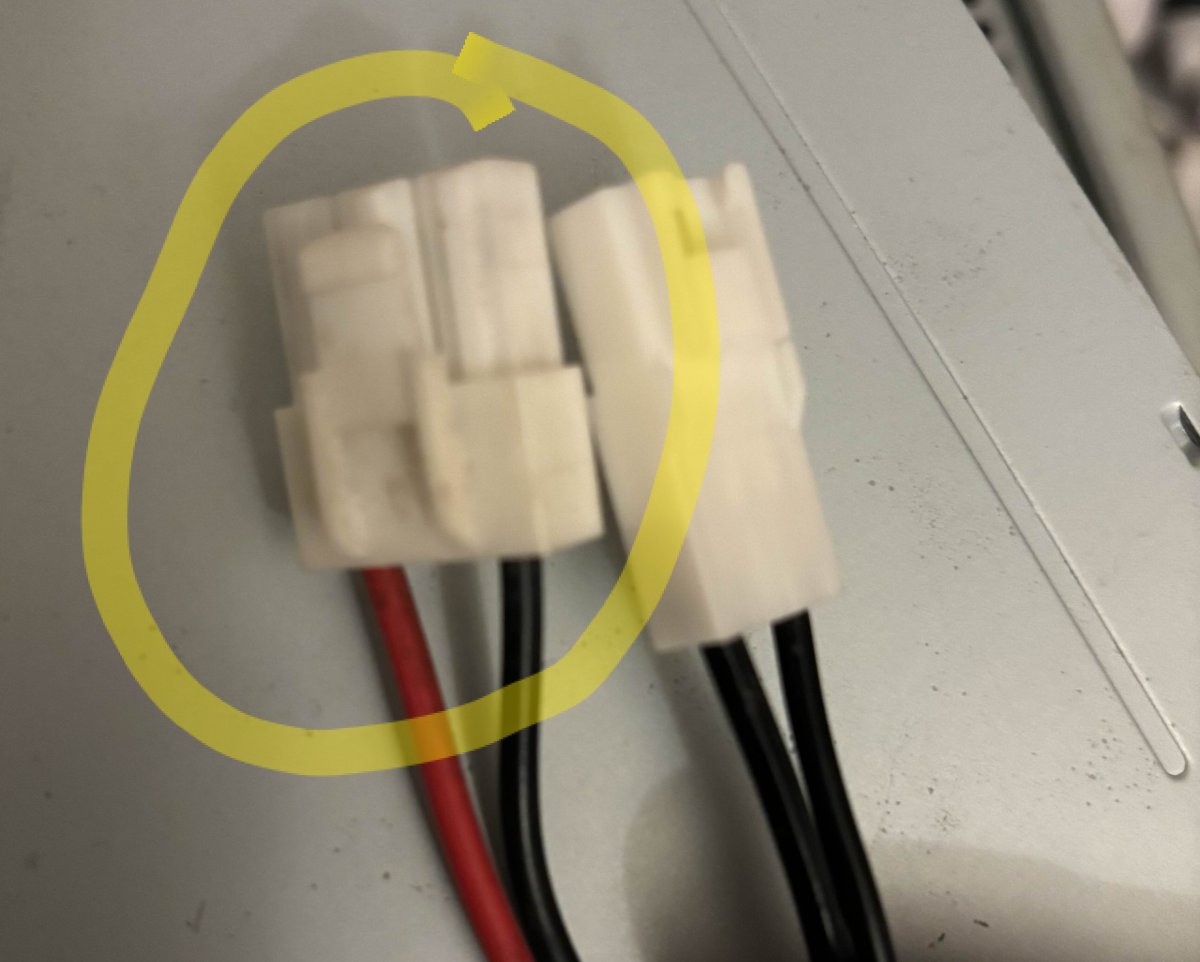

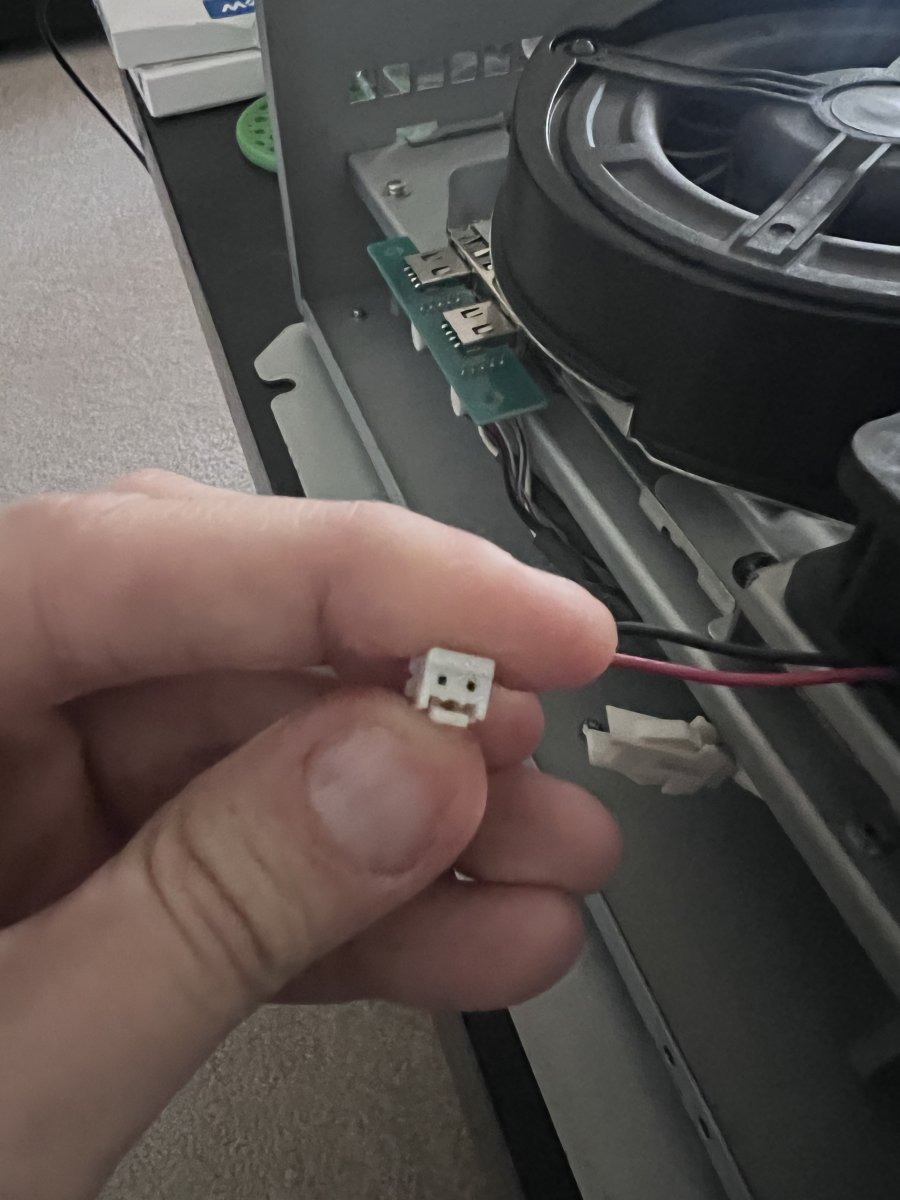

Can someone name this one? This is a system 357c Tekken 6 : BR.
Can someone name this one? This is a system 357c Tekken 6 : BR.
Last edited:
Mrhide
Legendary
jst vh. https://www.digikey.ca/en/products/detail/jst-sales-america-inc/VHR-2N/608624

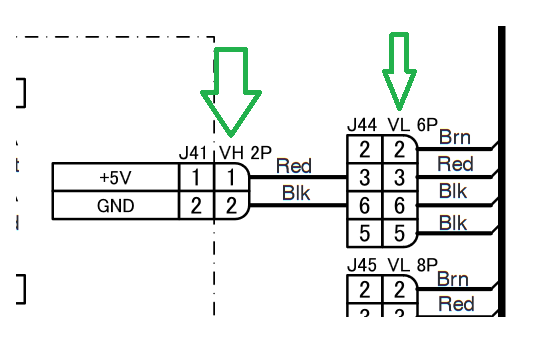

says so in the manual :
ty!jst vh. https://www.digikey.ca/en/products/detail/jst-sales-america-inc/VHR-2N/608624
says so in the manual :

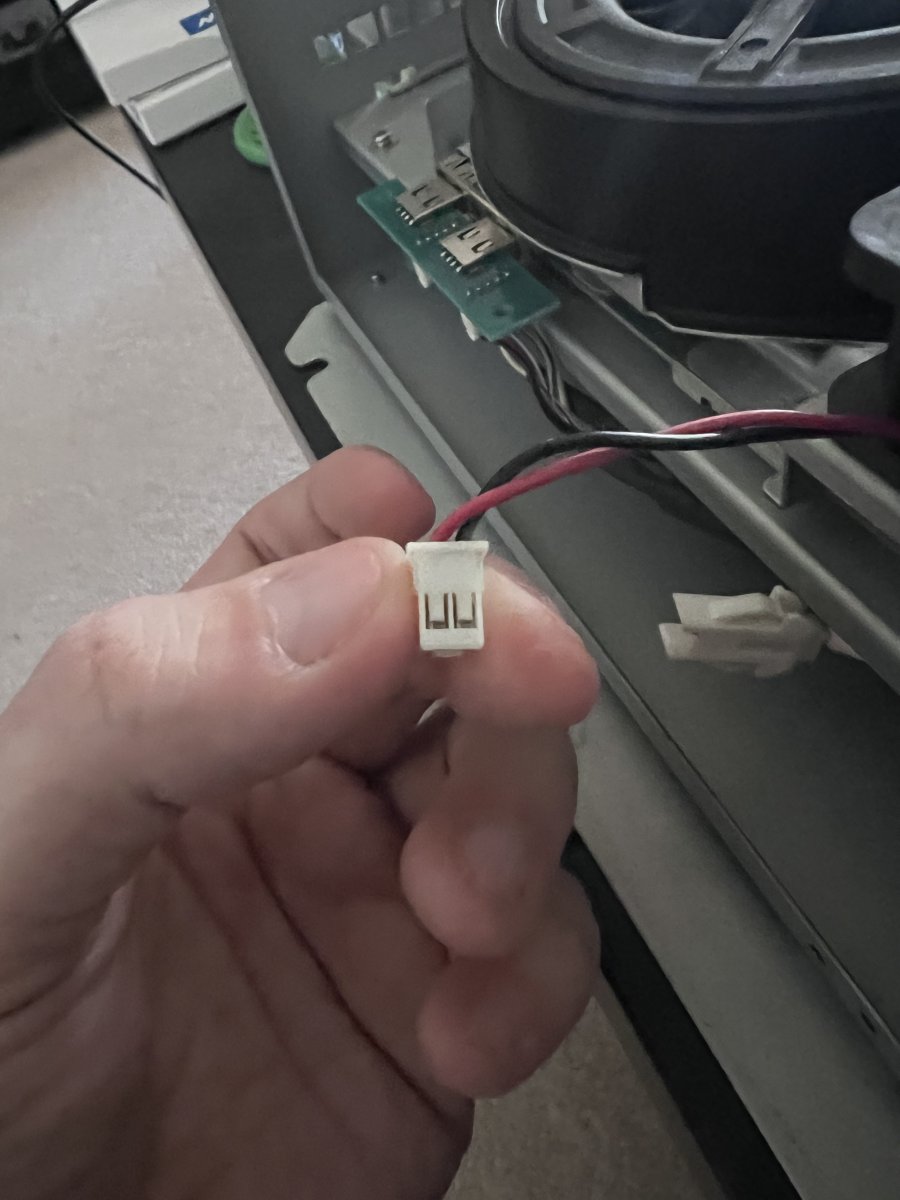

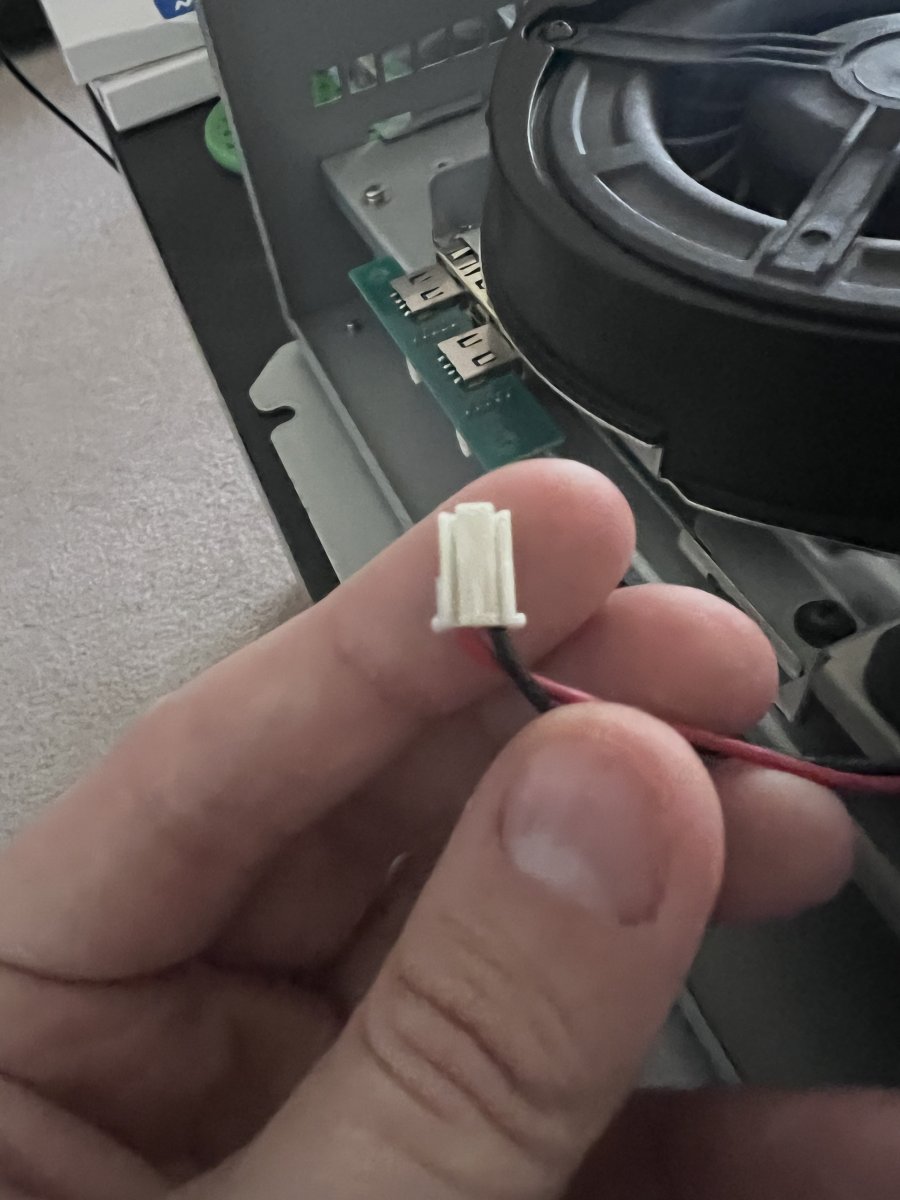

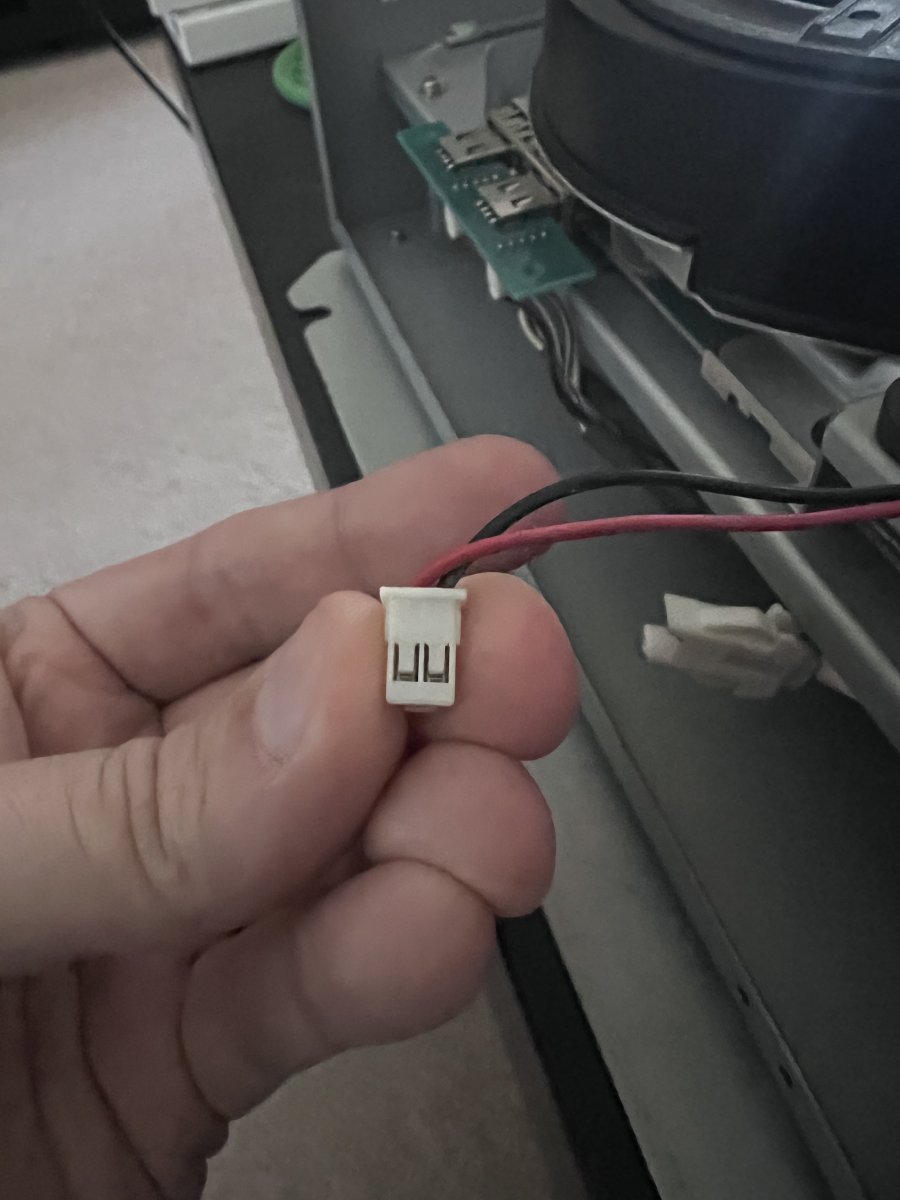

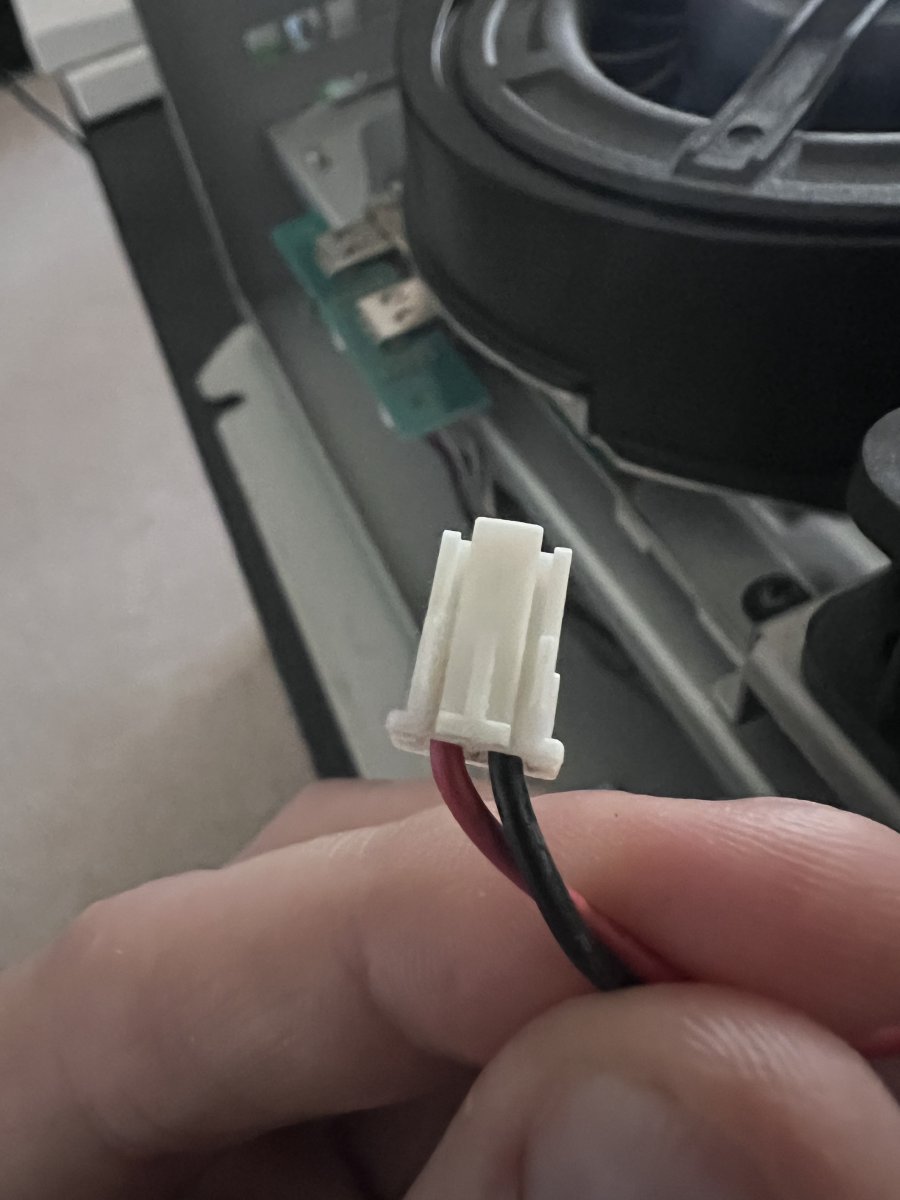

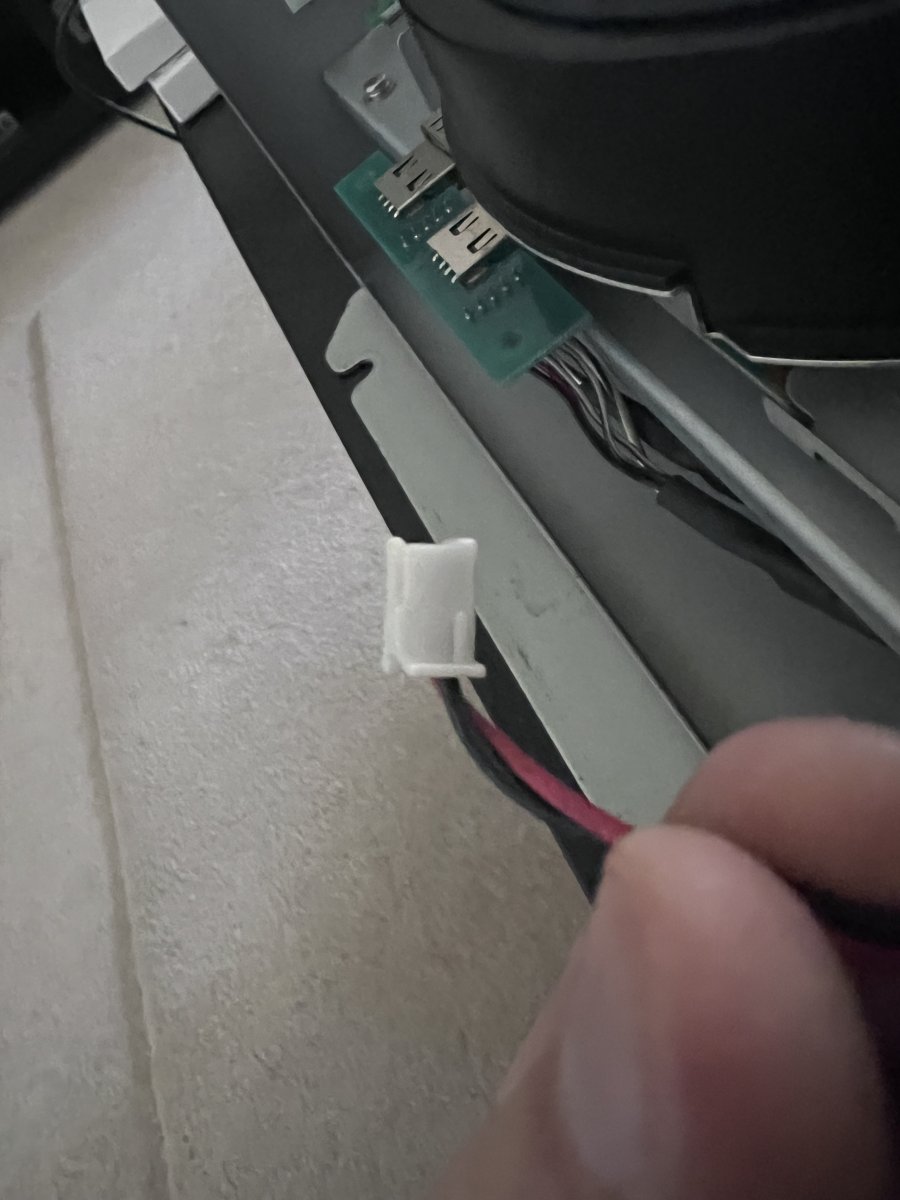

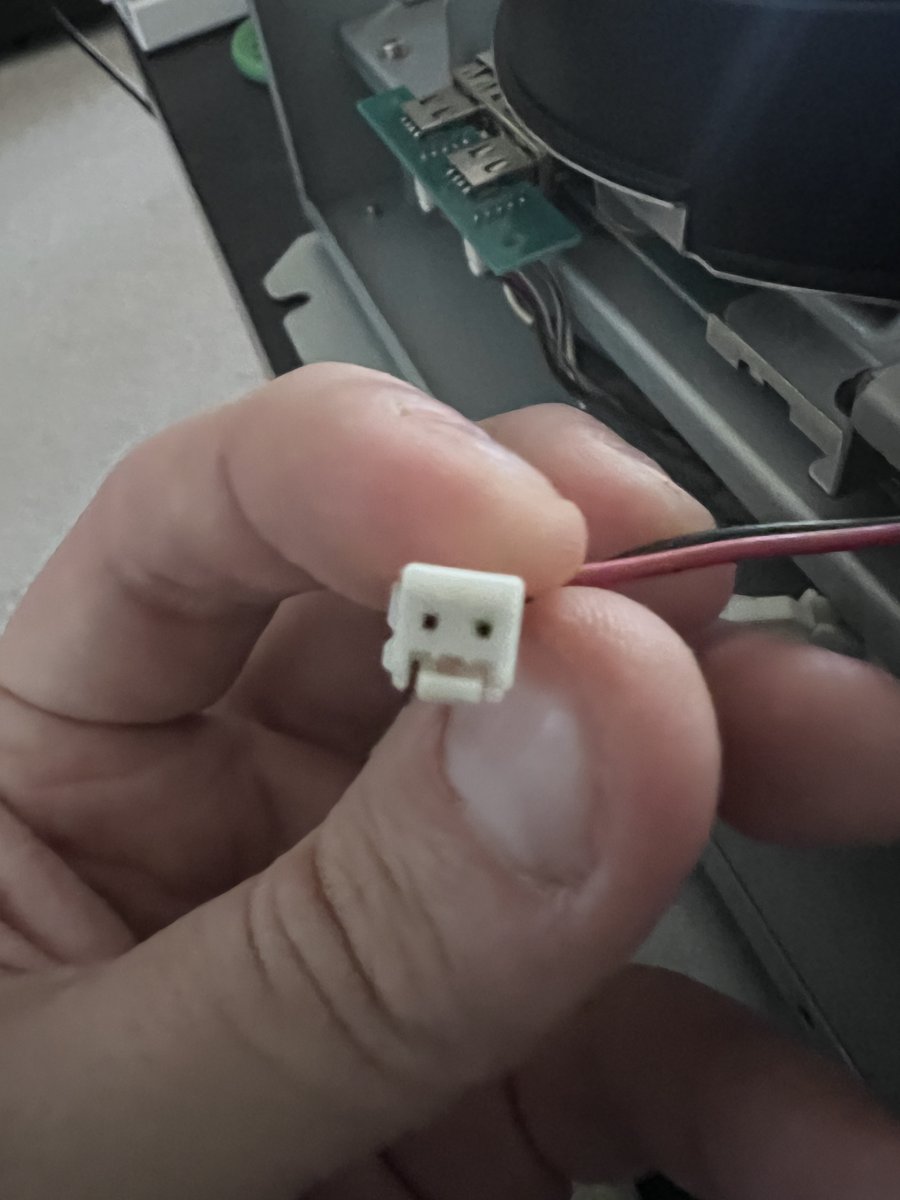

The manual I think is for a Noir with the Tekken 6 pcb installed? The manual definitely shows the system 357. I ordered some JST VH, only cost $10 so I guess I'll try those first. If those don't work I'll look at the XAP-02V-1. Here are some more pics of the connector.
Attachments
That's definitely a XAP-02V-1. Compare below:
https://www.digikey.com/en/products/detail/jst-sales-america-inc/XAP-02V-1/923774
Pins are here:
https://www.digikey.com/en/products/detail/jst-sales-america-inc/SXA-01T-P0-6/1300286
https://www.digikey.com/en/products/detail/jst-sales-america-inc/XAP-02V-1/923774
Pins are here:
https://www.digikey.com/en/products/detail/jst-sales-america-inc/SXA-01T-P0-6/1300286
Mrhide
Legendary
a XAP-02V-1 eh?
who names these connectors anyway?
@Segafan1985 sure looked a lot like it! here's hoping they work !
who names these connectors anyway?
@Segafan1985 sure looked a lot like it! here's hoping they work !
Ordered the ZAP-02V-1 and the pins. Hopefully practice makes perfect. I just wish the noctua wire gauge wasn't so tiny. I'll let you know how it goes!
