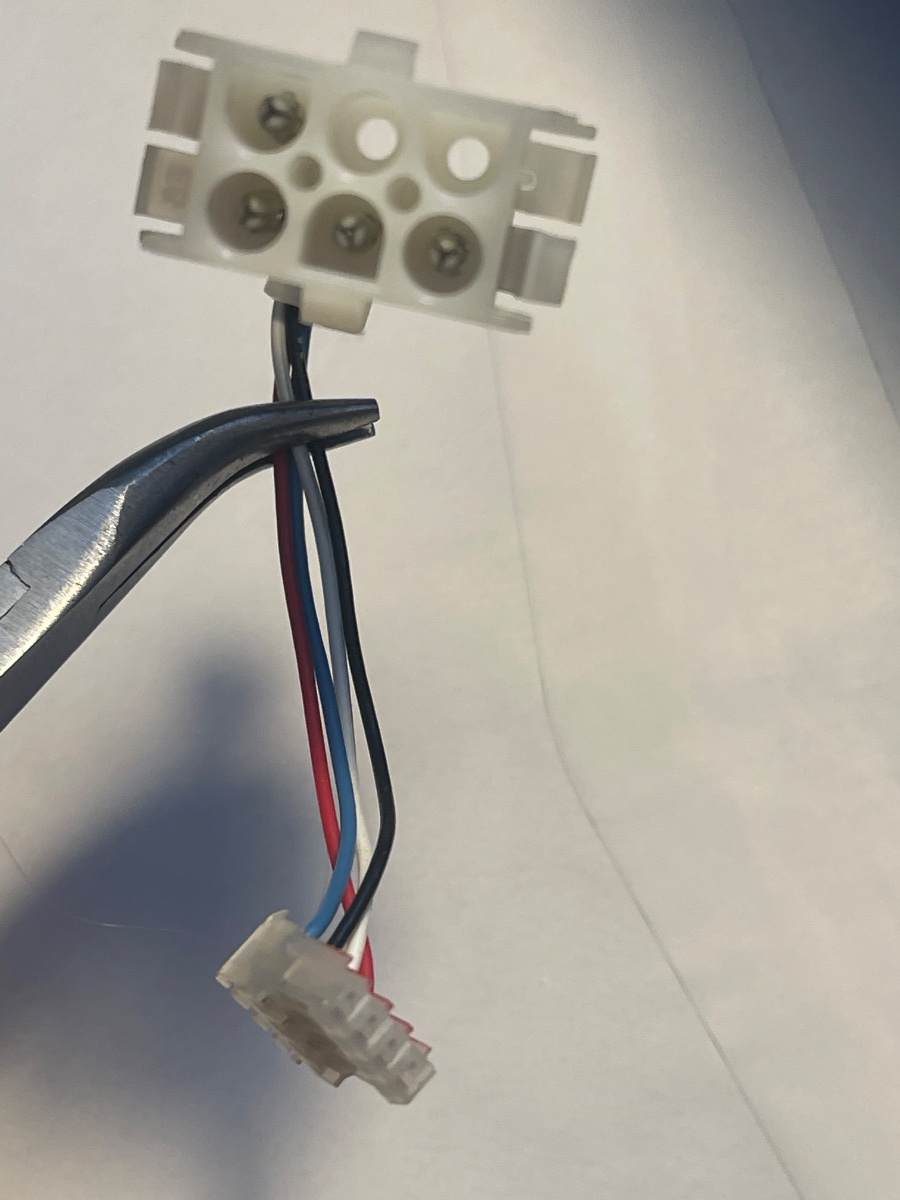

Any clue as to what the Suzo Happ guns use for a connector? It's the big 6 pin sucker on the right here.
Name that connector: the thread
- Thread starter rewrite
- Start date
Sp33dFr34k
Champion
Mrhide
Legendary

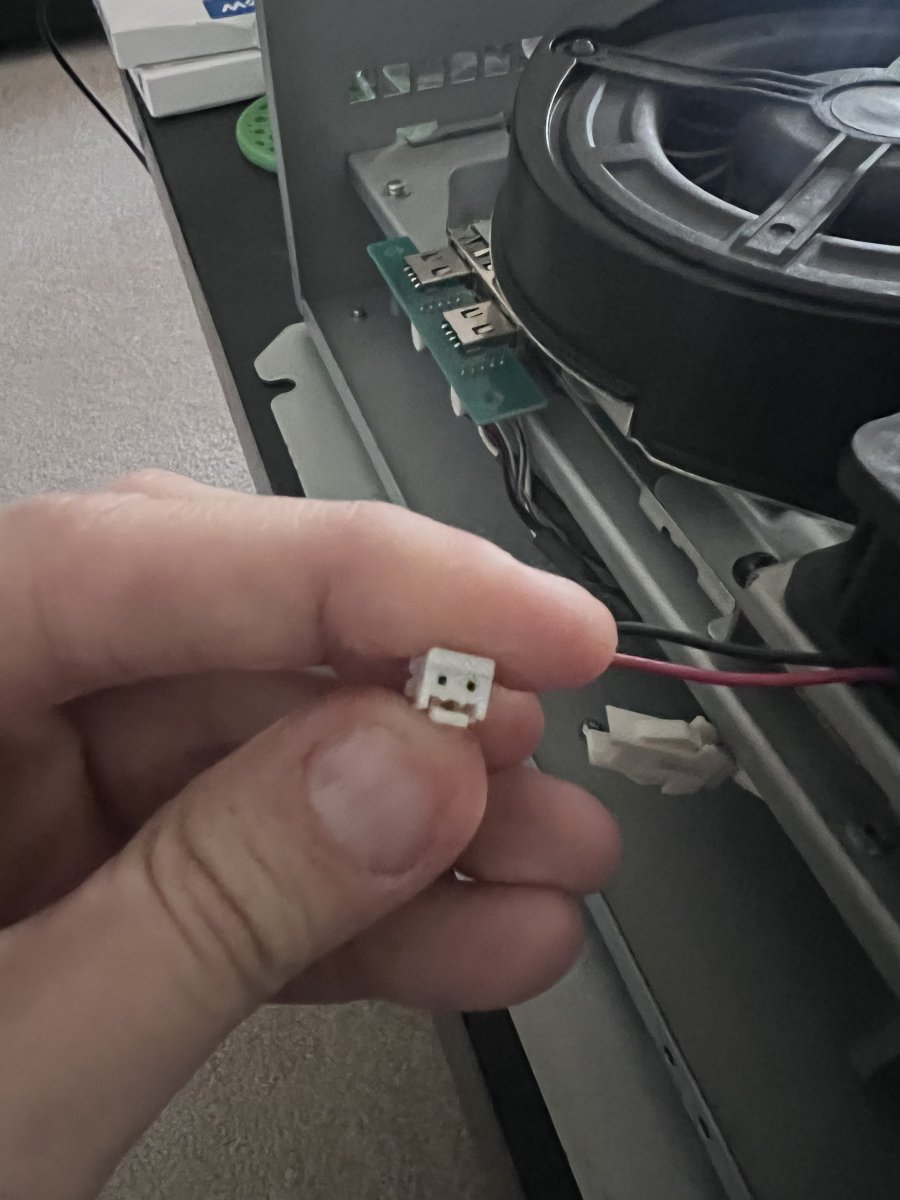

Decent pic:
Sp33dFr34k
Champion
That's the one!
Mrhide
Legendary
Sp33dFr34k
Champion
Attachments
Mrhide
Legendary

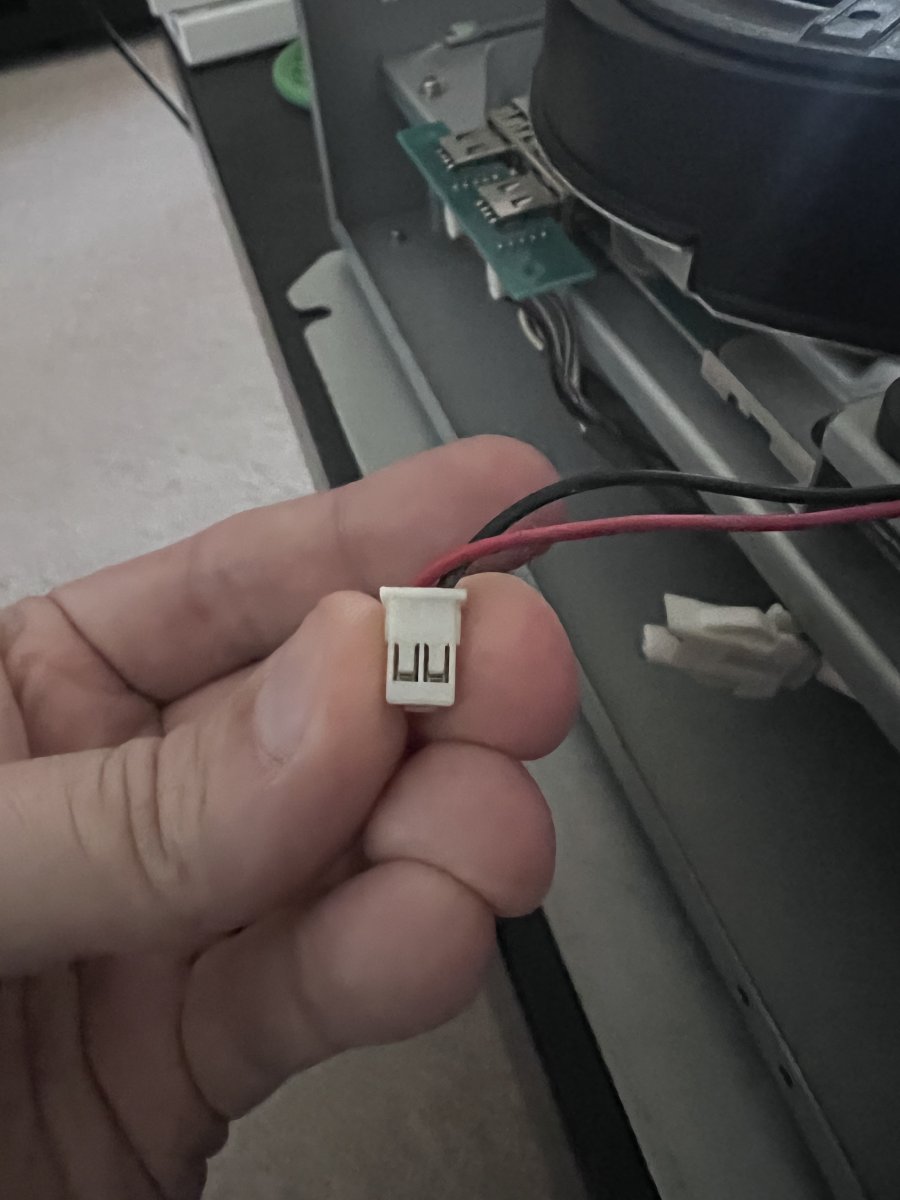

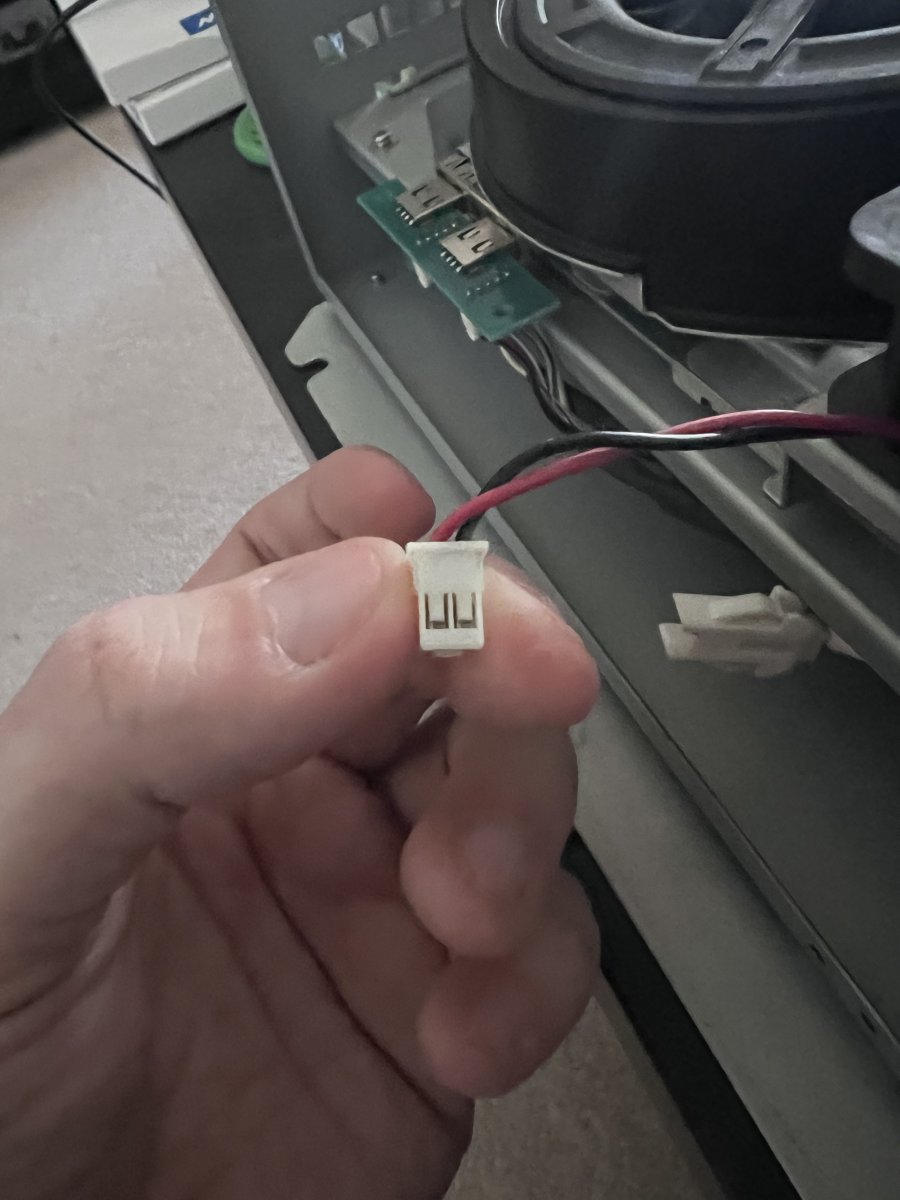

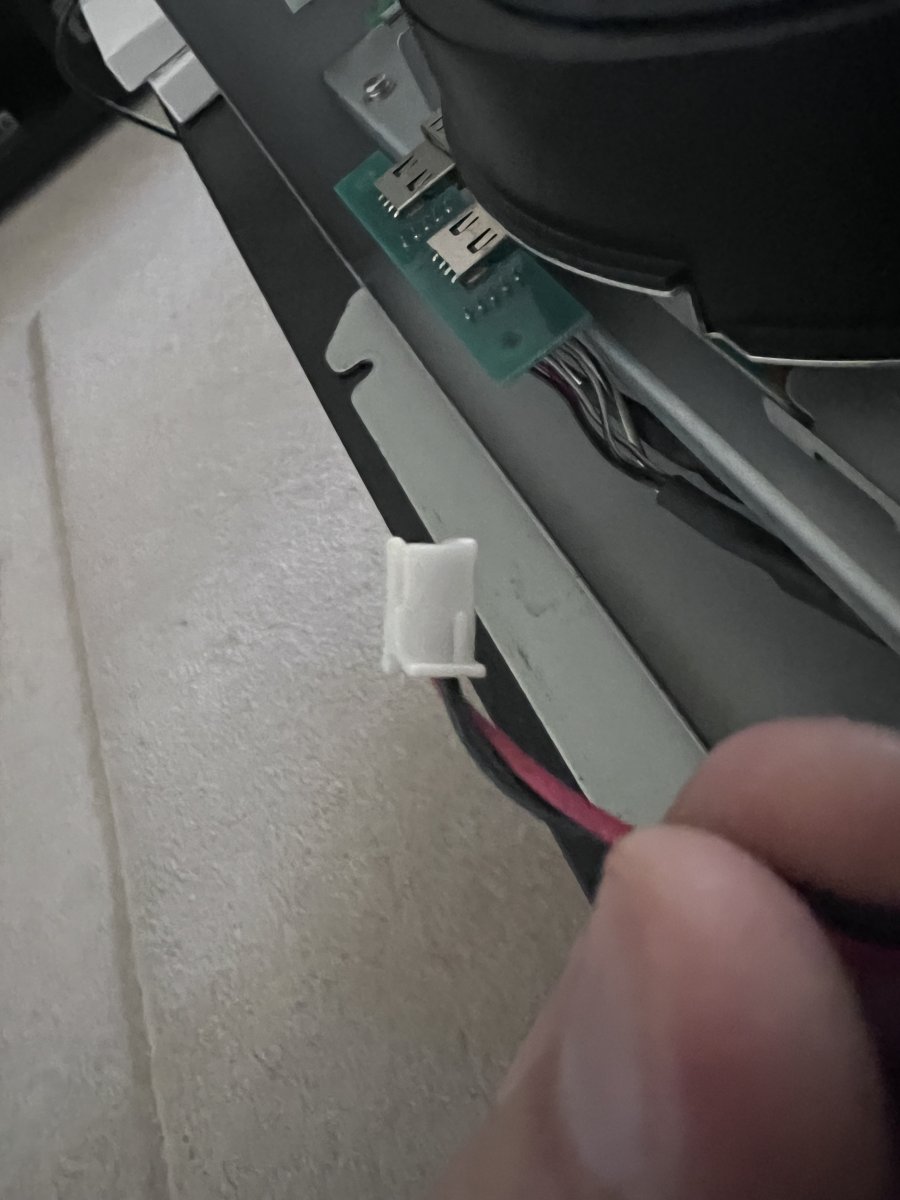

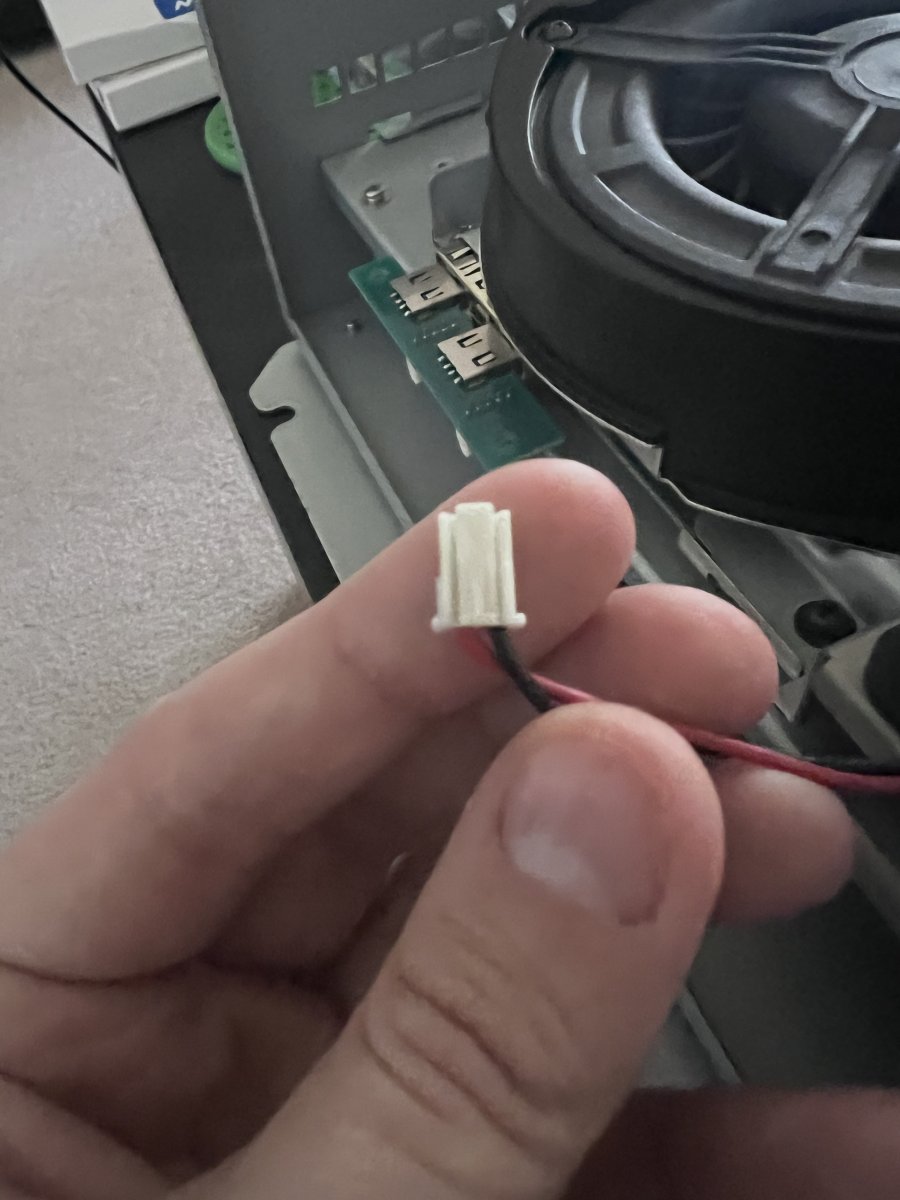

Anyone can Id these?
MagicianLord77
Enthusiast

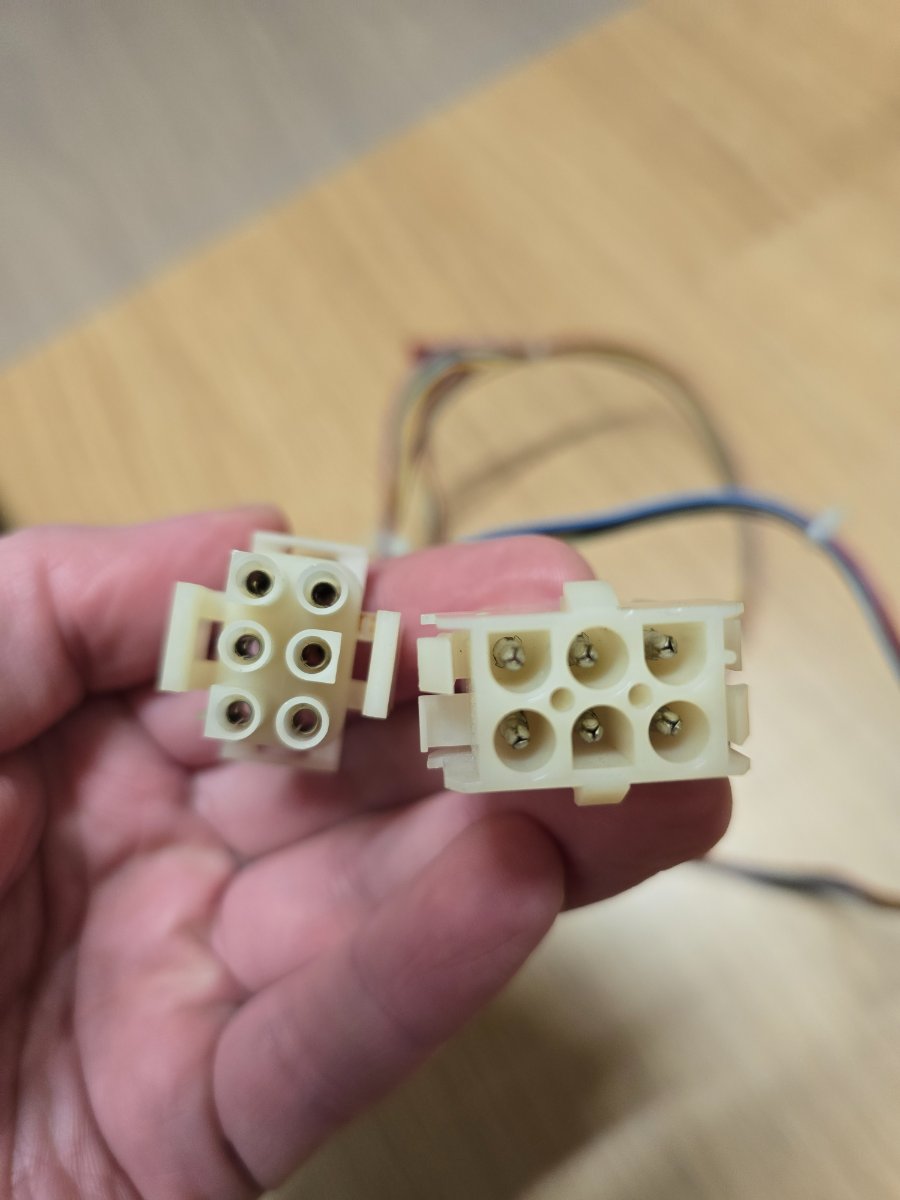

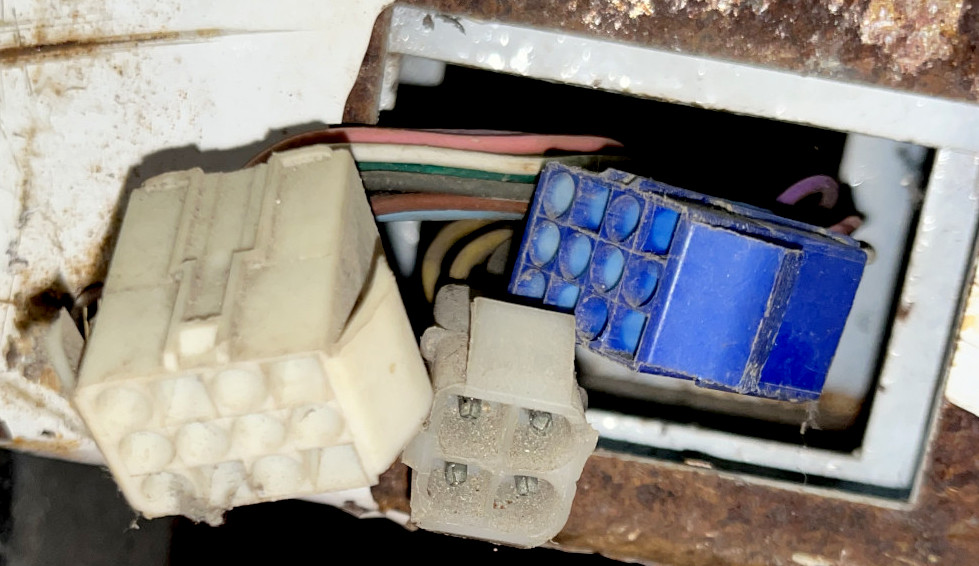

Looking for some assistance please with these ones from a Korean DDR cabinet, it didn't come with the cable that connects the cabinet to the dance pads, so I need to build one myself, since also from both sides the connectors are the same gender, but couldn't find what they are.
Japanese DDR uses JST YLP-12V, YLR-12V, VLP-06V, VLR-06V, but this cabinet clearly uses something different. It can't be seen in the photo but they all have male pins. Thanks!
Japanese DDR uses JST YLP-12V, YLR-12V, VLP-06V, VLR-06V, but this cabinet clearly uses something different. It can't be seen in the photo but they all have male pins. Thanks!
ItsBobDudes
Grand Master

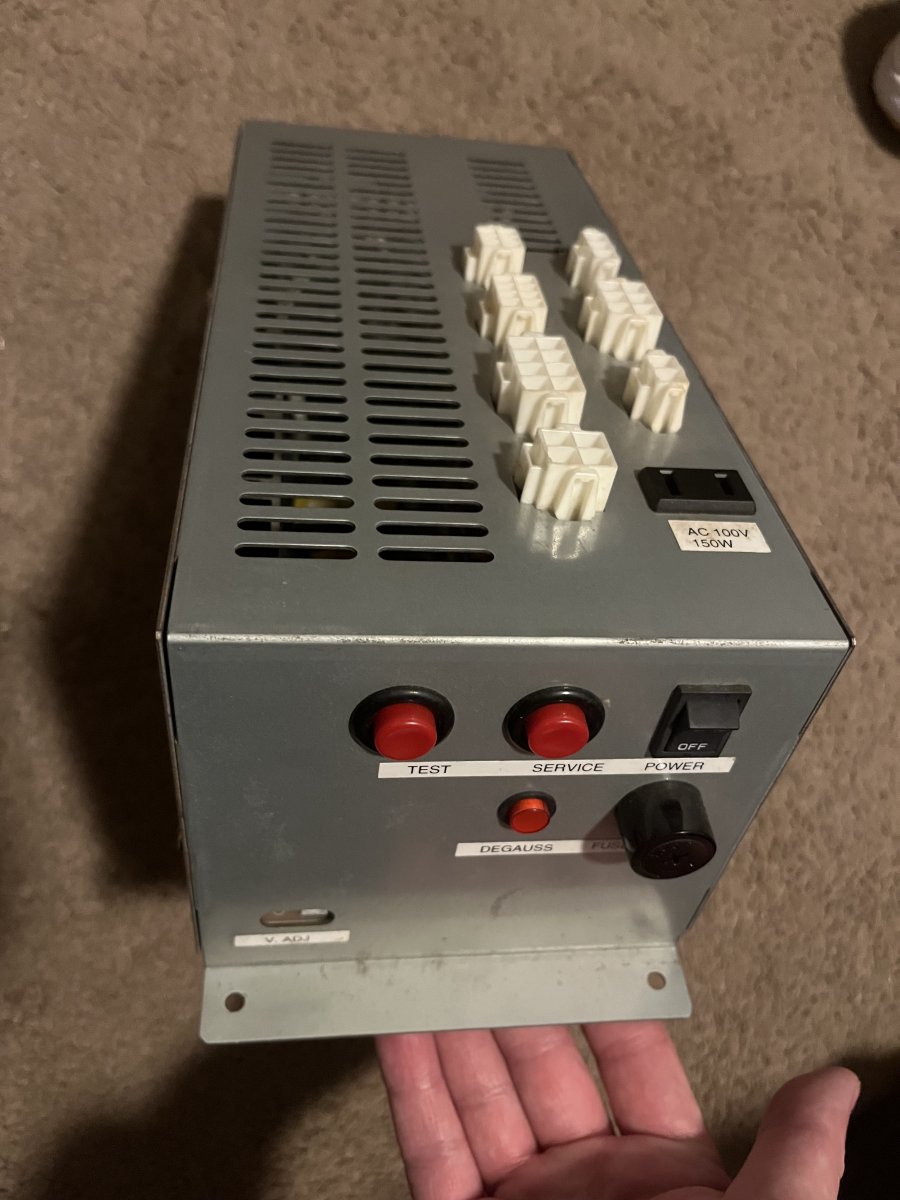

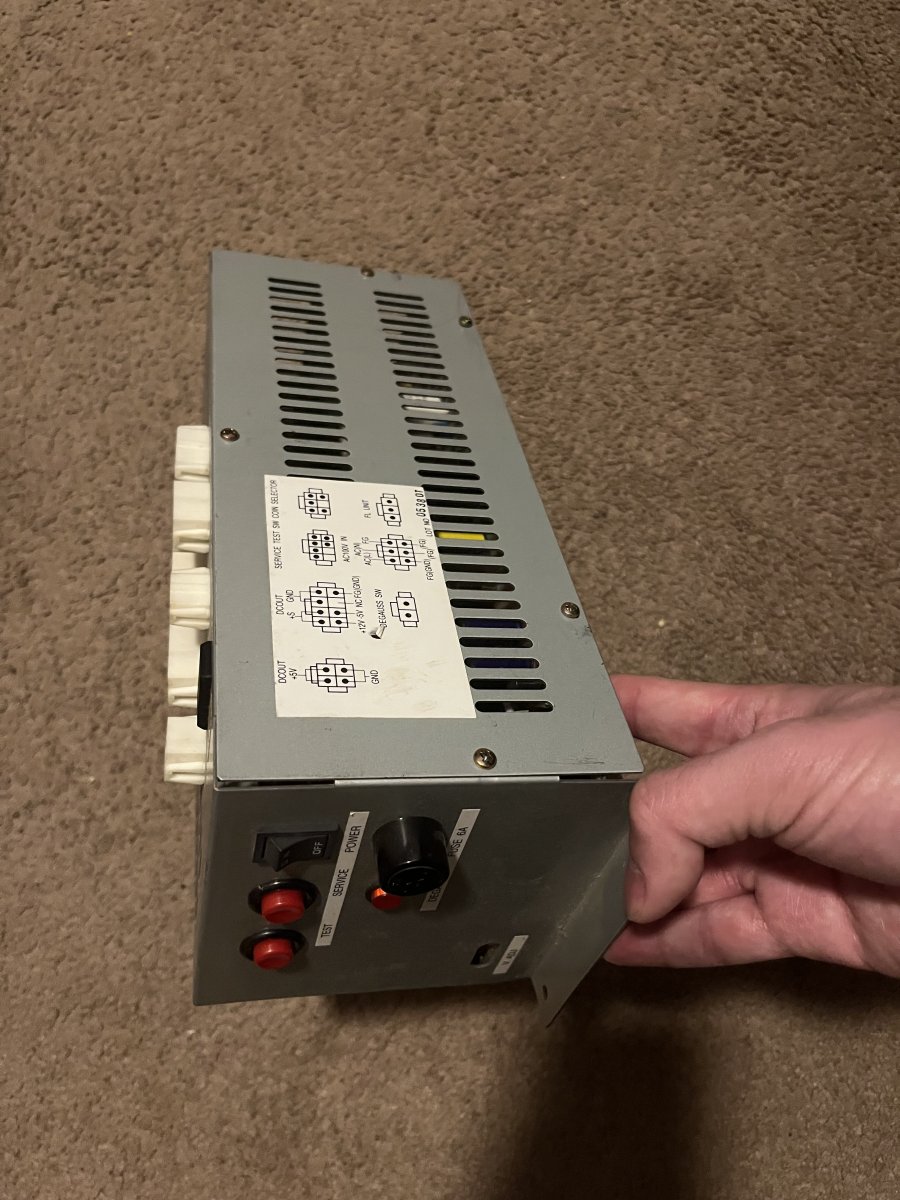

I know this isn’t a connector but what is this power supply I ended up with and what does it go to? Thanks!
MagicianLord77
Enthusiast
Found them, after some intense reverse image search, they're ELR-12V and ELP-12R
And found a better picture https://www.jessewolcott.com/korean-ddr-pad-connector/
Unfortunately they're very hard to get unless purchased by a large amount.
bagheera369
Champion
Just saw the post, and was going to shout info, but you found it.
We had to use these for some chinese crane's that were purchased, to adapt american PSU's into the chinese cranes, because the company in china was out of the PSU's and wasn't able to meet demand on them.
I think we had to buy something like 2-400 of each plus pins at a shot....but we had 100+ of the cranes in the field, and we had another order for 50+ inbound at the time. We had to do it at the PSU end, as we were the parts warehouse and the field agents they had doing collections were pretty much soccer moms....and couldn't be trusted to work a multimeter, let alone repin power connectors properly.
You should honestly, just get the connectors from JST for each side...plug and receptacle, and then repin them all, so that you don't have to mess with those connectors anymore.
bagheera369
Champion
bagheera369
Champion
@Mrhide - You might give a shout to this guy.
http://zzzaccaria.com/arcade/arcade.htm
His email link is on the page i posted.
He has a page documenting his work on a Quasar here.
http://zzzaccaria.com/zzz/QuasarRestorationMC.htm

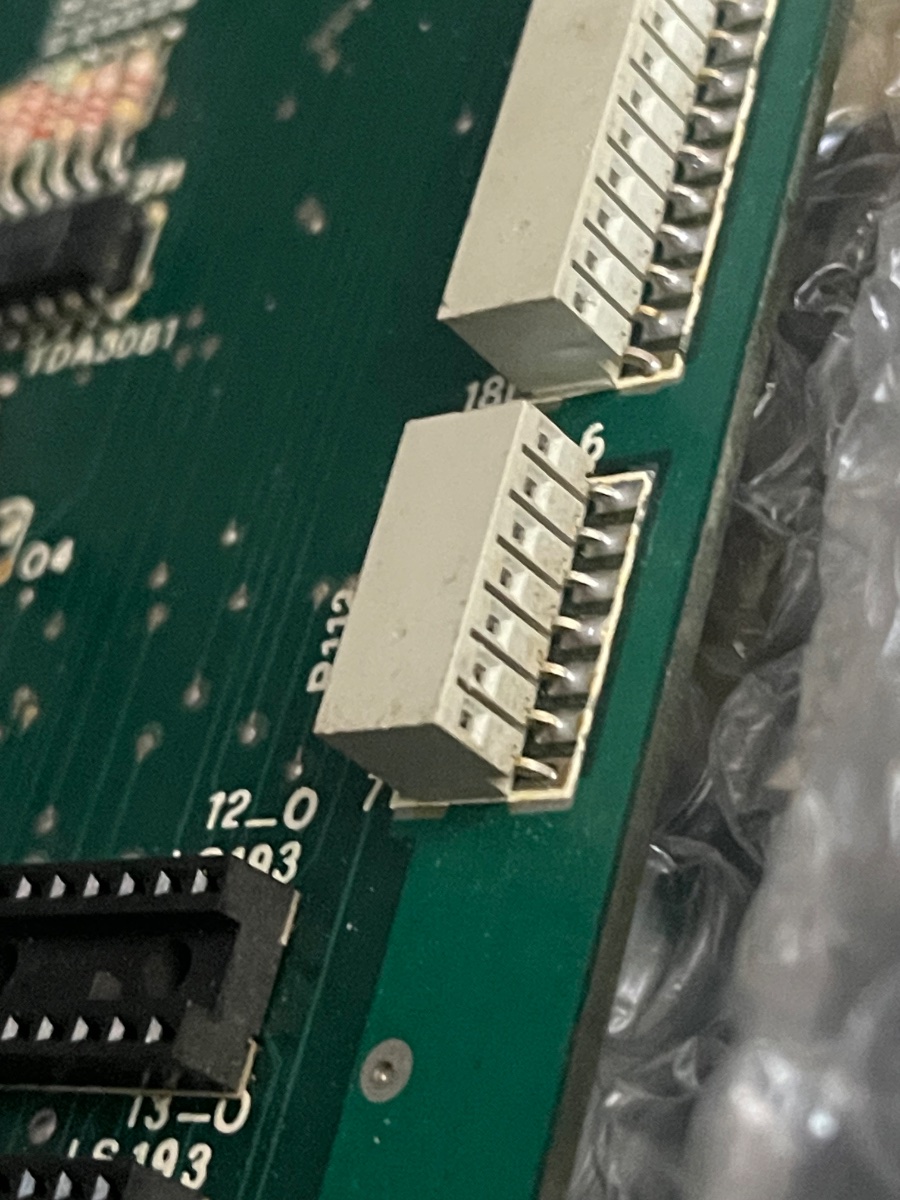

If he doesn't reply, put a metric and standard ruler on the pins to find the appropriate pitch....probably metric as they're european....but not definite.
Once you have the pitch, you should be able to find SOMETHING from molex that will make due.....
not a lot of documentation on Zaccaria stuff, to be fair.
http://zzzaccaria.com/arcade/arcade.htm
His email link is on the page i posted.
He has a page documenting his work on a Quasar here.
http://zzzaccaria.com/zzz/QuasarRestorationMC.htm
If he doesn't reply, put a metric and standard ruler on the pins to find the appropriate pitch....probably metric as they're european....but not definite.
Once you have the pitch, you should be able to find SOMETHING from molex that will make due.....
not a lot of documentation on Zaccaria stuff, to be fair.
Mrhide
Legendary
Haha
I actually got it working and playing with DuPont cables

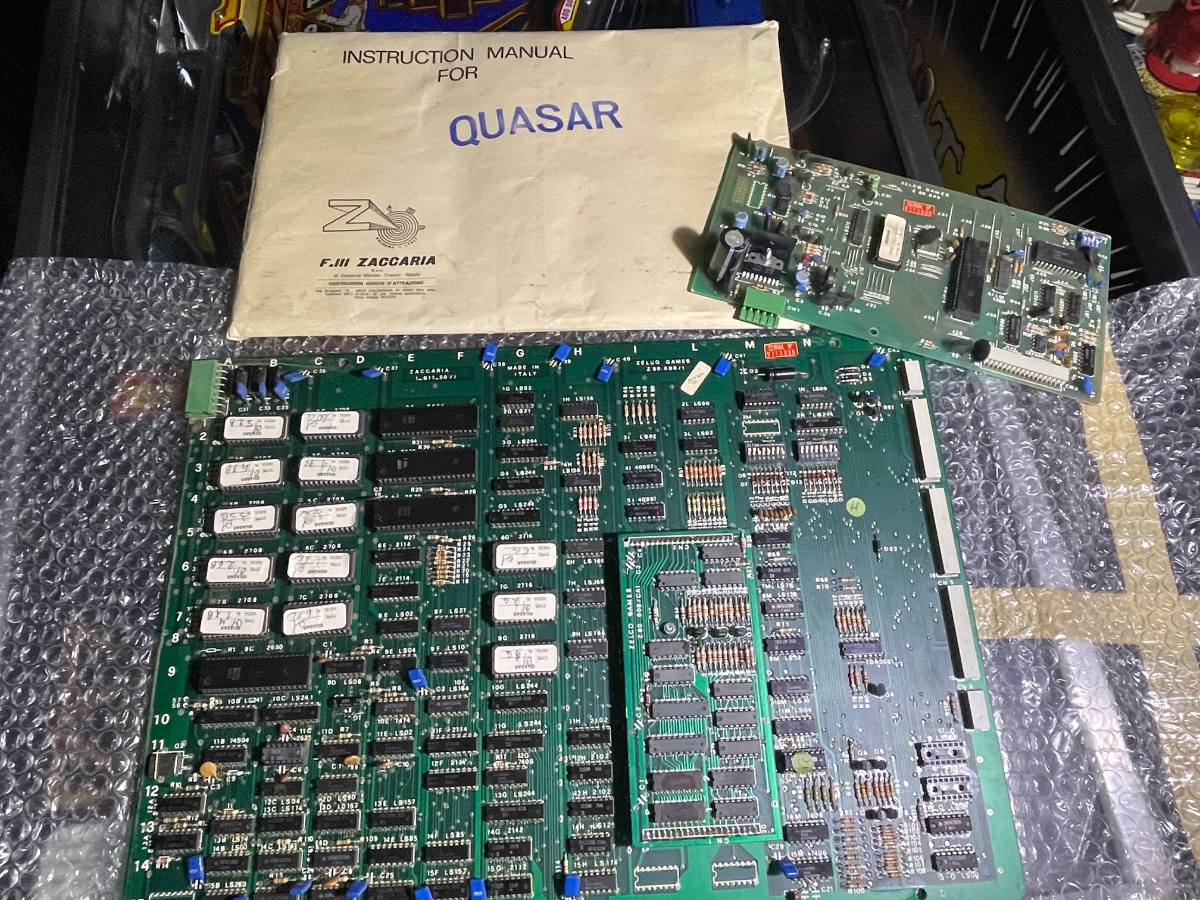

I am laughing cause I did end up emailing him about a video inverter that this game requires… page 17 of hantarex mt900 has a schema of it.
Zaccaria made amazing pinballs
bagheera369
Champion
I'm glad you were able to get it working!!
They definitely made interesting ones....despite the fact that I've spent 10 years at Texas Pinball Festival, I have not gotten to play anywhere near as many as I'd have liked.
They definitely made interesting ones....despite the fact that I've spent 10 years at Texas Pinball Festival, I have not gotten to play anywhere near as many as I'd have liked.
