Name that connector: the thread

Hopefully a simple one:

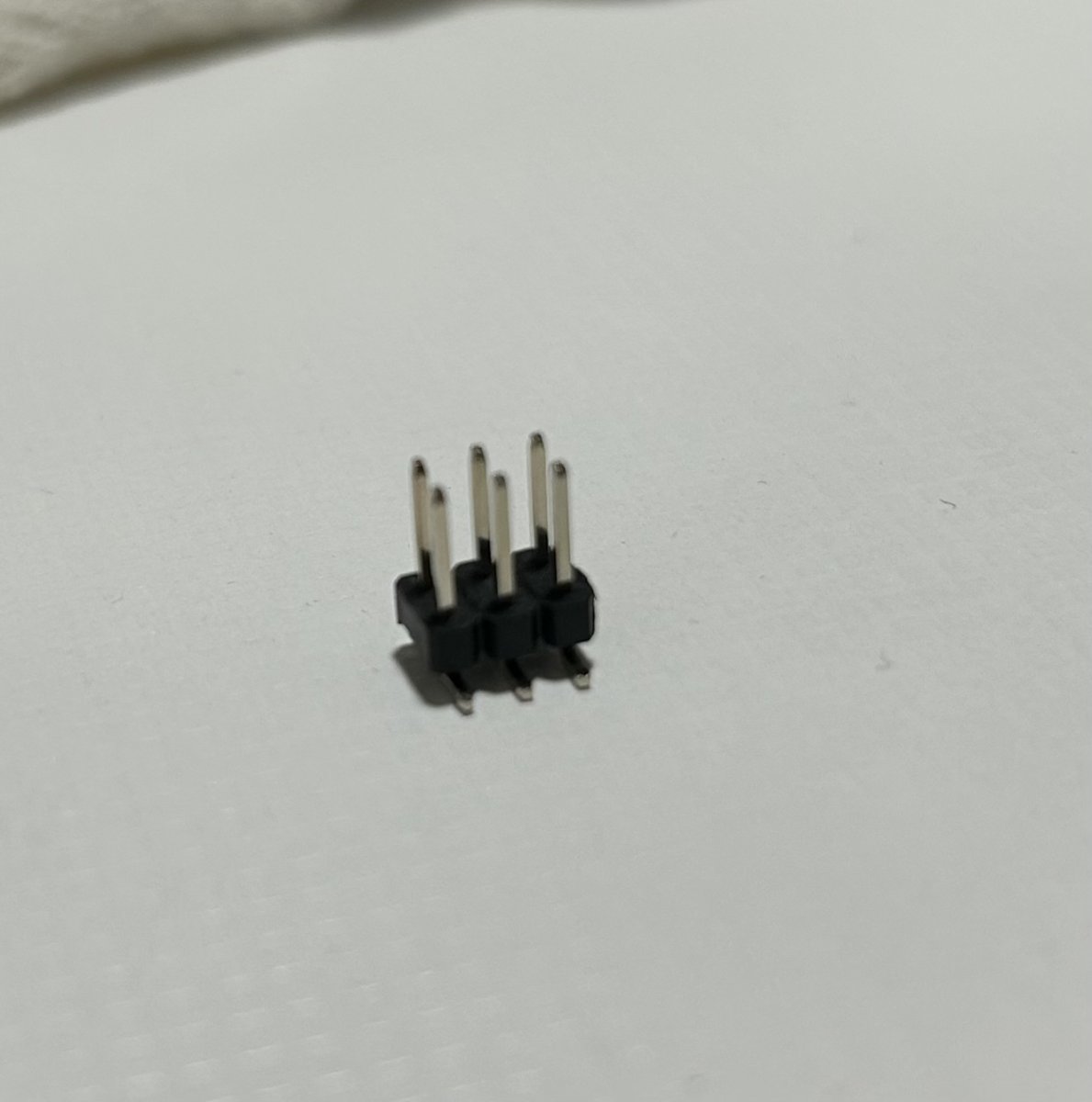

What female connector I need to plug these in? It came with the RGB Pi, it’s for the kick harness.

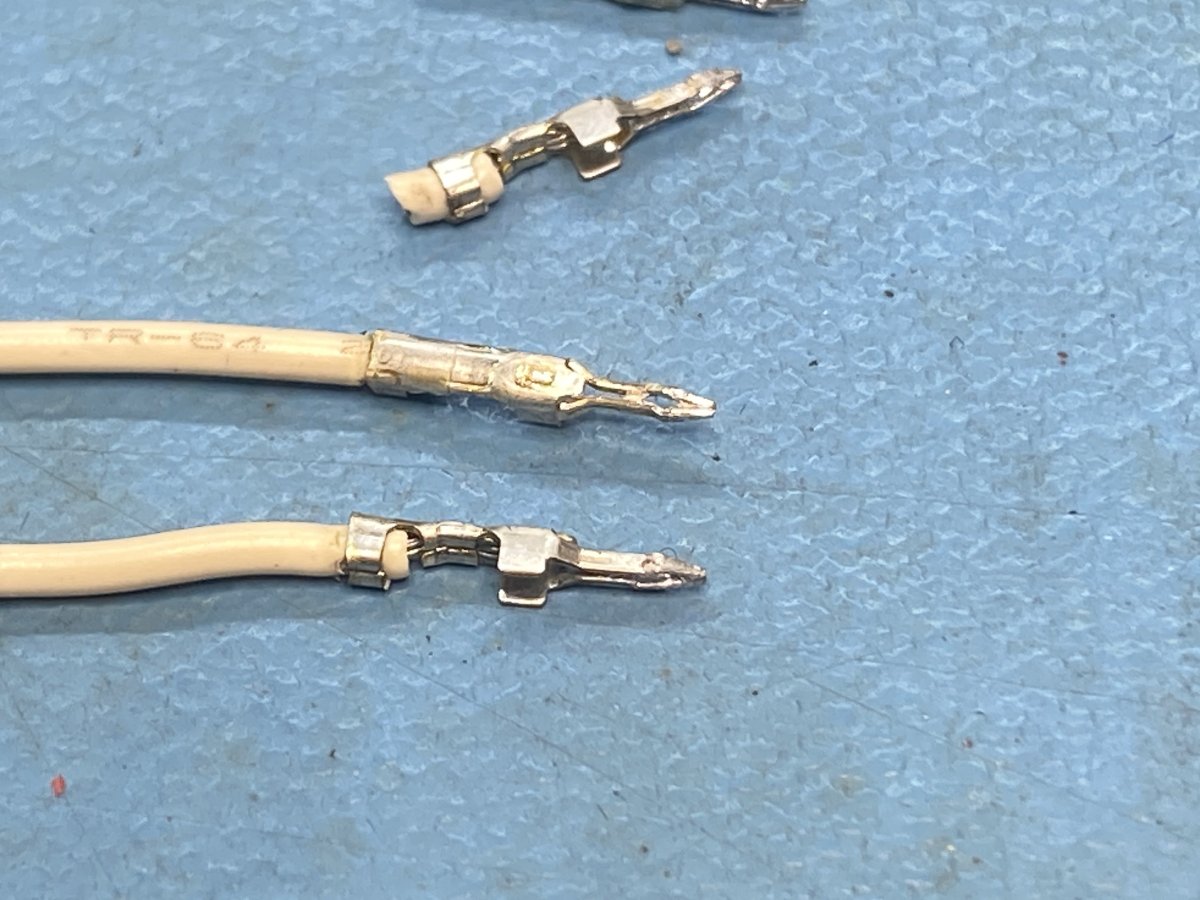

Got a couple. Think i know the answer to one. First one. Crimps the grounds together .Hoping to get close to authentic as possible


Second snaps over the terminals qd.

Does anyone recognise this connector series or maybe know where to look?





It's the connector for the navigation button on a LG 32GN550 monitor.

Looks to be to be 1.1mm pitch. I've had a look at the JST catalogue in and around the 1.1mm pitch section but I can't see anything that looks the same. Also tried TE connectivity and Molex but they don't seem to have anything in 1.1mm.

9999 Damage said:
Maybe some kind of extension cable? The SCPH-1160 has an AV Multi Out for pass-through, and it looks like they're fairly inexpensive.
Click to expand...
Definitely looks like the best option seeing as it is a proprietary sony connector.

The PS1 was made in the era when sony still put out quality service manuals, referencing this one
https://archive.org/details/PlaySta...al_3rd_Edition/page/n19/mode/2up?view=theater
CN502 1-779-029-11 connector square 12P, searching that part number yields no results
https://connector.pinoutguide.com/12_pin_Sony_Playstation_special/


Attachments

  • PXL_20230410_012136877.jpg
    163 KB · Views: 69
  • PXL_20230410_012116499.jpg
    175.7 KB · Views: 71
  • PXL_20230410_012109378.jpg
    142.3 KB · Views: 82
Last edited:

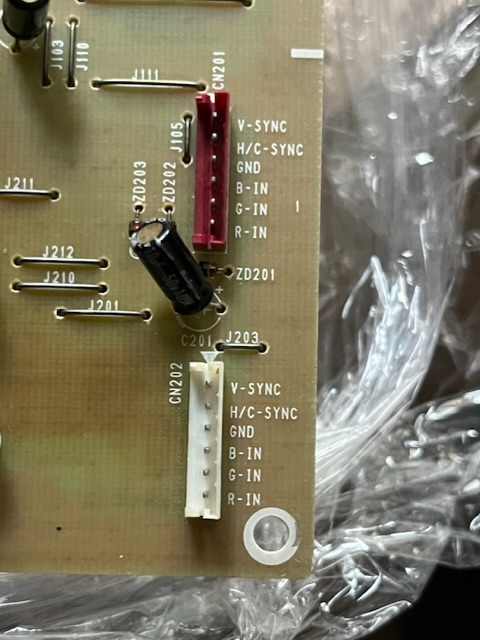

I’m looking for the RGBS connectors for nanao chassis. Mainly 2931. I think the same connector is shared with 8-26, 9-29, 2930, 2933. Can anyone confirm?


ImportantBet said:

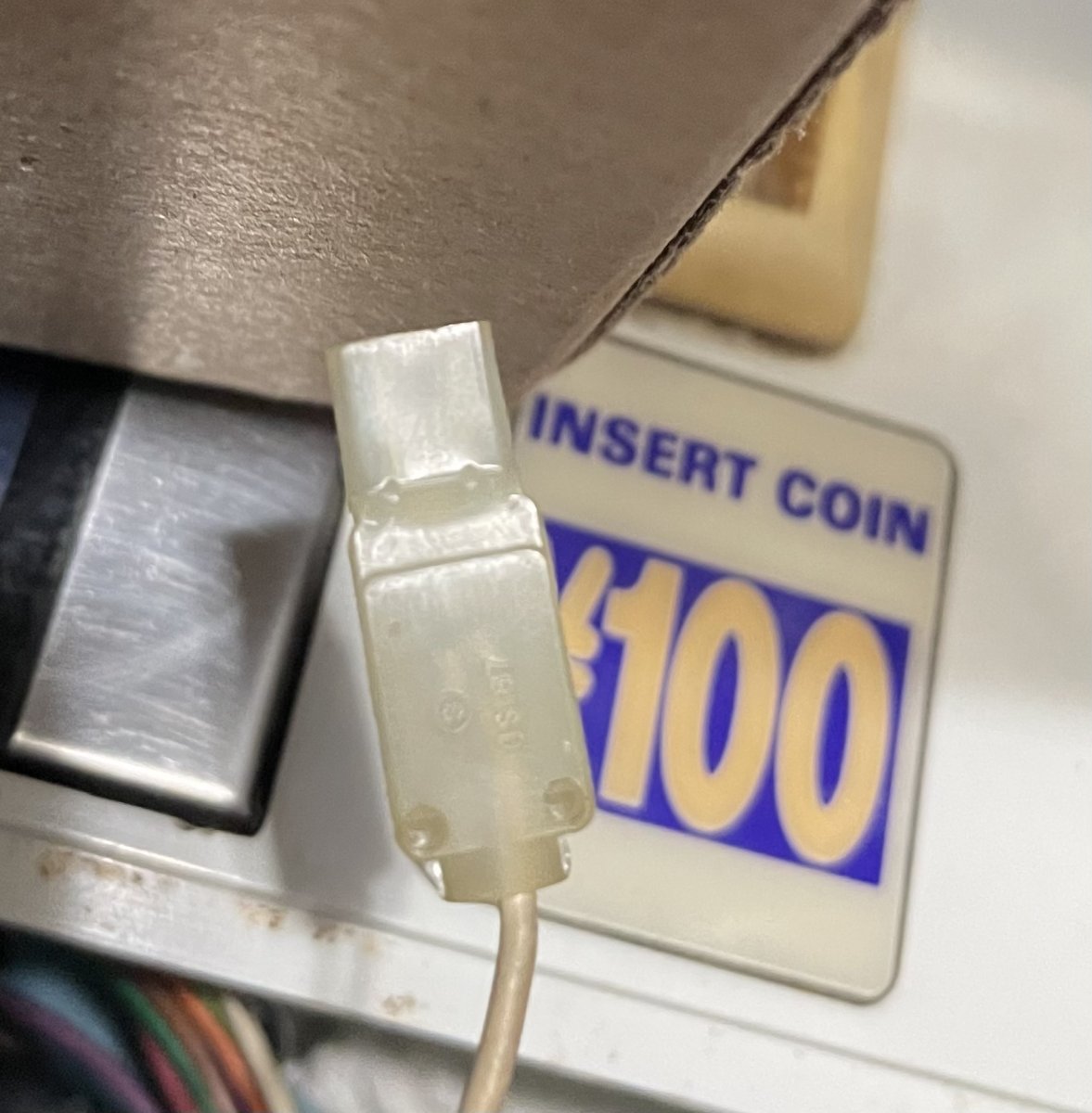

Gonna need an ID on this. Came from one of the HV connectors on a MS9 chassis. Crimped with 22 AWG wires.

Edit: Found! https://www.arcadepartsandrepair.co...-connectors/2-pin-plug-housing-2-36mm-cm1001/
Can anyone let me know if Digikey/Mouser has a product page for these. The link above is quoting me $70 shipping from US to Canada for a connector LOL

Edit 2: Another source: https://www.ebay.ca/itm/173869421484
Click to expand...

On the off chance that you still need this, PM me, happy to forward it along for you (at a reasonable price lol).

T
ItsBobDudes said:
I’m looking for the RGBS connectors for nanao chassis. Mainly 2931. I think the same connector is shared with 8-26, 9-29, 2930, 2933. Can anyone confirm?

Click to expand...
The manual shows them as a B6B-EH connectors. So searching your local supplier you should be able to find the female connector type in the JST range.

I’m looking to make an adaptor for the demag connector on the Windy II to fit a 2931. I already bought some adaptors from France ebay but they didn’t include everything I need. If I can buy the parts locally I’d like to make one of these if anyone knows what the parts on each end are?


nem said:
If you don't mind buying from the US, I think the plug housing is this one:

https://www.arcadepartsandrepair.co...-connectors/2-pin-plug-housing-2-36mm-cm1001/

Pins for it are here:

https://www.arcadepartsandrepair.co...-pins-female-18-24-awg-10-pack-cm1006-cp1011/

Double check with a caliper.

The store also sells headers, but that you'll have to measure yourself.
Click to expand...
that store overcharges for both domestic/international shipping. I think jcmorris once told me they quoted him for $25 domestic shipping for such a tiny part.

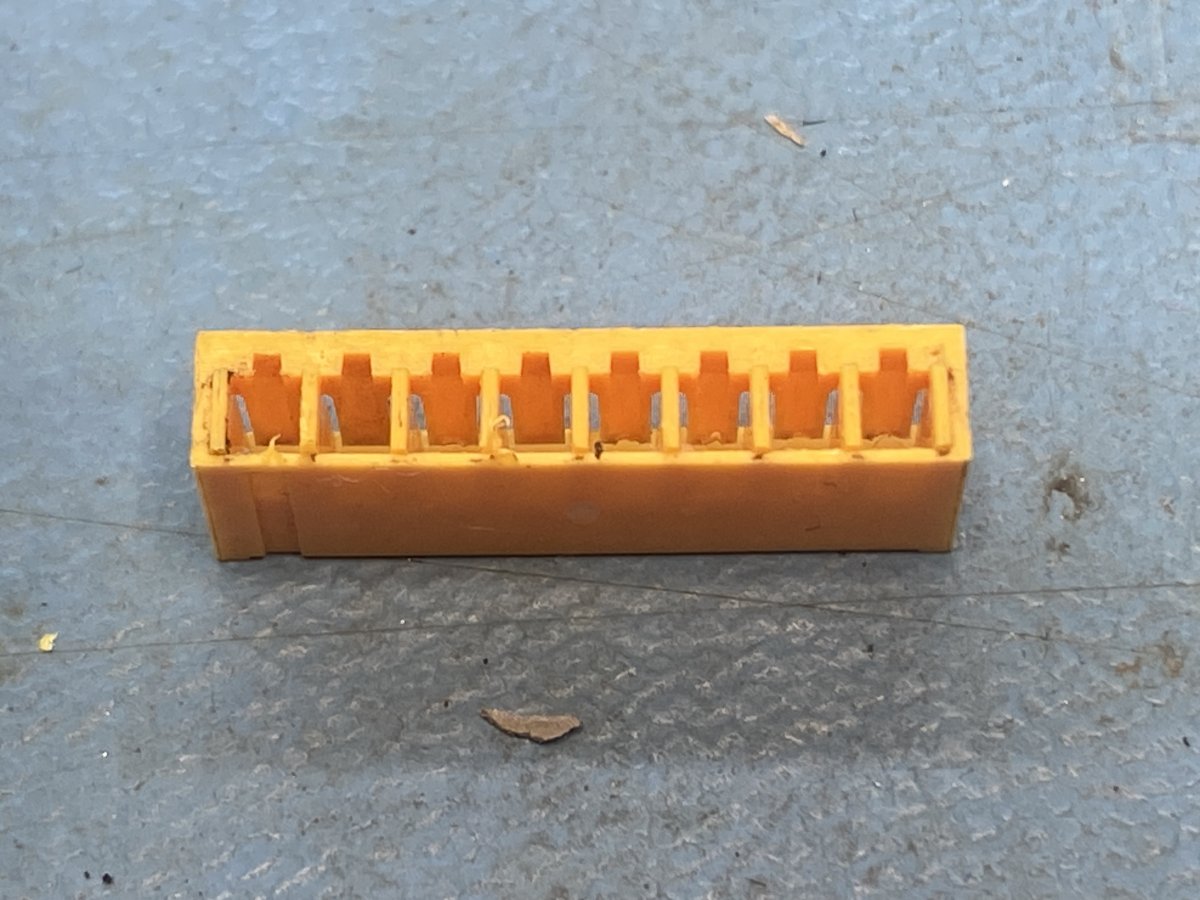

Can I have some help to ID these please - connector and pins for CN102 on an MS9 chassis!

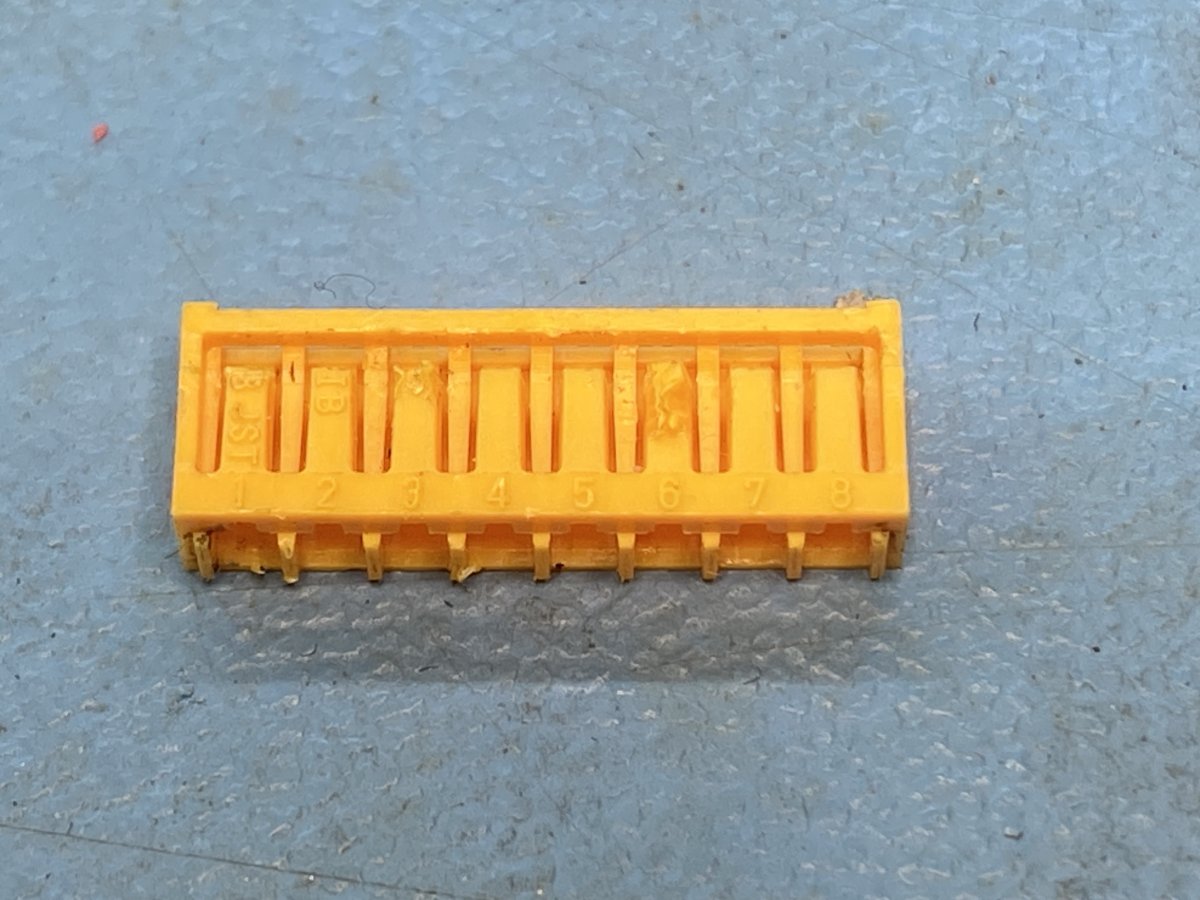

S JST is written on one tab and IB is written on another. The pins protrude through the bottom of the connector and are soldered straight into the board.

Thanks in advance.
