I have a method in place for building out and using the custom characters/icons. I can take in the bytes found in logs and process them into the icons that can the be sized and printed as needed to match up with fontsizes in the printed image. I can even make them match the color of the printed fonts (i.e. blue for those that can erase like WMMT and Mario Kart, and black for those that can't like ID3).

These are the icons registered by ID3 at boot:
ID3 print icons capture.PNG

For some reason it registers the same star in 2 slots.

These are actually going to end up being pretty easy to deal with. On a per game basis, I just need to get a boot log and throw the data from the 7A commands into an array. The address in the array will be able to line up with the code called in the print commands to display a given icon.

So I can just put together an array for each game, and know when I'm printing data for a given game, I can pull the icon from the correct place and render it. The script will render the icons from the bytes on-the-fly when printing. They're very small, so the processing time is very quick.

I am currently processing prints asynchronously to the main script, but I don't necessarily have to. The script could end up being made to give "busy" replies during printing if it becomes necessary (i.e. in case the game starts sending out multiple prints sequentially). I probably should go ahead and implement it that way to be more in line with the behavior of the actual hardware.


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
I did an overhaul on the printing script to accommodate icons, accept print line parameter (games that issue multiple print commands can start on lines other than the first), and give better behavior with font size changes in the same line. I suspect I haven't captured all possible font changes, but it appears that only 2 sizes get printed - regular and large at 2x. I'll have to see as I venture into other games if that holds true.

I haven't gotten a chance to look into more ID3 print commands to see if I'm handling it well.

One thing I haven't incorporated yet is the possibility for rotated prints. Rotation comes in as a parameter. As an example: WMMT cards are printed landscape mode, while ID3 cards are portrait. It may not end up mattering since I'll need to know what the game is in order to generate an image that overlays a card scan, and can just handle the game-specific orientation that way.

I probably need to tweak it a bit for WMMT since alignment isn't quite where I had it before, but here are the results of the in-game test print:
wmmt2 test print.PNG
By the way: The stars, diamonds and circles are all regular characters available in the shift-jis fonts (translated to unicode), so nothing fancy with regards to custom icons are being used there.

The large font is wider than I'd like it to be. I may work on that. I am unsure if the large font width comes into play with regards critical alignment of smaller font on the same line. The alignment doesn't matter much on ID3. Mario Kart has a box for coins after the name, but I don't know if it prints the coin info as an independent print command or as part of the same line as the large font. If it's part of the same line, then I'll definitely have to the large font at a better width. If needed, I can edit letter directly in the font file, but it's possible I can use the script to manipulate them via scaling.

We'll see. This is going to be an evolving project as I layer in support for additional games.


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US

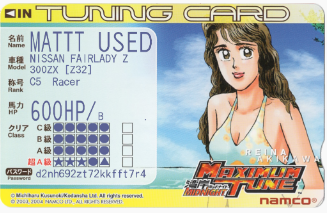

Here's an updated print test:
updated capture.PNG


I have figured out a way to make the large font narrower through scaling rather than direct font editing. This means even the Japanese characters that I have not been touching should still work and get scaled as needed.

The attached example also shows where the USED text would get printed on a WMMT2 card in the event that data was transferred to a new card. I also added an extra T to the end of the name to max out name characters to make sure it's printing with sufficient space between the name and USED.

I think I'm back to having pretty good alignment with the new method.

After reviewing an actual print of a discarded card, I realized that even though the print payload increases the font before it issues 13 spaces in front of "USED", it only counts them as normal (small) font spaces. I had been printing them as large font spaces and the USED text ended up outside of the white space. My rough solution to the issue is to just replace double spaces with a single space and go ahead and print them as large spaces, but I may rework it at some point. I'm not sure how much this will come into play for other cards.

I also fixed a bug where printing on top of already printed data was not working as intended. Blank spaces were actually wiping out existing underlying text. Now it will behave like an actual printer, where it's unaware of what's already on the card and will happily print over it. Short of an erase command, everything is additive.


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
I have started some logging for WMMT3 (original version) and the main difference this game has with the card reader from 1 and 2 is the baud rate. WMMT3 uses a baudrate of 38400, while WMMT1/2 use a baud rate of 9600bps.

At first glance, the protocol seems identical.

My printing script is actually handling the printed data packets pretty well:
WMMT3 first print Capture.PNG

The exception is the range section that is currently showing 22km. The actual print manipulates the font in a way my script isn't handling. The protocol is the same, but I just haven't run into a print that stretches the width of a font, but leaves the height the same. My experience prior to this was that fonts were just increasing both parameters 2x, so at the moment the script just looks for an increase command and if x or y are increased, it doubles the font size. I will have to take care to accommodate the nuance here, but I think it won't be an issue since I'm already scaling the text. I should be able to just scale one dimension when the command calls for it.


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
I recall playing with dip switches on the ID3 reader to change serial settings. I wonder if the WMMT1/2 printer has dip switch settings for baudrate and if it supports 38400bps. If it could, I think the hardware would be compatible with WMMT3. I assume WMMT3 reader can be configured for a lower baudrate to be compatible with earlier games. I have read that there are settings to make it so, but I'm not sure if they are documented anywhere readily available.

There are many dip switches on the WMMT1/2 reader, so it would likely be difficult guessing at baud rate changes.

Failing a setting to make the WMMT1/2 reader compatible, I would think a baudrate converter sitting in between the WMMT1/2 reader and WMMT3 game would work.

Anyway, that's not likely to be something I work on. I don't care much to have the card reader hardware running beyond initial analysis, though I do kind of like collecting them to sit on my shelf as artifacts of my accomplishments in this project. :D Unfortunately, I'm only borrowing the WMMT3 reader, so that one doesn't get to join the 3 others I have. :P


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
917
Reaction score
477
Location
Mission Viejo, CA, USA
Yeah - wouldn’t need the reader as you are going to emulate that... :)

But the actual hardware board - I think it was a Namco specific board.

Matt


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
On another note. It doesn't appear that WMMT3 does anything fancy with regards to printing, other than the stretched width font for range mentioned earlier. I've got a solution in place for that. The script is now obeying font width changes more in line with how the printer would.

WMMT3 fixed Capture.PNG

*Note that I hard-coded the numbers into the distance to fill them out. My actual data file would have printed with spaces and then 22km.

I have a feeling that there's not going to be much more do for WMMT3 printing.

The more fun challenge will be Mario Kart, I think. It appears to make use of a lot of fun icons, like trophy icons. They could have made the WMMT cards more interesting with custom icons, but I guess they wanted to go more basic with simple information rather than flashy icons.

In WMMT 3Dx and 3Dx+ it looks like they print the game name up in the top right corner on the card. They didn't even do that in an interesting way. Its just simple text. They could have had the logo made up of a few icons and printed that...


SuperScore29

Student
Joined
Feb 20, 2018
Messages
45
Reaction score
29
Location
Down Under
Yeah - wouldn’t need the reader as you are going to emulate that... :)

But the actual hardware board - I think it was a Namco specific board.

Matt
Namco N2 boards come up here and there, recently 2 3DX+ bundled boards sold from yaton.

There are alternatives out there, it'll just take time before it gets anywhere.


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
So far it's not proving as easy as I had hoped to simply use the WMMT2 script. WMMT3 is pretty quickly not liking replies.

Last edited:

connor

Enthusiast
Joined
Apr 13, 2018
Messages
124
Reaction score
40
Location
arkansas
I would love to get a WMMT3 board... :)
They're highly unreliable, be careful what you wish for. I've had lots of issues with the four N2s I own.

Any chance that this WMMT3 card emulator knowledge could be used for editing real cards?


SuperScore29

Student
Joined
Feb 20, 2018
Messages
45
Reaction score
29
Location
Down Under
They're highly unreliable, be careful what you wish for. I've had lots of issues with the four N2s I own.
what kind of issues?
The motherboards are prone to failing due to overheating and ageing; mine has completely stopped booting up despite powering on.
They're picky with RAM selection as well. Once something goes wrong, it's just pricey to fix.


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
I am having no luck at all with a card reader script for WMMT3. I am pretty sure I'm putting together the same replies as the physical reader, but the N2 isn't accepting it.

I even went so far as to sniff the communications between the RPi and the N2, and I don't see any breakdown there.

It's possible it's a timing issue where the N2 expects a reply back much quicker than the script is generating, but I'm not sure.


MetalliC

Grand Master
Joined
Nov 19, 2015
Messages
1,166
Reaction score
1,037
which type/model WMMT3 reader is ?

these readers does ping-pong like:
Game Reader
>>> 02 followed by command etc data
<<< 06 (command received OK)
>>> 05 (request reply)
<<< 02 followed by reply data

I'd imagine it may be not happy if you send reply as single transfer - 06 02 data.
add: nwm, I see you handle this in script already, then yes, it might be some timing issue.

Last edited:

winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
Yeah, as far as I see, I'm obeying the expected exchange.

The baudrate is higher, but the ID4-8 reader uses the same, and I got a script working for those, so I know my serial adapters are capable of running at 38400bps.

However, I likely do have something unexpected happening. I put together a test to drive the reader by sending it a command and got no reply.

WMMT3 first sends out a status command x20, and I reply with x06, and it sends x05 several times and does not accept the x20 replies I'm sending that to match what the real hardware sends and it never proceeds to send an initialize command.

The terrible thing about WMMT3 is that it refuses to recover from an error. If it starts out sending a x20 command, the only thing it will continue to send is a x05 command to get a status update, and this persists through switching between test menu and game mode. Even actual hardware will not sync if it's powered down and back up during the same session. It doesn't know what it's replying to, and a full reboot on the game is required. It's poorly implemented in my opinion, because an op would not be able to quickly reset the reader without a full reboot. It may behave differently in later versions of WMMT3.


MetalliC

Grand Master
Joined
Nov 19, 2015
Messages
1,166
Reaction score
1,037
WMMT3 first sends out a status command x20, and I reply with x06, and it sends x05 several times and does not accept the x20 replies I'm sending that to match what the real hardware sends and it never proceeds to send an initialize command.
do you really handle reader statuses ? I don't know format of this reader, but assuming it is similar to ID4-8 reply can be:
(card dispenser empty)
02 06 20 80 30 30 03 crc (shutter open, no card) or
02 06 20 40 30 30 03 crc (shutter closed, co card) or
02 06 20 83 30 30 03 crc (shutter open, card inserted) or
02 06 20 43 30 30 03 crc (shutter closed, card inserted).
(if card dispenser have some cards - 1st status byte should be |= 0x20)

perhaps game code goes crazy if you send single hardcoded reply for this command ?


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
The status bytes a more similar to the WMMT1-2 reader. There's no shutter. A normal state with no card inserted is 30 30 30.

In logs, the game sends a 20 command, reader sends 06, game sends 05, and reader sends 20 reply with 30 30 30. Then the game moves on to init (10) commands. So far I can't satisfy the first command. It uses the same XOR CRC byte at the end, and I'm calculating those correctly, but beyond that, I can't even succeed by sending the same hard-coded reply (i.e. I'm calculating nothing) the reader sends.


MetalliC

Grand Master
Joined
Nov 19, 2015
Messages
1,166
Reaction score
1,037
weird then. perhaps it uses some additional lines as GPIO ready/busy/etc status ? I recall in ClubCart game I've seen code which read CTS line state for this.

  • Like
Reactions: rtw

winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
Not on this one. It is only wired for RX, TX, and GND. That's stock wiring. It doesn't even require loopback on CTS/RTS on the reader unit like the WMMT1-2 reader does.
