Super Monaco GP Airdrive
- Thread starter sega_man
- Start date
RedFighter
Student
Hi sega_man,
thank you so much for the pictures

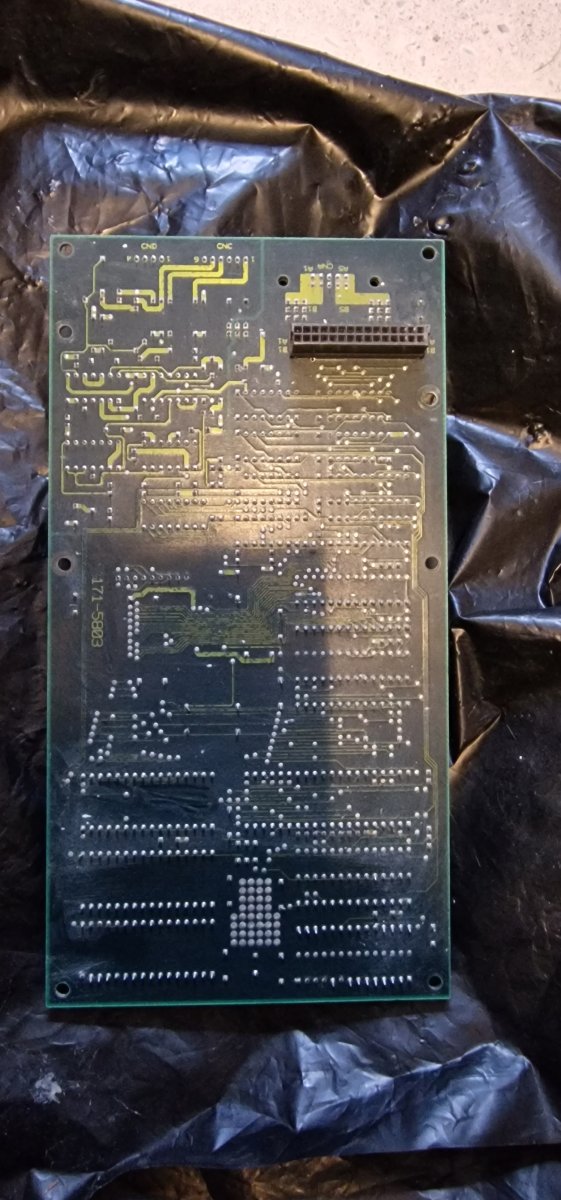

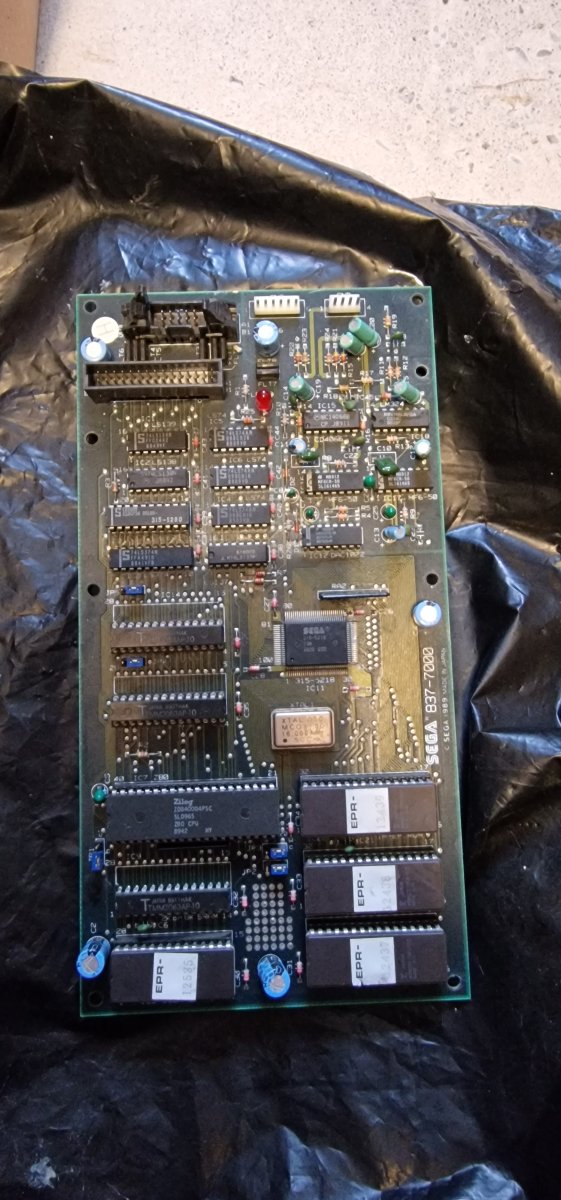

Finally I can see how this board looks complete.
I hope you find somewhere a cheap X-Board to repair your awesome deluxe machine.
I'm just about to do the first steps for the deluxe replica.
In this arcade forum I will continuously document my project.
My biggest concern at the moment is finding this soundboard somewhere...
So I have the same concerns as you
thank you so much for the pictures
Finally I can see how this board looks complete.
I hope you find somewhere a cheap X-Board to repair your awesome deluxe machine.
I'm just about to do the first steps for the deluxe replica.
In this arcade forum I will continuously document my project.
My biggest concern at the moment is finding this soundboard somewhere...
So I have the same concerns as you
RedFighter
Student
That would be great if you could help me find this soundboard
Thanks, yes I already have the driveboard from a Royal Ascot machine.
I rewrote the EProm and remade the connection cables for the gameboard and SSR board.
Now I will test whether everything works together, then I can take care of the pneumatic control system (Airdrive).
I'm sure I'll run into some problems while building. I might ask you for a few more photos if I get stuck...
Thanks, yes I already have the driveboard from a Royal Ascot machine.
I rewrote the EProm and remade the connection cables for the gameboard and SSR board.
Now I will test whether everything works together, then I can take care of the pneumatic control system (Airdrive).
I'm sure I'll run into some problems while building. I might ask you for a few more photos if I get stuck...
Gamesmonkey
Professional
What's your plan for chip removel ?
RedFighter
Student
I wish you every success and that it works !
Gamesmonkey
Professional

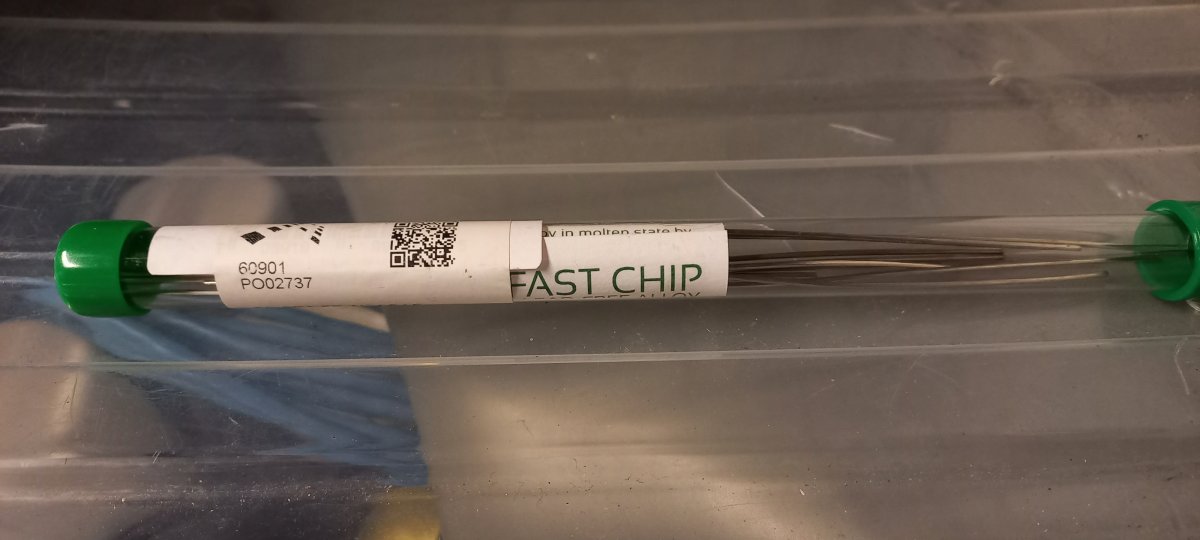

I've used some of this before on delicate QFPs works a treat.
Gamesmonkey
Professional
That's is some excellent clean work.

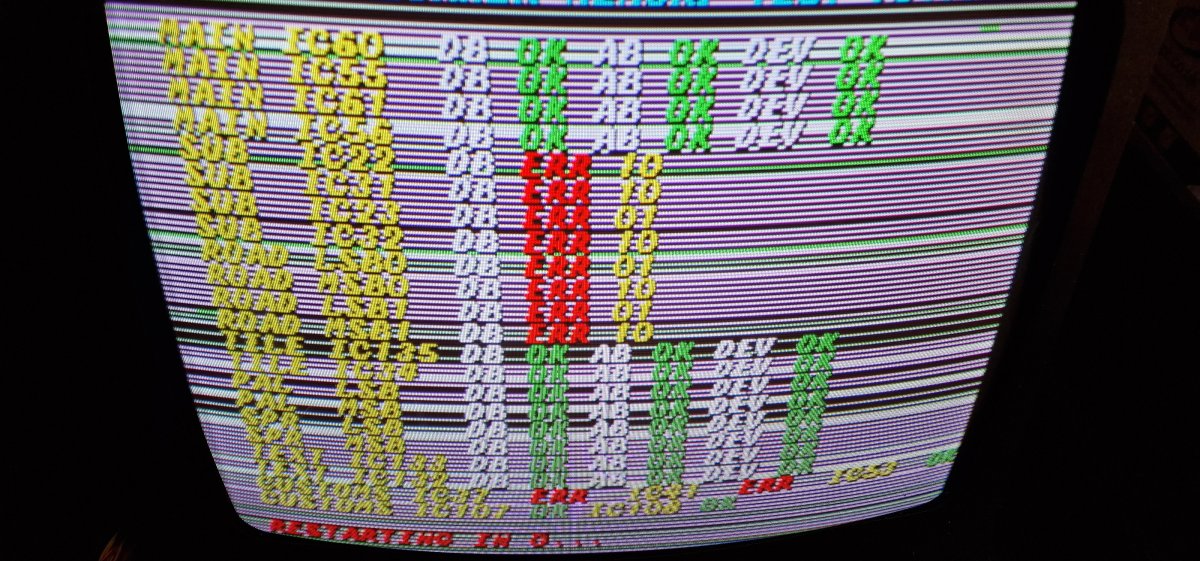

I desoldered a known working chip (the larger of the two) and stuck it in the position that was reporting bad. It still said bad!
However, I soldered the chip back in (Ic 105 I think) and now I get a corrupt screen, not even running the test....
There was one pad that looked iffy so I reflowed it, still the same.
I'm going to rerun the test with Eproms out...
However, I soldered the chip back in (Ic 105 I think) and now I get a corrupt screen, not even running the test....
There was one pad that looked iffy so I reflowed it, still the same.
I'm going to rerun the test with Eproms out...

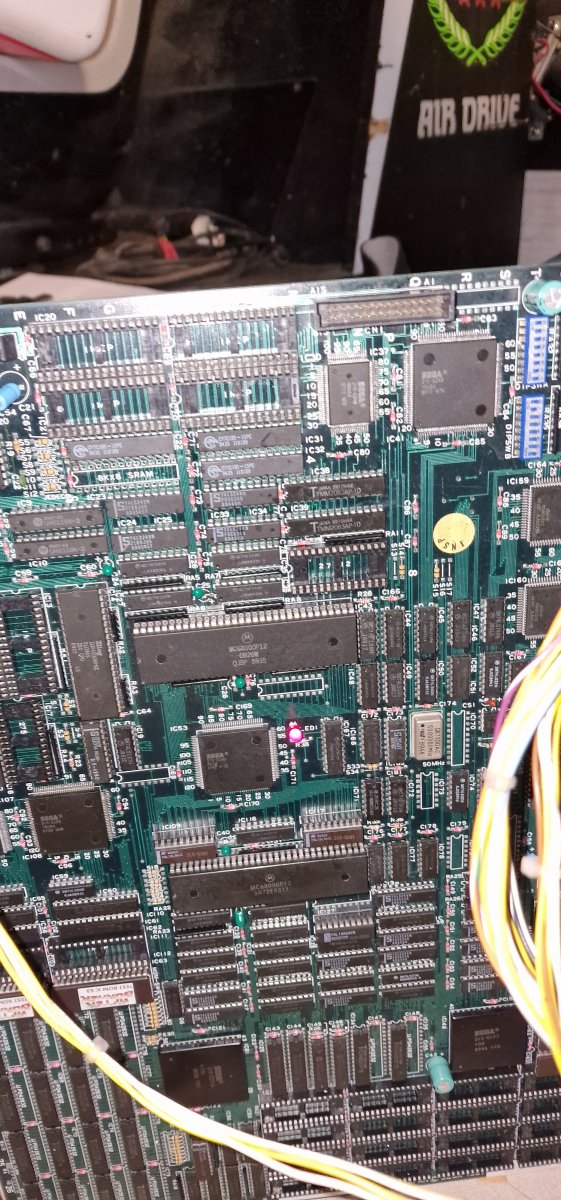

Progress!!! My track repair worked Two pads on IC108 had lifted, I ended up using a track off an old PCB, soldered it in and epoxy glued the pad down. IC108 is now reporting as OK, so what I currently have is my original chip from IC41 in position IC108 & vice versa so I know 100% both of those chips are OK. If you recall I had bad RAM's being reported too, I replaced those (IC22, IC23, IC31 & IC32) but still had an error on IC23, they were all NOS from Mark @ RetroClinic and they ALL reported OK when I piggy backed them over the bad chips! I removed IC23 but now ALL of them report bad again! Would removing one of the RAMs cause the other to error? (seems unlikely). At least I know both chips in IC41 & IC108 are good, advice points to logic around those chips but what do I do next? I don't have a scope
Thanks everyone for the help & support, it's keeping me going!!!
Two pads on IC108 had lifted, I ended up using a track off an old PCB, soldered it in and epoxy glued the pad down. IC108 is now reporting as OK, so what I currently have is my original chip from IC41 in position IC108 & vice versa so I know 100% both of those chips are OK. If you recall I had bad RAM's being reported too, I replaced those (IC22, IC23, IC31 & IC32) but still had an error on IC23, they were all NOS from Mark @ RetroClinic and they ALL reported OK when I piggy backed them over the bad chips! I removed IC23 but now ALL of them report bad again! Would removing one of the RAMs cause the other to error? (seems unlikely). At least I know both chips in IC41 & IC108 are good, advice points to logic around those chips but what do I do next? I don't have a scope Thanks everyone for the help & support, it's keeping me going!!!
