That multi is of the old type. I'm u sure what firmware is there at all. It should come with the newest bootloader. To check this is very simple, take a cps2 firmware for the old type and copy it to the root of the SD card. The file must be called flash.img. if the file gets deleted, that means that the bootloader is good and you can automatically update the microSD cards.

How is the multi behaving at all. Does it boot? Does the LCD work well?

About that GAL, that is a replacement for the PAL, it should work as is, as your B board is a -6 version.


aerobert

Enthusiast
Joined
Nov 9, 2019
Messages
179
Reaction score
120
Location
Sweden
Ok thanks!

How do I know which firmware is for the old type? And where can I find it? (Latest version).

I have not tried booting the multi yet. We just only managed to put it together ☺️

Last edited:

aerobert

Enthusiast
Joined
Nov 9, 2019
Messages
179
Reaction score
120
Location
Sweden
I think we managed to upgrade to newer firmware so original unaltered roms can be used.

Will do a test run shortly. If it doesn't work properly I will write back.

Thank you.


wagner.gc

New User
Joined
Nov 19, 2022
Messages
3
Reaction score
0
Location
Brazil
I installed the kit, on two boards successfully... However, I noticed that there is interference in the image... A small noise in horizontal lines that the camera cannot capture... It doesn't disturb the game... I compared the same games running natively on the card and with the kit, whenever I install the kit, this little interference appears... Will I need to ground something? Increase the voltage?? Can someone help me?? and the problem persists...
View: https://www.youtube.com/watch?v=_DCMfel8VEg&t=20s


wagner.gc

New User
Joined
Nov 19, 2022
Messages
3
Reaction score
0
Location
Brazil
The image of the game on the original board is without any interference, the one on the kit, in all the tests, showed a small amount of noise in the image.. I have already interchanged boards A plates 93646A-4 ;936464A-6 and B... ...B plates:93646B-6, 93646B-7.
View: https://www.youtube.com/watch?v=NgwAaVRKwXo&t=155s

Last edited:

pubjoe

Beginner
Joined
Dec 19, 2018
Messages
7
Reaction score
2
Location
UK
Hi,

Late to the party but I bought a never used 1st gen Multi CPS2 kit. Forum sale from the fantastic Wrena.



It's a brilliant piece of kit, and now I have one I'm disappointed in myself that I passed it by for all these years.

It did have a couple of broken pogo pins. I bridged the connections for the time being but it'd be nice to replace them if possible. I read in the install guide that they're only available in the thousands, but the link to the item is now broken anyway.

So if anyone can help me get a couple of Pogo pins I'd be extremely greatful (I'm in the UK). 😃


pubjoe

Beginner
Joined
Dec 19, 2018
Messages
7
Reaction score
2
Location
UK
Thank you very much!

Ah, sorry, I got confused by the product photo of them in an array and didn't realise they're the ones I need. Just to double check, they're the pins I need to replace these?..



Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,563
Reaction score
14,974
Location
Poland
Yes those are the long ones. They are only present in older version of the multi and the link I provided is for those.


pubjoe

Beginner
Joined
Dec 19, 2018
Messages
7
Reaction score
2
Location
UK
Thanks again.

£25 shipped though 🤔

Think I'll wait until I have more to order.


pubjoe

Beginner
Joined
Dec 19, 2018
Messages
7
Reaction score
2
Location
UK
yes good thinking.

I have a friend I should be able to piggy back an order with.

I'm also secretly hoping someone in the UK who previously bought a strip can spare me a couple of pins. 😁 I've probably missed the boat by a few years though.


Deme94

New User
Joined
Nov 19, 2022
Messages
1
Reaction score
0
Location
México
Dónde se puede adquirir el kit aquí en México para hechar a andar mis cps2. O donde las puedo enviar a reparar.


samlieu

Student
Joined
Oct 14, 2019
Messages
37
Reaction score
17
Location
London
Heyo

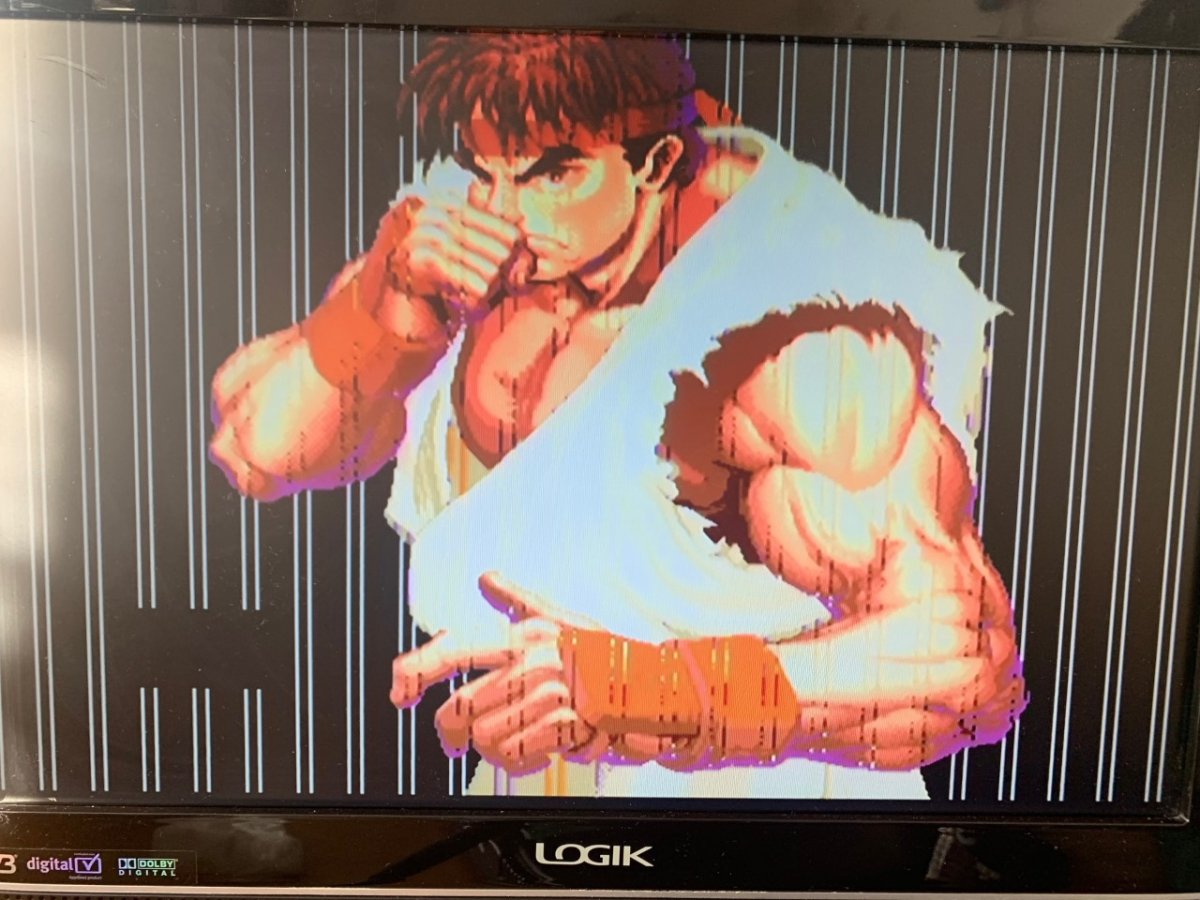

So I've recently dug my Darksoft kit out from storage, and was greeted with lines throughout the entire screen. Previous posts suggest, poor A - B connection.

I've tried 2 different setups.

Working A board (confirmed with working B board). B board with key writing.

Working A board, Different B board with decrypted roms.

Any suggestions? The board was fine before storage.




Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,563
Reaction score
14,974
Location
Poland
That looks to me like 2 lines in the gfx connection not making proper contact. Is your version the older one with long pins or the newer one?


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,563
Reaction score
14,974
Location
Poland
It's the older version, DS.

Where can I press to test it?
Yes of course, press the pins, that should be the problem. The long pins on the main PCB. do it gently not to break anything. If that doesnt work, pull the PCB and check that actually all the pins are still there and none has broken.


samlieu

Student
Joined
Oct 14, 2019
Messages
37
Reaction score
17
Location
London
Thanks for the suggestion. Pressing didn't help.

I'll see if I can get some IPA later and clean the pins. That will be the last resort.

Failing that, are there newer pins which can be retrofitted for better connection?


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,563
Reaction score
14,974
Location
Poland
you can also try the verify romset and see if that throws any errors. If not, then probably is the buffers/level shifters, some maybe have gone wrong. Checking the output pins, should clarify that.

It's explained in one pinned thread which level shifters are for GFX, sound, etc.

Are you able to check that yourself?
