Hmm, so just throw the cSync input into a LM1881? Any changes necessary to the typically usages in the docmentation?

[PDF]
LM1881 Video Sync Separator - Texas Instruments
https://www.ti.com/lit/ds/symlink/lm1881.pdf

For my mini9 board, I just added pots and a spot for a 470ohm on the sync line as a bare minimum if someone wanted to get something working off the output from the JAMMA edge, should I remove the 75ohm on the RGB boards output and use something like 100ohm trimmers on the breakout board to allow individual adjustments to the lines if desired:



avramce

Student
Joined
Feb 14, 2020
Messages
76
Reaction score
53
Location
Seattle, WA
Fwiw, this is what I've been working on:

http://imgur.com/a/Lkpmu2n

The jamma edge breakout was built specifically for the case I designed, doesn't modify the signal at all. Output board is as displayed in the last pic with pots to attenuate the RGB lines, and a resistor to bring the TTL sync to consumer levels at the minimum, with bypass jumpers if you want to skip soldering in the components.

Just gotta dial in the RGB circuit, and the enclosure is pretty dang close to a drop-in consolizer.


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,574
Reaction score
3,485
Location
Gold Coast, Australia
The 75R are voltage dividers so I wouldn't be removing them. I think the pots would need to be installed prior to the output stage?


avramce

Student
Joined
Feb 14, 2020
Messages
76
Reaction score
53
Location
Seattle, WA
I guess he wants to make the resistors "skippable" just in case somebody wants to use a RGB cable with the resistors already installed. I've placed the resistors etc. directly on the pcb because it should be better to have no components in the cable (see here why: https://shmups.system11.org/viewtopic.php?f=6&t=52249&start=108).
totally agree with that thread, one way I fought that in my previous builds was to have a female SCART port in lieu of a mini-9, as it would only work with a male->male setup, perfect for an OSSC or Framemeister.

However, with all the Genesis 2 related options, I wanted to aim for that av-out to give people using this enclosure as many options as possible (Gen2 SCART cable, hd RetroVision, Rad2X, etc)

  • Like
Reactions: SVM

jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,976
Reaction score
6,669
Location
Nashua NH
I still couldn't get it to sync properly on my TV but it works great on PVM and through OSSC or a component converter
Personally I like the Jassifier device @Frank_fjs designed for us, it outputs 8pin mini at SCART levels.
9pin mini sucks because ya, best way to use it is Genesis SCART cable and that has components in the cable.

Components in cables is WRONG! :cursing:


TobyRieper

Student
Joined
Jan 29, 2020
Messages
57
Reaction score
22
Location
UK
Having read through this thread and seen some different views on resistor configurations can anyone confirm that the original resistor values output correct signals for a MVS connected through RGB Scart - Retrotink 2 x - Flat panel TV.. I am in PAL land. I am about to order the components for @SVM cMVS board :)


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,574
Reaction score
3,485
Location
Gold Coast, Australia
It comes down to your screen and preference. I found it way too dark on my TV, but it was fine on the PVM. The resistors I changed ended up working well on both.

Build it as originally specified and then make the changes as required.


pacoarcade

Professional
Joined
Oct 16, 2018
Messages
498
Reaction score
442
Location
Spain
I've made a smaller version of my picogun, if you are interested I can send you the gerbers via PM. I've not ordered the boards yet, but it's the same circuit as the version 3.1 that is tested and working.

-- update: I've ordered the PCBs so I'll attach the gerbers once tested and working.


Last edited:

TobyRieper

Student
Joined
Jan 29, 2020
Messages
57
Reaction score
22
Location
UK
  • Thank you that's a neat little board. Yes please that would be most helpful. do you have the BOM as well?

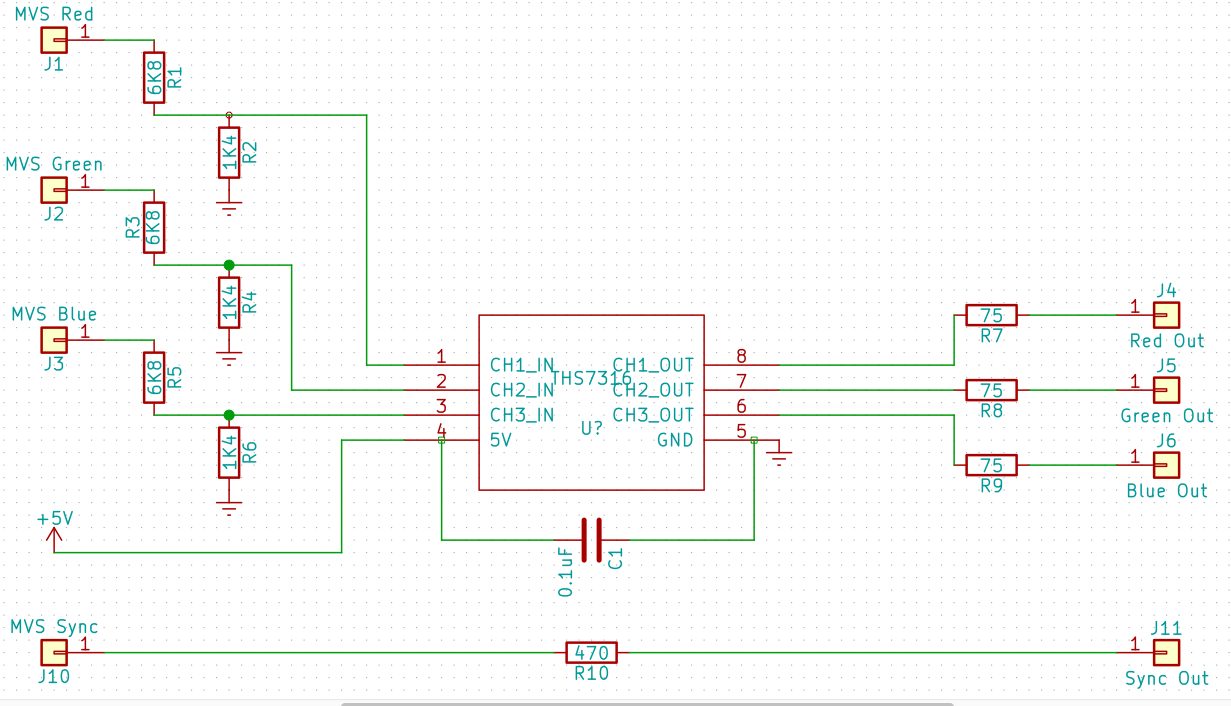

Until I get the parts I'm using a much simpler circuit as attached.


Attachments

  • rGPdzAw.png
    99.3 KB · Views: 112

TobyRieper

Student
Joined
Jan 29, 2020
Messages
57
Reaction score
22
Location
UK
Hey folks, anyone know why my screen is cut off from the right side? I presume it's some sort of sync resistance value. I'm using Neo-Geo MVS RGB 1.0.


Attachments

  • 16188540725566305565836015291163.jpg
    177.9 KB · Views: 68
  • 16188540893041194570103189697727.jpg
    127.2 KB · Views: 82

SVM

Enthusiast
Joined
Aug 30, 2016
Messages
133
Reaction score
111
This is the typical RGB shift. I you can't adjust the image via the TV menu you'll need a RGB Shifter or similar.


TobyRieper

Student
Joined
Jan 29, 2020
Messages
57
Reaction score
22
Location
UK
This is the typical RGB shift. I you can't adjust the image via the TV menu you'll need a RGB Shifter or similar.
RGB shifter? It's cool I have a retro tink scart X. I do want to sell off the CMVS at some point though and I know someone on eBay will complain. Funny thing is, on this TV all I get is a blank image on the tink and Neogeo. On my 4k TV and my 1080i plasma TV it shows perfect with the Tink. Very odd.


SVM

Enthusiast
Joined
Aug 30, 2016
Messages
133
Reaction score
111

TobyRieper

Student
Joined
Jan 29, 2020
Messages
57
Reaction score
22
Location
UK
Here you can read about it: https://playoffline.wordpress.com/cable/rgbshifter/ It's in German but the Google translator will help you out. ;)

And here you can order a pcb: https://oshpark.com/shared_projects/3q6Lg1ya ...

or you order a complete unit from http://arcadeforge.net/Pi2Jamma-Pi2SCART/CRT-RGB-Pic-Shifter::306.html

But I'm sure you can correct the picture position in your TV menu, too...
Thank you for the information and the links. Was quite an interesting read. I've tried all the settings on that particular TV set and it doesn't want to play ball! On my plasma I get no such image shift. I guess it all depends on the television.
