I think you said to swap that MTC9000 flyback with a HR702, why is that?
HR7025

Because the original flybacks are junk. I've had two explode like this:


I just measured the TTD tube in my Turbo Outrun and I got 1.86mh for horizontal, and 29.2mH for vertical. So your horizontal is definitely different, but I'm not saying it won't work. I can check some other tubes that I have working tomorrow.


nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
I forgot X/

Checked two more

Orion A48JRV70X12
lh 1.66mH
lv 30.7mH

Samsung A48ECR31X59
lh 1.91mH
lv 29.1H

So yeah, out of three tubes none have a horizontal inductance as low as yours. I have at least two more working tubes, but they're way, way back in my storage room.


nassekova

Professional
Joined
Apr 23, 2019
Messages
370
Reaction score
566
Location
Oulu, Finland
I forgot X/

Checked two more

Orion A48JRV70X12
lh 1.66mH
lv 30.7mH

Samsung A48ECR31X59
lh 1.91mH
lv 29.1H

So yeah, out of three tubes none have a horizontal inductance as low as yours. I have at least two more working tubes, but they're way, way back in my storage room.
Well shit... :thumbdown:

I guess I'll still try it with the MTC 9000 and if it does not work, the quest continues...


Zebra

Professional
Joined
Nov 5, 2018
Messages
501
Reaction score
131
Location
New York
Is there some kind of centralized list of compatible tube / chassis combos that you guys work from when swapping out tubes? Or do you keep buying up old CRT TVs to test until you find one that works?

I'm not great with working on CRTs. I can see that you're measuring the mh. Do you have some way of narrowing it down first before you buy new tubes? And, how do you measure what's needed for an old monitor if it's too broken to turn on?

I'm looking to reuse a curved 29"/27" Samsung tube (A68QBT892X) from a Kortek KT-2938f. It makes disconcerting fire-cracker-like bangs when I turn it on but the tube seems intact. How would you guys go about finding a compatible replacement (CGA) chassis?


nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
Or do you keep buying up old CRT TVs to test until you find one that works?
Pretty much. Except I very rarely buy anything. Unless it's an uncommon size (like 29" / A68), I'm not paying a single cent for these. They're trash to people, they should be paying me.

Tubular will tell what neck it has and what heater voltage it's using, but honestly, everything that I've found (in Europe) that hasn't been a Sony has had a B10-277 neck and a heater voltage of 6.3V. Which is great, because apart from your stupid Wells Gardners, that's the most common connector and voltage on arcade chassis too.


And, how do you measure what's needed for an old monitor if it's too broken to turn on?
Doesn't matter if the chassis is broken. As long as the tube and yoke are OK, you're good.


MudGuts83

Student
Joined
Aug 27, 2016
Messages
79
Reaction score
30
Location
Oregon
Ok, Finally got around to removing the back case to see what I've got inside the RCA 19" F19421 crt I picked up a few weekends ago.

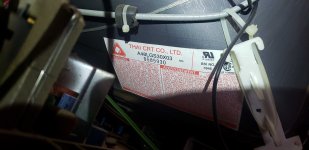

Hmm.. the internet identifies the A48LGS30X03 tube as a CR-31 8 pin with a H at 2.9 ohms and a V at 12.8 ohms.

I don't see this tube number listed on noted incomplete inventory. Should I continue on with the search for a WG 19" K7000 compatible crt?


Attachments

  • 20201111_131230_rotated_resized.jpg
    426.4 KB · Views: 59
Last edited:

nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
I don't see this tube number listed on noted incomplete inventory.
There are thousands of tubes, the inventory will only have a small percentage of them.

I suspect your tube is fine (odds are definitely in your favor). Someone who has tube swapped 19" K7000 could probably confirm. @RealMFnG?


Hydreigon

Enthusiast
Joined
Sep 15, 2019
Messages
195
Reaction score
63
Location
U.S.
It's time I explain my situation:

I own a twin Time Crisis 2 with awful tubes (to the point fixing major problems between both chassi didn't improve the image). I have two Orion tubes that came from a later Toshiba made TV I intend on swapping but am a bit unsure if they would be compatible. The chassis used and specs of both factory and potential donor tubes as follows:

Factory Chassis: Wells Gardner K7400 (WGM 2774) 27"

Factory Tube: Zenith A68AHE00X, 110° (incorrectly predicted as 100°), rather curvy for a 27" for some reason

Donor Tube: Orion A68QCU870X, 110°, (almost) flat

The neck pinout on both tubes are the same. The measurements of the two yokes in resistance and inductance are yet to be determined. Both yokes are fortunately not bonded to their respective tubes. My prediction is that this may be a compatible swap but with (hopefully manageable) geometry issues.

Last edited:

nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
I suspect the deflection angle will be an issue if you swap yokes and you won't get the corners to look right.


nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
And, how do you measure what's needed for an old monitor if it's too broken to turn on?
Doesn't matter if the chassis is broken. As long as the tube and yoke are OK, you're good.
Oh right, this was a pretty poor answer.

Tubes can be visibly checked. More often than not if the tube is damaged it's broken at the neck. As for checking emissions or shorts, you could bring a CRT analyzer / rejuvenator with you. This said, very few TV sets are ever run into the ground like arcade monitors are.

As for the yoke, you could check it with a BSIDE ESR20. You should be able to spot shorted windings with one.

Anyway, 99% of the time the chassis is the one to go first. I never do any of the above. If the owner tells me the TV is broken, I ask if it's been dropped. If the answer is no, I'm like cool, I'll take it.


Hedonism Bot 2.0

Grand Master
Joined
Aug 12, 2017
Messages
734
Reaction score
945
Location
USA
One thing I've run into with this blast city swap I'm doing is the tube itself.

The numbers match up, the yoke and chassis line up great, all of that stuff is perfect.

The tube out of the tv is either thicker, or the mounting holes are in a different placement. So you may have to rear mount or off set it a bit. I can get the Orion tube in there just fine, but the blast bezel wont fit at the bottom. Or maybe its in my head and the blast bezel just sucks.


nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
I always test fit the bezel with the tube outside of the cab. That way you can see if the curvature matches. Then it's just a case of getting the mounting depth correct.

All four dog ears are at the same depth on the tube, so there's no reason why it shouldn't fit at the bottom too. This said, I don't know what it is about Blast Cities, but I always have to press the bottom of the bezel damn hard to snap in place. Otherwise it pops out. This is with original tubes.


Hedonism Bot 2.0

Grand Master
Joined
Aug 12, 2017
Messages
734
Reaction score
945
Location
USA
All four dog ears are at the same depth on the tube, so there's no reason why it shouldn't fit at the bottom too. This said, I don't know what it is about Blast Cities, but I always have to press the bottom of the bezel damn hard to snap in place. Otherwise it pops out. This is with original tubes.
This is the exact problem I am having. So it's not the tube, its just a pain in the butt to get the bottom of the bezel to snap in place.


Hedonism Bot 2.0

Grand Master
Joined
Aug 12, 2017
Messages
734
Reaction score
945
Location
USA
I always test fit the bezel with the tube outside of the cab. That way you can see if the curvature matches. Then it's just a case of getting the mounting depth correct.

All four dog ears are at the same depth on the tube, so there's no reason why it shouldn't fit at the bottom too. This said, I don't know what it is about Blast Cities, but I always have to press the bottom of the bezel damn hard to snap in place. Otherwise it pops out. This is with original tubes.
I rear mounted this, and the bezel pops in like a charm. What's odd, even with the tube numbers line up, the Orion is a tad bit flatter.

  • Like
Reactions: nem

yangjuniori

Beginner
Joined
Aug 28, 2020
Messages
14
Reaction score
1
Location
shanghai china
How to modify the heat resistance of MS2930 for ksm696

we only have 2934 2933(Lose red) 2xksm696
2930chasis

Last edited:

Hydreigon

Enthusiast
Joined
Sep 15, 2019
Messages
195
Reaction score
63
Location
U.S.
Some test results are in from various tube yokes.

Orion A68QCU870X 27" flat tube
LhLvRhRv
1.2 mH18.2 mH1.8 ohm9.2 ohm


ORION A68KTB180X 006 27" curved (Toei TC-L292)
LhLvRhRv
.88 mH18.9 mH1.8 ohm7.7 ohm


Hitachi A68KRQ58X tube (Wells Gardner K7500 27")
LhLvRhRv
.36 mH14.2 mH0.8 ohm5.7 ohm


Wells Gardner K7400 25" compatible yoke
LhLvRhRv
.9 mH17.9 mH1.3 ohm6.9 ohm


Toshiba A68KJU96X (Nanao MS9)
LhLvRhRv
.29 mH14.2 mH1.5 ohm6.5 ohm


The TC-L292 and K7400 are close with the TC-L292 having more vertical inductance and overall resistance. The K7500 and MS9 are extremely close to the point K7500 27" tubes may as well be used for any MS9 chassis without a yoke swap. I'm kind of surprised. It looks like I may have to change my plans for Time Crisis 2.

Last edited:
  • Like
Reactions: nem

Hydreigon

Enthusiast
Joined
Sep 15, 2019
Messages
195
Reaction score
63
Location
U.S.
So it turns out the factory tube in my Time Crisis 2 actually has a deflection angle of 110° as opposed to 100°. A tube swap for those Orion tubes may be possible. I have measured the yoke as well:

Zenith A68AHE00X 27" tube (Wells Gardner K7400)
LhLvRhRv
.91 mH16.1 mH1.3 ohm8.3 ohm


It seems the K7400 may have some vertical inductance tolerance.


nassekova

Professional
Joined
Apr 23, 2019
Messages
370
Reaction score
566
Location
Oulu, Finland
I finally got around to measure my Phillips A66EAK071X11 28" tube, to see if it will match for my Hantarex Tekken tube.

Hantarex polo specs:


POLO 1 28"

Lh1.49mh
Lv24.5mh
Rh1.6 ohm
Rv11.0 ohm


My Philips Lh/Rh. This is pretty close, so could perhaps work.


But Lv/Rv is wayyyy off :thumbdown:


For some reason I always end up finding Philips tubes and they never match Hantarex specs...

EDIT:

Just noticed that these specs are actually pretty close! How can I tell if my Polo 28" is Autosync model?


POLO 2 auto sync 28"[edit]

Lh1.40mh
Lv7.3mh
Rh2.1 ohm
Rv5.6 ohm



Source: https://wiki.arcadeotaku.com/w/Yoke_Specifications#POLO_1_28.22


nem

Enlightened
Joined
May 29, 2016
Messages
3,857
Reaction score
2,912
Location
Finland
Your Polo isn't a 2, it's just a regular Polo.

I need to rip out my Polo from the Capcom cab next week. There's a poly cap I need to change on it. I'll double check the yoke specs then.

If the Philips isn't suitable for a swap, I have a tube for you. It's just taking up space at my place.

EDIT: the massive difference in vertical isn't necessarily an issue, so it's worth a try in any case.
