nem said:
Sun PSUs are here:

https://www.arcade-projects.com/threads/sun-psu-capacitor-maps.5425/

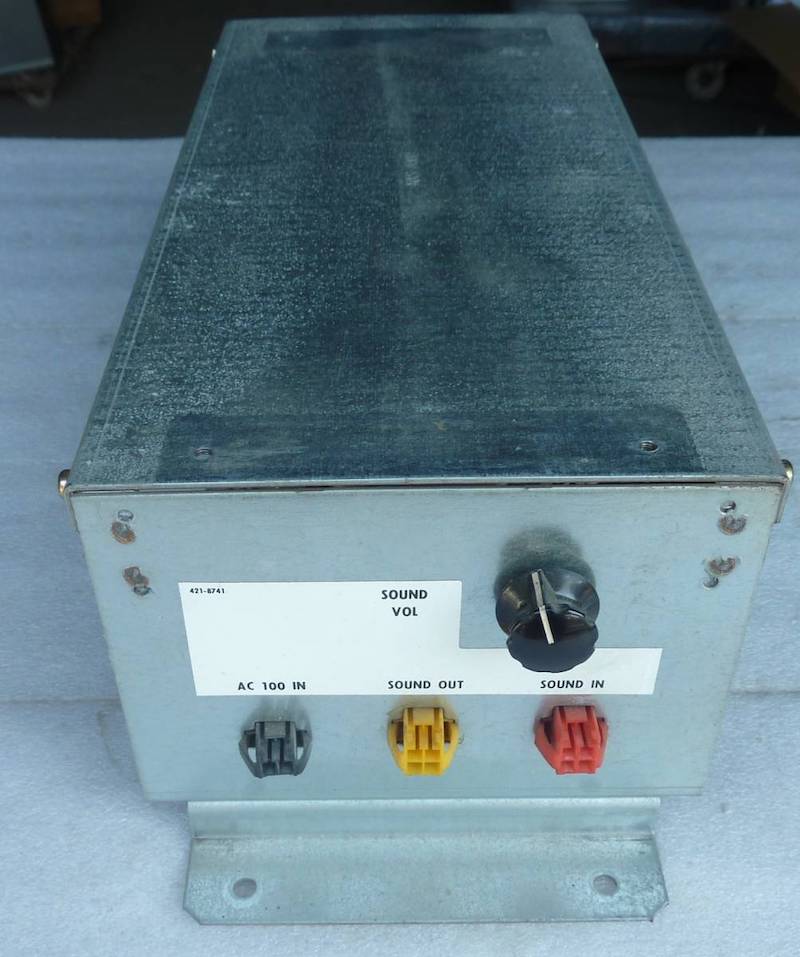

SJ25-0361-01, audio amp found in (New) Net City, Naomi Universal and some standalone dedicated:

Code:
Capacitor        Diameter    Qty        Location

47uF    25V        5mm            2        C30, C31
100uF    35V        7mm            7        C5, C8, C13, C17, C29, C32, C33
3300uF    35V        17mm        2        C15, C20
Click to expand...

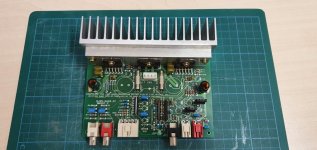

We just replaced the caps for @PascalP sound amp, it's a SJ25-0604-01, usually found in a Virtua Tennis 3 Naomi cabinet (as far as we can find). See the cap list below (picture in the attachments):

SJ25-0604-01​
​
​
​
​
​
​
​
Location​
Capacitor​
Original diameter​
Replacement diameter​
C5​
100uf 35v​
6​
8​
C8​
4.7uf 50v​
5​
​
C9​
22uf 50v​
5​
​
C13​
100uf 35v​
6​
8​
C15​
3300uf 35v​
16​
​
C17​
100uf 35v​
6​
8​
C20​
3300uf 35v​
16​
​
C29​
100uf 35v​
6​
8​
C30​
100uf 35v​
6​
8​
C31​
100uf 35v​
6​
​
C32​
100uf 35v​
6​
8​
C33​
100uf 35v​
6​
8​


Attachments

  • amp.jpg
    147.3 KB · Views: 124
CPS1 A "Dash" 89626A-4.
You can use smaller lead spacing and just bend the legs, I just like to have it for reference

LocationCapacitance (uf)Voltage (V)Diameter (mm)Length (mm)Lead spacing (mm)
CC23
2.2​
50​
5.1​
11.3​
5​
CC9
10​
16​
5.1​
11.3​
5​
CC14
47​
16​
5.1​
11.3​
5​
CC7
10​
16​
5.1​
11.3​
5​
CC10
10​
16​
5.1​
11.3​
5​
CC13
10​
16​
5.1​
11.3​
5​
CC11
10​
16​
5.1​
11.3​
5​
CC6
10​
16​
5.1​
11.3​
5​
CC8
10​
16​
5.1​
11.3​
5​
CC12
10​
16​
5.1​
11.3​
5​
CC17
10​
16​
5.1​
11.3​
5​
CC18
4.7​
50​
5.1​
11.3​
5​
CC19
100​
25​
6.3​
11​
5​
CC21
100​
25​
6.3​
11​
5​
CC16
100​
25​
6.3​
11​
5​
CC15
100​
25​
6.3​
11​
5​
28 (axial)​
2200​
25​
16​
30​
38​

Last edited:
Finished recapping another Astro PSU, this time a 400-5198. Very similar to the 400-5198-01 & 400-5198-01X but not identical.

400-5198
Code:
Capacitor     Diameter     Qty        Location
0.47uF 50V    5.00mm         1        C11
3.3uF 50V     5.00mm         1        C25
47uF 25V      5.00mm         1        C24
330uF 200V    22.00mm        1        C5
470uF 16V     10.00mm        1        C22
1000uF 35V    16.00mm        2        C20, C21
4700uF 10V    16.00mm        4        C12, C13, C14, C15

LocationCapacitance (uf)Voltage (V)
C1
330​
25​
c18
10​
25​
c25
10​
25​
c5
100​
25​
c6
220​
16​
c7
1000​
16​

Yie Ar Kung-Fu, Konami

sk8er000 said:
As requested from @Derick2k and @AlxUnderBase I'm going to publish here some of my capacitor list. I'll be glad if someone want to contribute just send me the list and I'll add the list (along with the credits), the more we have the better is 8) .
I usually add the Mouser item number when I add the capacitor to the cart and double check the lists when I perform the recap.
I have a lot of lists under revision or still written on papaer, I'll write down every update when I'll add something :)

DISCLAIMER
I'm not responsable for any damage at your hardware while using this lists or performing a recap on your hardware, I suggest to always double check your capacitor board values before swapping them (sometimes even in the same PCB revision the manufacter uses slightly different values).

P.S.
Fell free to report any error or add anything


CAPACITORS DATABASE
Click to expand...
Hey, any chance you can share the Google Doc? It says I don't have permission to view.

I'm sorry for the late replies but due to quite important personal problems I had to step back for a while with all my hobbies. Unfortunately I don't think that making the folder free of edit by anyone is a safe decision, for that reason if a member of the forum would like to be an editor and edit/remove/add anything is needed please PM me with your gmail address and I'll add your account as editor.
Actually @AlxUnderBase is the only other editor of the folder since the beginning or so

Last edited:
sk8er000 said:
I'm sorry for the late replies but due to quite important personal problems I had to step back for a while with all my hobbies. Unfortunately I don't think that making the folder free of edit by anyone is a safe decision, for that reason if a member of the forum would like to be an editor and edit/remove/add anything is needed please PM me with your gmail address and I'll add your account as editor.
Actually @AlxUnderBase is the only other editor of the folder since the beginning or so
Click to expand...
No problem, I would recommend you move it to the other thread and give control there.

I'm not the owner of any other lists, so I think that if there is something missing on the other thread just add them from my folder and I'll insert something like [OBSOLETE] on the title of this thread

I've gone back through the thread and added to the spreadsheet files all the cap lists that were posted since @sk8er000 's last update on 1/24/2021.

I also reorganized everything into the following subfolders:
Arcade Game Board
Arcade Monitor Chassis
Arcade Power Supplies (PSU)
Consoles

The following items were added:
Cave/Atlus Donpachi - Thanks to Nebula
Konami Lethal Enforcers (GX191) - Thanks to Matan
Konami TMNT Turtles in Time - Thanks to Nassekova
Namco NB-2 (Outfoxies, Mach Breakers) - Thanks to ShootTheCore
Nanao MS-2933 - Thanks to Nassekova
Omron PSU S8XA-0731 (Konami Windy) - Thanks to Aurich
Psikyo Sol Divide (PS3-V1) - Thanks to Bodgit
Psikyo Strikers 1945 (SH404) - Thanks to Bodgit
Sega 32X - Thanks to Matan
Sega Genesis (MD2 VA1 USA) - Thanks to Matan
Sega Turbo Outrun - Thanks to Matan
Sega X Board - Thanks to Matan
Sun Audio Amp SJ25-0361-01 (Net City, New Net City, Naomi Universal) - Thanks to Nem
Sun PSU & Amp (NVS-4000-01) - Thanks to IPD
Sun PSU 400-5198-01 and 400-5198-01X (Sega New Astro City) - Thanks to IPD
Sun PSU 400-5198-01Y (Sega Astro City) - Thanks to IPD
Sun PSU 400-5261 (Sega Astro City) - Thanks to IPD
Sun PSU 400-5397 (Thanks to Nem)
Sun PSU 400-5397-01 (Thanks to Nem and TwistedSymphony)
Sun PSU 400-5443 (Thanks to Nem, PascalP and Sp33dFr34k)
Sun PSU 400-5443-01 (Thanks to Nem)
Sun PSU 400-5443-02 (Thanks to Nem)
Toaplan Truxton/Tatsujin - Thanks to Bodgit
Visco Drift Out (Taito F1 Platform) - Thanks to AlxUnderBase

I'll keep an eye on the thread and will update the sheets when new lists are posted. Thank you everyone for your list contributions and to @sk8er000 for carrying the torch this far!

I went back through the thread further and picked up some more lists that still needed to be added to spreadsheets in the files:

Sun SJ25-0604-01 (Sega Naomi Cabinet) - Thanks to Sp33dFr34k
Sun PSU 400-5198 (Sega Astro City) - Thanks to IPD
Konami Yie Air Kung-Fu - Thanks to Ekorz
Taito Liquid Kids (Single PCB Version) - Thanks to AlxUnderBase
Seibu Kaihatsu SPI - Thanks to EKorz
Sega I/O Board Rev.B - Thanks to Nimmers
Konami Crime Fighters - Thanks to Pacoarcade
Nipron PSU PS6146 (Sega Lindbergh Power Supply) - Thanks to Ekorz
Taito Nastar Warrior / Rastan 2 - Thanks to SmokeMonster and TianFeng
Taito Type X (G4S306-5) - Thanks to Nam9
Data East DE-0409-1 (Joe & Mac Returns, Magical Drop, Chain Reaction, Magical Drop Plus 1) - Thanks to AlxUnderBase
Nintendo Donkey Kong (2 Board Set) - Thanks to ShootTheCore
Data East Robocop - Thanks to LittleLarrySellers
Williams NARC - Thanks to LittleLarrySellers

That should be everything now. If I missed anything, let me know. There were a few postings that were missing necessary information (ie cap locations) that I skipped.

Last edited:
A little contribution:

Dragon Blaze (Psikyo PS5 V2):

C1: 100µF 25V
C2: 4.7µF 25V
C9: 10µF 16V
C15: 10µF 16V
C27: 100µF 25V
C20: 100µF 25V
C25: 100µF 25V
C26: 47µF 16V
C5: 10µF 16V
C19: 100µF 25V
C24: 4,7µF 25V
C18: 100µF 25V
C23: 100µF 25V
C4: 4,7µF 25V
C7: 4,7µF 25V
C16: 2200µF 25V

Psikyo 1st Gen (Sengoku Ace) SH201 B

C1: 10µF 16V
C2: 100µF 16V
C4: 2200µF 25V
C17: 4,7µF 25V
C18: 4,7µF 25V
C15: 4,7µF 25V
C16: 4,7µF 25V
C6: 220µF 16V
C19: 4,7µF 25V
C5: 22µF 16V
C9: 4,7µF 25V
C14: 4,7µF 25V
C10: 10µF 16V

@nem @Mukuro_W @RealMFnG - would any of you happen to know the difference (if any) in the cap values or have a cap map for a GML chassis (Capcom Impress) compared to a GMK chassis (Super Neo 29)?

I foolishly installed the GMK cap kit from here in the GML chassis: https://www.arcadepartsandrepair.co...achi-gmk-29fs2-monitor-cap-kit-105c-nichicon/

I am getting a washed out screen and some high pitched squeeling. Turned it off immediately and looked over everything before it dawned on me that I am a moron. Hoping someone knows the differences so I can fix this or at least confirm it is not the source of my issue. 🤯
