I'm also in for a batch 2 (gundam stick, capcom IO).

Last edited:

Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC
XeD and I are meeting up tonight to start boxing up the orders so they can be weighed and all the shipping quotes can get sent to everyone, sorry for the delay guys, Covid is messing everything up here. I’ve been short staffed at work so it’s been tough last few weeks to dedicate the time.

It’s all coming together though and can’t wait to get all the orders out, I appreciate how patient everyone has been.
Thank you so much!


Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC
Hey guys!

Another update:

1) all orders containing Gundam shaft bananas have shipped!! and tracking numbers have been PM to each person.

2) there is a small issue with the screws for mounting the OG Banana. Sega used security screw that are almost 1mm smaller than a standard button head. We scanned an OG banana so the holes ended up kinda small for a standard button head,, they fit, but once I added paint, the screws slightly scratch the sides of the hole. To prevent this I’ll be machining the screws down so there is wiggle room. Attached are some pictures of the OG screws and a Standard M4 screw (they will be stainless, I didn’t have them at time pictures were taken)

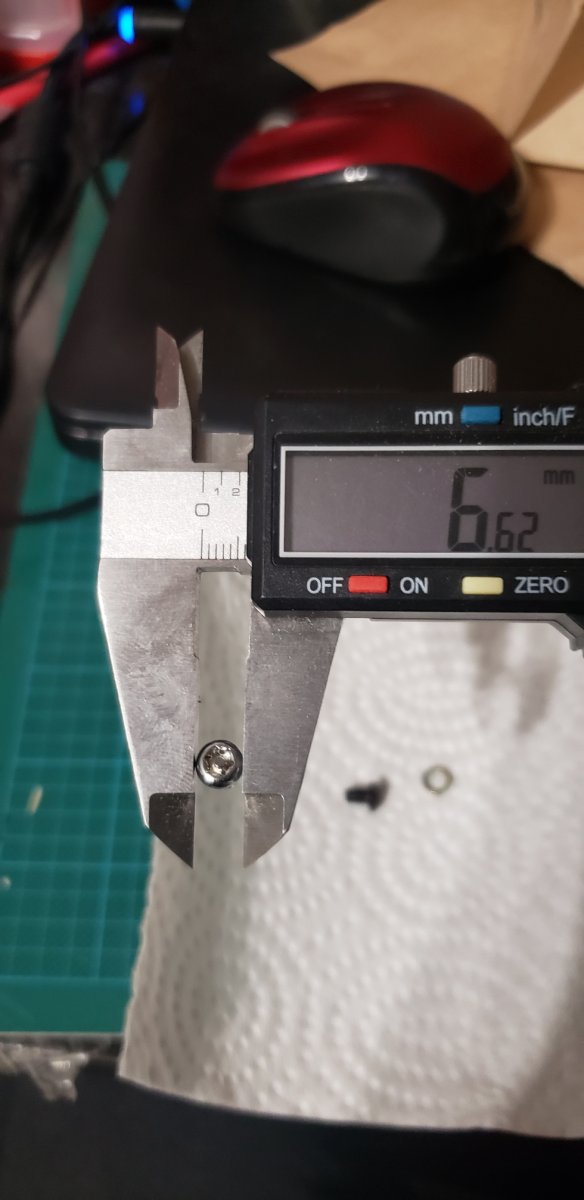

OG M4 Security Screw

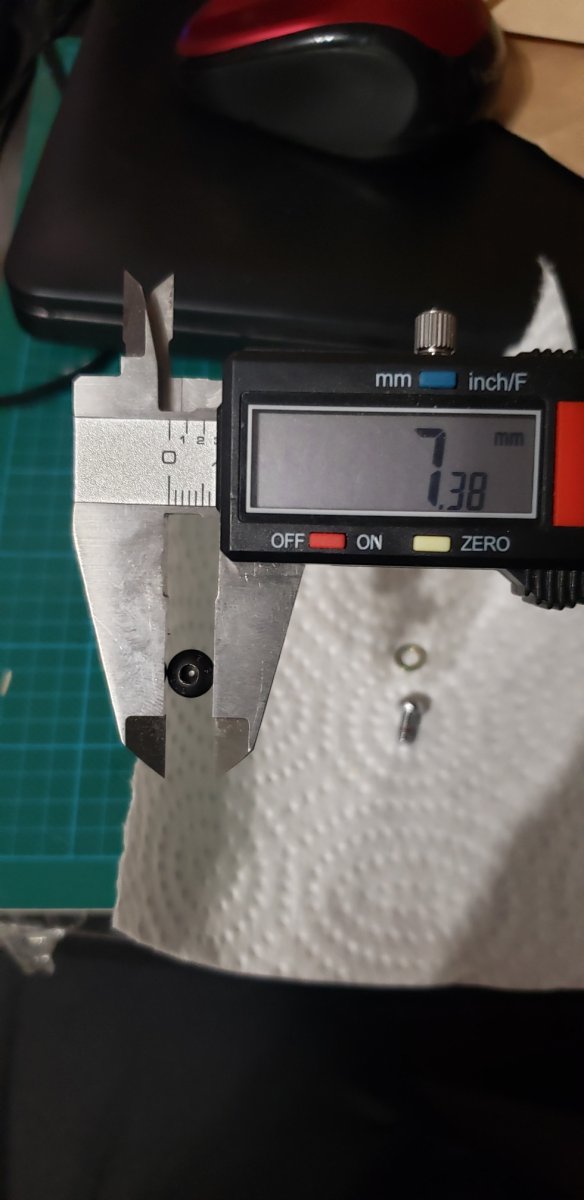

Standard M4 Button Head (final version to be stainless)


I think I can have these screws modified Mon-Tuesday next week then I can complete the remaining orders for shipping


snakeGrave

Enthusiast
Joined
Apr 13, 2016
Messages
171
Reaction score
139
Location
Delaware
I got a full gundam stick setup over the weekend and the quality is awesome!

I'm putting it together now and it took me a minute to figure out the op amp mounting solution. (maybe I missed it in the thread)

Its really cool what you guys are implementing but I am having issues using the provided pcb mounts in the setup since it is so close to the stick. My solution so far is to dremel out some recesses but if you make the metal mount jut out a little more then it may make installs easier for the next batch

Also, somebody please tell me if I am just doing this wrong :P

EDIT: or you can just snip the end off of the plastic cones duhhhhh


Attachments

  • IMG_4238.jpg
    49.3 KB · Views: 31
  • IMG_4239.jpg
    59.8 KB · Views: 32
Last edited:

Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC
What about self stick plastic PCB mounting studs/standoffs and mount them in the stock location on the panel.

This seems to be the easiest, Alberto no longer adds studs to his panels.
Does this work for everyone?


Attachments

  • 9FF18C9B-05EC-4F5C-BAA2-799C2A4D99E3.jpeg
    23.2 KB · Views: 9

XeD

Grand Master
Joined
Jul 6, 2016
Messages
976
Reaction score
783
Location
Vancouver BC Canada
I'll get him to make a tweak on the next batch. Thank you for the feedback


Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC

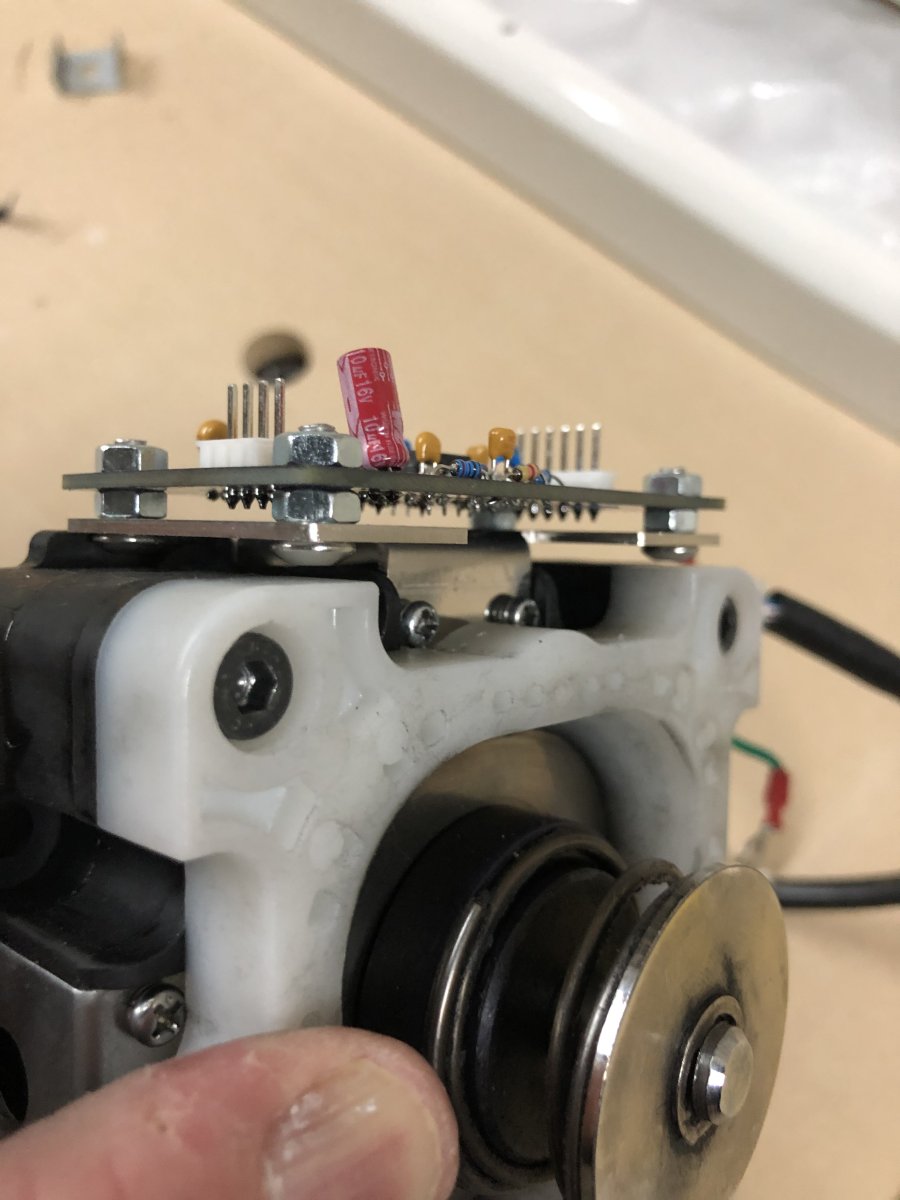

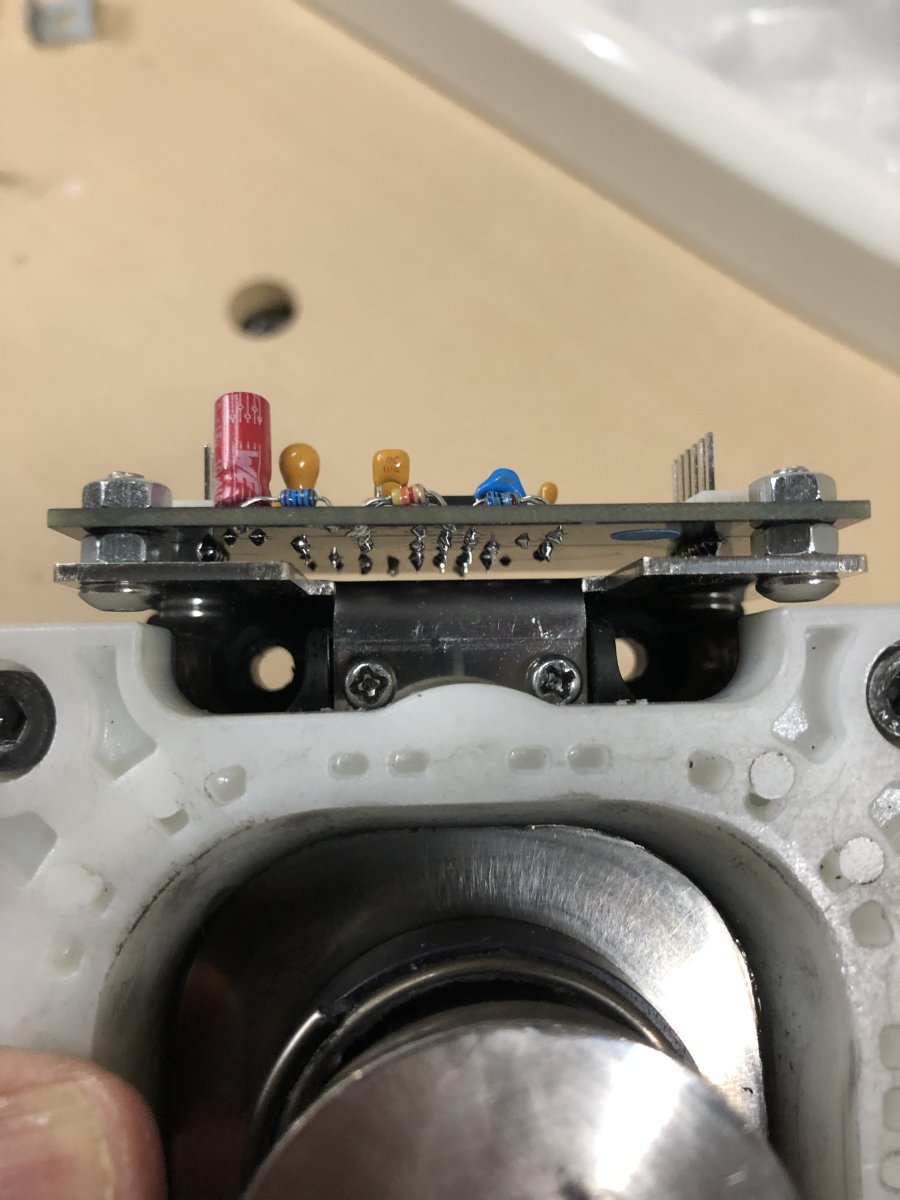

Here is a quick fix, m4 X 10mm button heads double nutted.


Attachments

  • 88FB2033-02D4-49D4-859D-B2C32342E868.jpeg
    97.8 KB · Views: 21
  • 5D43C42E-6B48-4EF1-B8BF-D4691849D191.jpeg
    109.9 KB · Views: 20

Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC

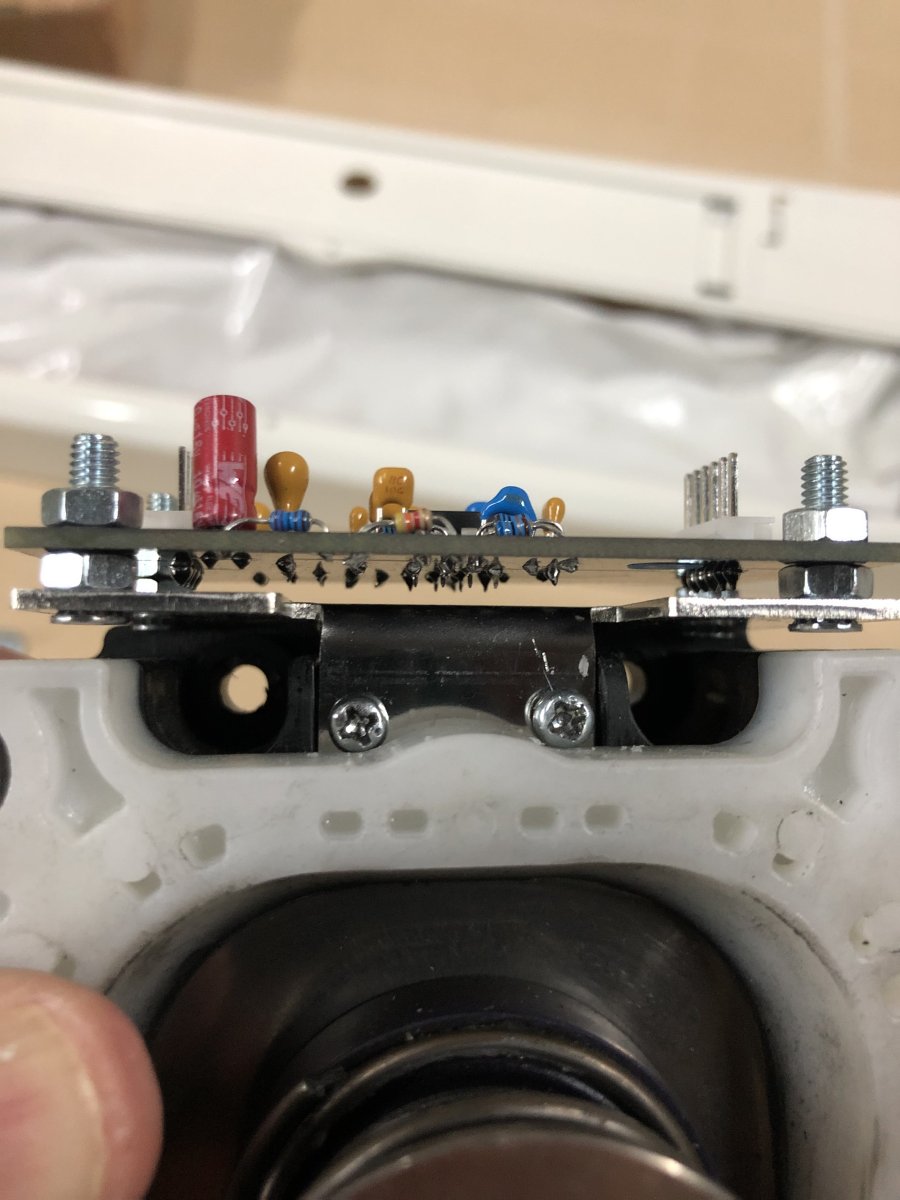

I was thinking to press in studs but it’s not worth the trouble, I would need to make a custom plate for my arbor press. Button head screws works all the same. Here is a pic of the studs (not pressed in)


Attachments

  • 796BAC08-D546-45D0-ABCF-D0C72C407CE4.jpeg
    110.7 KB · Views: 18
Last edited:

Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC

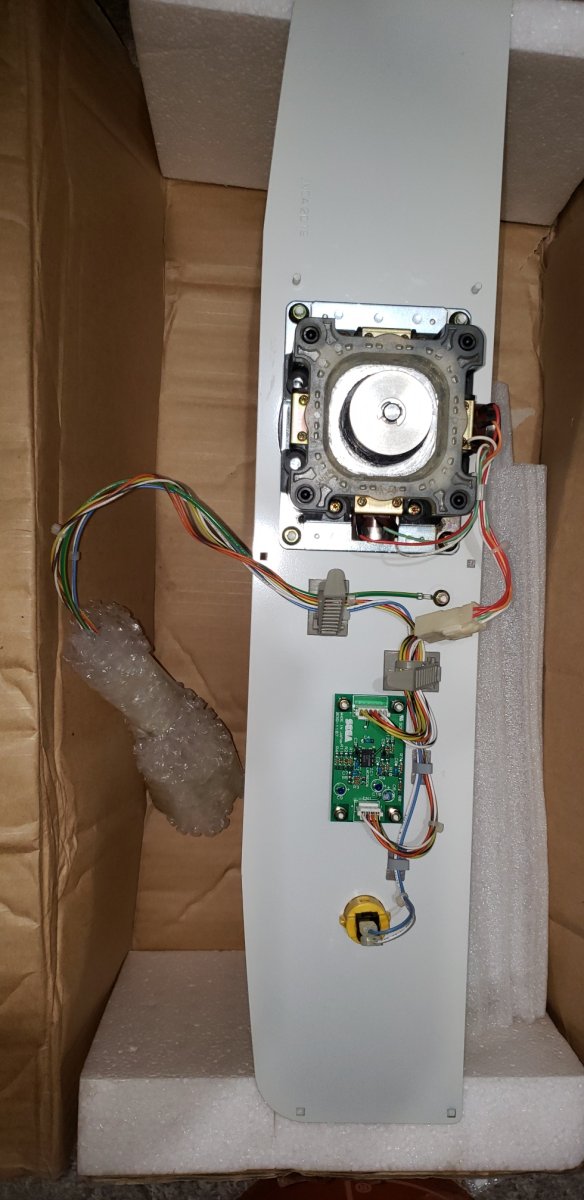

This is the stock op amp location on a NOS panel


Attachments

  • 4A142000-BA12-42A5-B220-CFA21328B7FC.jpeg
    101.8 KB · Views: 27

mR_CaESaR

Grand Master
Joined
Jul 10, 2018
Messages
905
Reaction score
1,139
Location
Sydney, Australia
I originally asked for studs off Alberto, but he suggested his mounting method.. I wasn't too fussed.

I can't make the op amp for a few months anyway until more parts are back in stock :(

For now, it'll just be direct to the IO


Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC
Sup Homies?

I officially finished shipping all the orders for batch 1, not including what shipped today, almost all have received the goods already
We’ll go through what’s leftover and let you guys know when Batch 2 is open.
And a new project is coming😉
Thanks so much!

Last edited:

tDRG

Student
Joined
Jul 20, 2020
Messages
120
Reaction score
66
Location
US - East Coast
Sup Homies?

I officially finished shipping all the orders for batch 1, not including what shipped today, almost all have received the goods!
We’ll go over whats left over and let you guys know when Batch 2 is open.
And a new project is coming😉
Thanks so much!
Very exciting, nice work!

What's the total cost for a complete wired panel? I think I'm interested in the next batch. Also just curious, what do the original bananas/panels usually sell for?


Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC
Very exciting, nice work!

What's the total cost for a complete wired panel? I think I'm interested in the next batch. Also just curious, what do the original bananas/panels usually sell for?
I’ve never seen one for sale, so I couldn't tell you current prices. A complete set-up from us is $410-$460 depending if you want a new gasket. Shipping Canada - US is $43

Here is the part list with pricing:

1X Banana $66.50 each
1X Used Gundam Stick $130 each
1X New Gasket $50 each
1X Alberto Repro Panel $130 each
1X 24mm Yellow Button 3$ each
1X Op Amp $52.50 each
1X JVS harness for Sega/Capcom I/O $22.00 each
1X Op Amp Harness add-on required for Op Amp $10 each

Above prices could change depending on availability and interest


XeD

Grand Master
Joined
Jul 6, 2016
Messages
976
Reaction score
783
Location
Vancouver BC Canada
@mltv
@PlayYing

Please check your pm and let us know if you are still interested. If there is no response by Wednesday 9pm PST we will move you down the que to free up your items


XeD

Grand Master
Joined
Jul 6, 2016
Messages
976
Reaction score
783
Location
Vancouver BC Canada
With everyone getting the used stick. What are people finding broken/warn out? I'm putting a repair kit together that include
The white/opaque square gate
Spring
The white collar
The grey pot spacer
The pot washer
C-Clip

It's a little pricey at about 75.00 USD. I know the square gate break quite often. The other item have a lower failure rate out of the small sample of used stick I have.


Mirko

Enthusiast
Joined
Oct 22, 2020
Messages
156
Reaction score
241
Location
Vancouver BC

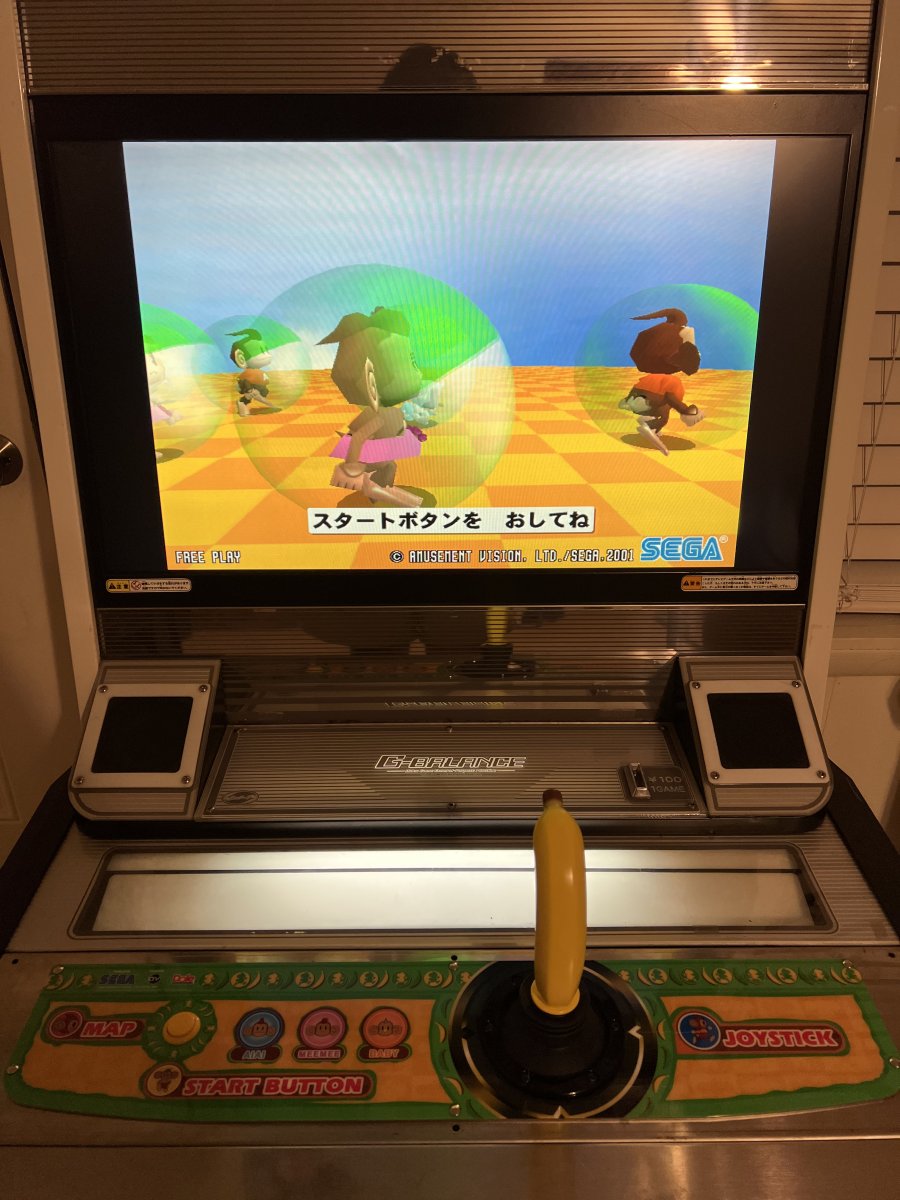

Just got everything up and running today! Can confirm that the SANWA JLK-GF2-EV works. A big thank you to all involved!

Thanks for confirming fitment of our OG banana mounted to the long shaft, did your stick come with a op amp?


VoldoJF

Beginner
Joined
Sep 3, 2021
Messages
8
Reaction score
11
Location
Little Rock, Arkansas
Thanks for confirming fitment of our OG banana mounted to the long shaft, did your stick come with a op amp?
It did not. Harness was wired directly to the pots.
