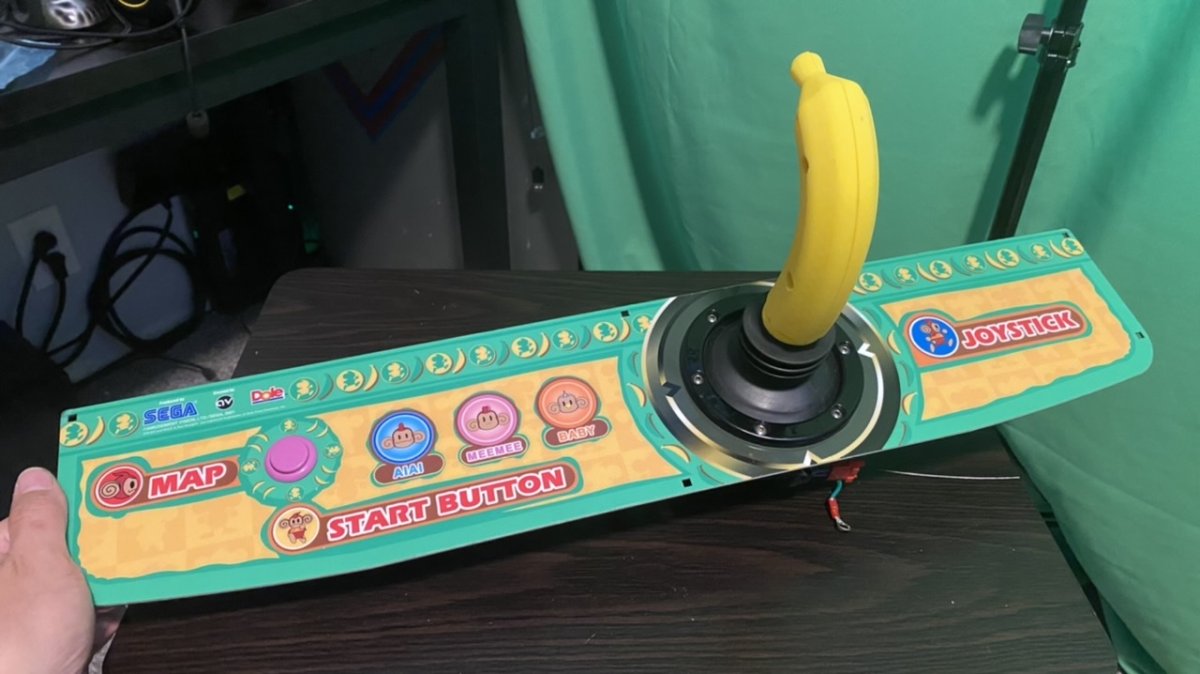

I got my panel sorted out! Went with a DIY 3D printed handle, to save some money. It’s been working out awesome so far!

Can’t believe I can play this at home. What a time to be alive!!



opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
2,209
Reaction score
3,971
Location
California
Right on, we’ll need to start a high score battle once everyone is up and running.
Oh man, Expert is crazy. Floor 7 is pain!

A high score challenge would be pretty fun.


mR_CaESaR

Grand Master
Joined
Jul 10, 2018
Messages
904
Reaction score
1,136
Location
Sydney, Australia
Decided to order the parts for the Op Amp as it seems like a fun thing to build...

Code:
PCB from Osh Park

1x    LMC662CN/NOPB        LMC662CN DIP8                       (ordered 3 from mouser)
5x    K104K15X7RF53H5      16V 0.1uF ceramic                   (ordered 20 from mouser)
2x    FG18C0G1H470JNT00    16V 47pF ceramic                    (ordered 8 from mouser)
1x    860010372001         16V 10uF polarized electrolytic     (ordered 10 from digikey)
2x    TAP106K016SCS        16V 10uF polarized tantalum         (ordered 10 from mouser)

2x    270-68-RC            68 5% 1/8W                          (ordered 200 from x-on)
2x    270-2.2K-RC          2.2K 5% 1/8W                        (ordered 200 from mouser)
2x    299-4.3K-RC          4.3K 5% 1/8W                        (ordered 200 from mouser)
2x    270-33K-RC           33K 5% 1/8W                         (ordered 200 from mouser)
4x    270-100K-RC          100K 5% 1/8W                        (ordered 200 from mouser)

x 1   B4P-SHF-1AA (ordered 10 from digikey)
x 1   B6P-SHF-1AA (ordered 10 from x-on)


Ground connector: (already have)
Analog connector: (already have)
Digital connector: (already have)
Ground pins: (already have)
Other pins: (already have)

4-Pin Analog connector: ordered 10 from x-on
6-Pin Analog connector: can't seem to find any in stock anywhere
Analog pins: (already have)

Start button quick disconnects: (already have)
22 Gauge Wire: already have

All that's left is the Monkey Ball panel from alberto and batch 2 of the bananas


XeD

Grand Master
Joined
Jul 6, 2016
Messages
976
Reaction score
783
Location
Vancouver BC Canada
@mR_CaESaR if you can't find the 6 pin connector by the time batch 2 ship out I can add one to your order

Last edited:

mR_CaESaR

Grand Master
Joined
Jul 10, 2018
Messages
904
Reaction score
1,136
Location
Sydney, Australia
Thanks. I might take you up on that offer. But judging from when parts start to ship out, I probably won't be ready until late Jan early Feb at the earliest (eta for the 8 way TE Amp UP is late Feb).


XeD

Grand Master
Joined
Jul 6, 2016
Messages
976
Reaction score
783
Location
Vancouver BC Canada
My rough guess on batch 2 is 4 month from now.
A month for people to get batch 1, receive feedback and possibly do some tweaks to the design. 2 guys bug testing is nothing compare to 18 people.
A month for the pre-order
2 month (give or take a month) for manufacturing and delivery to me before I can ship out. People who order just banana will once again get their order out 1st as those are done in house


mR_CaESaR

Grand Master
Joined
Jul 10, 2018
Messages
904
Reaction score
1,136
Location
Sydney, Australia
That's cool.. I think by the time batch 2 is ready, it should only be the banana that I will require..

In theory, I should still be able to play it with the Gundam mould.. Albeit very strange 😁


nnap

Professional
Joined
Aug 28, 2018
Messages
271
Reaction score
331
Location
Switzerland
You can remove the angled piece from to gundam stick. It will sit a bit low but definitively playable. Did that on my Afterburner Climax panel.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
976
Reaction score
783
Location
Vancouver BC Canada
Just a random question. Anyone from batch 1 looking for a DE10 nana?
