JVS I/O inside this cbox is a Sega 837-13551-92
YES it will directly power the Sega Naomi with an add on cable (Sold seperate) its like $10
and it will power JVS systems Namco 246/256 with an add on cable

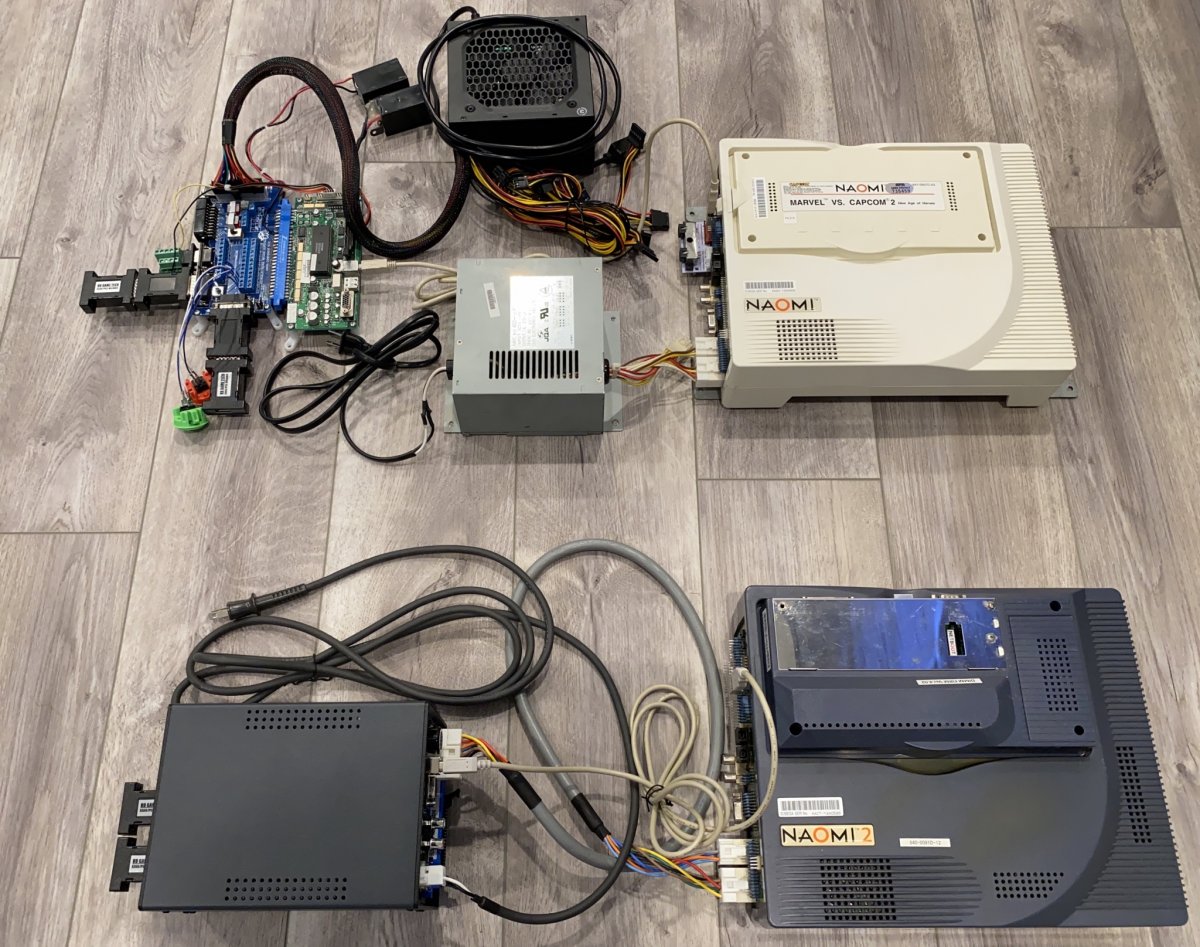

This picture was taken by @dannahan he calls it BEFORE/AFTER
he calls it the cleanest naomi setup ever,
He runs his naomi video straight to his display
the cbox powers and handles the kickharness all built in
controllers plug right into the CBOX


Attachments

  • naomi.jpg
    251.3 KB · Views: 91

buffi

Grand Master
Joined
Aug 12, 2019
Messages
514
Reaction score
673
Location
Sweden
Interested in this.

Just to make sure, if my understanding is correct, this supergun can directly power up a Naomi board without the need of an IO?
I mean, the supergun has a io board in it. So no need for external io.


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
917
Reaction score
477
Location
Mission Viejo, CA, USA
Hey @klee123 - 100%! Power from CBOX, JVS (usb) cable from Naomi to CBOX - audio and video to monitor (31khz), good to go!


tacobell

Professional
Joined
Jan 17, 2020
Messages
194
Reaction score
372
Location
1
All i gotta say it made my arcade1up easier to play jvs. It’s super slim and I can play both types in a small form factor.

Its the best system for JVS. Bar none.


klee123

Enthusiast
Joined
Nov 11, 2020
Messages
164
Reaction score
89
Location
Brisbane
Interesting.....

I'm pretty much sold at this point, but I guess in addition to the Supergun, I'll need the following required cables?

8 Din JP-21 Cable
JVS Cables for Naomi

I also see the extension cable too which is always a plus :)


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
536
Reaction score
771
Location
Nanjing, China
how will you hook up your display ?
if you use JVS straight to display you dont need 8 Din JP-21 Cable
but if you play JAMMA boards to i think you need 8din EUR SCART
EUR-SCART is friend with OSSC and other scalers

let us know what your set will be and we can tell you what you need
do you use CPS1/2/3 do you use Sega STV?
what is all your purpose for this supergun
tell us and i we can help

but yes its the 1 box to rules them all hehe


klee123

Enthusiast
Joined
Nov 11, 2020
Messages
164
Reaction score
89
Location
Brisbane
I currently run CPS2/Taito F3 and planning on running Sega ST-V/Model 3 and Naomi in the future.

I currently playing my boards connected via Supergun connected to XRGB to my LCD 4K TV hence why I use JP21 instead of Euro SCART.

Last edited:

drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
536
Reaction score
771
Location
Nanjing, China
ok so you need:
CPS2/3 kick harness
Sega STV kick harness
8pin JP-21 SCART for your XRGB <3

you are good to go


klee123

Enthusiast
Joined
Nov 11, 2020
Messages
164
Reaction score
89
Location
Brisbane
ok so you need:
CPS2/3 kick harness
Sega STV kick harness
8pin JP-21 SCART for your XRGB <3

you are good to go
Thanks for the info!

Also just a few more questions if anyone on this forum can answer.


The Taito F3 is known to have sync issues where when connected to say an XRGB, it causes the screen to constantly shake. According to to a few threads I've read, it needs some kind of sync regeneration to mitigate this issue. Does this supergun have any sort of solution to this?

Also since the supergun has Sega Saturn ports, has anyone tested if the Retrobit 2.4htz wireless Sega Saturn ports work?


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
917
Reaction score
477
Location
Mission Viejo, CA, USA
I can tell you that the Taito F3 through this device and then through an OSSC does *not* work - but I knew that heading in.


retrogrenier

Beginner
Joined
Nov 8, 2020
Messages
25
Reaction score
9
Location
Paris - FRANCE
Really nice super/supergun. There are a lots of optionals cables!
I want to connect MVS JAMMA / CPS2 multi JAMMA / Naomi2 JVS / maybe in futur TTx²
Some questions:
The DB15 video output have same the quality as the Din8? . It's to connect to a PVM for 15kHz.
The Din8 output uses NeoGeo RGB EURO SCART ?
The power cable option is for Europe too?
How buy this product and optional cables ? Here with drfunk2k ? or http://www.axunworks.com
What is the delay to be delivered ?
Thank you!


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
536
Reaction score
771
Location
Nanjing, China
Really nice super/supergun. There are a lots of optionals cables!
I want to connect MVS JAMMA / CPS2 multi JAMMA / Naomi2 JVS / maybe in futur TTx²
Some questions:
The DB15 video output have same the quality as the Din8? . It's to connect to a PVM for 15kHz.
The Din8 output uses NeoGeo RGB EURO SCART ?
The power cable option is for Europe too?
How buy this product and optional cables ? Here with drfunk2k ? or http://www.axunworks.com
What is the delay to be delivered ?
Thank you!

The DB15 and DIN8 video signals are the same. Both use the RGBS signal of JAMMA. PVM can be connected.
DIN8 can use NeoGeo RGB EURO SCART. or RGBS-BNC
the psu can accept all power from diffeent areas. if you need it to fit a socket just use any adapter from your local area.
I am in china we have 220 and it works, usa is 110 and it works ;)
order from Axunworks website.
i used to take orders but i helped him build the site to make life easier.
but yes i handle all support or issues
The delivery is now within two months. ( all products are made by hand by one person. also chinese new years is in 1 week, the country shuts down for like 20 days. its their biggest holiday)


Braintrash

Student
Joined
Jul 21, 2015
Messages
172
Reaction score
72
Location
France
The delivery is now within two months. ( all products are made by hand by one person. also chinese new years is in 1 week, the country shuts down for like 20 days. its their biggest holiday)

=O

I hope my order from early November will go through before the shut down. ;(


klee123

Enthusiast
Joined
Nov 11, 2020
Messages
164
Reaction score
89
Location
Brisbane
@drfunk2k I noticed on the website that you have multiple versions of this Supergun. The Black version? is $290

Functionality wise are there any differences?


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
536
Reaction score
771
Location
Nanjing, China
=O

I hope my order from early November will go through before the shut down. ;(
PM me your order number ill check for you

klee123:
no difference just Black PCB is more expensive cause its a custom color. i have a black pcb it is black and gold i think its sexy hehe


alszla

New User
Joined
Nov 28, 2020
Messages
5
Reaction score
0
Location
Bolivia
Hi, I am definitely considering buying a unit, but I have one question I want to ask you...
does the JVS IO of the CBOX works with a Namco System 12?

I wanna try the CBOX with a Tekken Tag Tournament board which also has JVS connectors. If anyone has used the CBOX with this board, please let me know.

Thanks
