If you are trying to do this on your cab screen via JAMMA, then this is an issue.
Yes, I'm referring to doing everything in my cab. My Mistercade has never been plugged into any kind of external monitor, and I can't see why I ever would. The whole point for me is to have a solution that just works in my cab.

Once you have things set I agree there's no need for a keyboard for daily use as far as games go. The issue for me is that Mister is a constantly shifting platform, with constant updates to cores and methods etc. It's the opposite of stable. And there are times when you need to plug in a keyboard to take care of stuff.

Can you pull the Mister from your cab, or plug in another monitor or do whatever else? Sure. Not the end of the world. Or it sounds like there's a USB hub solution too, cool.

I'm simply suggesting that on board support of a keyboard would make it a better product if there's ever a revision with thoughts about what to change, that's all. I'm glad to have it with what I'm using.


HornheaDD

Student
Joined
Apr 28, 2021
Messages
84
Reaction score
38
Location
Texas
Would it be too much or a power strain on things if one also connected the USB hub to the Nano, and use a splitter for the power cable coming from the Expander?


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,102
Reaction score
8,714
Location
NYC, USA
Would it be too much or a power strain on things if one also connected the USB hub to the Nano, and use a splitter for the power cable coming from the Expander?

Had a usb hub I wasnt using so slapped it on there just to try it, I don't think it would be an issue.
You could do this, but I don't like it, or really want it, think its needed. I have zero issues with removing the sd card / board from the cab if I really have to some desktop maintenance/updating, etc... where its a must.



Another issue I think would be if the Jamma Expander uses protection offered by the DE10 through the USB OTG port for power, will the hub that uses its own power barrel offers the same protection?

I love the JE, its simple and straight to point on what it does. I don't want to fuzz around with too much stuff, buttons, addons, etc...although all the extras in other solutions are nice to have.

Last edited:

HornheaDD

Student
Joined
Apr 28, 2021
Messages
84
Reaction score
38
Location
Texas
Wait, but doesn't the little MicroUSB to MicroUSB adapter prevent the OTG cable from connecting? I thought if the OTG cable wasn't attached to the board, you'd get no video?


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,102
Reaction score
8,714
Location
NYC, USA
Wait, but doesn't the little MicroUSB to MicroUSB adapter prevent the OTG cable from connecting? I thought if the OTG cable wasn't attached to the board, you'd get no video?
you should be able to use a good quality usb extension cable from the hub to the JE, instead of the OTG cable.

Ex....


HornheaDD

Student
Joined
Apr 28, 2021
Messages
84
Reaction score
38
Location
Texas
Ah. Because... there are... other powered USB ports.. there.. lol derp

#facepalm


invzim

Champion
Joined
Apr 9, 2016
Messages
868
Reaction score
1,920
Location
Oslo, Norway
I'm still new to Mister. I'm playing with the release candidate of the Mistercade, and I don't want to compare it too much to your product, I'm not in a position to do so. But I am running a Mister in cabs now. My experience so far is that it's necessary to have that keyboard at times. Not for operational use once things are 'perfect', but for setup.

If you do a revision to your board I'd keep that in mind, I think it is a bit of a shortcoming.

I didn't really want to bring the mistercade into this, but since you bring it up..
The design philosophies are quite different from what I can gather. My goal is to provide the missing pieces for treating MiSTer like an Arcade PCB (and not much else). Therefore, a few of the things that MiSTer has to offer is 'out-of-scope' for me, like adding hardware to enable NES Duck Hunt with SNAC.

Another aspect of adding 'stuff' is that it increases cost , chance of failure and even worse (for me :) ) - it all has to be tested / QA'ed before shipping.

For comfort, ease and speed of setup, I recommend doing the base install on a desk before 'cabifying' it. The way the firmware on the Expander works now, you get F12, ALT-F12, volume-up/volume-down, cursor keys, space and enter - which should be enough to interact with mister.

For updating the DE10 itself, I made a page where I describe how I do it https://irkenlabs.com/jamma-expander/mister-tips-tricks. YES, an ethernet cable in your cab would do the trick - but I swap out PCB's quite often, and it would be another cable to connect/disconnect when I do.

expander w network.jpeg

That being said, it would be nice to have a plug on the expander for a WiFi dongle, and maybe this will come in the future.


Aurich

Champion
Joined
Jan 28, 2016
Messages
1,511
Reaction score
2,660
Location
SoCal
I didn't really want to bring the mistercade into this, but since you bring it up..
The design philosophies are quite different from what I can gather. My goal is to provide the missing pieces for treating MiSTer like an Arcade PCB (and not much else). Therefore, a few of the things that MiSTer has to offer is 'out-of-scope' for me, like adding hardware to enable NES Duck Hunt with SNAC.
I respect that, and frankly I don't care about SNAC or Duck Hunt either. And really, I'd rather not be messing with it every week, I'm only going to make updates for big releases once I'm settled I think. I have found the keyboard support useful though. Certainly not any kind of deal killer for your product.

I'm also discovering that Mister as an arcade PCB replacement is cool, but still on the rough and early side. The politics of the project are beyond my emotional capability to be involved in, but I'm already slotting it as a fun novelty device, and not something that's going to really replace a ton of PCBs fore me in the near future. It's clear that consoles are the bigger priority outside of a few dedicated people's efforts.

Really it's almost more of a competitor for Darksoft's multis, since the strongest plays it has right now are CPS2, CPS1, and Neo Geo.

Still, if the Cave core alone is finished it will be more than worth it to me.


HornheaDD

Student
Joined
Apr 28, 2021
Messages
84
Reaction score
38
Location
Texas
Im really hoping to get a working IGS PGM core. I want to get a PGM board because they are fairly cheap and I have a Neo25 to toss it into but... some of those carts like Martial Masters... ooof.


MoppelTheWhale

Grand Master
Joined
Feb 16, 2018
Messages
811
Reaction score
747
Location
Nuremberg, Gemany
finally took the expander for a spin, so far it looks and sounds great. The usb connection on the de10 side looks like the cable is only half in the connector, but it works. i still need to play around a little bit with the controls, but didn't get around because the update_all script with the jotego beta cores took ages to download ||.

But overall great build quality, and as far as it is possible, it's really a plug and play affair. I certainly don't regret my purchase


Murray

Grand Master
Joined
Oct 8, 2019
Messages
857
Reaction score
900
Location
plunder island
I found that I can adjust the 5v in my Namco Exceleena cabinet PSU. I adjusted it down so it's showing 5v now. This cab has a Nanao MS9 chassis , all stock no mods etc etc.

Any ideas why I am only getting this when i plug the jamma expander into this cab? The setup is working, because when i plug it into my Atomiswave SD cab it all works fine. Just not on the Exceleena/Nanao MS9

Here's what the screen does

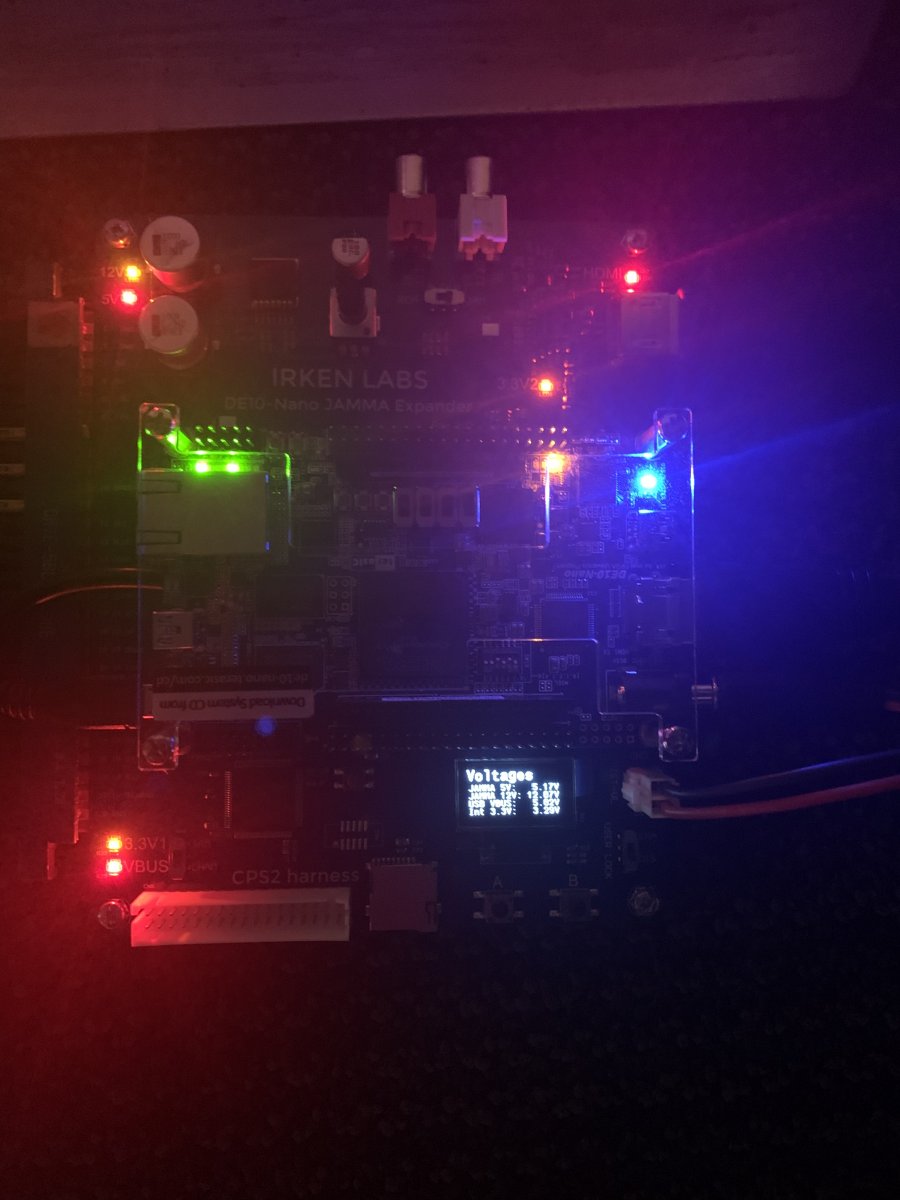

Here's what shows on the OLED, nothing else, it just shows this. Is it the 12v causing the issue? I read that this is what happens when the 5v is out, but will the 12v being this high trigger the system not to boot as well like the 5v does? I'm pretty sure the answer is going to be yes, i'll need to come up with a way to drop the 12v output because these PSU's definitely don't have anything to adjust 12v.




digitron

Professional
Joined
Jun 14, 2018
Messages
400
Reaction score
266
Location
Cal USA
That feeling when you finally keymap 'coin' to the actual coin slot and it works on mister...ahhh


Murray

Grand Master
Joined
Oct 8, 2019
Messages
857
Reaction score
900
Location
plunder island
That feeling when you finally keymap 'coin' to the actual coin slot and it works on mister...ahhh
My coin slots worked and i didn't have to do anything to it? Just ran the all update and then the coin slot works, on the games i tried anyways, cps1 and cps2.


HornheaDD

Student
Joined
Apr 28, 2021
Messages
84
Reaction score
38
Location
Texas
I found that I can adjust the 5v in my Namco Exceleena cabinet PSU. I adjusted it down so it's showing 5v now. This cab has a Nanao MS9 chassis , all stock no mods etc etc.

Any ideas why I am only getting this when i plug the jamma expander into this cab? The setup is working, because when i plug it into my Atomiswave SD cab it all works fine. Just not on the Exceleena/Nanao MS9

Here's what the screen does




Here's what shows on the OLED, nothing else, it just shows this. Is it the 12v causing the issue? I read that this is what happens when the 5v is out, but will the 12v being this high trigger the system not to boot as well like the 5v does? I'm pretty sure the answer is going to be yes, i'll need to come up with a way to drop the 12v output because these PSU's definitely don't have anything to adjust 12v.


Did you remember to do the step with editing the ini_settings?



I had forgotten and that was doing the same for me.


Incidentally, sometimes when I boot, I get the garbled video and the Sync lock, but if I shut down and restart, it's fine. Not sure what could be causing that.


Murray

Grand Master
Joined
Oct 8, 2019
Messages
857
Reaction score
900
Location
plunder island
Did you remember to do the step with editing the ini_settings?



I had forgotten and that was doing the same for me.


Incidentally, sometimes when I boot, I get the garbled video and the Sync lock, but if I shut down and restart, it's fine. Not sure what could be causing that.

Yeah, i did that and it's working on another cabinet at 15k. BUT that cabinet has a 12v line more around 12v. This cabinet has the 12v line around 13.5 as per the picture, it's the only thing i can think of at this stage.


invzim

Champion
Joined
Apr 9, 2016
Messages
868
Reaction score
1,920
Location
Oslo, Norway
@Murray and others, from thread activity I realize I have made a bad UI decision. The way it works is if it detects an abnormal supply voltage, it will show the voltage display and halt. In other words, not enable sync and other stuff. The thinking was that most cabs had their voltages dialed in somewhat reasonable, and that this would be a rare occurrence.

Executive summary: if the expander shows the voltage readings, and none of the buttons do anything - the expander is halted, sync is blocked, and it will not do anything.

I'll update the firmware ASAP and provide a bit better feedback via the OLED on what's going on, and probably relax the voltage requirements a bit.


Murray

Grand Master
Joined
Oct 8, 2019
Messages
857
Reaction score
900
Location
plunder island
@Murray and others, from thread activity I realize I have made a bad UI decision. The way it works is if it detects an abnormal supply voltage, it will show the voltage display and halt. In other words, not enable sync and other stuff. The thinking was that most cabs had their voltages dialed in somewhat reasonable, and that this would be a rare occurrence.

Executive summary: if the expander shows the voltage readings, and none of the buttons do anything - the expander is halted, sync is blocked, and it will not do anything.

I'll update the firmware ASAP and provide a bit better feedback via the OLED on what's going on, and probably relax the voltage requirements a bit.

Thanks for the reply.

What you described is exactly what I am getting. OLED shows voltage, but the buttons A/B don't do anything and it seems to just hang there.

It's all working fine for me on another cab, i used it for around 3 hours today, it's awesome. Just the high 12v on that cab is screwing it up.

So just to confirm for you. I have a Namco Exceleena 1 and 2 cabinet, internally they are all original, original Namco PSU, screens etc. They are identical inside, exactly the same PSU/wiring/chassis. PSU's were recapped around 12 months ago using the correct Nichicon PSU caps like hte originals. You can't change the 12v on these psu's, only the 5v. So with 5v showing as 5v on the Jamma extender oled, the 12v is showing @ 13.5v on one cab, and 13.8v on the other. They both do the exact same thing, hang the extender on the voltage screen with the picture i posted above.

Don't feel like you should change it to suit my cabs, if 13.5/8 is too high and it shouldn't work with a 12v that high, best to leave it as it is and i'll work out a way to drop the 12v somehow with some sort of inline voltage regulator.


nem

Legendary
Joined
May 29, 2016
Messages
4,532
Reaction score
3,904
Location
Finland
Oh, I thought the Expander was only monitoring the +5V rail.

No jamma cab will have an adjustable 12V rail. It just isn't needed. 12V rail powers audio amps on 99% of jamma boards and I think most audio amps can handle a maximum voltage of at least 18V.

Out of interest, what are the current thresholds?


Murray

Grand Master
Joined
Oct 8, 2019
Messages
857
Reaction score
900
Location
plunder island
I've been able to drop the 12v on these Exceleena cabinets down to 12v and they are now running the jamma expander perfectly!

Thanks for all the help with my noob questions, you guys are awesome.
