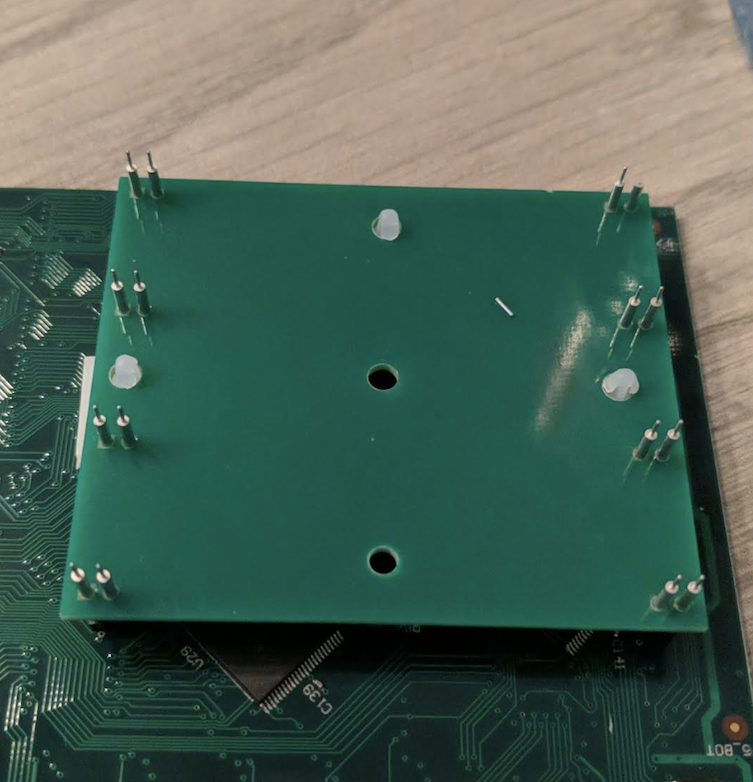

Guys I had a bent pin, tried to get it straight. Broke off. Am I totally effed? Trying to get it back in with pliers, assuming it doesn't just fit right in and won't work without this, right?

What should I do?


Bigsingerdawg

Enthusiast
Joined
Feb 27, 2017
Messages
382
Reaction score
153
Location
Toronto
literally so sad, not very technical so was taking a stab at it since my alpha 3 board looked like it was revision 7 and g pal and could just snap in place.


Attachments

  • Screen Shot 2018-11-09 at 3.02.26 PM.png
    Screen Shot 2018-11-09 at 3.02.26 PM.png
    696.2 KB · Views: 178

DarthMig

Enthusiast
Joined
Dec 17, 2017
Messages
260
Reaction score
80
Location
CT, US
literally so sad, not very technical so was taking a stab at it since my alpha 3 board looked like it was revision 7 and g pal and could just snap in place.
Exactly the same pin that broke on mine. If you know how to solder you can replace it yourself or you can talk tp @Mitsurugi-w and see if he can replace it for you.


Bigsingerdawg

Enthusiast
Joined
Feb 27, 2017
Messages
382
Reaction score
153
Location
Toronto
I'm useless and can't solder. Do I need to have the pin soldered back on or can something else be soldered to make the connection? @DarthMig


Bigsingerdawg

Enthusiast
Joined
Feb 27, 2017
Messages
382
Reaction score
153
Location
Toronto
@Mitsurugi-w some local guy said he could just solder something from the point to the board, is that possible or a waste of time?

@DarthMig thanks for the info, nothing arcade wise has been a first round go for me. Blast city came from SD completely broken and still working with insurance to get compensated, been ghosted by a few people who said they'd help me with some things and now this looked so easy I figured I'd try myself and meh.

I do consider myself lucky I have an MVS1 set up on my blast and it's working now, so so so awesome.


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,654
Reaction score
3,660
Location
Gold Coast, Australia
It's a waste of time because it's not the proper way to fix it.

It's not difficult to replace the pin and in most cases if you can get it to Mitsurugi-W (assuming you're in the Americas) he'll do it for you or at the very least supply the pins if you're happy to do it yourself/find someone to do it for you

@Mitsurugi-w if you're in the Americas
@CPZ - SAVEYOURGAMES if you're in Europe/elsewhere

I can do it for you if you're in Australia/NZ


Bigsingerdawg

Enthusiast
Joined
Feb 27, 2017
Messages
382
Reaction score
153
Location
Toronto
Hey team, @xodaraP @Mitsurugi-w @DarthMig

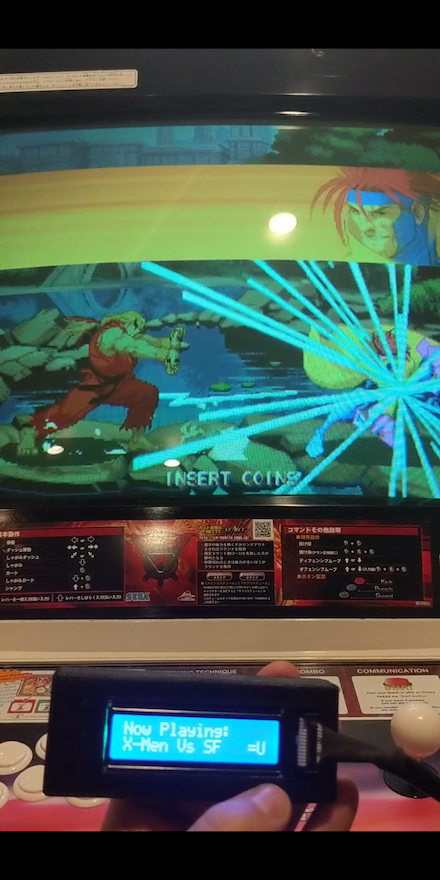

Drove an hour and a half last night and an absolute soldering legend was able to just wire the connection point to the back of the board and also solder the 4 wires that I didn't have for the new re-write firmware.

The kit is working amazing and home and in my cab.

Literally never been happier! @Darksoft you and Mitsu and team are doing amazing work, thanks for everything you're doing Saveyourgames.it also the best, much <3.

A side note is my STV mobo for that multi said something about a configuration or something weird might be related to the JP mobo and bios but will post in the STV thread.

Happy ending confirmed! Thanks Mitsu for the PM and offering me to send me replacements, class acts all around. Sucks I can't solder but is what it is.


Attachments

  • xmen vs sf darksoft cps2 smaller.png
    xmen vs sf darksoft cps2 smaller.png
    617.7 KB · Views: 165

Flain

Student
Joined
Sep 25, 2018
Messages
81
Reaction score
78
Location
Sydney, Australia
Hi All, i finally got around to installing my kit and i just get a blank screen when i try to boot i have a few questions and i'll try to put as much info as i can

I have a 93646B-6 board, it had a D-pal chip in it, i noticed a chip the same size came with the darksoft kit - is that a G-pal chip? I put that in place of my old chip.

I used a multi meter while doing my jumpers to make sure i have them as SOOS SO OSOSOS SOSOSOSO SOSOSOSO from the pdf file

Then i followed the wiring instruction for the 4 wires for the key writing.

Then since it wasn't working i removed the battery and shorted EXC5 (i heard that it works with battery now so wasnt sure if that was needed)

When i give it a try i can select a game and it writes it, says writing key, then i see it reboots (screen flash then says "now playing" on LCD) but still just a black screen. Any tips on where to start troubleshooting?


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,609
Reaction score
3,734
Location
The Netherlands
Hi All, i finally got around to installing my kit and i just get a blank screen when i try to boot i have a few questions and i'll try to put as much info as i can

I have a 93646B-6 board, it had a D-pal chip in it, i noticed a chip the same size came with the darksoft kit - is that a G-pal chip? I put that in place of my old chip.

I used a multi meter while doing my jumpers to make sure i have them as SOOS SO OSOSOS SOSOSOSO SOSOSOSO from the pdf file

Then i followed the wiring instruction for the 4 wires for the key writing.

Then since it wasn't working i removed the battery and shorted EXC5 (i heard that it works with battery now so wasnt sure if that was needed)

When i give it a try i can select a game and it writes it, says writing key, then i see it reboots (screen flash then says "now playing" on LCD) but still just a black screen. Any tips on where to start troubleshooting?
tip #1, post some pics of your install if you can, that will help tremendously :thumbup:


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,654
Reaction score
3,660
Location
Gold Coast, Australia
Hi,
The G PAL chip would have come with the kit and replaces the D PAL yes. If you're getting a black screen it means it's not reading the main program ROMs. There's a couple of reasons this might happen

- Your A and B boards are not seated correctly

- Your multi kit interconnect board (the small one) is not seated correctly - I feel this is less likely given you are getting writing on the LCD screen

- Your multi kit is not seated correctly - as above less likely

- You replaced the incorrect IC with the new G PAL (there are 3 PALs on the board only one of which should be replaced)

- Your key writing wires have been put on in the wrong order

I would start with reseating the A and B boards, making sure you replaced the correct PAL and checking your key writing wires.

As @PascalP said, pictures help ;)


Flain

Student
Joined
Sep 25, 2018
Messages
81
Reaction score
78
Location
Sydney, Australia

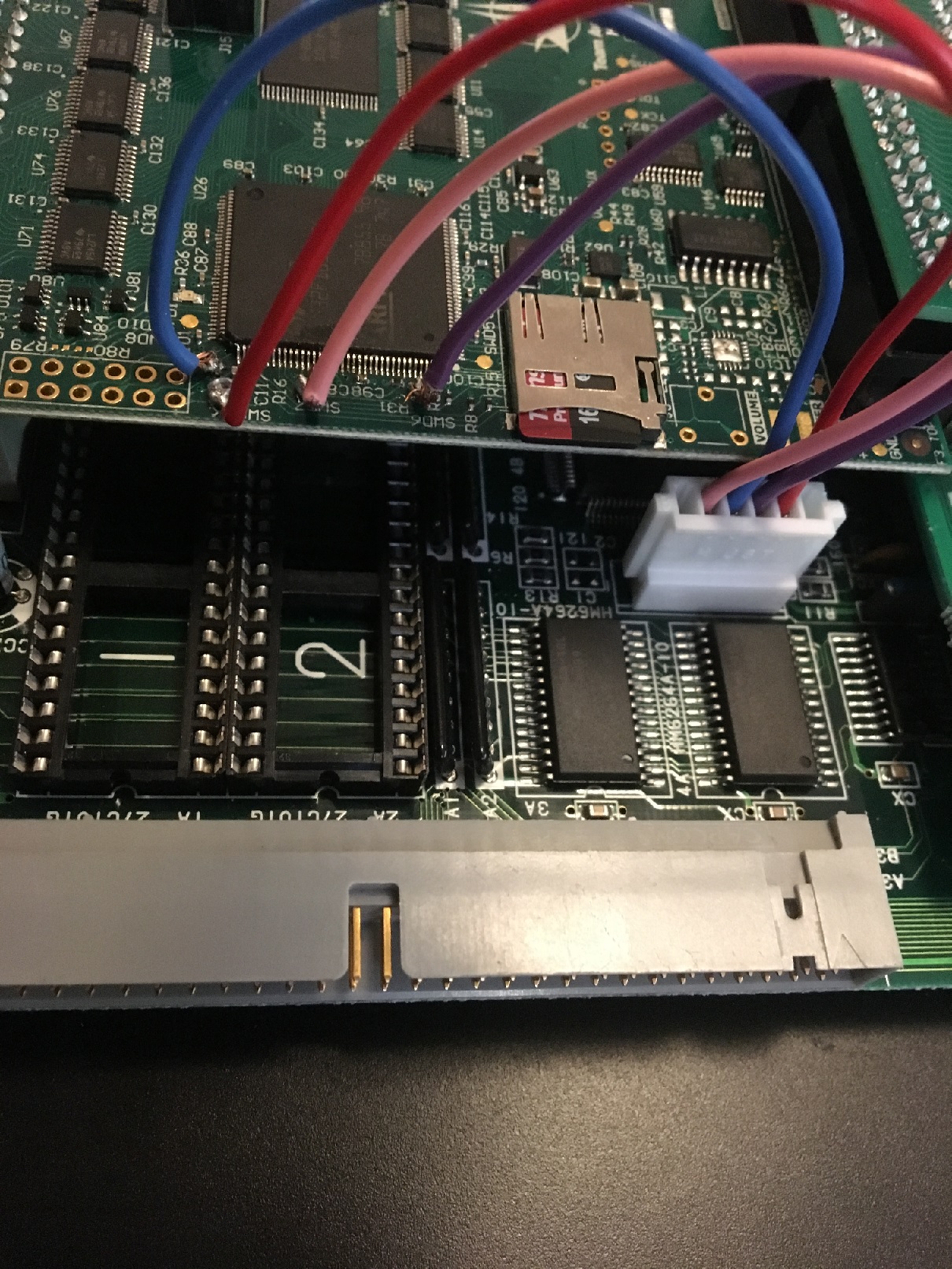

Here is some pictures, maybe it is my bad soldering skills?

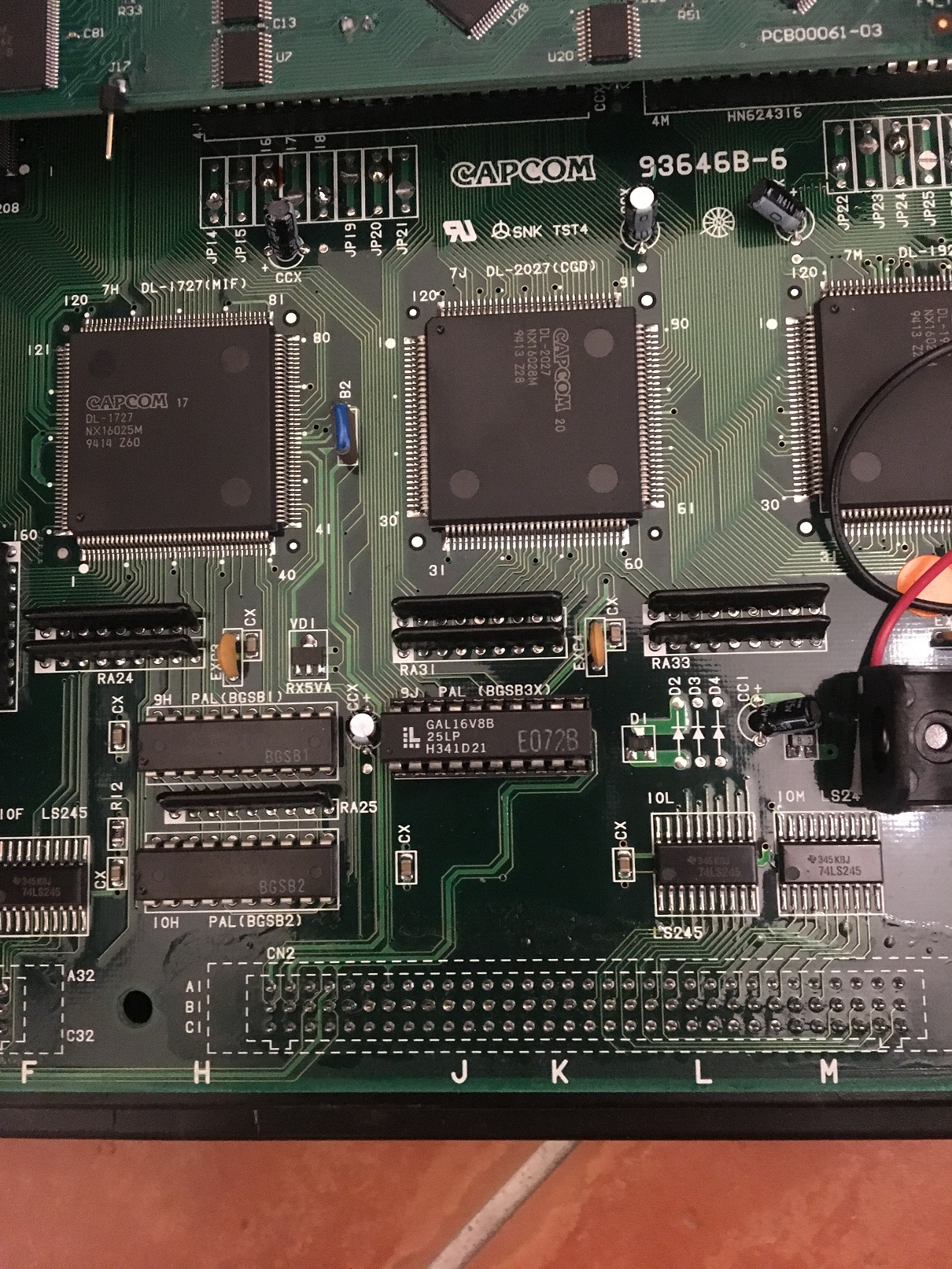

Here is the PAL chip (far right of pal chips)


Flain

Student
Joined
Sep 25, 2018
Messages
81
Reaction score
78
Location
Sydney, Australia
I also tried re-seating A+B unfortunately not that easy :(

I doublechecked the other boards and everything is in pretty firm, no bent pins. I struggled to solder the keywriting wires so maybe that is my problem?


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,654
Reaction score
3,660
Location
Gold Coast, Australia
I see you're in Australia too. I can have a look at it if you can't get it going

For now, check that you haven't bridged something when you soldered the key writing wires and reseat the boards


Flain

Student
Joined
Sep 25, 2018
Messages
81
Reaction score
78
Location
Sydney, Australia
Thanks for the offer, i'll do some double checking on if i shorted anything i think thats probably the most likely place i made a mistake i'm not used to soldering


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,654
Reaction score
3,660
Location
Gold Coast, Australia
That's the most likely problem I'd guess, don't beat yourself up though it actually looks pretty good. It's just there are some ICs really close to those pads and it's easy to cause a bridge

Particularly your purple wire


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,654
Reaction score
3,660
Location
Gold Coast, Australia
Actually. I've just noticed you have it wired up wrong.

On rev 6 you should have

Pin 2 of CN9 (Pink) going to Data which is where your Red wire is now

Pin 3 of CN9 (Blue) should go to Setup1 on multi where your Purple wire is now

Pin 4 of CN9 (Purple) should go to Clock on multi which is where your Blue wire is now

Pin 5 of CN9 (Red) should go to Setup2 where your pink wire is connected currently

If I had to hazard a guess I'd say you put the wires in the connector backwards ;)


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,609
Reaction score
3,734
Location
The Netherlands
Actually. I've just noticed you have it wired up wrong.

On rev 6 you should have

Pin 2 of CN9 (Pink) going to Data which is where your Red wire is now

Pin 3 of CN9 (Blue) should go to Setup1 on multi where your Purple wire is now

Pin 4 of CN9 (Purple) should go to Clock on multi which is where your Blue wire is now

Pin 5 of CN9 (Red) should go to Setup2 where your pink wire is connected currently

If I had to hazard a guess I'd say you put the wires in the connector backwards ;)
Backwards indeed ;)
