for those about to clock, we salute you


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,467
Reaction score
5,809
Location
Boston, MA

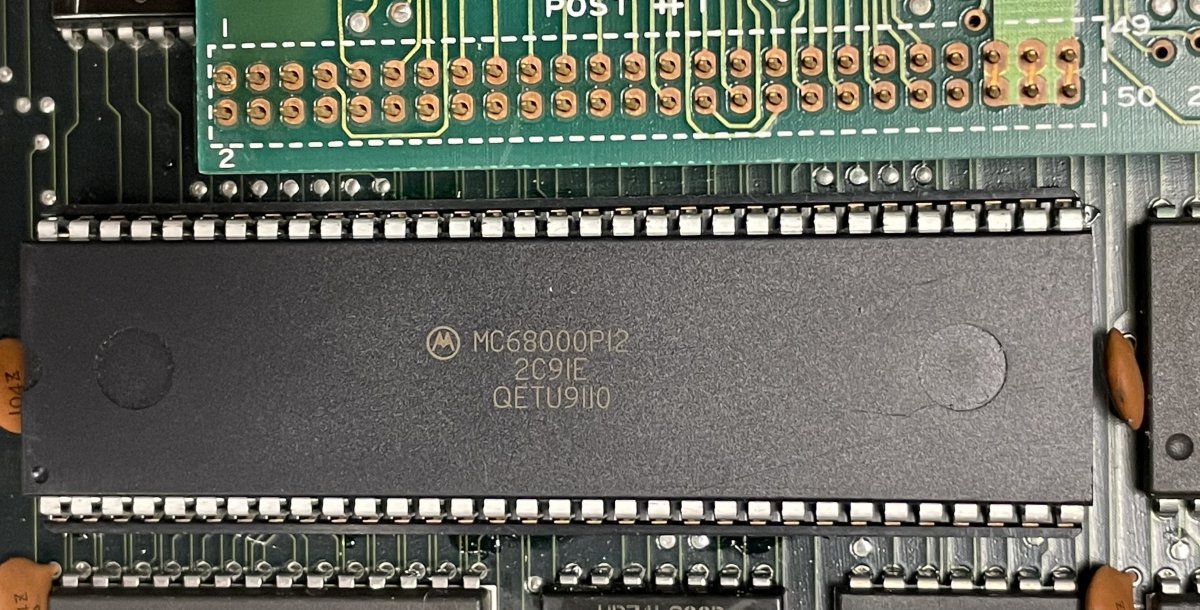

I should take on the 12mhz challenge with my board....
Couple of the pins are definitely in a ground plane, so they took more heat to pull and the vias were harder to clear with the vacuum. I also cut out the old processor to start, to save me from pulling any of these quite fragile traces. Be safe!


AlxUnderBase

Champion
Joined
Jan 25, 2018
Messages
1,955
Reaction score
2,257
Location
Constanta,Romania
I also cut out the old processor to start, to save me from pulling any of these quite fragile traces. Be safe!
:happy:

for those about to clock, we salute you
Sir , p16 isn't good ? anyway , no problem now to change if P16 will be needed since there are socket (what kind of dip64 socket is needed?) installed . beautiful :thumbsup:


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,467
Reaction score
5,809
Location
Boston, MA
@Hammy I had no spare 10mhz’s in the bin so that will have to wait. @AlxUnderBase I also had no spare p16 but I’ll try this one first anyway. The socket is a dual wipe version that I prefer to the round machine pin kind, but I had it as spare so I’m not sure where it came from. They are harder to find for sure but any socket works (avoid the narrow pitch 64pin tho)

Last edited:

Hammy

Enlightened
Joined
Feb 3, 2018
Messages
1,444
Reaction score
3,021
Location
U.K
You could try for the "1 wire mod" at 12mhz but it did not work for me. (but maybe that was the questionable processor...)


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,467
Reaction score
5,809
Location
Boston, MA
You could try for the "1 wire mod" at 12mhz but it did not work for me. (but maybe that was the questionable processor...)
I lifted pin4 on the 04 and tried a line from the 12 directly to the 68000 clock pin 15, but p47 didn’t boot.


Hammy

Enlightened
Joined
Feb 3, 2018
Messages
1,444
Reaction score
3,021
Location
U.K
I lifted pin4 on the 04 and tried a line from the 12 directly to the 68000 clock pin 15, but p47 didn’t boot.
Excellent , so 12mhz is impossible triple confirmed.

If you have an 8mhz clock it should also work for a little bump in speed along with the 10mhz.
8 is maybe more sensible but big striker and the boss games will still chug at times.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
@ekorz Nice job! I havent dont mine yet, and now that you say to cut out the old cpu, will do it that way.

Would you say using solder tweezers to grab/heat the pins from one side and using a vacuum solder sucker on the other side would be a good method? Clearing out the vias is always the pita.


kuze

Champion
Joined
Jul 22, 2015
Messages
2,064
Reaction score
1,620
Location
DFW
@ekorz Nice job! I havent dont mine yet, and now that you say to cut out the old cpu, will do it that way.

Would you say using solder tweezers to grab/heat the pins from one side and using a vacuum solder sucker on the other side would be a good method? Clearing out the vias is always the pita.
If you have already cut the pins on the original CPU, then when using your desoldering gun you can "free" the pin by wiggling the gun around a bit after the solder is melted and it will often drop right through. If it doesn't though, then tweezers to gently bend the pin so it will fall free.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
If you have already cut the pins on the original CPU, then when using your desoldering gun you can "free" the pin by wiggling the gun around a bit after the solder is melted and it will often drop right through. If it doesn't though, then tweezers to gently bend the pin so it will fall free.
Thanks, Trying to figure best method to use that will also clear the holes. I will cut out the cpu. makes sense. Or maybe just use hot air to remove it in one shot and solder sucker to clear out the holes. Ah choices lol.


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
4,467
Reaction score
5,809
Location
Boston, MA
@Derick2k i can’t say I have the best gear. My heated tweezers suck. I cut out the chip, dragged some fresh solder across both sides and all pins, then freed them one by one with the iron. That meant every hole was still plugged but already had some fresh solder on both sides. Almost all of them cleared instantly with the vacuum that way, but some required me to heat both sides with my ghetto iron-on-one-side-vacuum-on-the-other dual wield technique.


Hammy

Enlightened
Joined
Feb 3, 2018
Messages
1,444
Reaction score
3,021
Location
U.K
Or maybe just use hot air to remove it
NO!!!!!!!!! That's worse, you will prob. melt the connectors, bannana the poor pcb and overheat the shit out of other chips.
Just take it easy and use normal soldering equipment.

Use low melting point solder on the grounds if needed.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
NO!!!!!!!!! That's worse, you will prob. melt the connectors, bannana the poor pcb and overheat the shit out of other chips.
Just take it easy and use normal soldering equipment.

Use low melting point solder on the grounds if needed.
I was going obviously protect the surrounding stuff is using hot air :D , but yeah, will just take it slow, cut out the chip, do it pin by pin, nice and easy :thumbsup:


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,087
Reaction score
13,823
Location
Poland
Can someone post to a multi-ready PCB for this up for sale on eBay?


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
9,849
Reaction score
10,618
Location
NYC, USA
Can someone post to a multi-ready PCB for this up for sale on eBay?
There are a few on ebay, but are overpriced imo, kinda, the games have always kinda had a higher price and the sellers left that have suitable boards always list their items way higher than normal.
The Lowest cost board you can hope to get is a P47 The Freedom Fighter and you will probably get a better price through a private sale on a forum, etc...

Now if you need one for personal use, let me know ;)


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,909
Reaction score
11,366
Location
NH, USA
The Lowest cost board you can hope to get is a P47 The Freedom Fighter
in the USA for sure. I think in Europe and Japan Soldam is the more cost effective game.

I used to buy these for $100-$150 a piece but since the multi announcement the price has gone up overnight. There's a malfunctioning P47 on KLOV right now for $200.
