Is there a good technique for removing solder off of SMD chip pins after removal? that always seems like the longest most annoying step in the process when I salvage or reflash chips.
Hi
About removing solder off smd pins, best options is using good « tin soldering braid » around 350deg cel). Be careful using this technique ! Not recommended, but the most common.

using hot temp with smd chips can quickly destroy the chip or partially destroy it, removing the ability to write on it for exemple « , especially if you use hot air temp upper than 250/300 deg cel. Not a good option for me !

I use special alloy to remove smd chips (not the more cheap for sure), the « quikchip alloy » is the best solution to remove smd using very low temperatures and avoid to destroy anything : motherboard pads, eeprom chips (melting below 90deg Celsius and be « liquid » state for some seconds !).

First remove excessive tin on smd chip using braid, then put some good flux on them, then only, put allow on chip pins using classic iron, it easily melt around 150deg with airflow in 3/4 seconds and permit fast removing of smd chips.

I’ve tryed to remove original chip using classic method and I’ve issued the same situation : impossible to write on it etc..

Also use the correct adapter on your writer (8, 16 bits etc..) if not it will not be good.

Last edited:

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
9,838
Reaction score
9,082
Location
NH, USA
First remove excessive tin on smd chip using braid, then put some good flux on them, then only, put allow on chip pins using classic iron, it easily melt around 150deg with airflow in 3/4 seconds and permit fast removing of smd chips.
yes, chipquik is what I normally use; I've never had good luck with normal high-temp hot air. but I've found it difficult to get the chipquick off of the chip... I can remove the chip is 2-min then spend 30-min getting the chip quick off of the pins :-/


Nic034

Student
Joined
Dec 13, 2016
Messages
86
Reaction score
27
Location
Montpellier, France
yes, chipquik is what I normally use; I've never had good luck with normal high-temp hot air. but I've found it difficult to get the chipquick off of the chip... I can remove the chip is 2-min then spend 30-min getting the chip quick off of the pins :-/
Yes same issue for sure for me :)


arcadeaction

Student
Joined
Oct 28, 2015
Messages
86
Reaction score
45
Location
FL, USA
Question for BIOS / Cart Compatibility: Can an original 3rd Strike cart (that I think even the replaced battery has gone bad after a few years) be reflashed to use the new ULTRA SIMM BIOS so that it will work with both the ULTRA SIMM multi and the original CPS3 multi kit?

Basically I have an original version CPS3 multi running with an SCSI/SD card, and I'd like to upgrade another CPS3 PCB to the ULTRA SIMM kit and have upgrade both my multi cart and my original 3S cart so they could work with either kit.

Thanks


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,660
Reaction score
6,220
Location
New Bern, NC USA
Yes. The UltraBIOS is fully compatible with original simms and SuperBIOS CDs. The only difference is that the Ultrasimms are compatible with a NoCD version since you don't have to write games any longer.


nonosto

Grand Master
Joined
Jun 5, 2018
Messages
1,348
Reaction score
210
Location
FRANCE
So if I have a no CD BIOS on my ultrabios cart can I use it like superbios with original SIMMS and sd2scsi ?


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
860
Reaction score
433
Location
Mission Viejo, CA, USA
My guess is that to use your sd2scsi (or a scsi cdrom) and use the original SIMM kit you will need the CD BIOS flashed.


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
860
Reaction score
433
Location
Mission Viejo, CA, USA
Did you erase it first? If so you probably have a short still between two pins on the chip or your adapter isn't making good contact with all pins on the chip.

Strangely - I was able to erase it on my flashcat, but not my TopMax II.

Weird, but I have choices I guess!

Matt


spacejockey

Student
Joined
Aug 27, 2019
Messages
131
Reaction score
68
Location
France
Hello,

I just got a CPS3 system with original SCSI cdrom player and since I am not familiar with that system. and I've heard it's quite fragile, I thought I would ask a few tips here first :)

Here are a few photos of my setup :

the modified cart (don't know who did it and what BIOS it is):

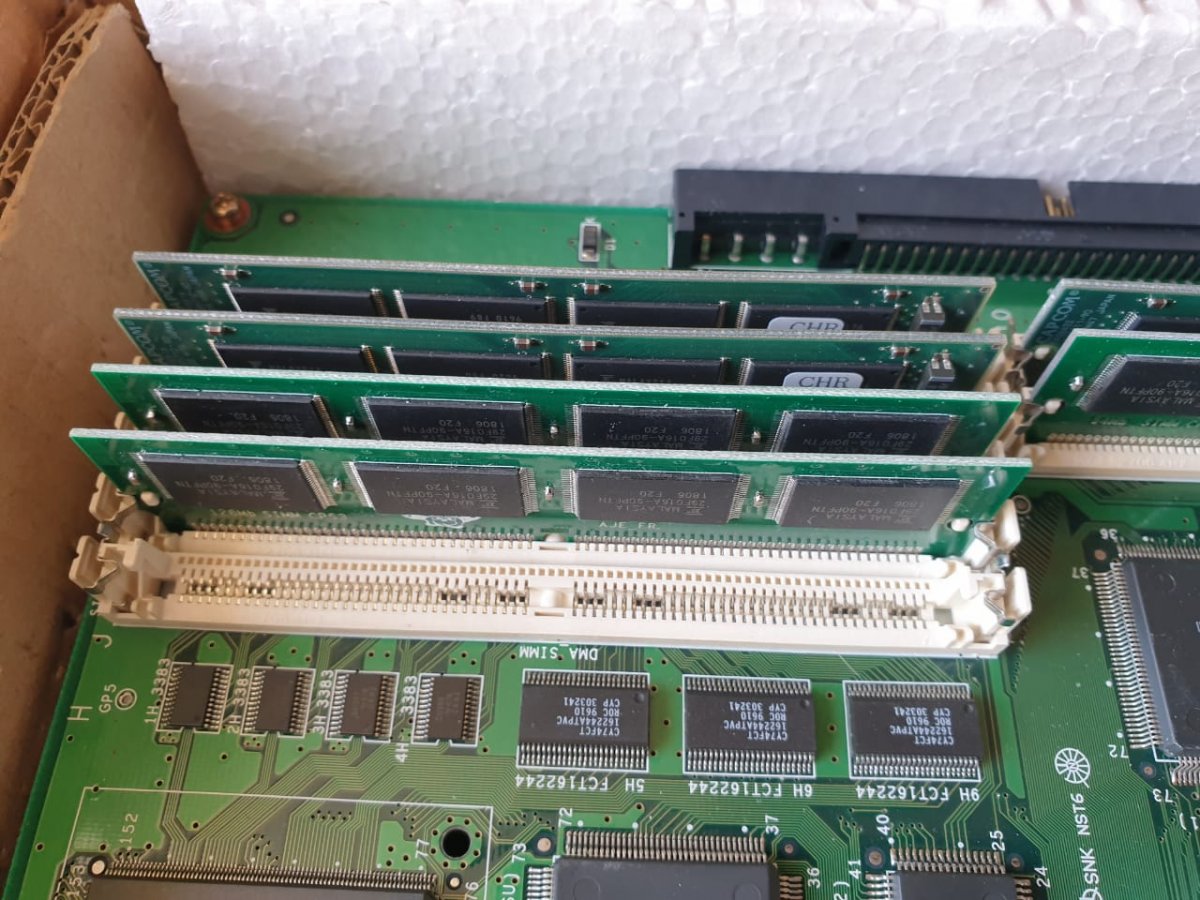

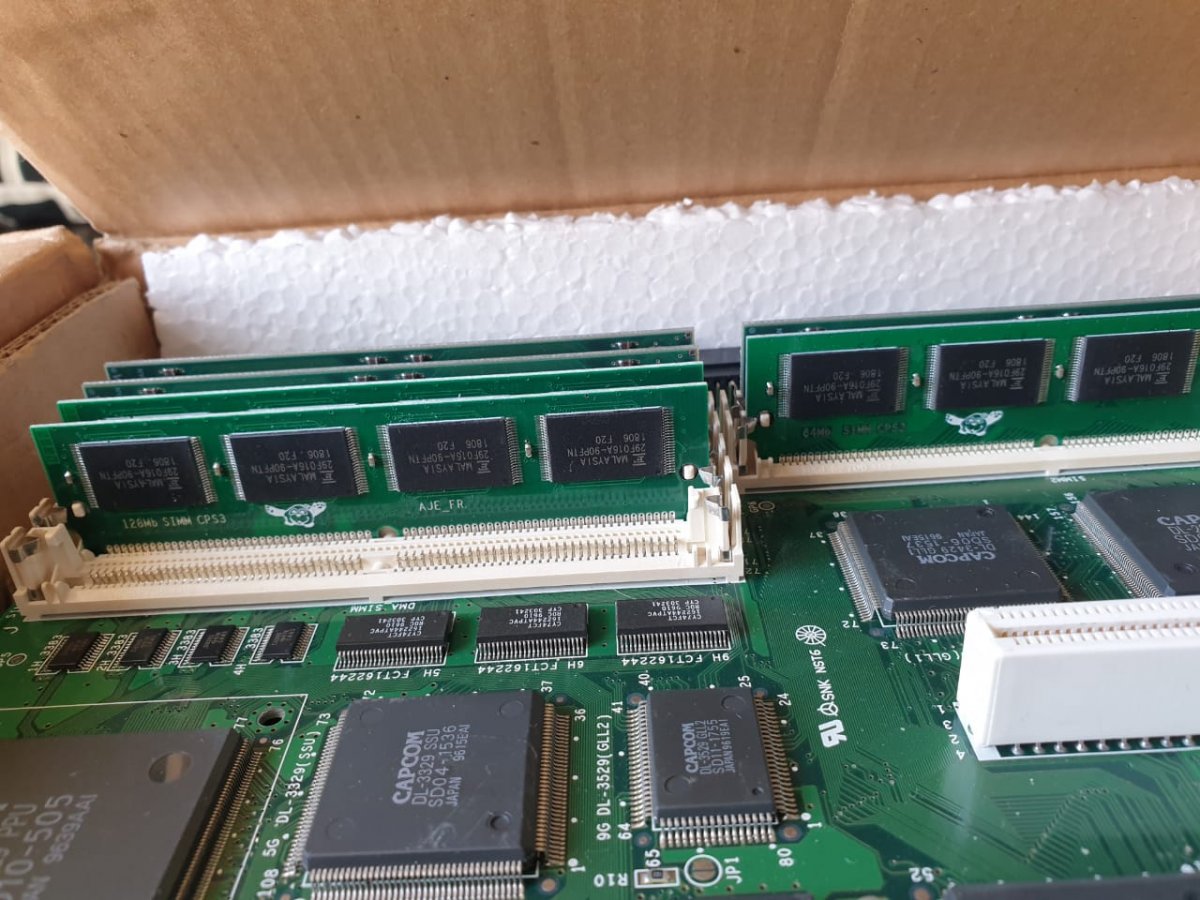

the simms (apparently from Aje.fr) :

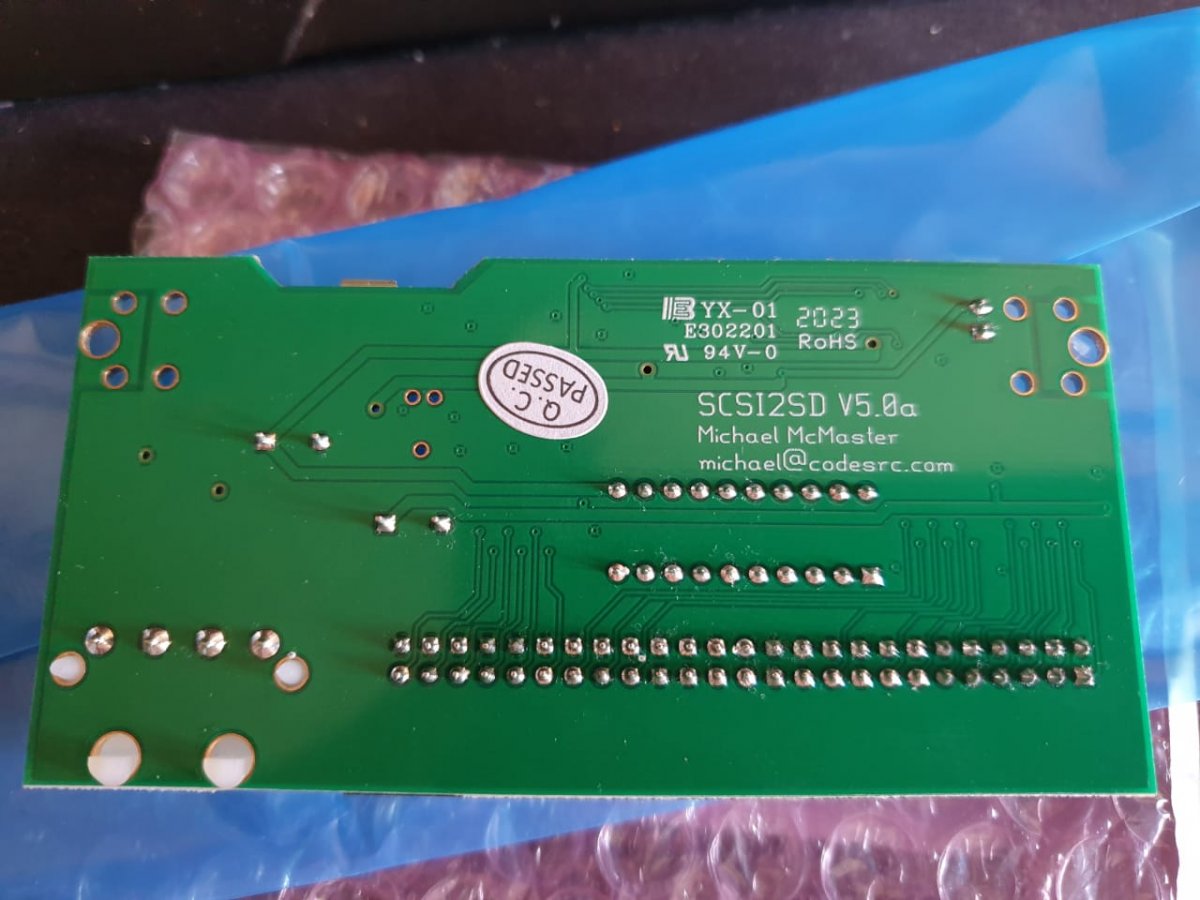

the scsi2sd pcb i ordered (is this the one when you dont need to plug the cables ?) :


There is also a CD with darksoft cps3 library, but i don't know which one since it is in the cdplayer and I haven't started it yet.

I wanted to get rid of the cdrom player before plugging the system for the first time on my cab, so I ordered an SCSI2SD pcb.

I also downloaded this cps3 game library from here (2 files) for the SD card:

Didn't know if I should take a BIOS for the SD card, so if I need to, can someone please tell me which one I should get ?

And if I should format the SD card on a special format ?

Thanks for taking the time to help/educate my noob butt ^^


djsheep

Multi Boyz Overlord
Legendary
Multi Boyz
Joined
May 20, 2016
Messages
4,780
Reaction score
5,923
Location
Brisbane, Australia
@spacejockey -- Photos are a bit too small to make out clearly :)

Before going ahead, I would try to load the system up with the SCSI CD-Rom / Disc to make sure it's all working first :)

You won't need to plug in power for the SCSI2SD, just the SCSI cable.

Post up a larger picture of the cart so we can see if it's a CUSTOM or STANDARD SH-2 so we can point you to the right files to put on your SD. Once it's know, you just choose the correct file for your processor type here: https://www.arcade-projects.com/threads/cps-iii-bios-and-cd-releases.36/

You can then follow the instructions in this post to write the SD card and configure your SCSI2SD to work: https://www.arcade-projects.com/threads/cps-iii-bios-and-cd-releases.36/page-25#post-266720

Good luck!


djsheep

Multi Boyz Overlord
Legendary
Multi Boyz
Joined
May 20, 2016
Messages
4,780
Reaction score
5,923
Location
Brisbane, Australia
Looks like a Standard SH-2 chip which is cool because you can also play 4th Strike with it (look for the right version to flash to SD).

I’ve also used that SCSI2SD 5.0a board with no issues. Nice setup! Let us know how it goes.


spacejockey

Student
Joined
Aug 27, 2019
Messages
131
Reaction score
68
Location
France
Awesome ! Thanks a lot for all the infos @djsheep
Also not familiar with the 4th strike version... will look into that right now to see what it is about.

As you suggested I will try to plug with the cdrom player first, then follow those steps.

EDIT:
I finally tried to plug the game and it works like a charm.

Made a few credits on the game.
And rebooted to go into the darksoft menu (hold the 1p button) to rewrite the ROMS with SFIII 3rd Strike.

I'm 57% in the rewrite now and it should be playable in 15 min.

I will let you know how this went then :)

EDIT 2 : It went perfect ^^

Next step is get an SD card filling it and go on with the scsi2sd tests.

Thanks again for the tips Djsheep

Last edited:

jpinball80

Beginner
Joined
Mar 20, 2017
Messages
29
Reaction score
2
Hello, maybe already answered but with the new ultrabios, is the region selection menu still displaying each time I power the board or I need to stay with Japan superbios? thanks


spacejockey

Student
Joined
Aug 27, 2019
Messages
131
Reaction score
68
Location
France
Hi there gang !

Concerning the SD card, do I need to use a special format (FAt32, Ntfs, ... )

And do I have to unzip the library on the SD card or I should just drop them as is on the SD card ?

Thanks


djsheep

Multi Boyz Overlord
Legendary
Multi Boyz
Joined
May 20, 2016
Messages
4,780
Reaction score
5,923
Location
Brisbane, Australia
@spacejockey you need to flash the .iso file to your SD card using a program such as Etcher. No need to format the card as the allocation table of a CD is written to the SD.


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
9,135
Reaction score
10,655
Location
Poland
There is a pinned thread about it in the cps3 section. Please check that first.
